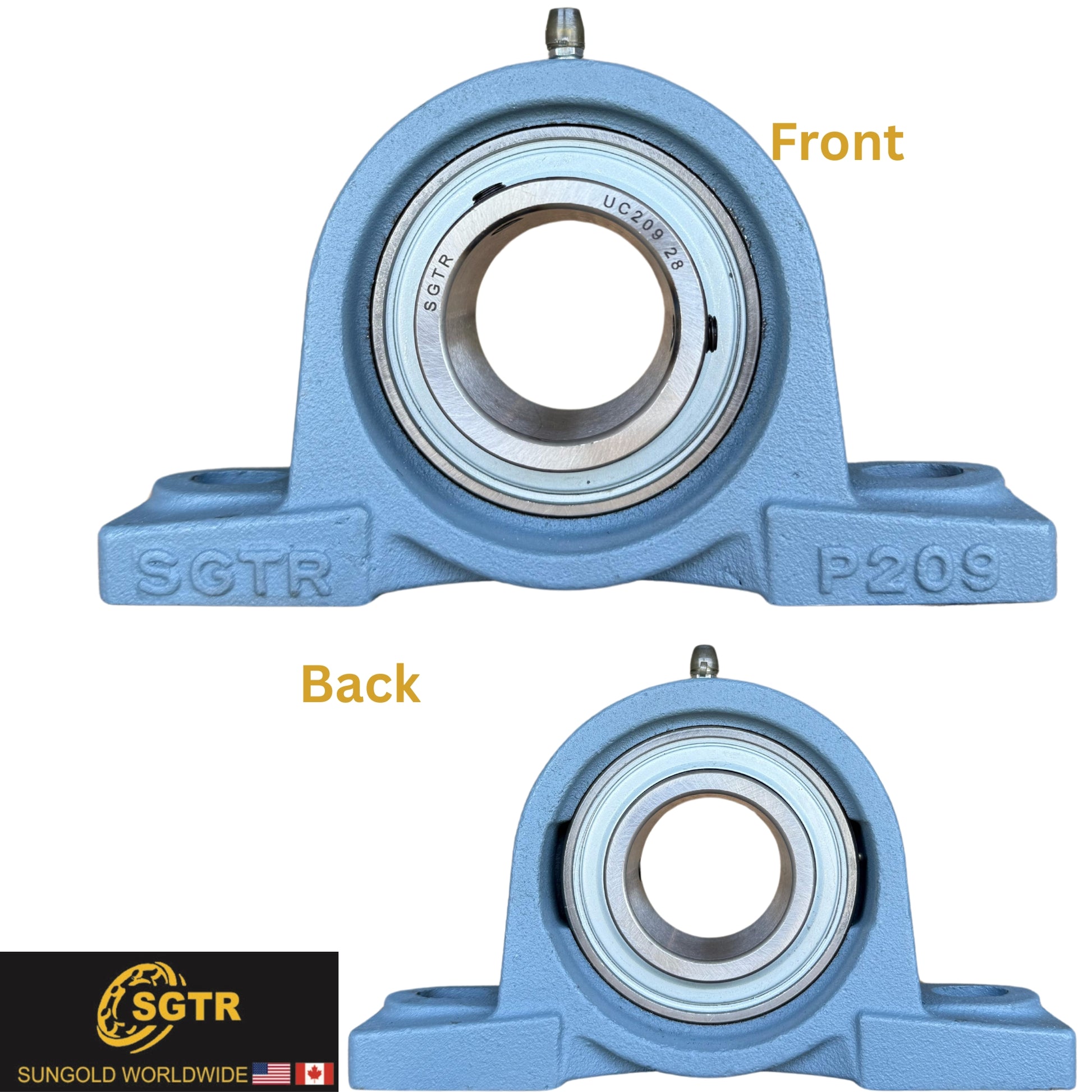

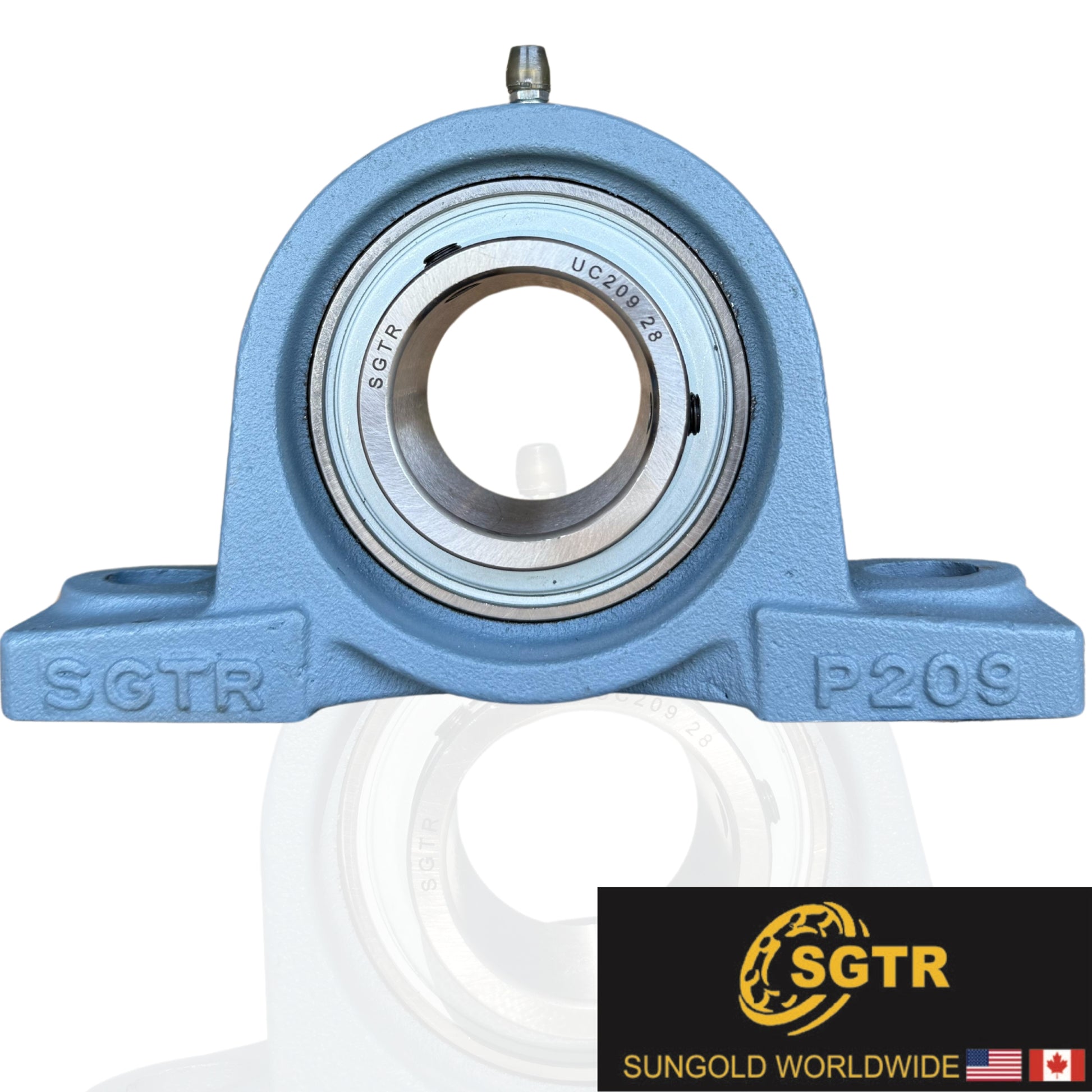

UCP209-28 Pillow Block Bearing 1-3/4" inch Bore

The UCP209-28 pillow block bearing is designed for reliable shaft support and long-lasting performance in industrial applications. With a 1-3/4 inch bore size, this mounted bearing unit is ideal for conveyors, machinery, and heavy-duty equipment.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

• Model: UCP209-28 Pillow Block Bearing
• Bore Size / Inner Diameter: 1-3/4" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Height: 4-3/16"
• Overall Length: 7-15/32"
• Bolt Hole to Bolt Hole: 5-3/4"
• Base to Center: 2-1/8"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 4,676 lbf
• Dynamic Load: 7,160 lbf
• Speed Limit: 3,700 RPM
• Weight: 4.9 lb

Interchange (for reference only):

Complete pillow block unit (UCP209-28) cross-references

• AMI: UCP209-28
• Browning: VPS-228
• Dodge: P2B-SC-112
• Fafnir/Timken: RASC-1 3/4 / YAS-1 3/4
• Link-Belt: P3-U228N / P3-Y228N
• NSK: USP209-28S
• NTN: UCP209-112T
• Peer: FHSP209-28G
• RHP: NP-1 3/4
• Sealmaster: NP-28

Insert (UC209-28) cross-references

• AMI: UC209-28
• Browning: VS-228
• Dodge: INS-SC-112
• Fafnir/Timken: GY1112KRRB
• Hub City: YW250-1-3/4
• IPTCI: UC209-28
• Link-Belt: UG228NL
• NTN: UC209-112D1
• SKF: YAR209-112
• Sealmaster: 2-1-3/4 Insert

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
