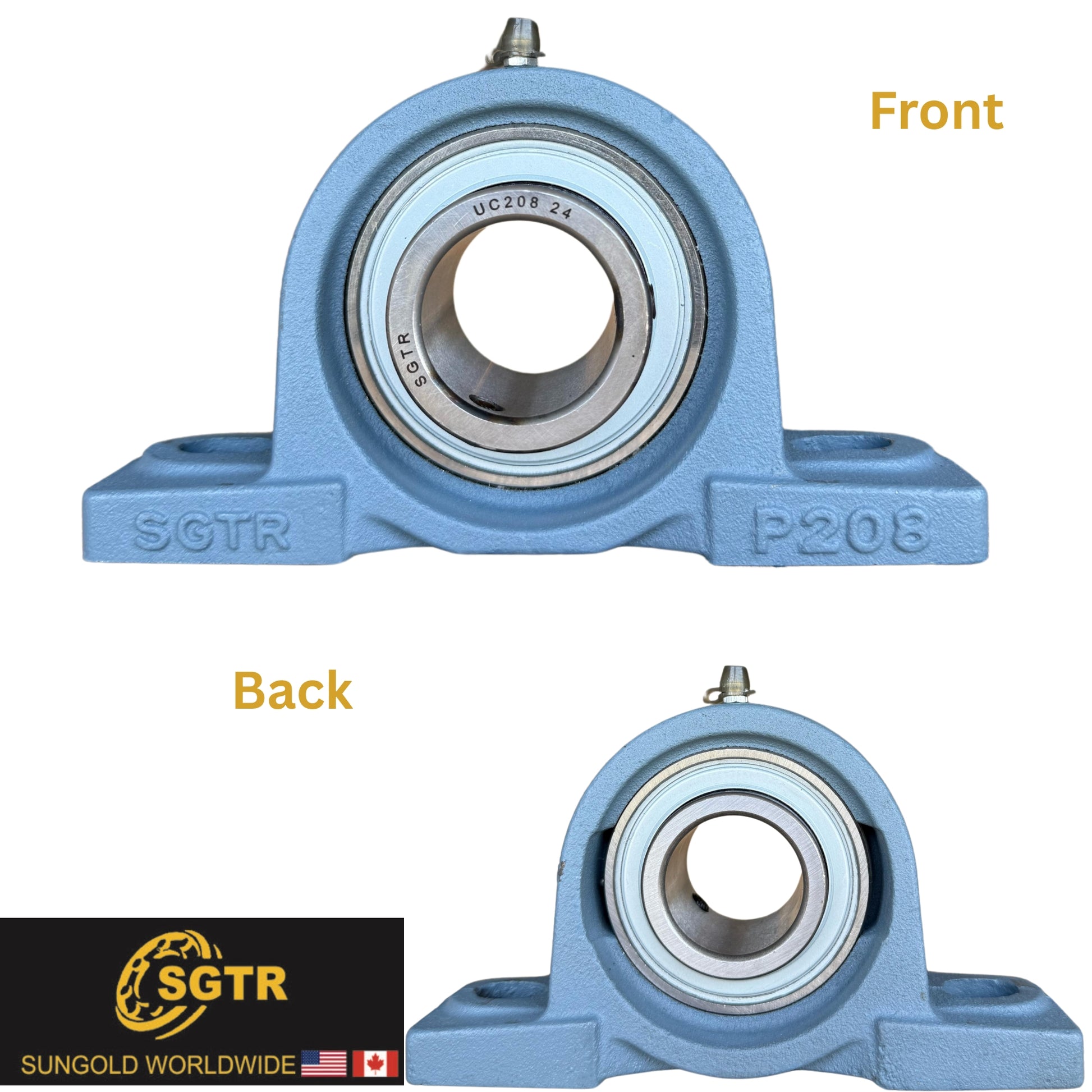

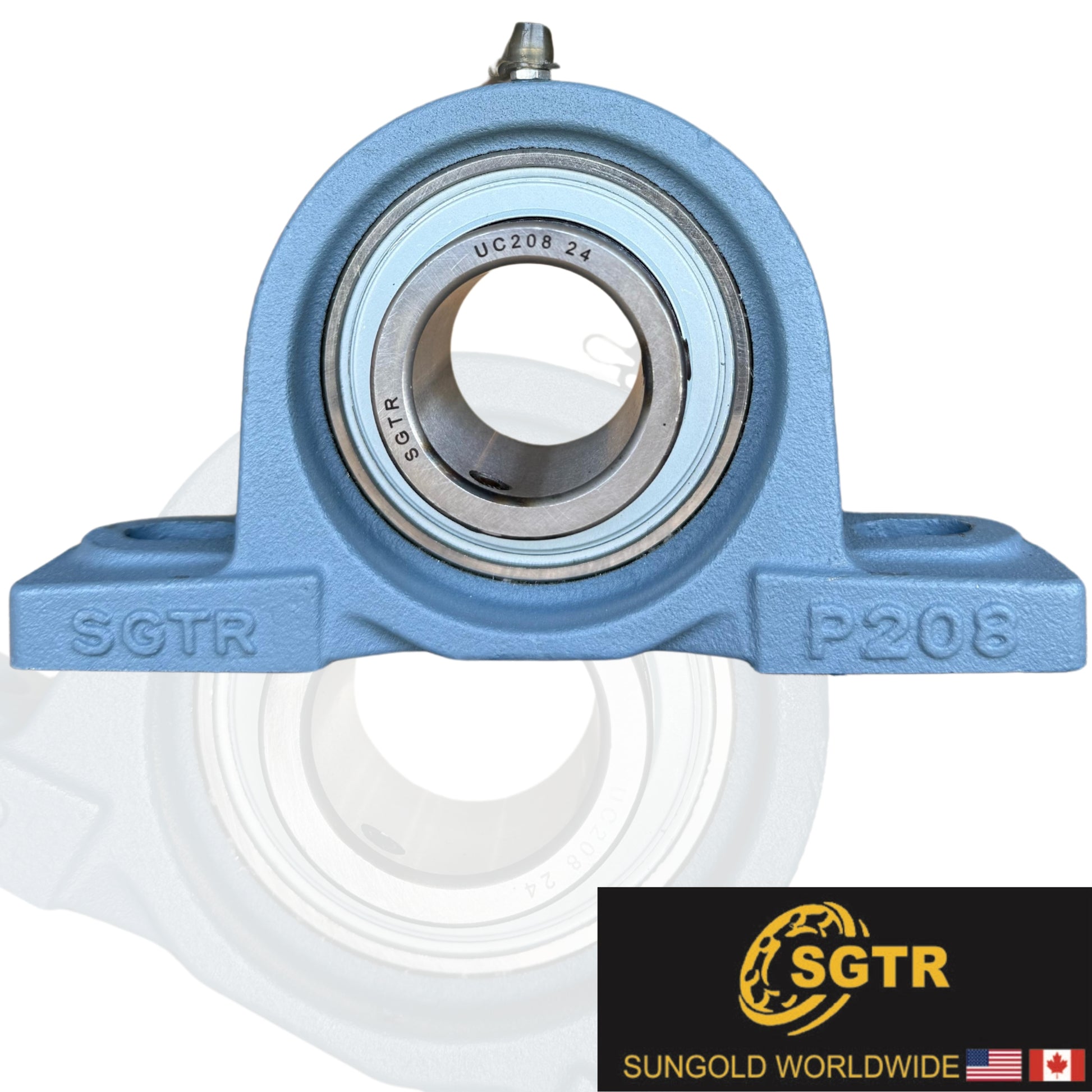

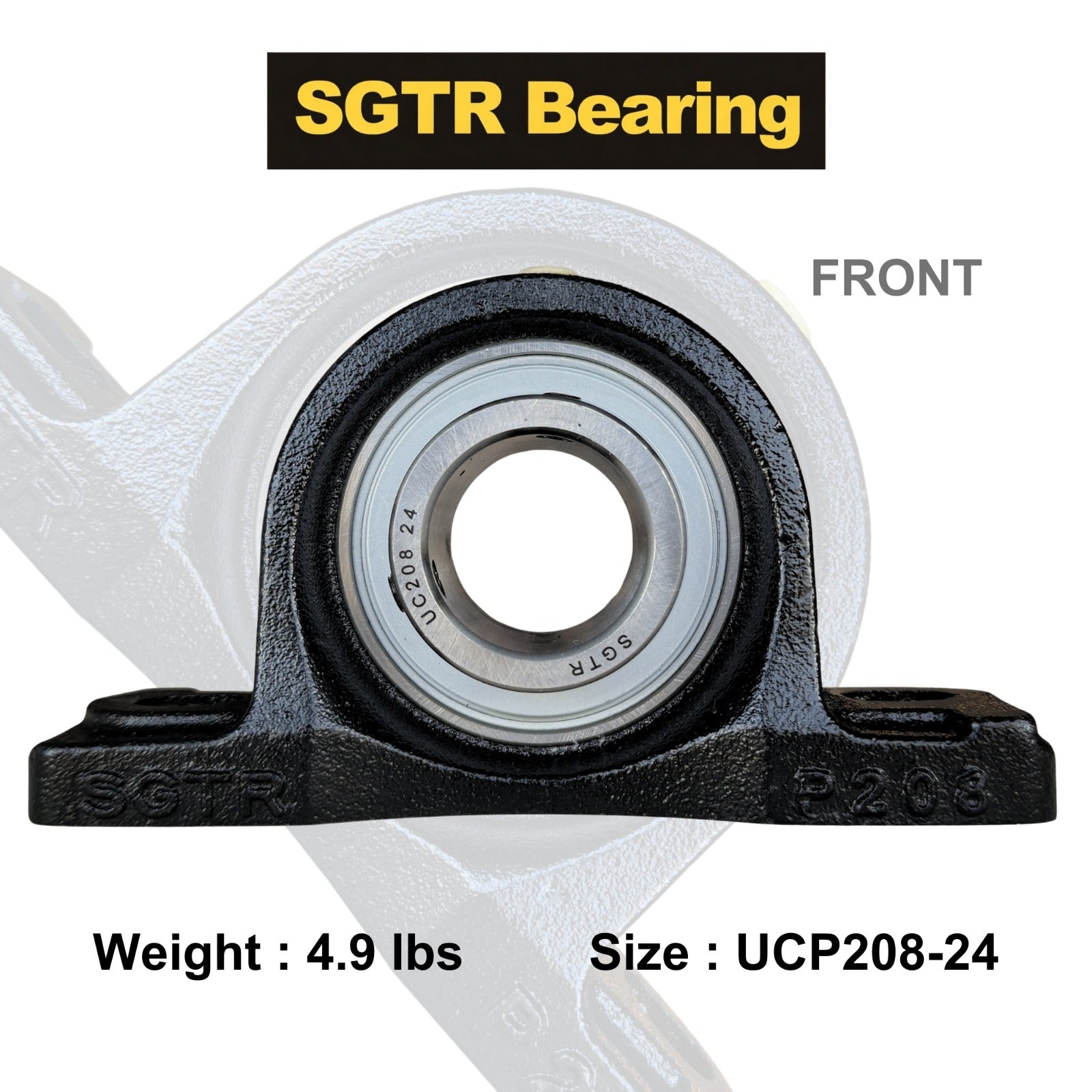

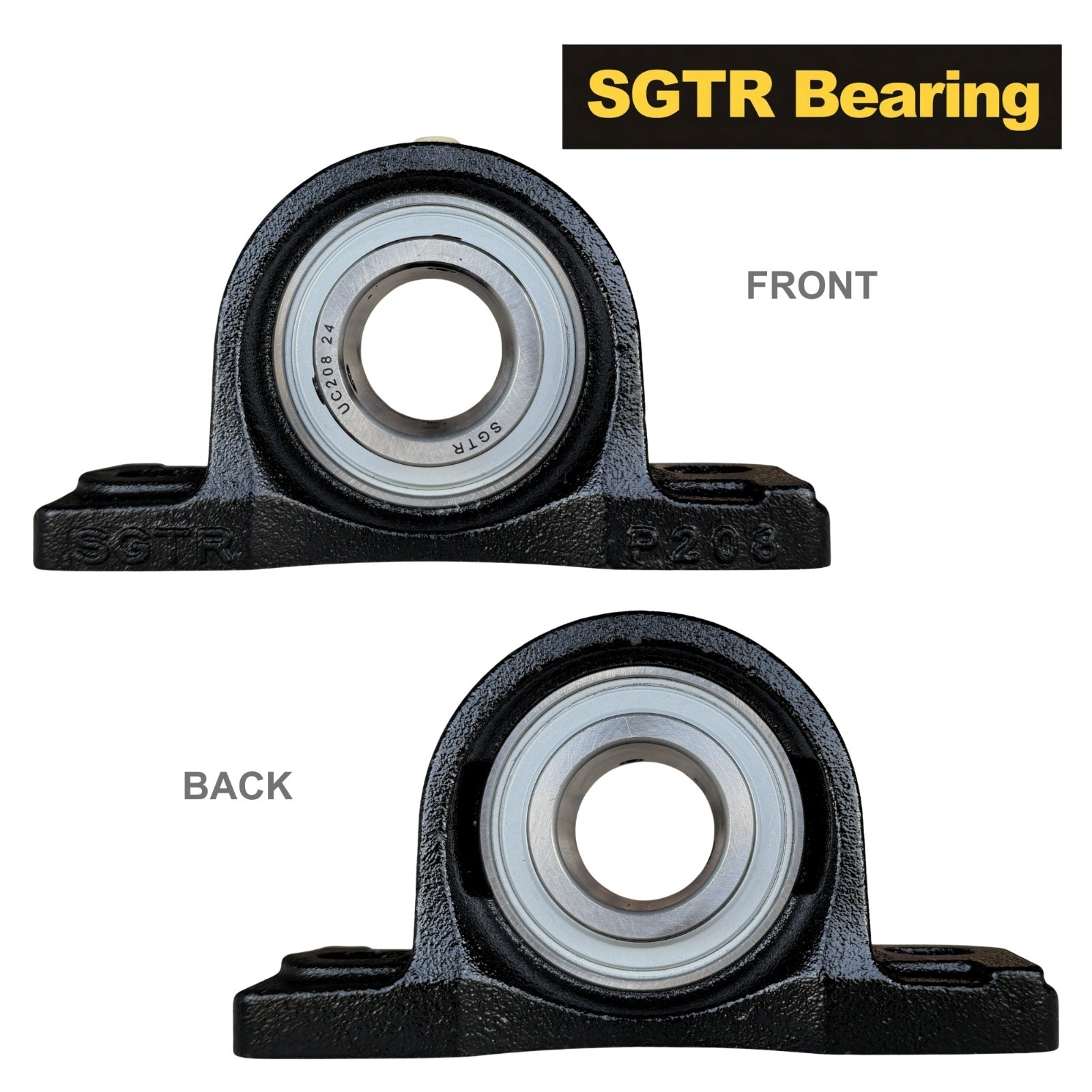

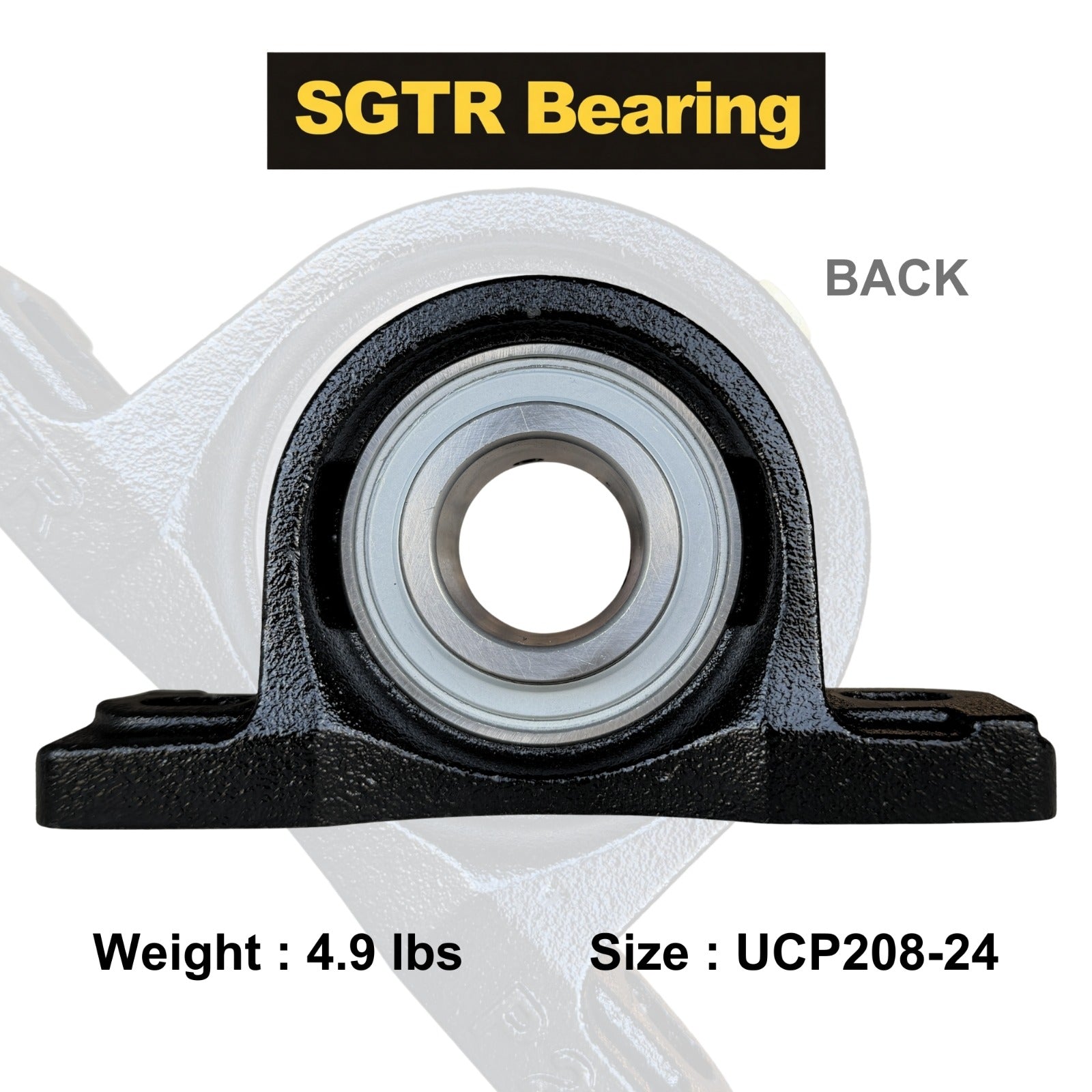

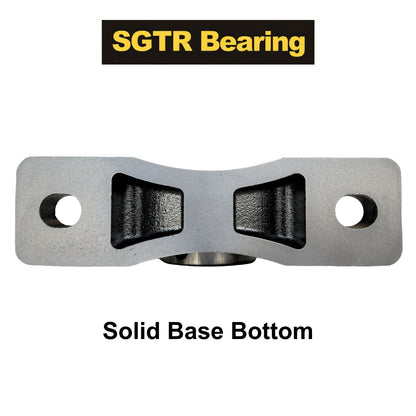

UCP208-24 Pillow Block Bearing 1-1/2" inch Bore

UCP208-24 Pillow Block Bearing 1-1/2" inch Bore

$19.50 USD
$19.50 USD
Sale Sold out
Shipping calculated at checkout.

The UCP208-24 pillow block bearing delivers reliable shaft support and precise alignment for demanding industrial applications. With a 1-1/2 inch bore size, this mounted bearing unit is a durable choice for conveyors, machinery, and heavy-duty equipment.

Premium-grade quality from a USA-based company
Available at a fraction of leading global brand prices
Fast USA shipping with bulk order discounts

Specifications:

  • Model: UCP208-24 Pillow Block Bearing

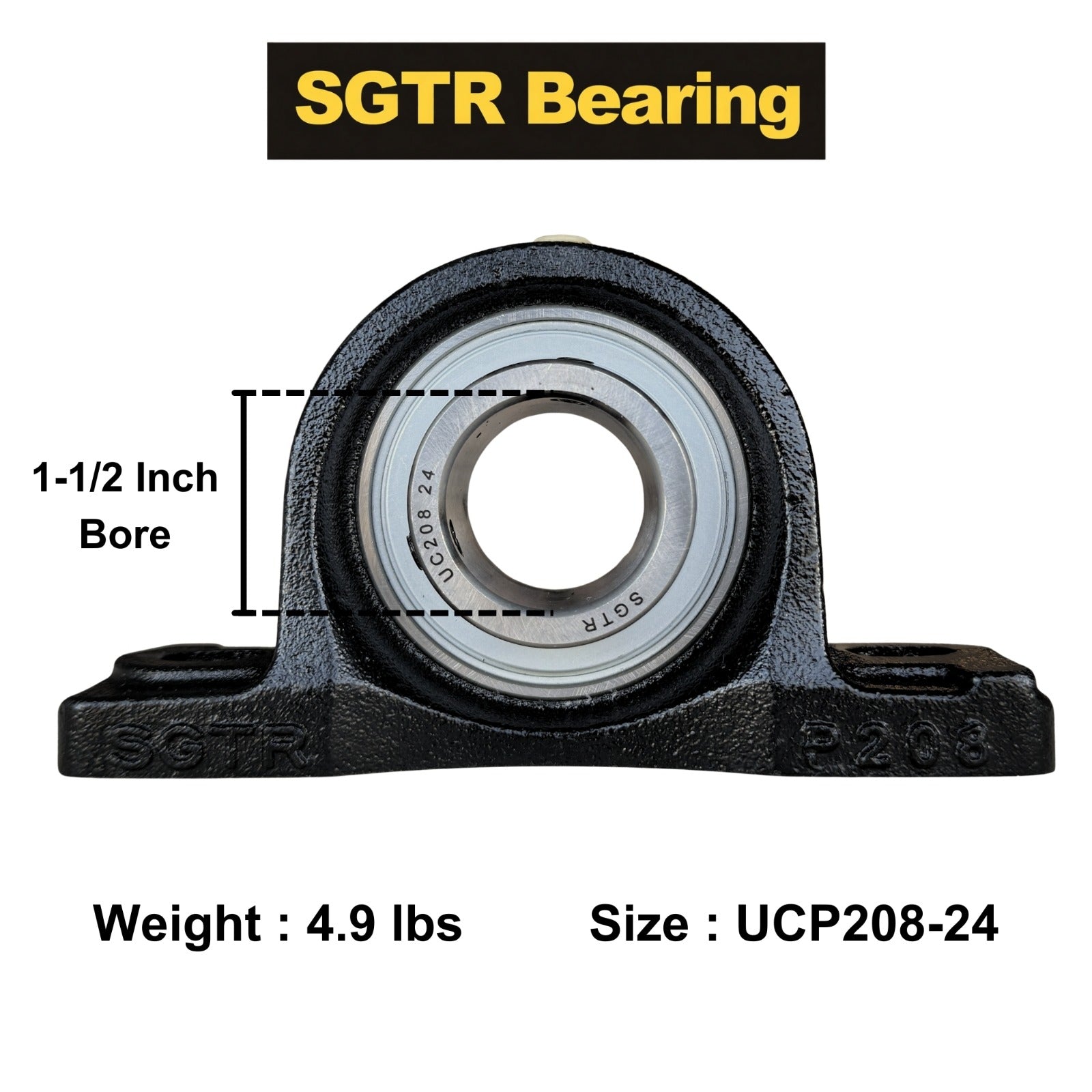

  • Bore Size / Inner Diameter: 1-1/2" Inch
  • Housing Material: HT200 Cast Iron
  • Insert Bearing Material: AISI 52100 Chrome Steel
  • Overall Height: 3-27/32"
  • Overall Length: 7-1/4"
  • Bolt Hole to Bolt Hole: 5-13/32"
  • Base to Center: 1-15/16"
  • Lubrication: Chevron SRI-2 Grease
  • Static Load: 4,078 lbf
  • Dynamic Load: 6,650 lbf
  • Speed Limit: 4,000 RPM
  • Weight: 4.4 lb

Interchange (for reference only):

Complete pillow block unit (UCP208-24) cross-references

  • AMI: UCP208-24
  • Browning: VPS-224
  • Dodge: P2B-SC-108
  • Fafnir/Timken: RASC-1 1/2 / YAS-1 1/2
  • Link-Belt: P3-U224N / P3-Y224N
  • NSK: USP208-24S
  • NTN: UCP208-108T
  • Peer: FHSP208-24G
  • RHP: NP-1 1/2
  • Sealmaster: NP-24

Insert (UC208-24) cross-references

  • AMI: UC208-24
  • Browning: VS-224
  • Dodge: INS-SC-108
  • Fafnir/Timken: GY1108KRRB
  • Hub City: YW250-1-1/2
  • IPTCI: UC208-24
  • Link-Belt: UG224NL
  • NTN: UC208-108D1
  • SKF: YAR208-108
  • Sealmaster: 2-1-1/2 Insert

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
