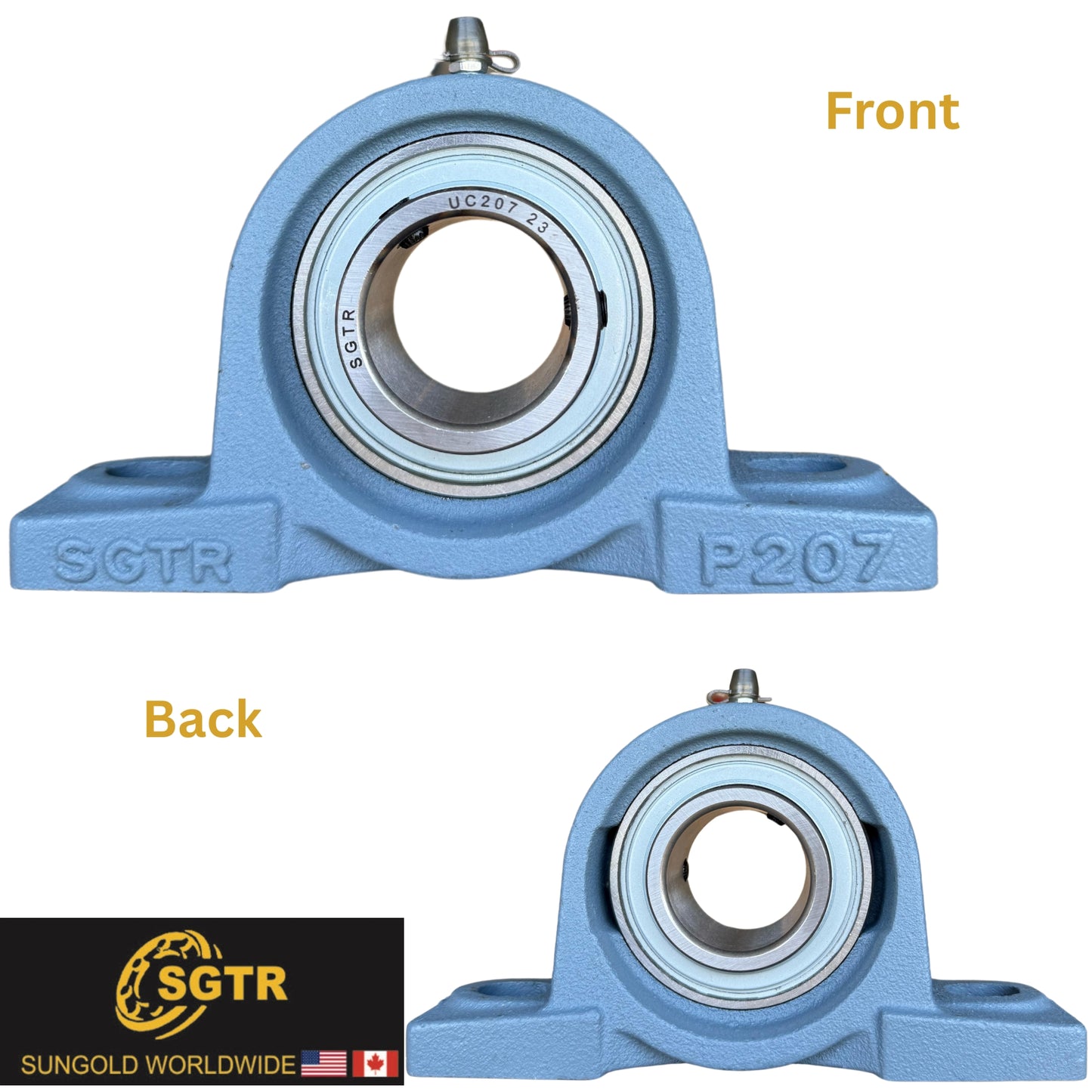

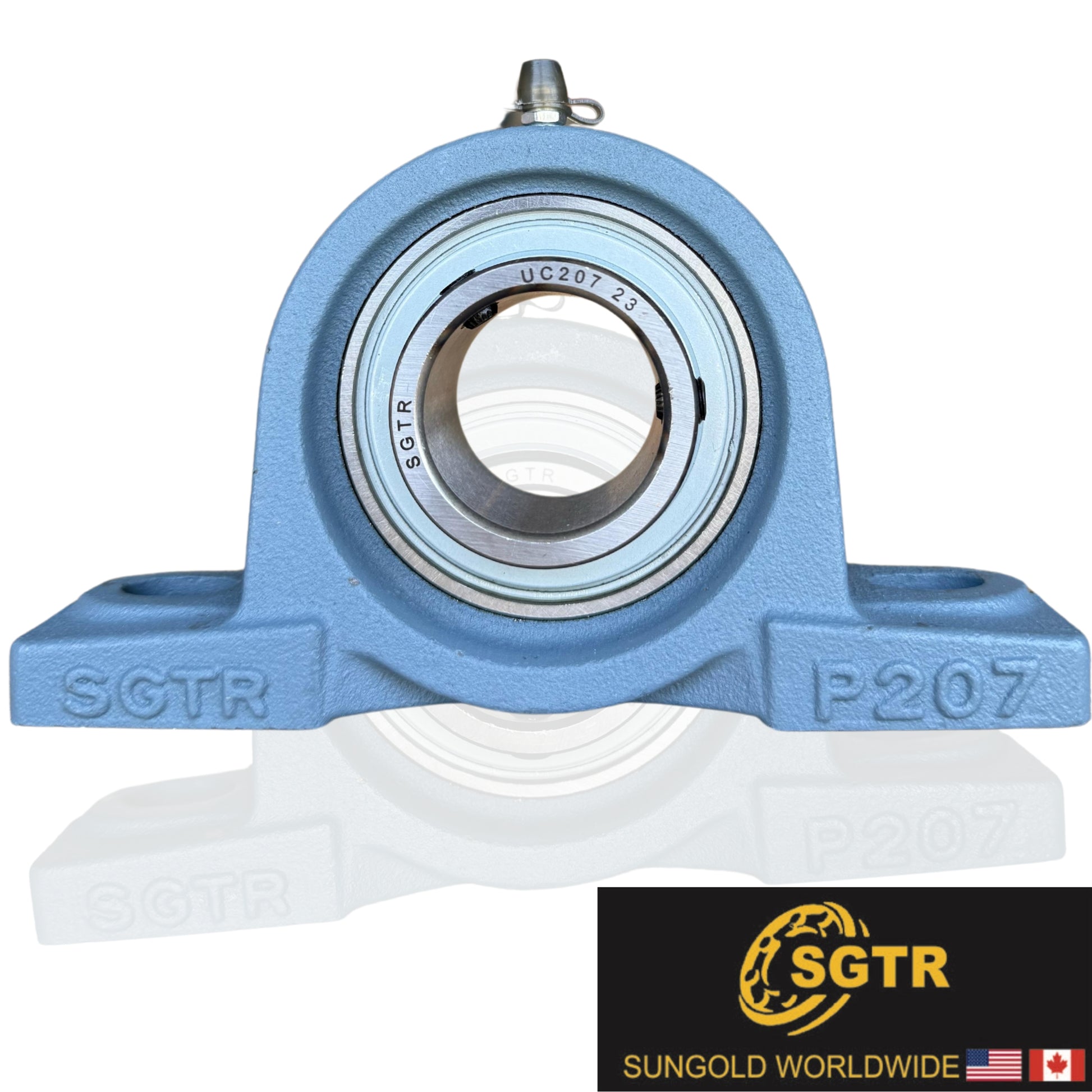

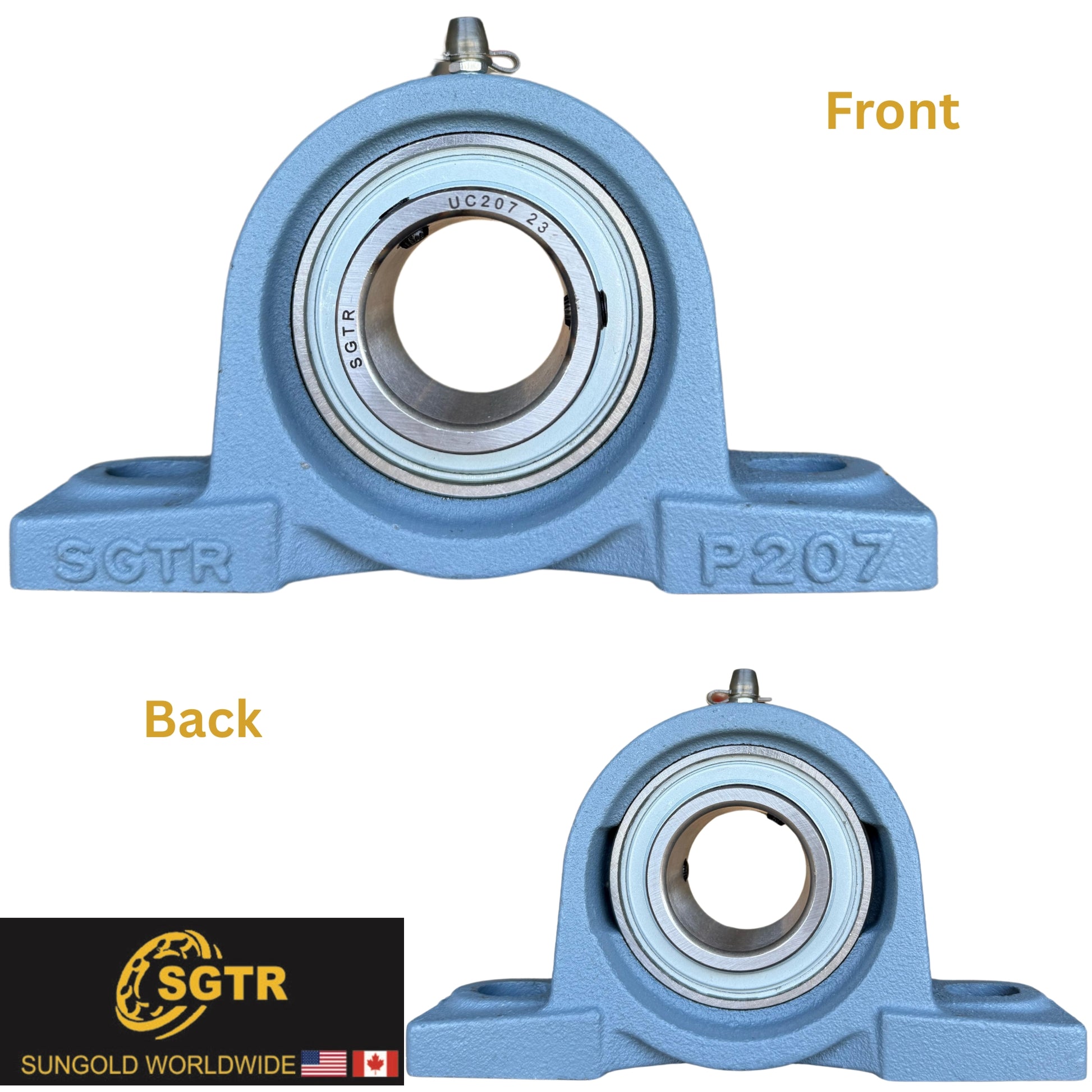

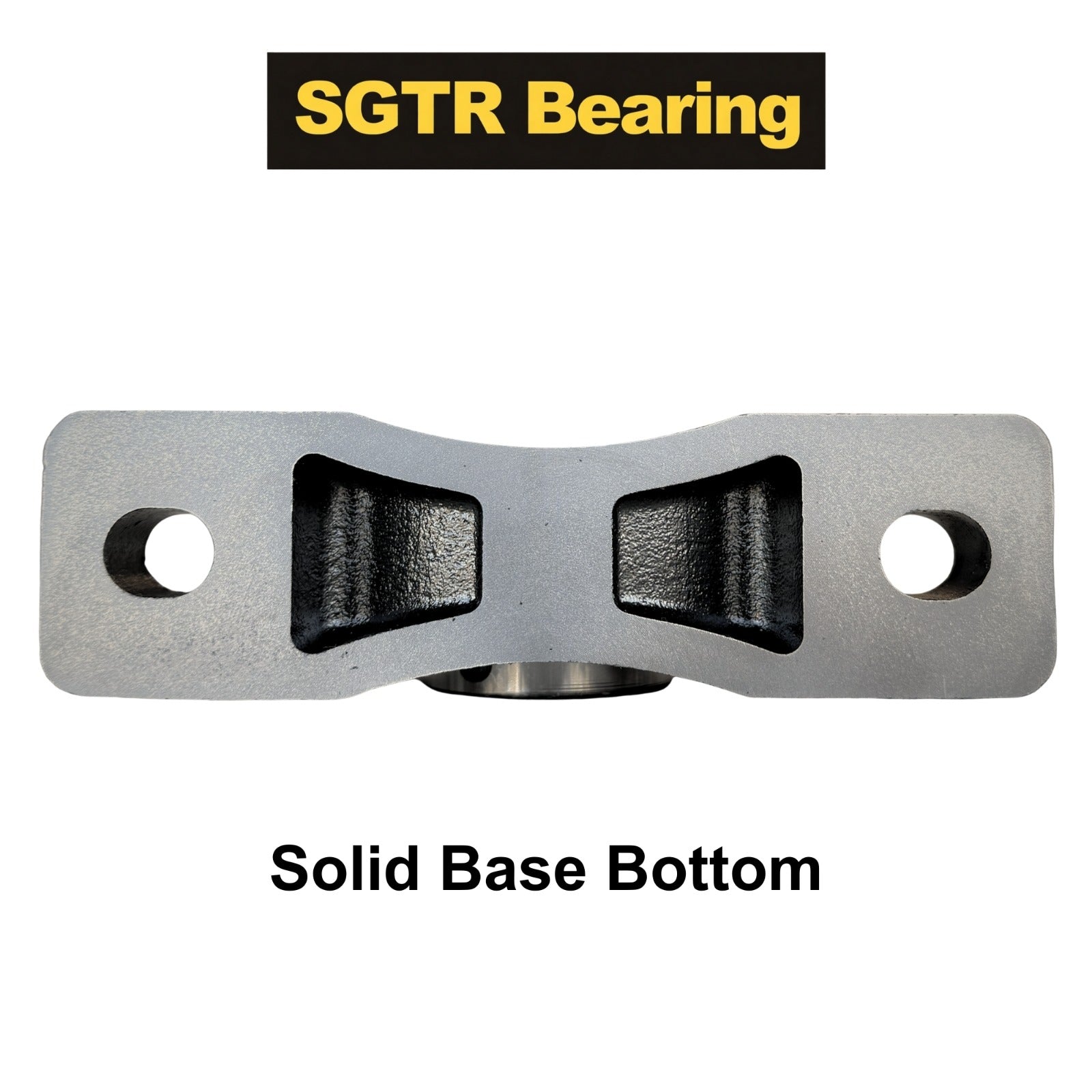

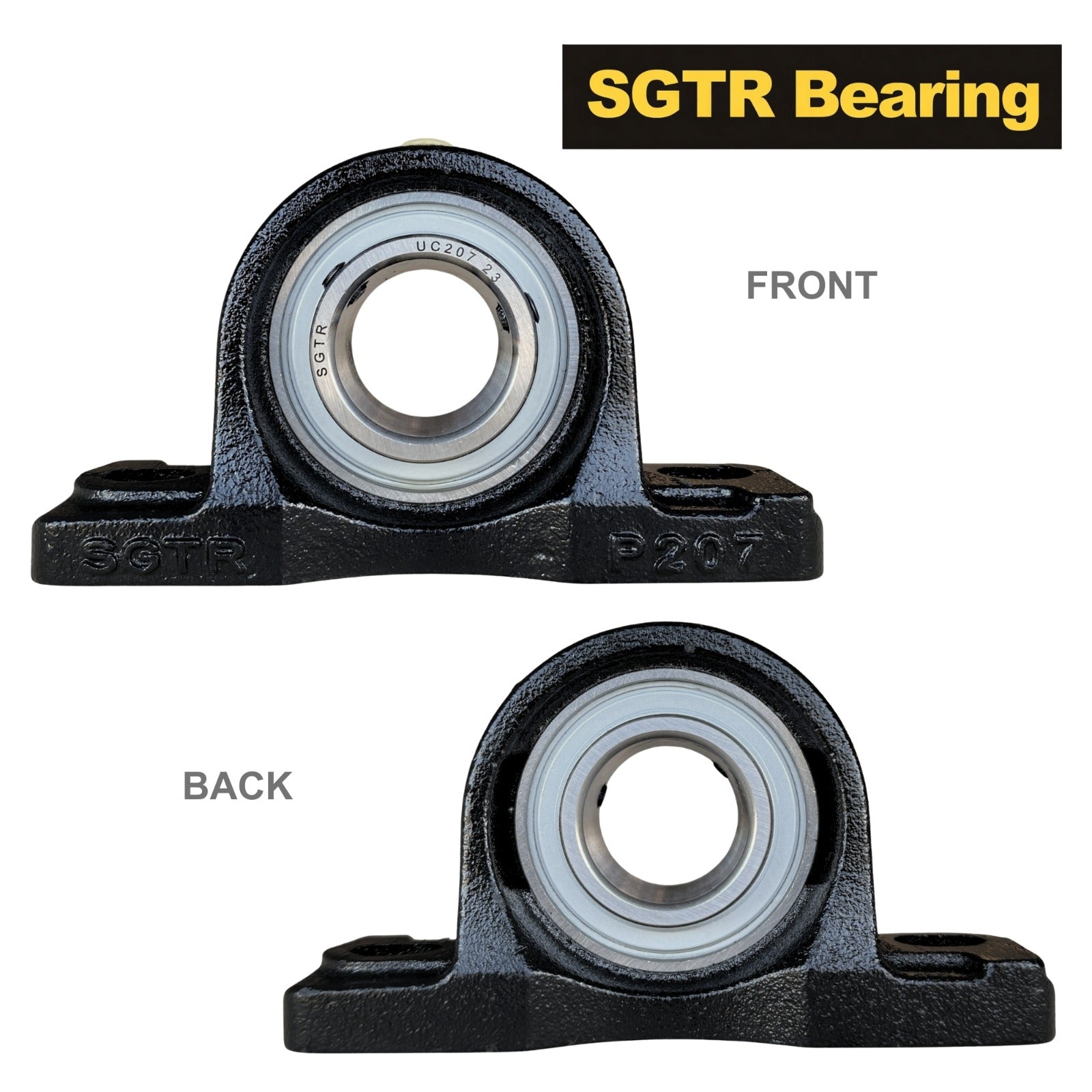

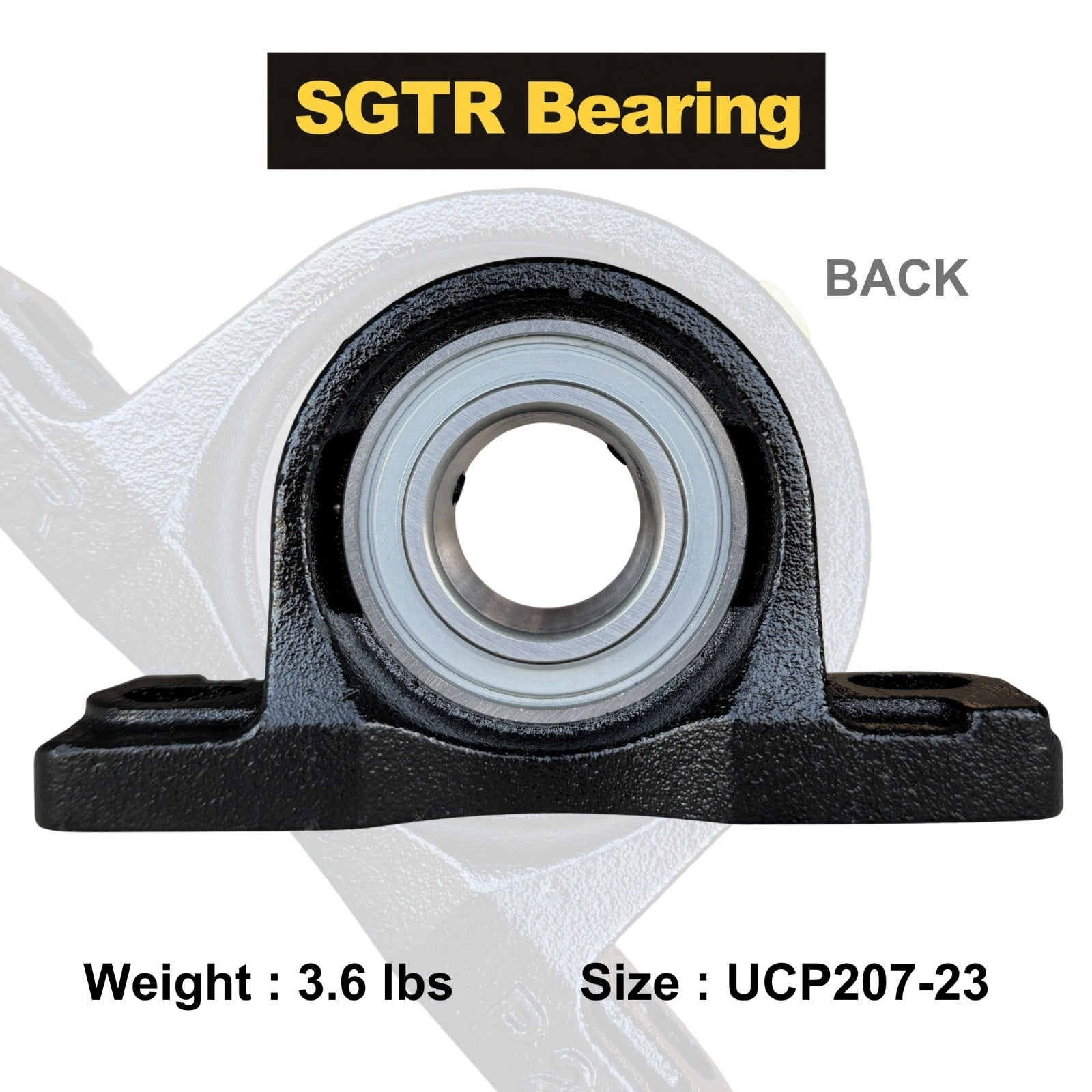

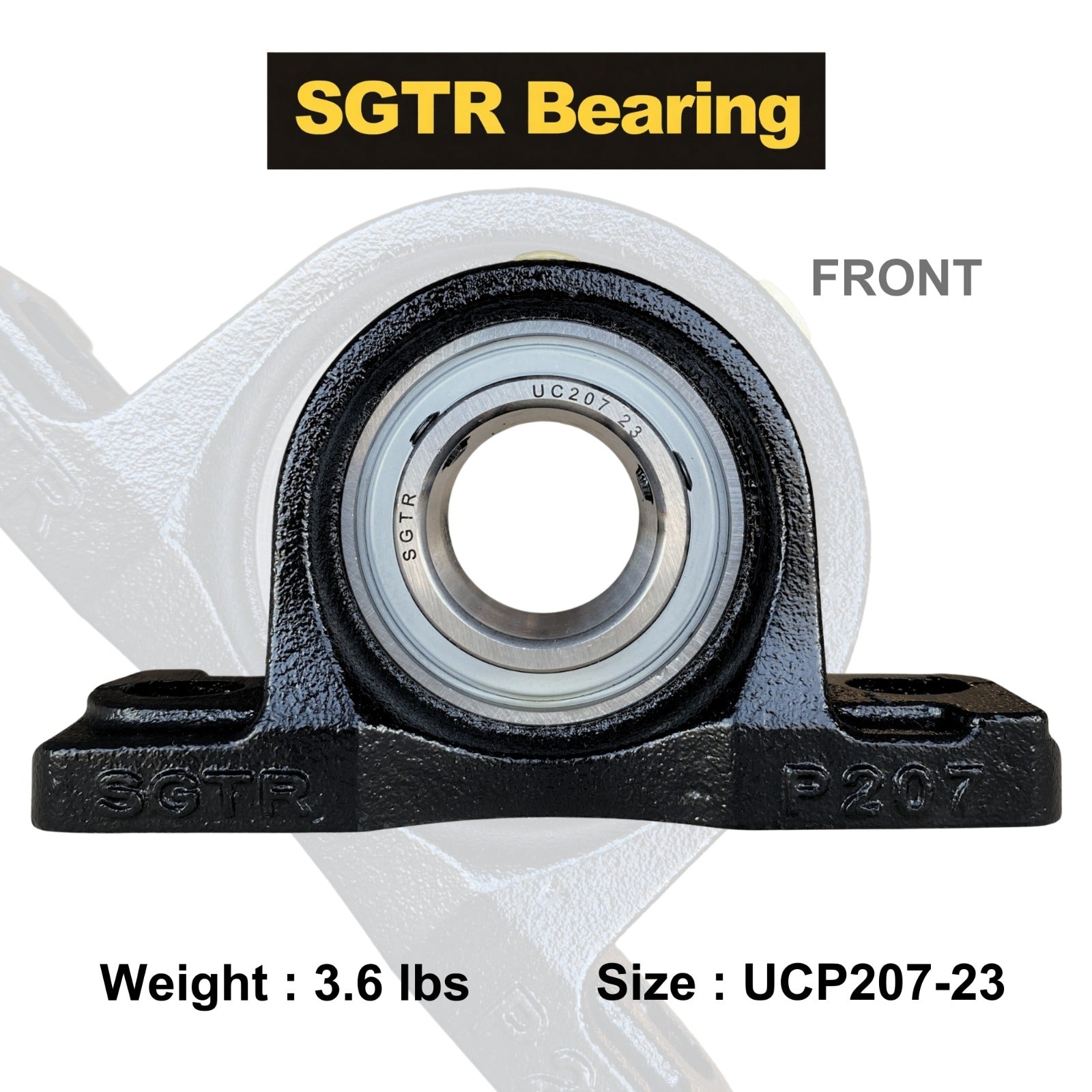

UCP207-23 Pillow Block Bearing 1-7/16" inch Bore

The UCP207-23 pillow block bearing provides dependable shaft support and long-lasting performance for industrial applications. With a 1-7/16 inch bore size, this mounted bearing unit is ideal for conveyors, machinery, and heavy-duty equipment.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

• Model: UCP207-23 Pillow Block Bearing

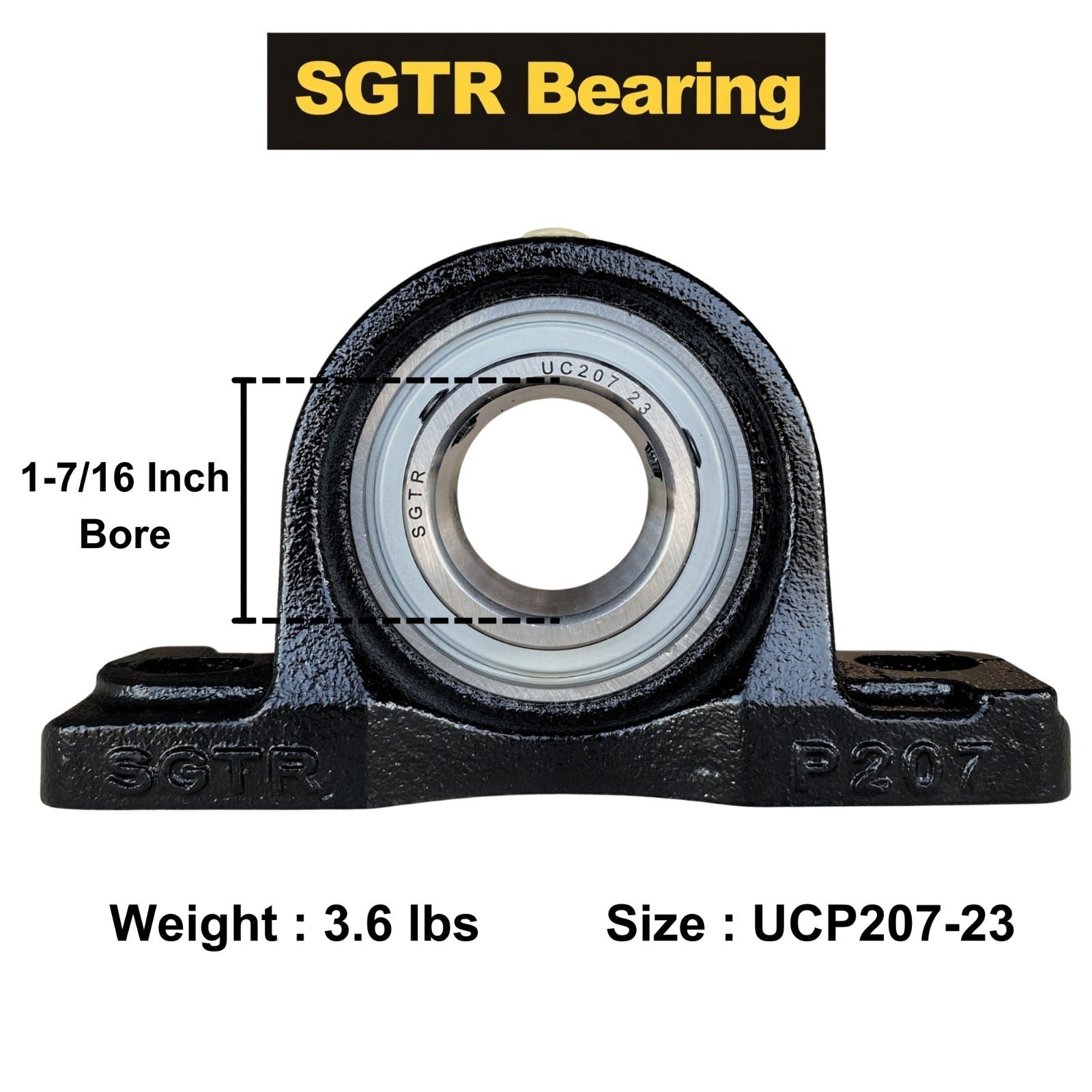

• Bore Size/ Inner Diameter: 1-7/16" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Height: 3-21/32"
• Overall Length: 6-37/64"
• Bolt Hole to Bolt Hole: 5"
• Base to Center: 1-7/8"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 3,496 lbf
• Dynamic Load: 5,775 lbf
• Speed Limit: 4,500 RPM
• Weight: 3.5 lb

Interchange (for reference only):

Complete pillow block unit (UCP207-23) cross-references

• AMI: UCP207-23
• Browning: VPS-223
• Dodge: P2B-SC-107
• Fafnir/Timken: RASC-1 7/16 / YAS-1 7/16
• Link-Belt: P3-U223N / P3-Y223N
• NSK: USP207-23S
• NTN: UCP207-107T
• Peer: FHSP207-23G
• RHP: NP-1 7/16
• Sealmaster: NP-23

Insert (UC207-23) cross-references

• AMI: UC207-23
• Browning: VS-223
• Dodge: INS-SC-107
• Fafnir/Timken: GY1107KRRB
• Hub City: YW250-1-7/16
• IPTCI: UC207-23
• Link-Belt: UG223NL
• NTN: UC207-107D1
• SKF: YAR207-107
• Sealmaster: 2-1-7/16 Insert

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
