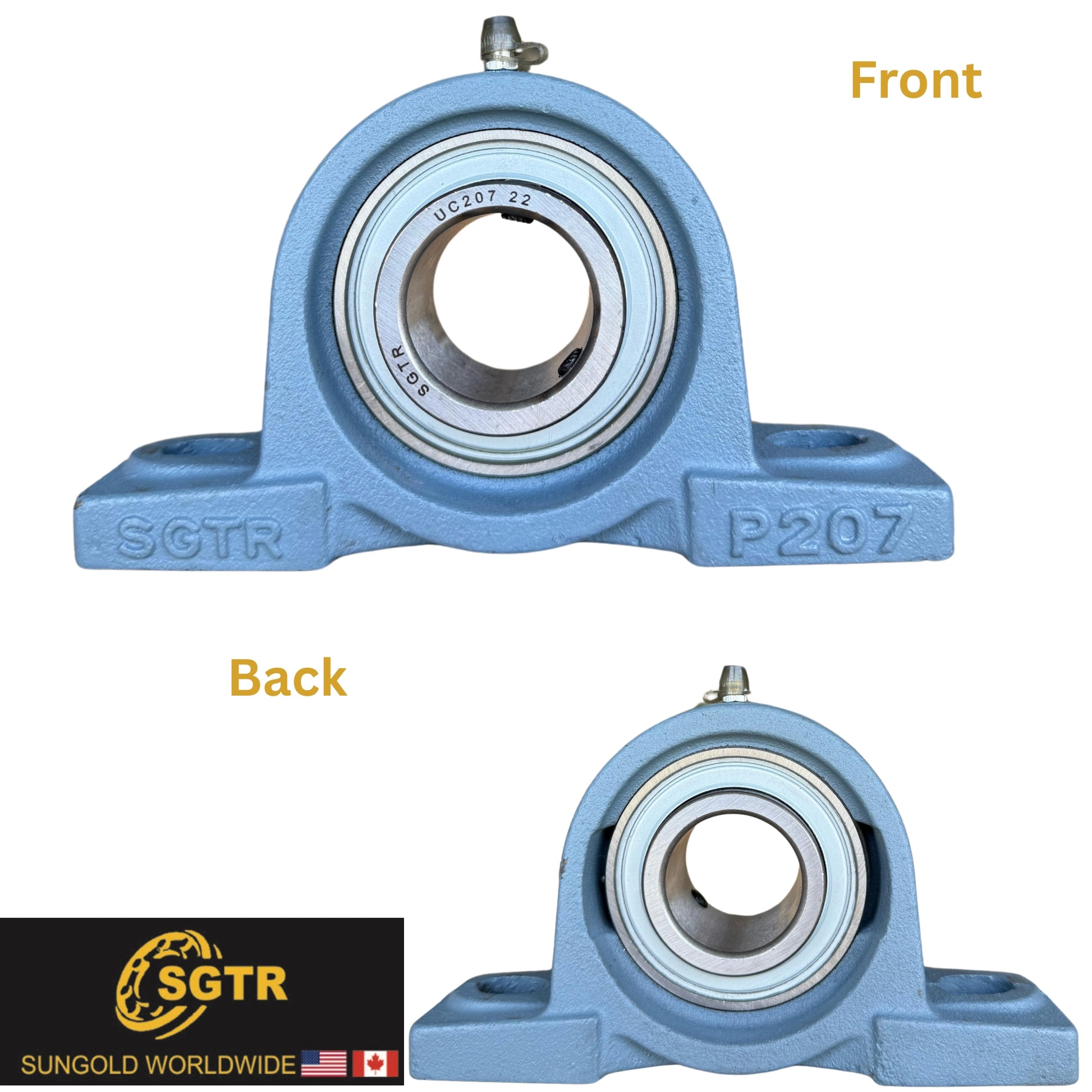

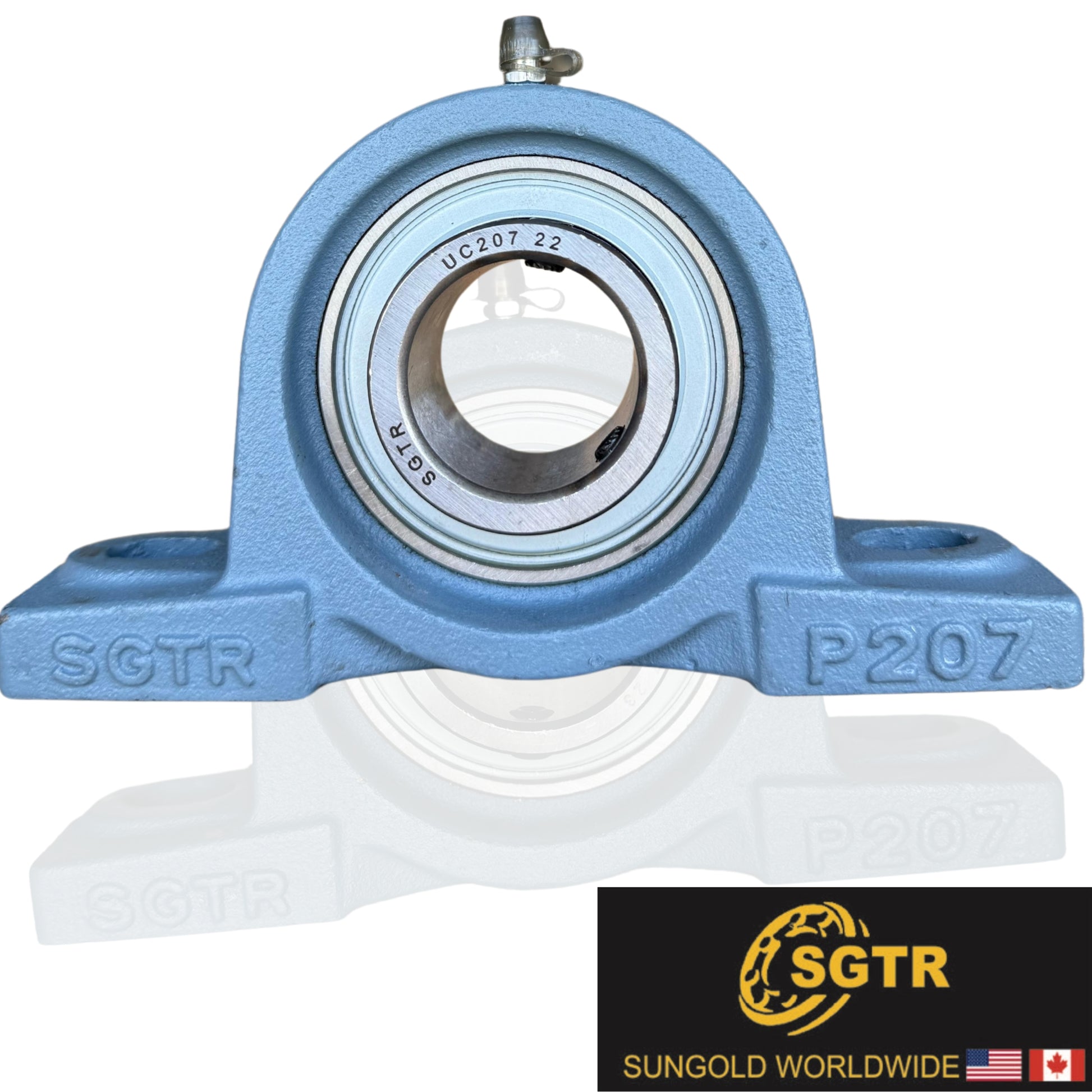

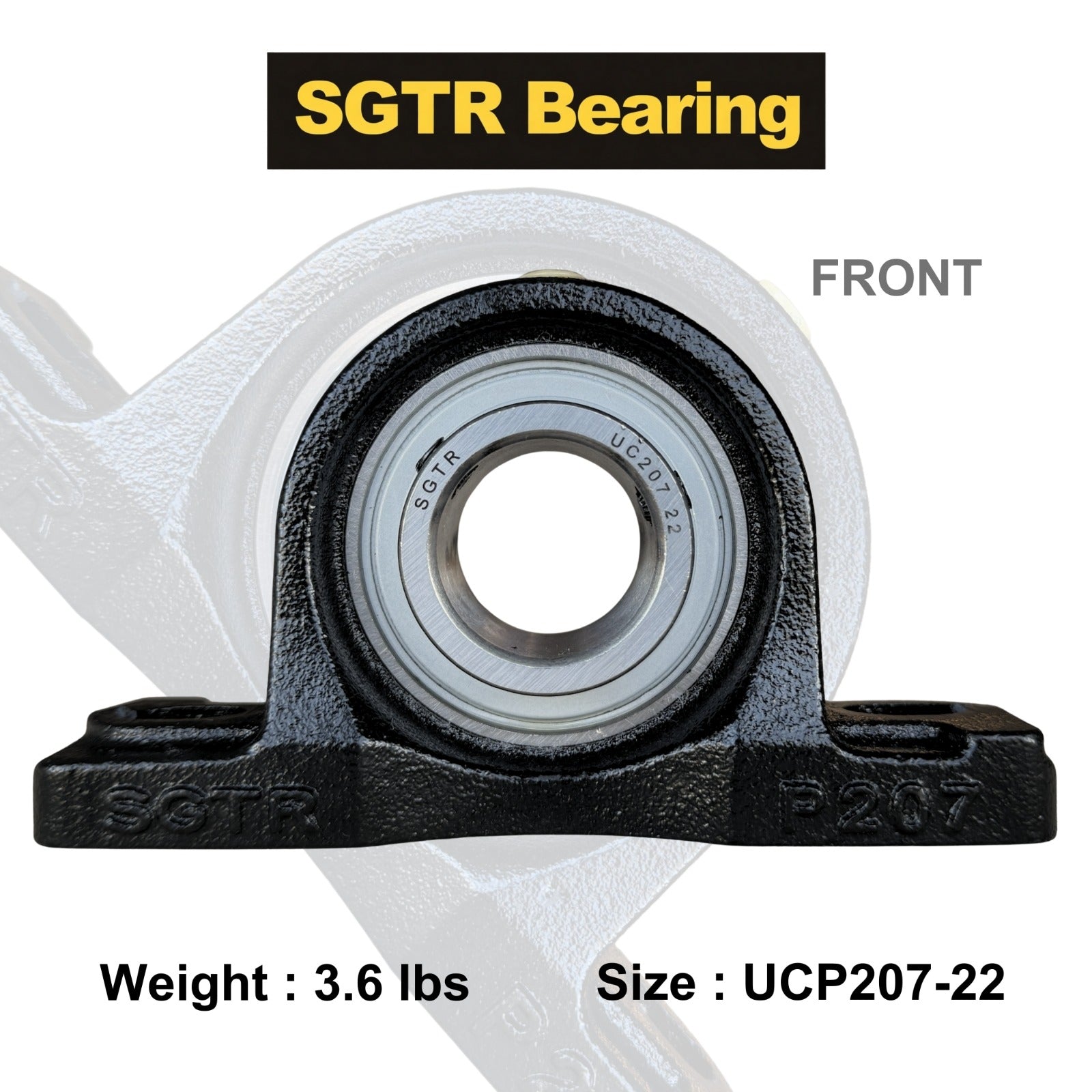

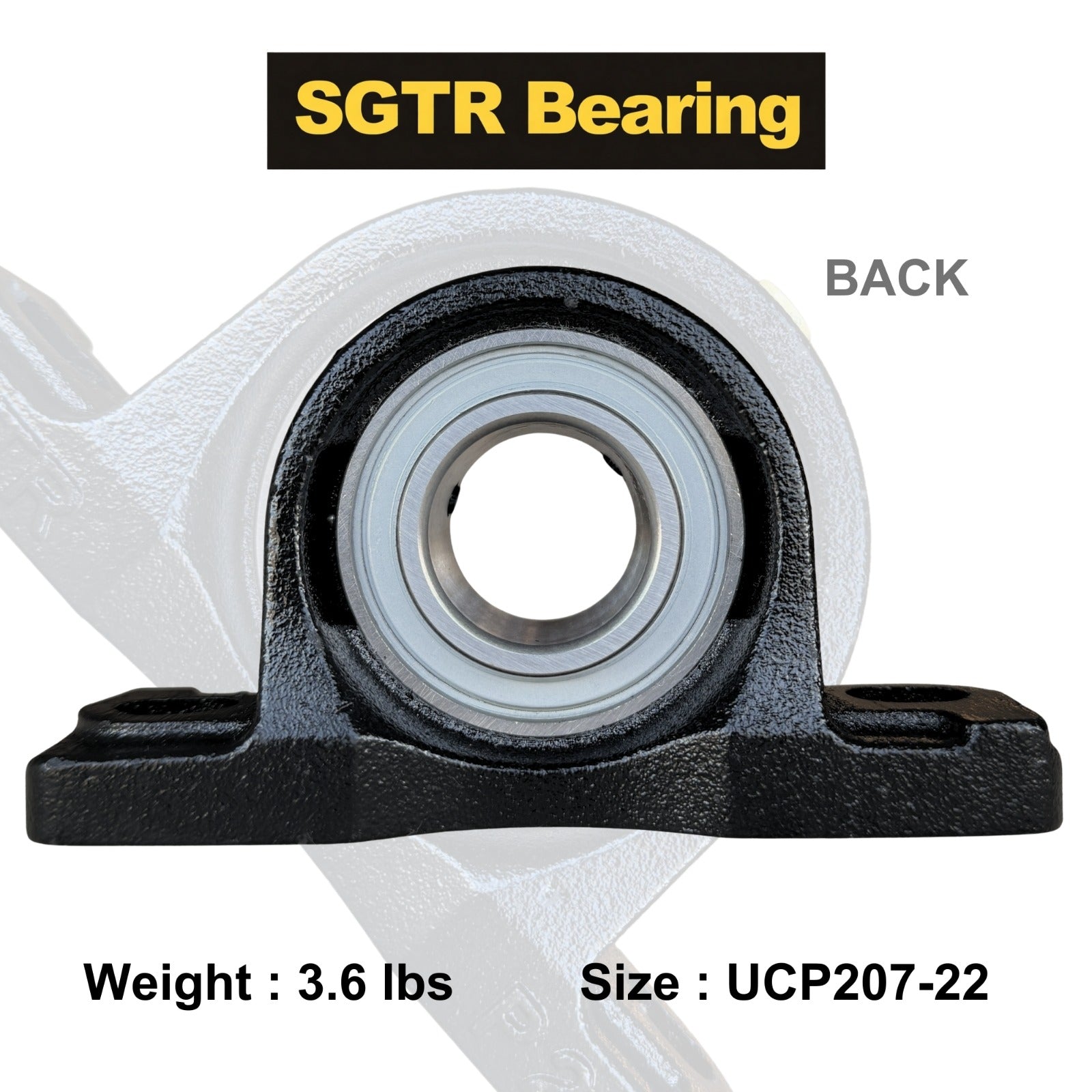

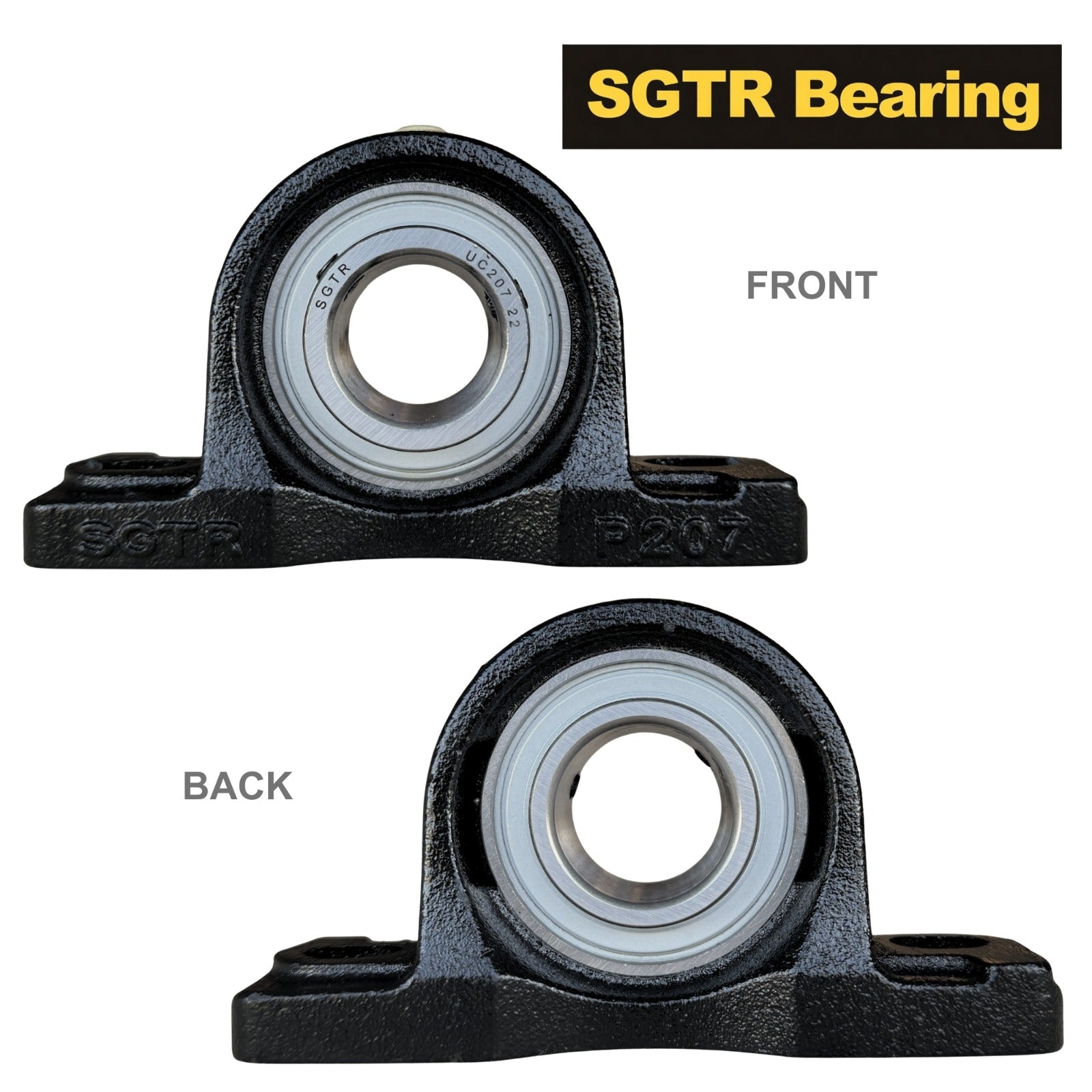

UCP207-22 Pillow Block Bearing 1-3/8" inch Bore

The UCP207-22 pillow block bearing provides dependable shaft support and precise alignment for industrial applications. With a 1-3/8 inch bore size, this mounted bearing unit is a reliable choice for conveyors, machinery, and heavy-duty equipment.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

• Model: UCP207-22 Pillow Block Bearing

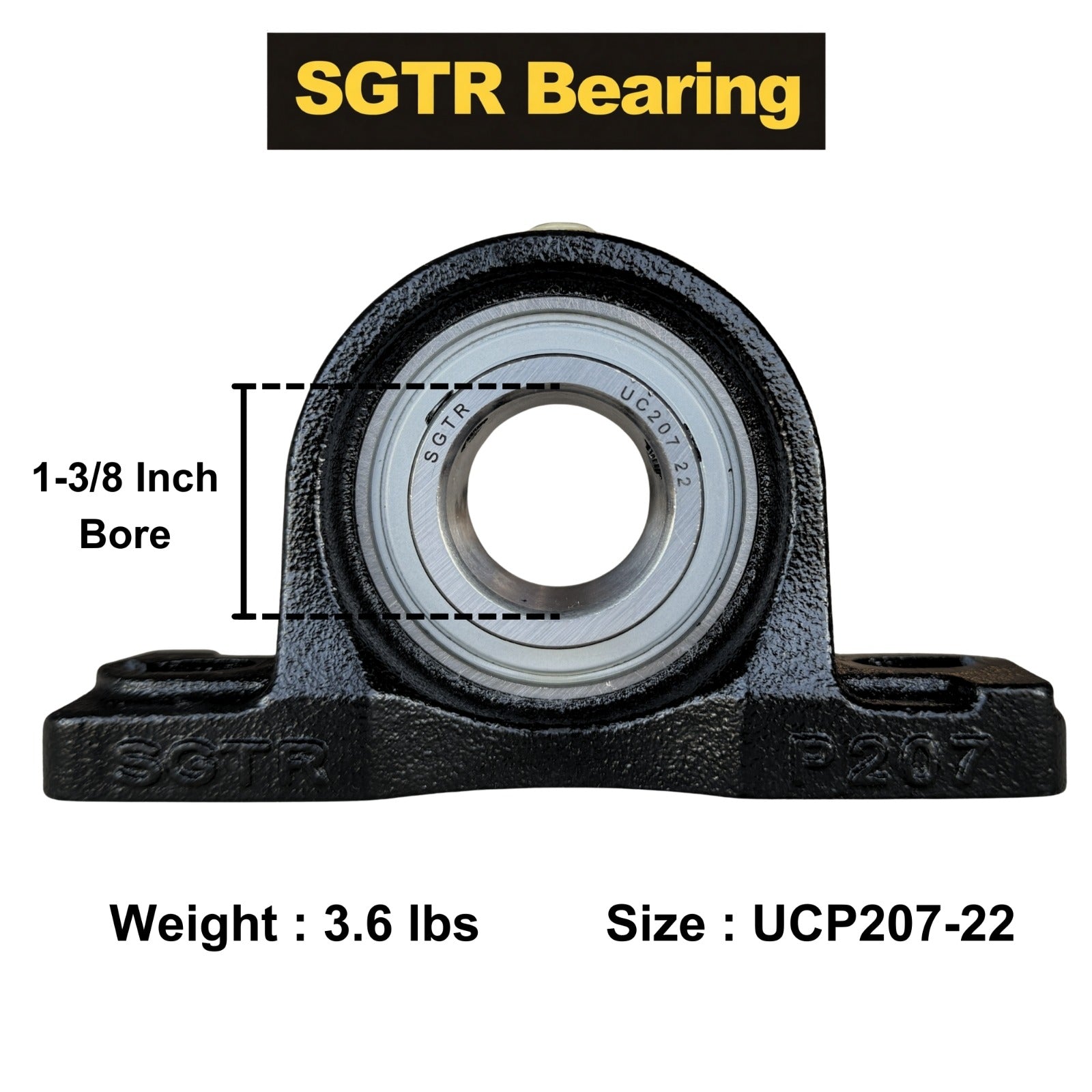

• Bore Size/ Inner Diameter: 1-3/8" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Height: 3-21/32"
• Overall Length: 6-37/64"
• Bolt Hole to Bolt Hole: 5"
• Base to Center: 1-7/8"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 3,496 lbf
• Dynamic Load: 5,775 lbf
• Speed Limit: 4,500 RPM
• Weight: 3.5 lb

Interchange (for reference only):

Complete pillow block unit (UCP207-22) cross-references

• AMI: UCP207-22
• Browning: VPS-222
• Dodge: P2B-SC-106
• Fafnir/Timken: RASC-1 3/8 / YAS-1 3/8
• Link-Belt: P3-U222N / P3-Y222N
• NSK: USP207-22S
• NTN: UCP207-106T
• Peer: FHSP207-22G
• RHP: NP-1 3/8
• Sealmaster: NP-22

Insert (UC207-22) cross-references

• AMI: UC207-22
• Browning: VS-222
• Dodge: INS-SC-106
• Fafnir/Timken: GY1106KRRB
• Hub City: YW250-1-3/8
• IPTCI: UC207-22
• Link-Belt: UG222NL
• NTN: UC207-106D1
• SKF: YAR207-106
• Sealmaster: 2-1-3/8 Insert

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
