UCP206-20 Pillow Block Bearing 1-1/4" inch Bore

UCP206-20 Pillow Block Bearing 1-1/4" inch Bore

$13.50 USD
$13.50 USD
Sale Sold out
Shipping calculated at checkout.

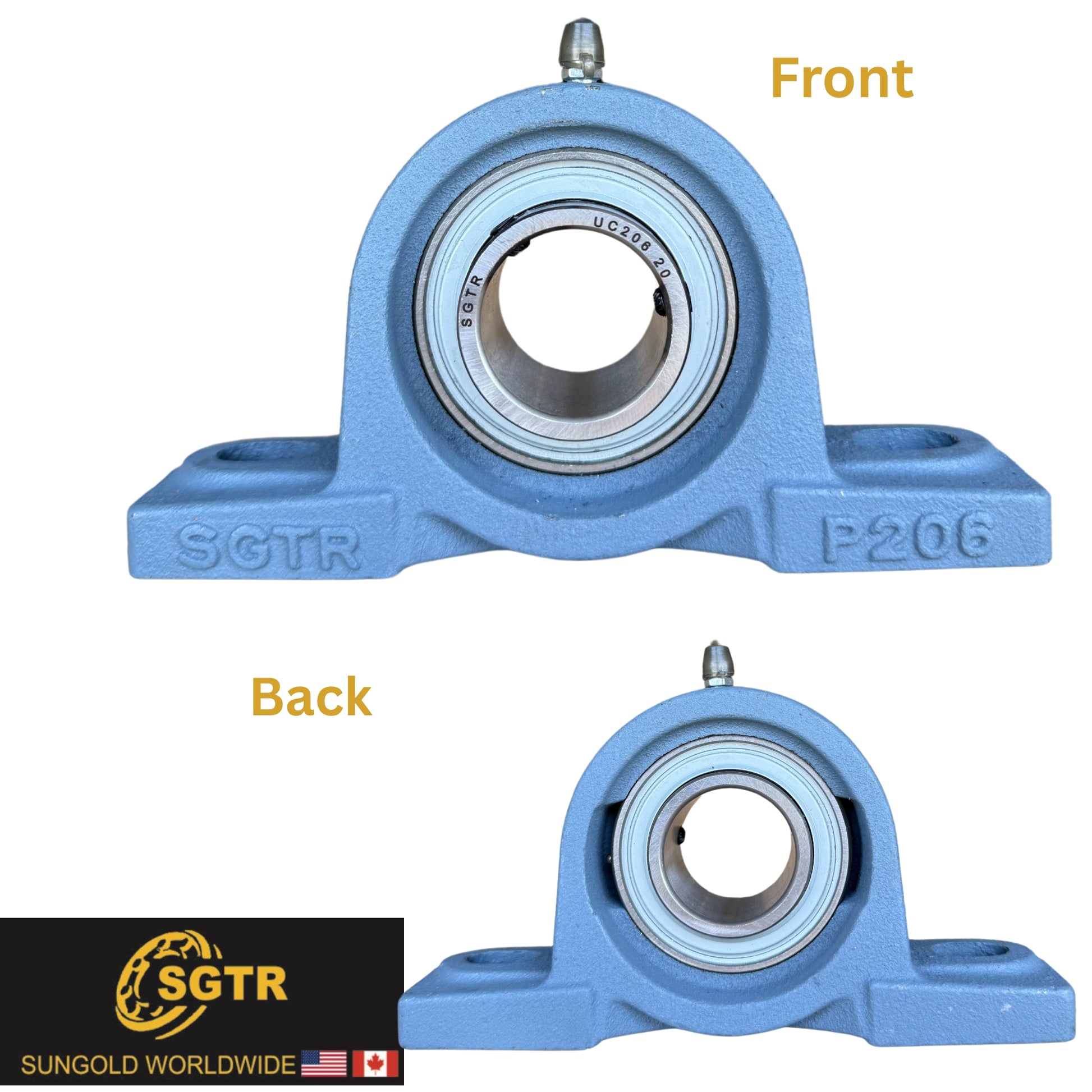

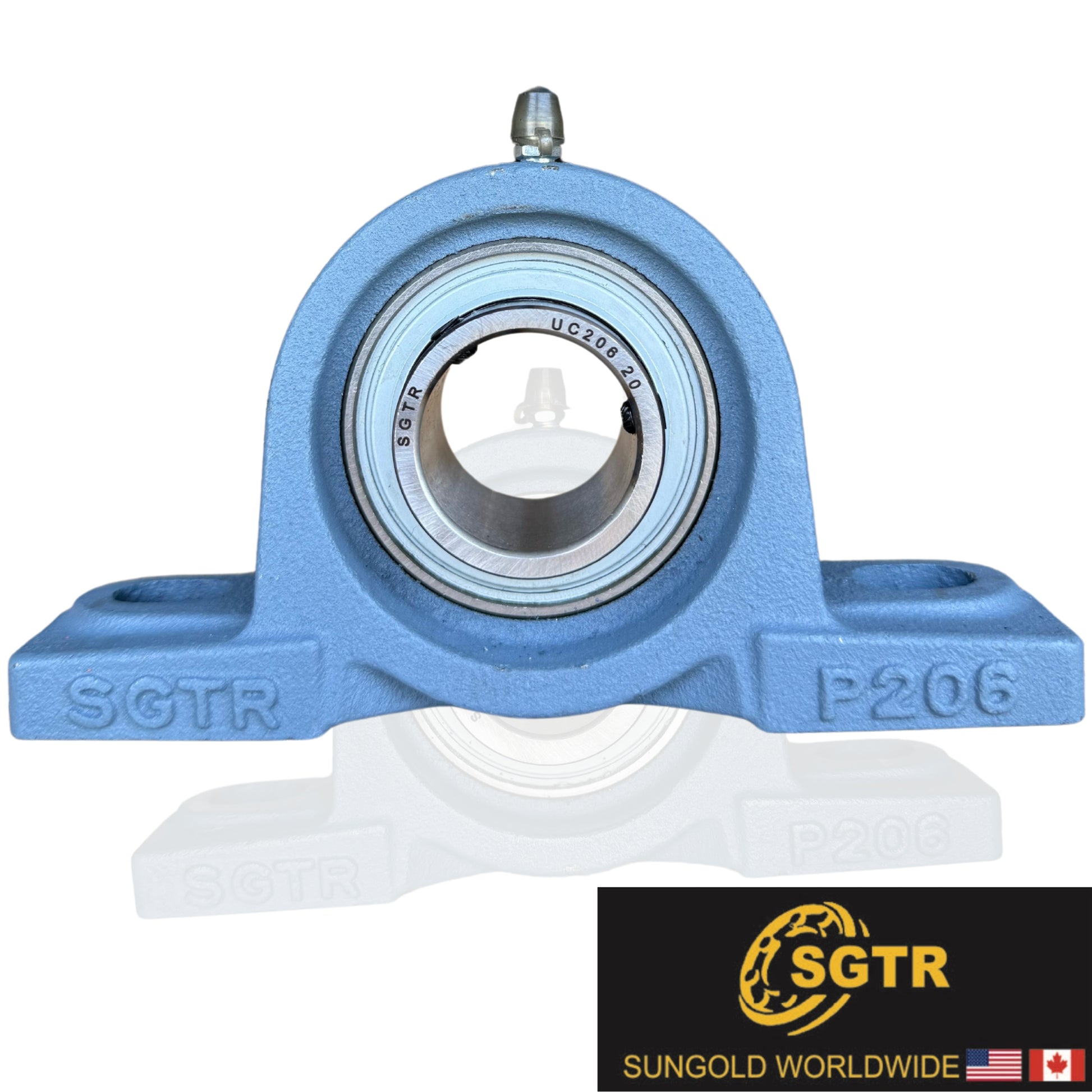

The UCP206-20 pillow block bearing is built for reliable shaft support, precise alignment, and durability in industrial machinery. With a 1-1/4 inch bore size, this mounted bearing unit is a trusted choice for conveyors, equipment, and heavy-duty applications.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

  • Model: UCP206-20 Pillow Block Bearing
  • Bore Size/ Inner Diameter : 1-1/4" Inch
  • Housing Material: HT200 Cast Iron
  • Insert Bearing Material: AISI 52100 Chrome Steel
  • Overall Height: 3-5/16"
  • Overall Length: 6-1/2"
  • Bolt Hole to Bolt Hole: 4-3/4"
  • Base to Center: 1-11/16"
  • Lubrication: Chevron SRI-2 Grease
  • Static Load: 2,570 lbf
  • Dynamic Load: 4,377 lbf
  • Speed Limit: 5,300 RPM
  • Weight: 2.9 lb

Interchange (for reference only):

Complete pillow block unit (UCP206-20) cross-references

  • AMI: UCP206-20
  • Browning: VPS-220
  • Dodge: P2B-SC-104S
  • Fafnir/Timken: RASC-1 1/4S / YAS-1 1/4S
  • Link-Belt: P3-U2E20N
  • NSK: USP206-20S
  • NTN: UCP206-20S / UCP206-20T
  • Peer: FHP206-20G
  • RHP: NP-1 1/4S
  • Sealmaster: NP-20
  • Other equivalents: NAP206-20, ENLP206-20SJ, HCP206-20, BP008, ALP206-20, BLP206-20, VPLS-120, SY1-1/4ATF

Insert (UC206-20) cross-references

  • AMI: UC206-20
  • Browning: VS-220
  • Dodge: INS-SC-104
  • Fafnir/Timken: GY1104KRRB / GC1104KRRB
  • Hub City: YW250x1-1/4
  • IPTCI: UC206-20
  • Link-Belt: UG220NL
  • NTN: UC206-104D1
  • SKF: YAR205-104-2F
  • Sealmaster: 2-1-1/4 Insert
  • Other equivalents: MB220-PA, 1026-104G

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
