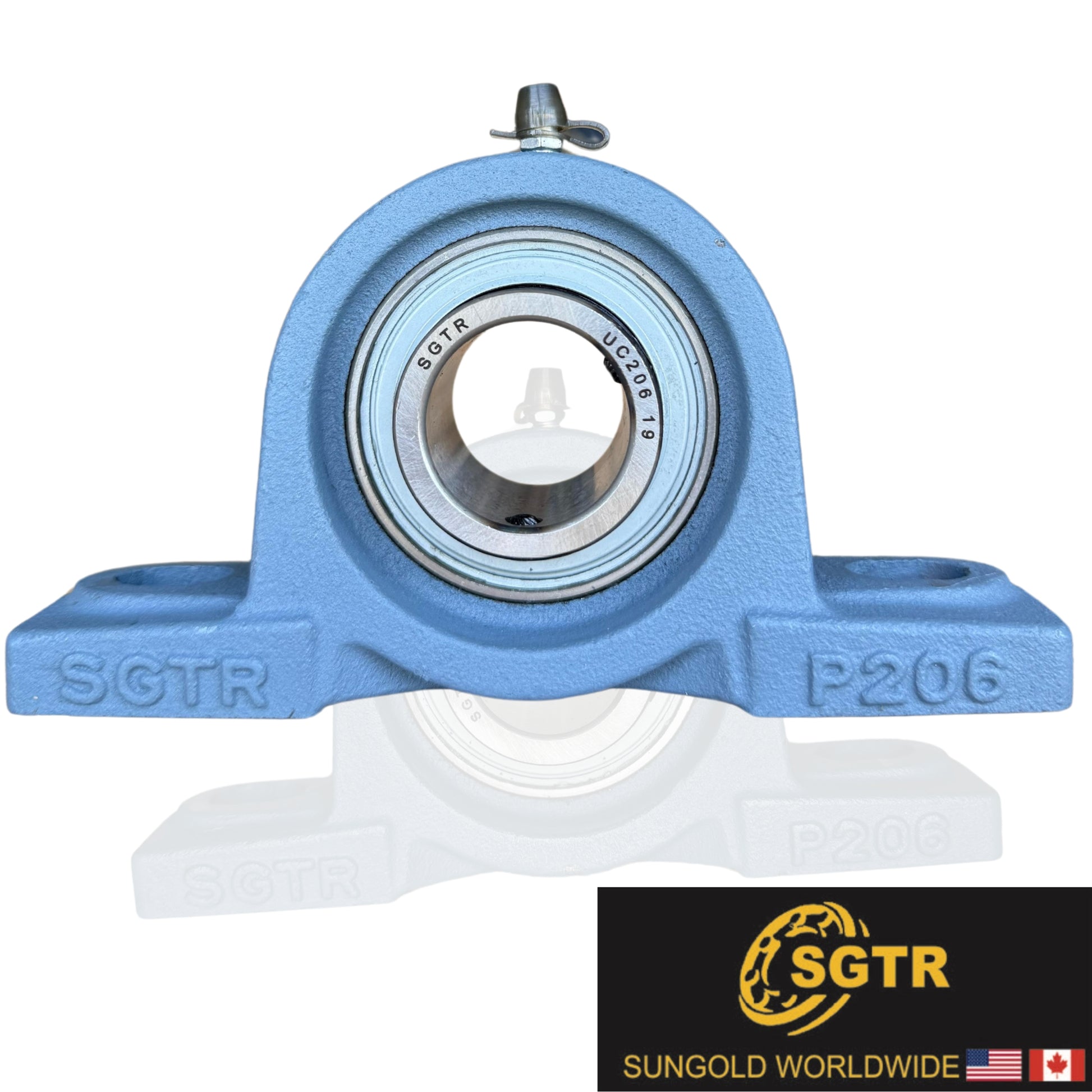

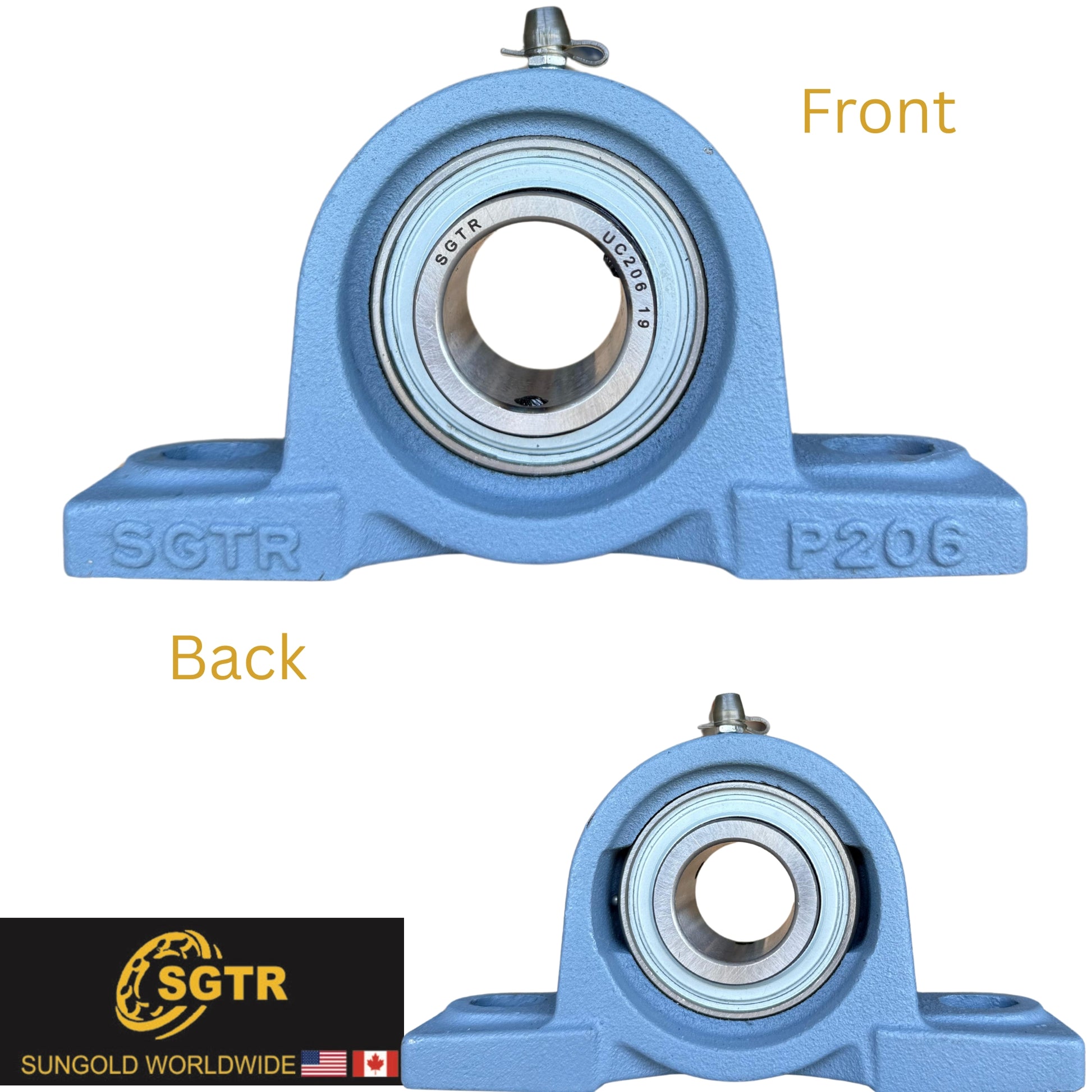

UCP206-19 Pillow Block Bearing 1-3/16" inch Bore

The UCP206-19 pillow block bearing provides strong shaft support, precise alignment, and long-lasting durability in industrial applications. With a 1-3/16 inch bore size, this mounted bearing unit is ideal for conveyors, machinery, and heavy-duty equipment.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

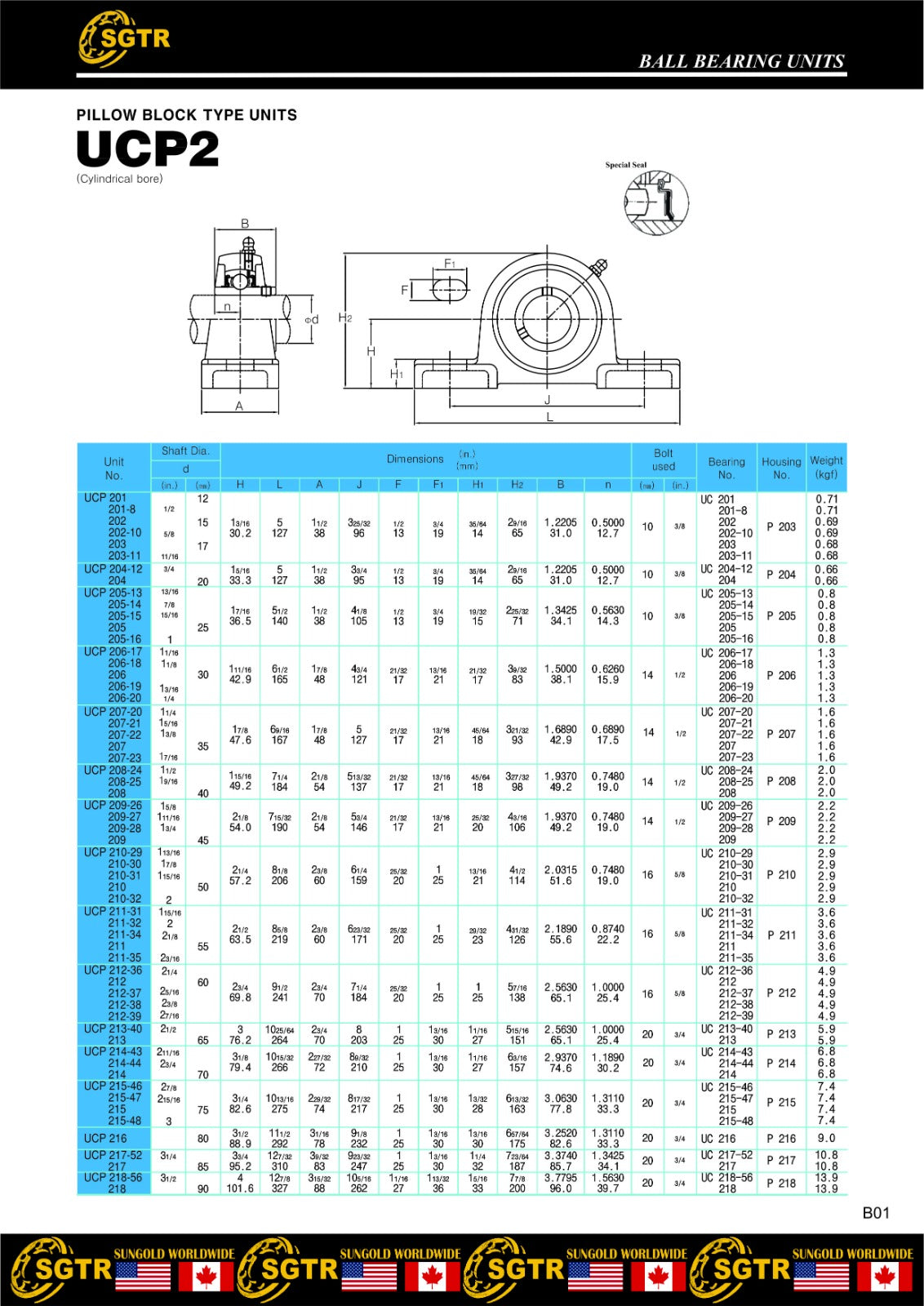

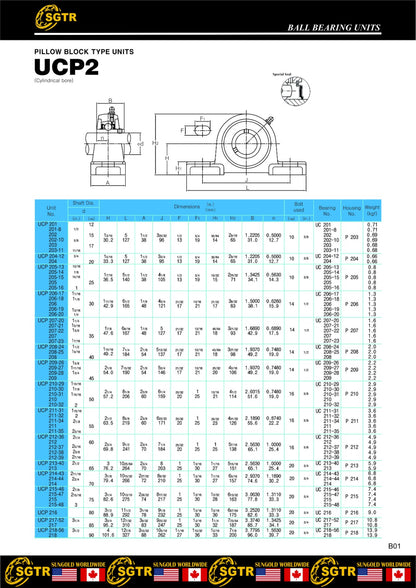

Specifications:

• Model: UCP206-19 Pillow Block Bearing
• Bore Size/ Inner Diameter: 1-3/16" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Height: 3-5/16"
• Overall Length: 6-1/2"
• Bolt Hole to Bolt Hole: 4-3/4"
• Base to Center: 1-11/16"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 2,570 lbf
• Dynamic Load: 4,377 lbf
• Speed Limit: 5,300 RPM
• Weight: 2.9 lb

Interchange (for reference only):

Complete pillow block unit (UCP206-19) cross-references

• AMI: UCP206-19
• Browning: VPS-219
• Dodge: P2B-SC-103
• Fafnir/Timken: RASC-1 3/16 / YAS-1 3/16
• Link-Belt: P3-U219N / P3-Y219N
• NSK: USP206-19S
• NTN: UCP206-103T
• Peer: FHSP206-19G
• RHP: NP-1 3/16
• Sealmaster: NP-19

Insert (UC206-19) cross-references

• AMI: UC206-19
• Browning: VS-219
• Dodge: INS-SC-103
• Fafnir/Timken: GY1103KRRB
• Hub City: YW250-1-3/16
• IPTCI: UC206-19
• Link-Belt: UG219NL
• NTN: UC206-103D1
• SKF: YAR206-103
• Sealmaster: 2-1-3/16 Insert

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
