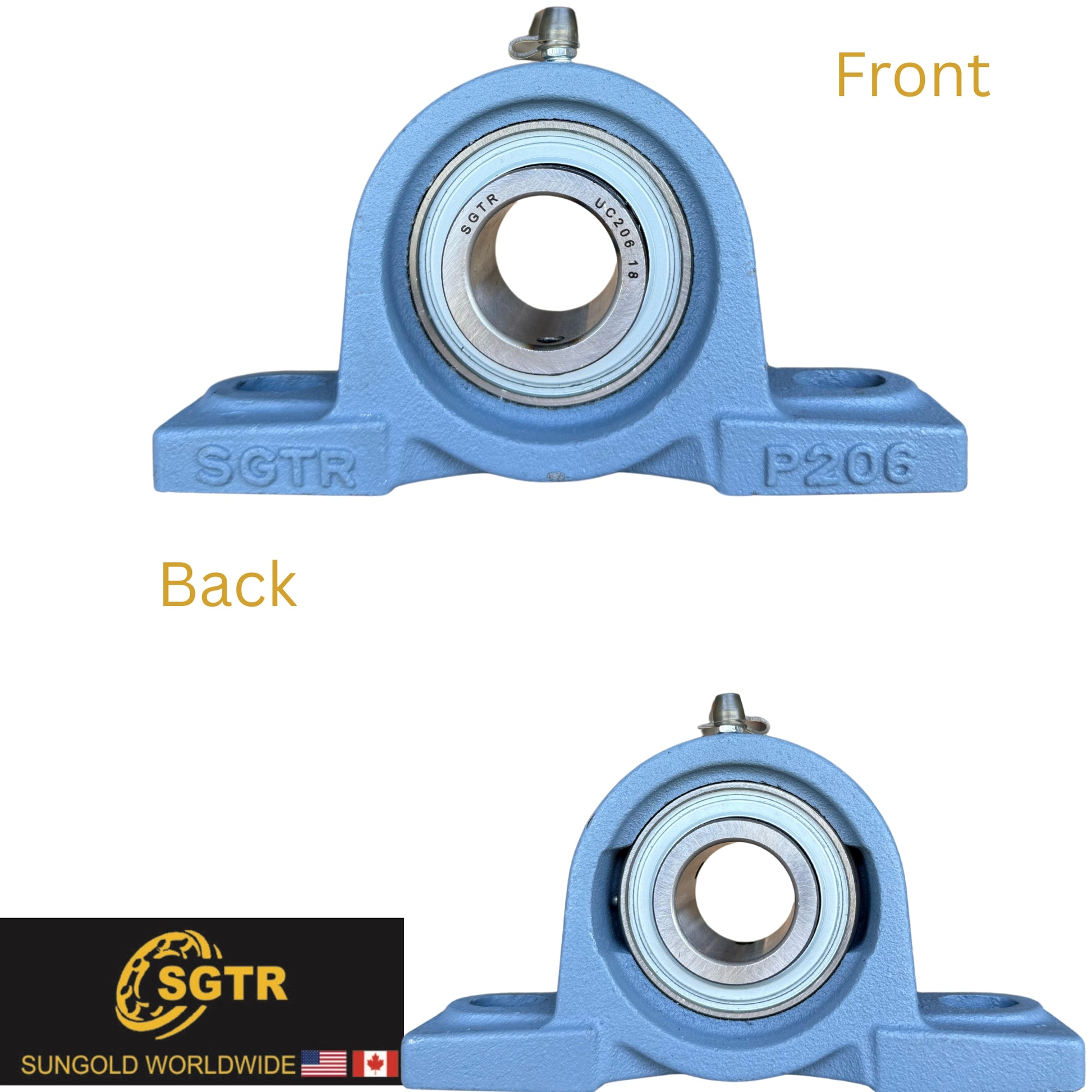

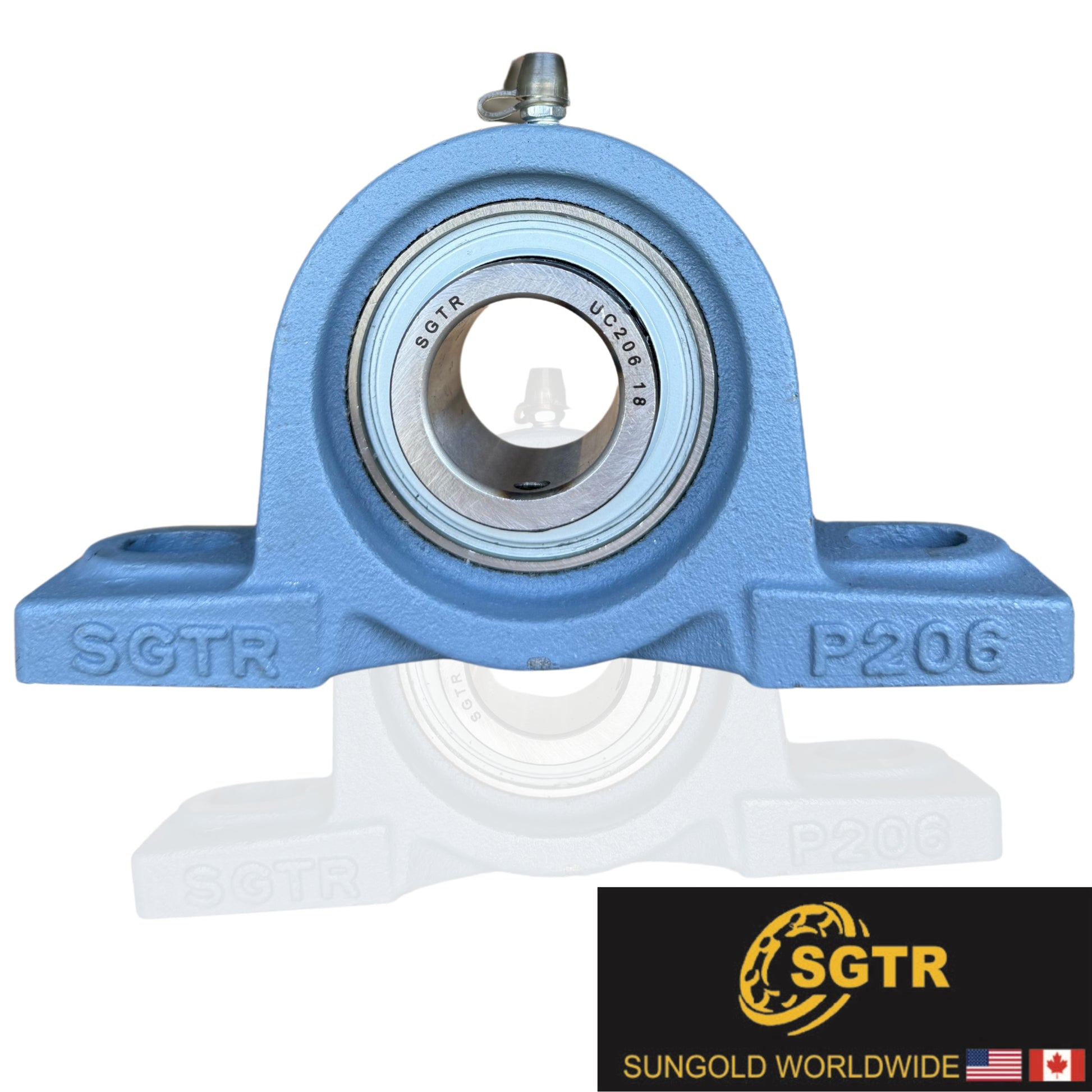

UCP206-18 Pillow Block Bearing 1-1/8" inch Bore

The UCP206-18 pillow block bearing is designed for dependable shaft support and precise alignment in industrial machinery. With a 1-1/8 inch bore size, this mounted bearing unit is built for conveyors, heavy-duty equipment, and general machinery applications.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

• Model: UCP206-18 Pillow Block Bearing
• Bore Size/ Inner Diameter: 1-1/8" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Height: 3-5/16"
• Overall Length: 6-1/2"
• Bolt Hole to Bolt Hole: 4-3/4"
• Base to Center: 1-11/16"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 2,570 lbf
• Dynamic Load: 4,377 lbf
• Speed Limit: 5,300 RPM
• Weight: 2.9 lb

Interchange (for reference only):

Complete pillow block unit (UCP206-18) cross-references

• AMI: UCP206-18
• Browning: VPS-218
• Dodge: P2B-SC-102
• Fafnir/Timken: RASC-1 1/8 / YAS-1 1/8
• Link-Belt: P3-U218N / P3-Y218N
• NSK: USP206-18S
• NTN: UCP206-018T
• Peer: FHSP206-18G
• RHP: NP-1 1/8
• Sealmaster: NP-18

Insert (UC206-18) cross-references

• AMI: UC206-18
• Browning: VS-218
• Dodge: INS-SC-102
• Fafnir/Timken: GY1102KRRB
• Hub City: YW250-1-1/8
• IPTCI: UC206-18
• Link-Belt: UG218NL
• NTN: UC206-102D1
• SKF: YAR206-102
• Sealmaster: 2-1-1/8 Insert

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
