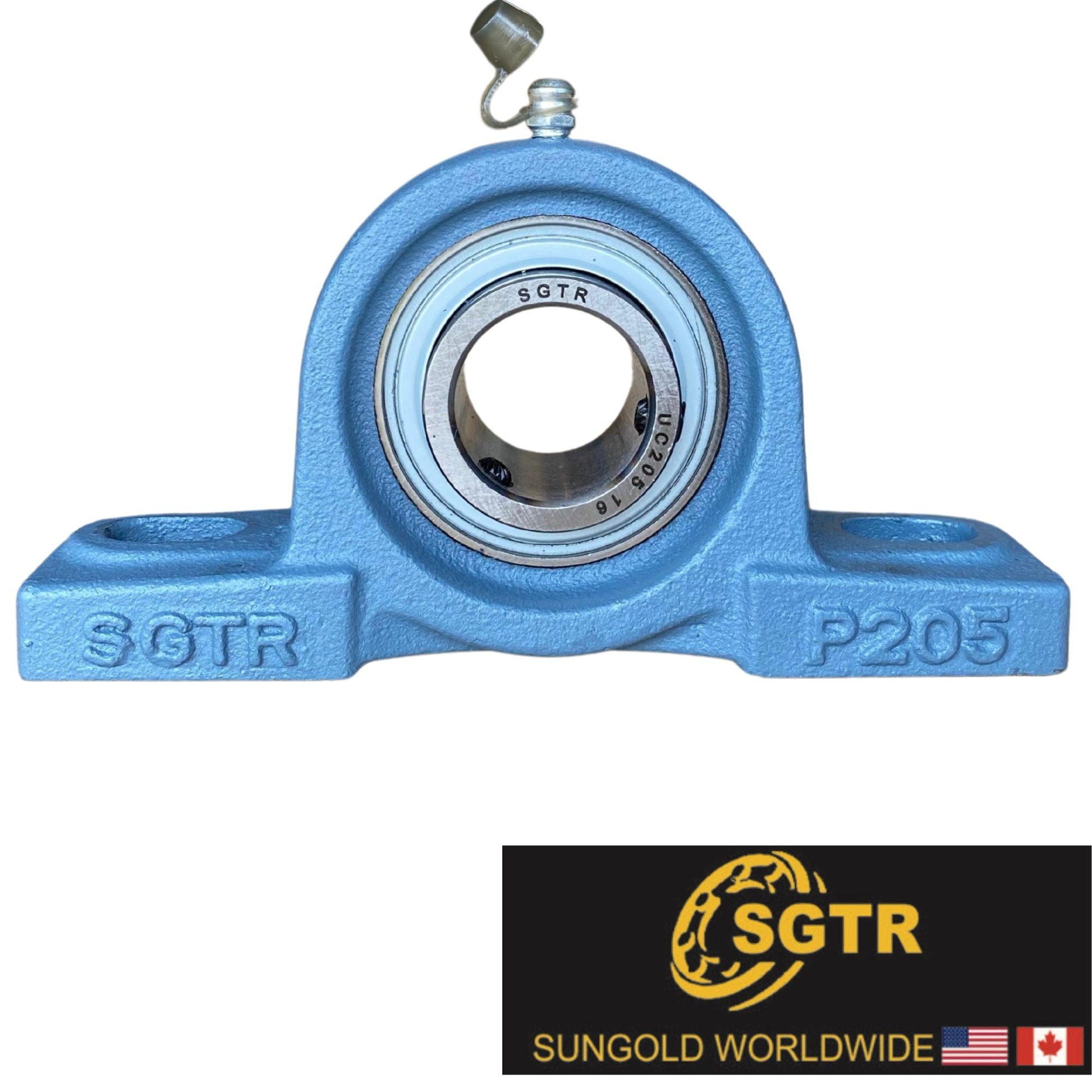

UCP205-16 Pillow Block Bearing - 1" inch Bore

UCP205-16 Pillow Block Bearing - 1" inch Bore

$9.50 USD
$9.50 USD
Sale Sold out
Shipping calculated at checkout.

The UCP205-16 pillow block bearing offers dependable shaft support and smooth alignment in industrial setups. Featuring a 1" bore size, this robust mounted bearing unit is perfect for conveyors, machinery, and medium-duty applications.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

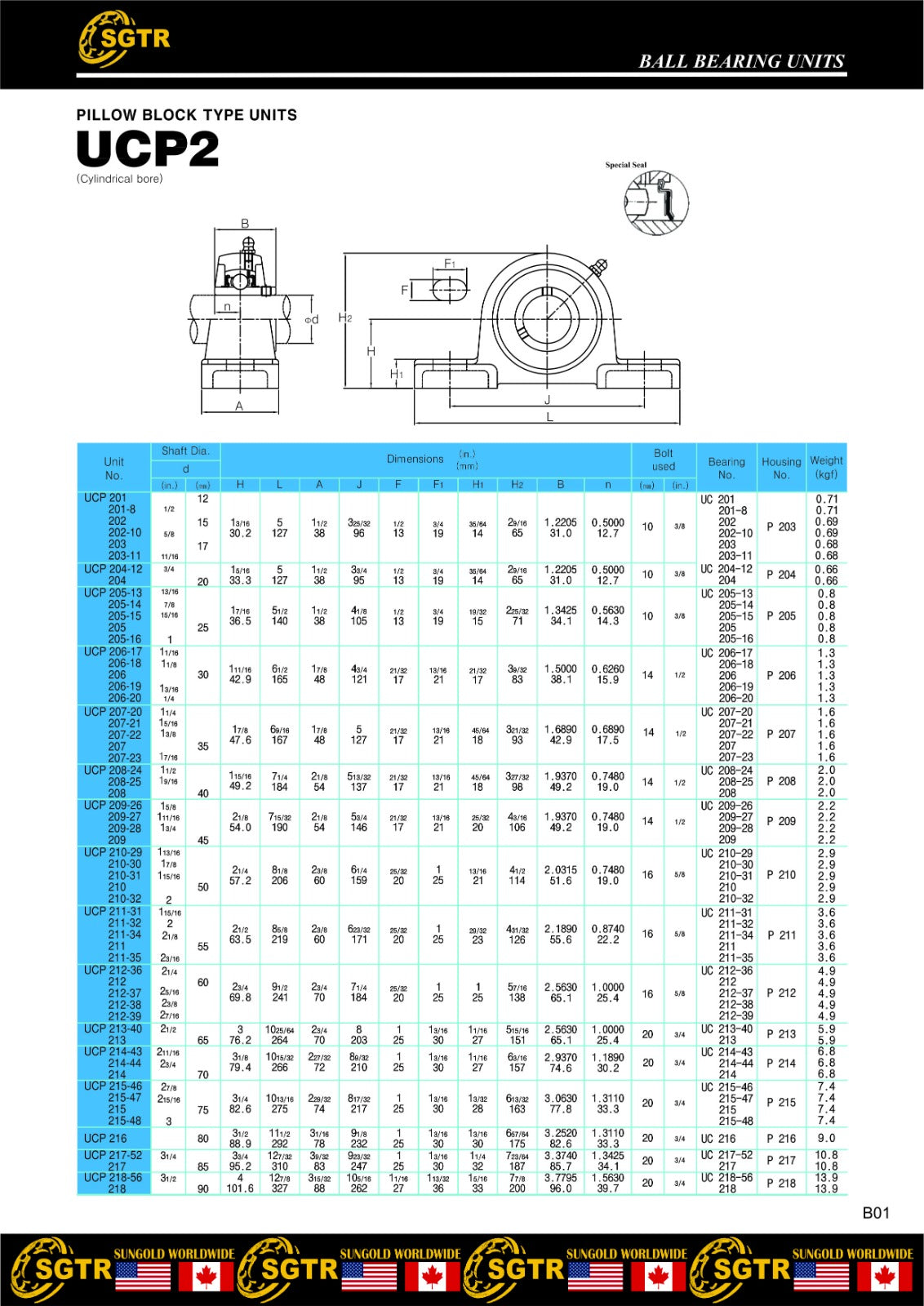

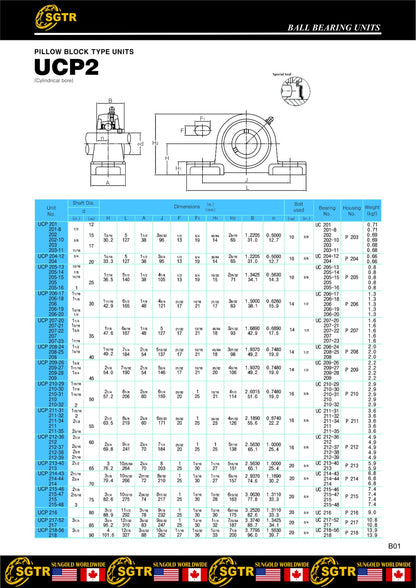

Specifications:

  • Model: UCP205-16 Pillow Block Bearing
  • Bore Size/ Inner Diameter: 1" Inch
  • Housing Material: HT200 Cast Iron
  • InsertBearing Material: AISI 52100 Chrome Steel
  • Overall Height: 2-25/32"
  • Overall Length: 5-1/2"
  • Bolt Hole to Bolt Hole: 4-1/8"
  • Base to Center: 1-7/16"
  • Housing Material: Cast Iron
  • Insert Bearing Material: Chrome Steel (SAE-52100)
  • Lubrication: Chevron SRI-2 Grease
  • Static Load: 1,810 lbf
  • Dynamic Load: 3,154 lbf
  • Speed Limit: 6,250 RPM
  • Weight: 1.82 lb

Interchange (for reference only):

Complete pillow block unit (UCP205-16) cross-references

  • AMI: UCP205-16
  • Browning: VPS-216
  • Dodge: P2B-SC-100 / 123806
  • Fafnir/Timken: RASC-1 / YAS-1
  • Link-Belt: P3-U216N / P3-Y216N
  • NSK: USP205-16S
  • NTN: UCP205-100T
  • Peer: FHSP205-16G
  • RHP: NP-1
  • Sealmaster: NP-16

Insert (UC205-16) cross-references

  • AMI: UC205-16
  • Browning: VS-216
  • Dodge: INS-SC-100
  • Fafnir/Timken: GY1100KRRB
  • Hub City: YW250-1
  • IPTCI: UC205-16
  • Link-Belt: UG216NL
  • NTN: UC205-100D1
  • SKF: YAR205-100
  • Sealmaster: 2-1 Insert

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
