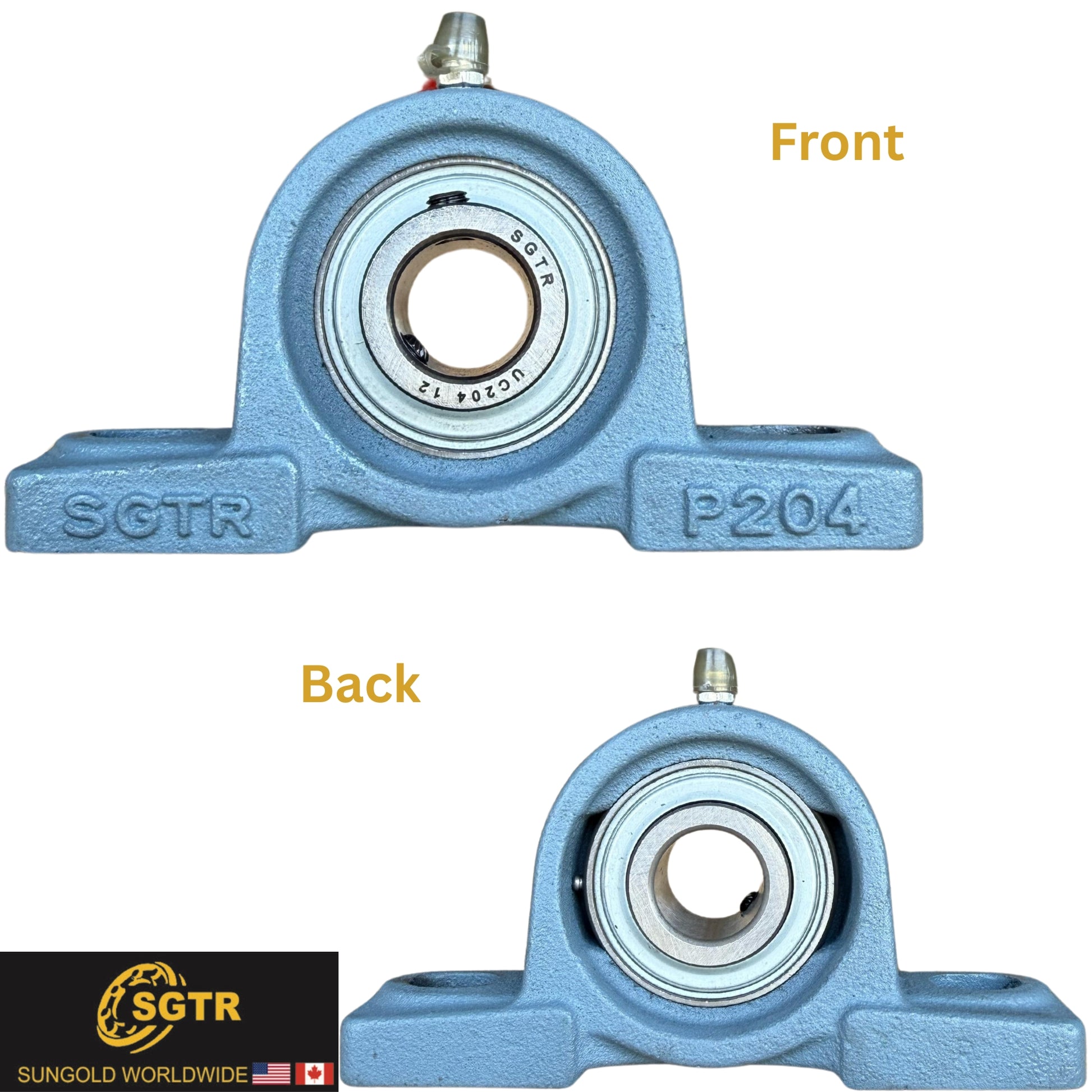

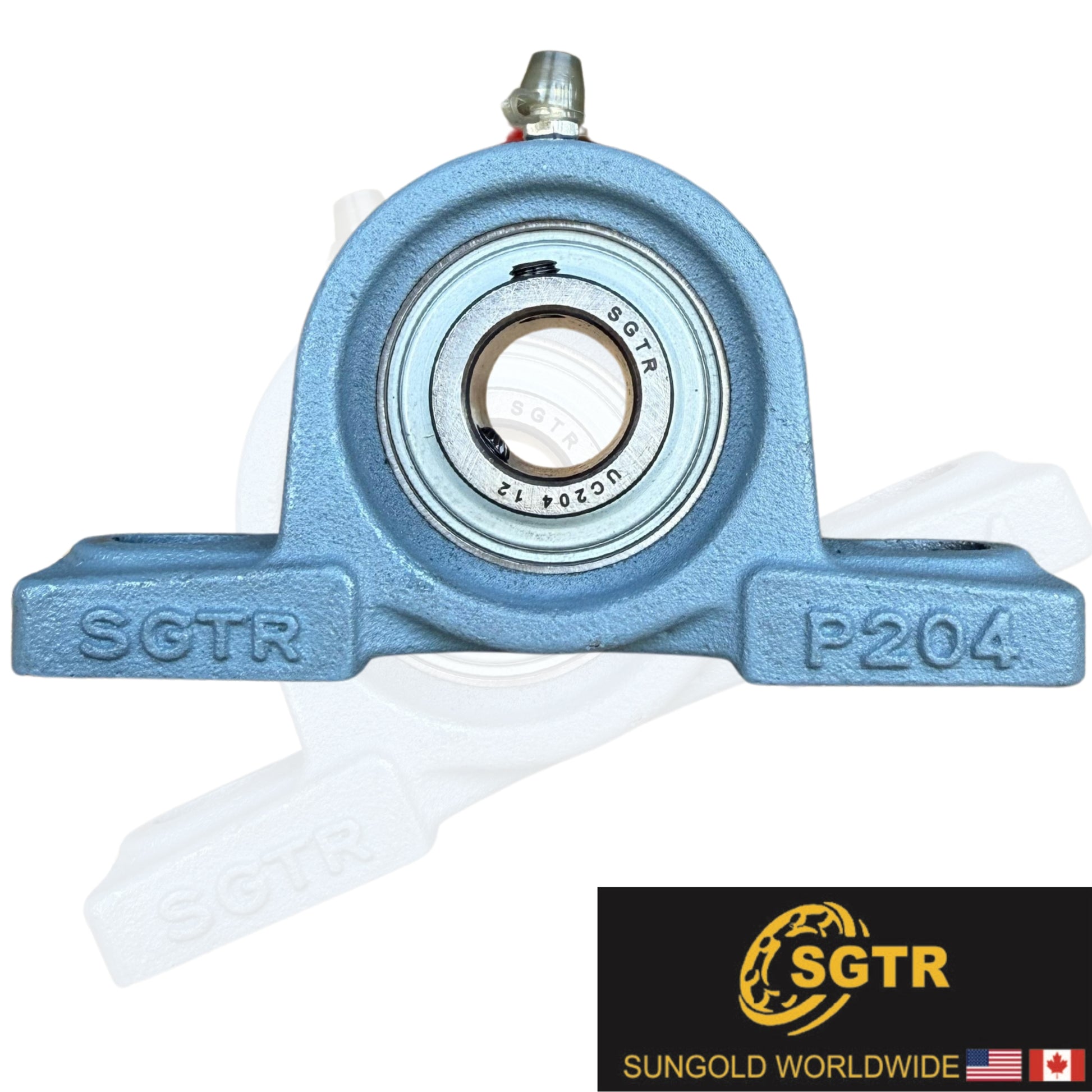

UCP204-12 Pillow Block Bearing - 3/4" inch Bore

The UCP204-12 pillow block bearing delivers dependable shaft support and smooth alignment for general-purpose industrial applications. With a 3/4" bore, it’s a durable option for conveyor systems, machinery, and more.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

• Model: UCP204-12 Pillow Block Bearing
• Bore Size/ Inner Diameter: 3/4" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Height: 2-17/32"
• Overall Length: 5"
• Bolt Hole to Bolt Hole: 3-3/4"
• Base to Center: 1-5/16"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 1,495 lbf
• Dynamic Load: 2,882 lbf
• Speed Limit: 7,450 RPM
• Weight: 1.45 lb

Interchange (for reference only):

Complete pillow block unit (UCP204-12) cross-references

• AMI: UCP204-12
• Browning: VPS-212
• Dodge: P2B-SC-012
• Fafnir/Timken: RASC-3/4 / YAS-3/4
• Link-Belt: P3-U212N / P3-Y212N
• NSK: USP204-12S
• NTN: UCP204-012T
• Peer: FHSP204-12G
• RHP: NP-3/4
• Sealmaster: NP-12

Insert (UC204-12) cross-references

• AMI: UC204-12
• Browning: VS-212
• Dodge: INS-SC-012
• Fafnir/Timken: GY1012KRRB
• Hub City: YW250-3/4
• IPTCI: UC204-12
• Link-Belt: UG212NL
• NTN: UC204-012D1
• SKF: YAR204-012
• Sealmaster: 2-3/4 Insert

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
