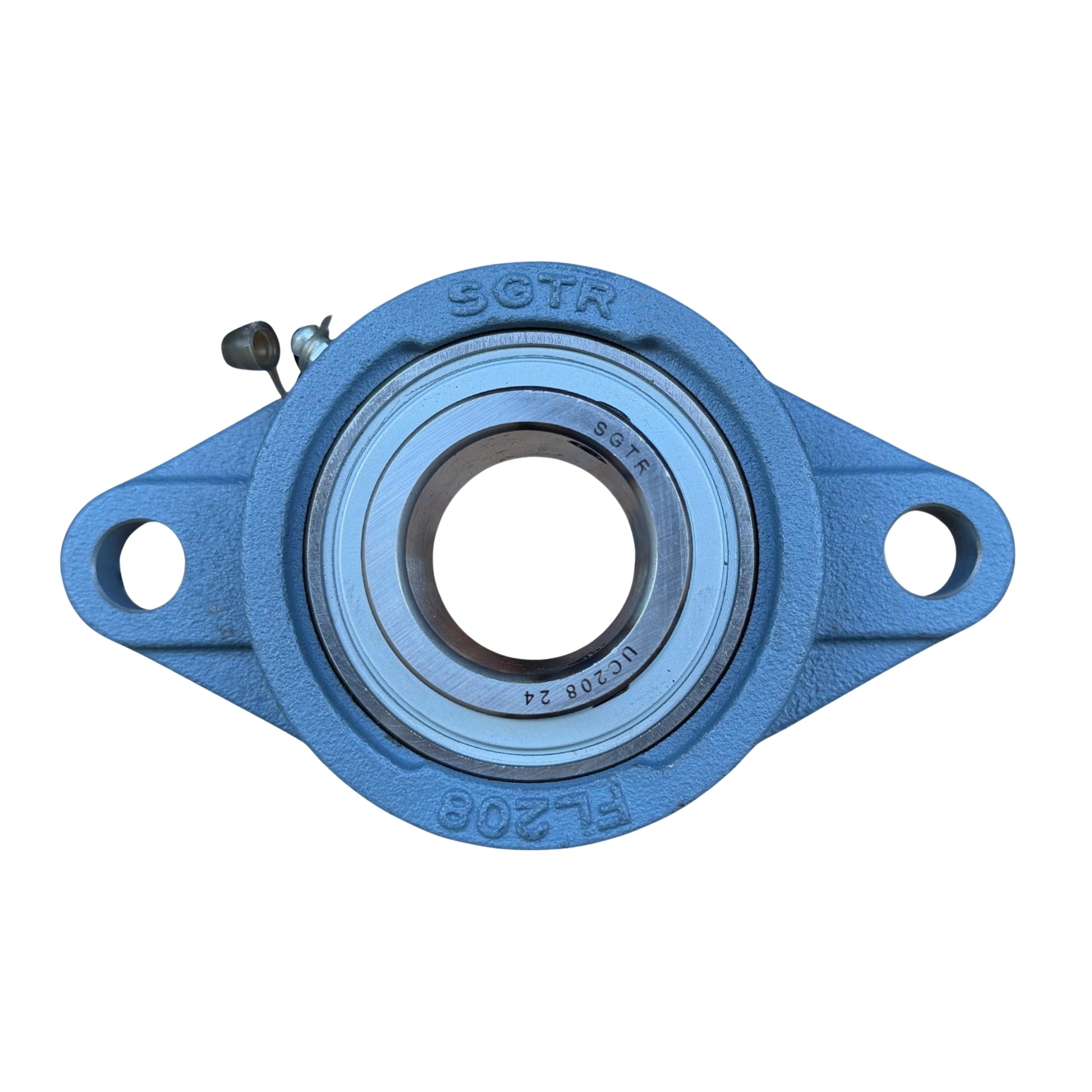

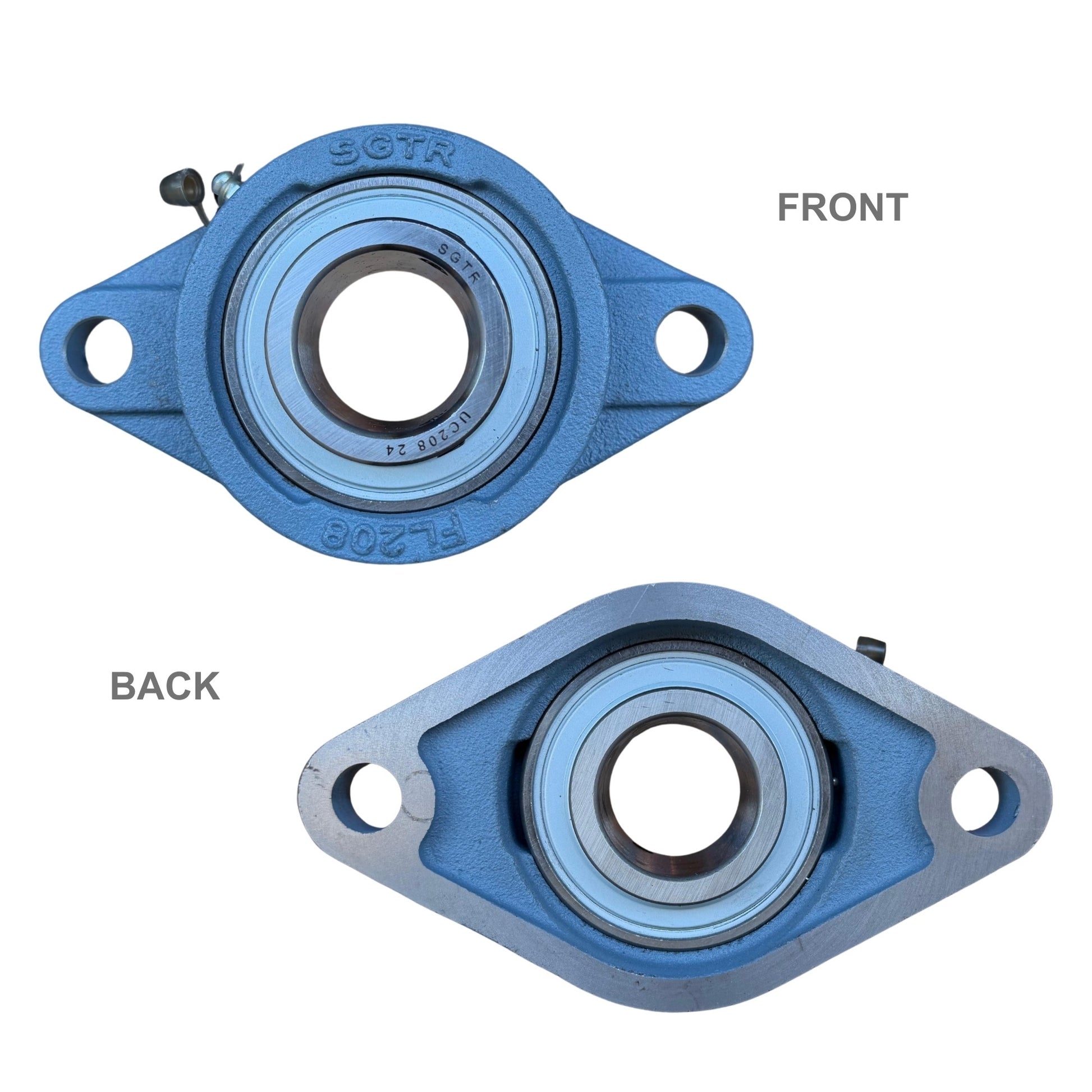

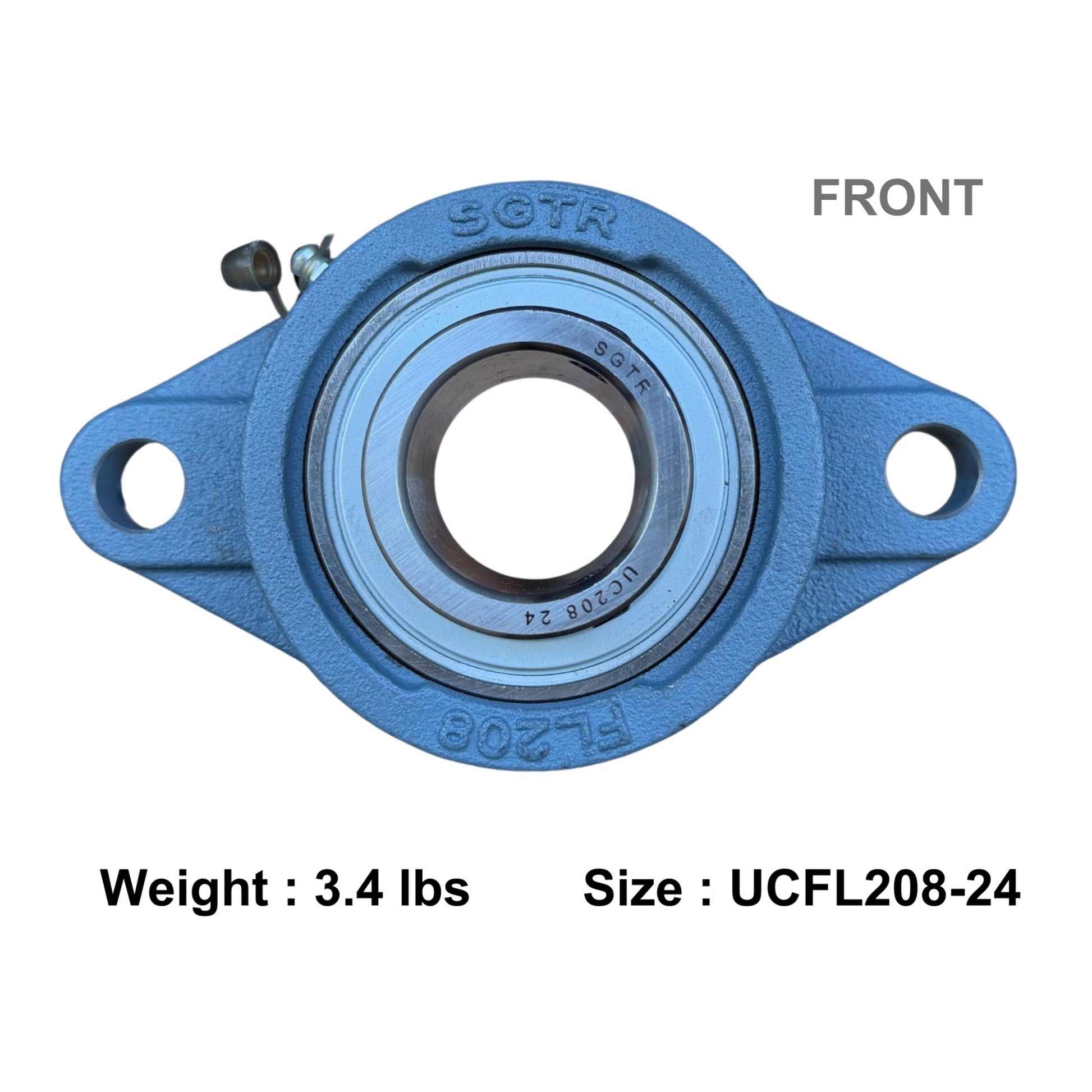

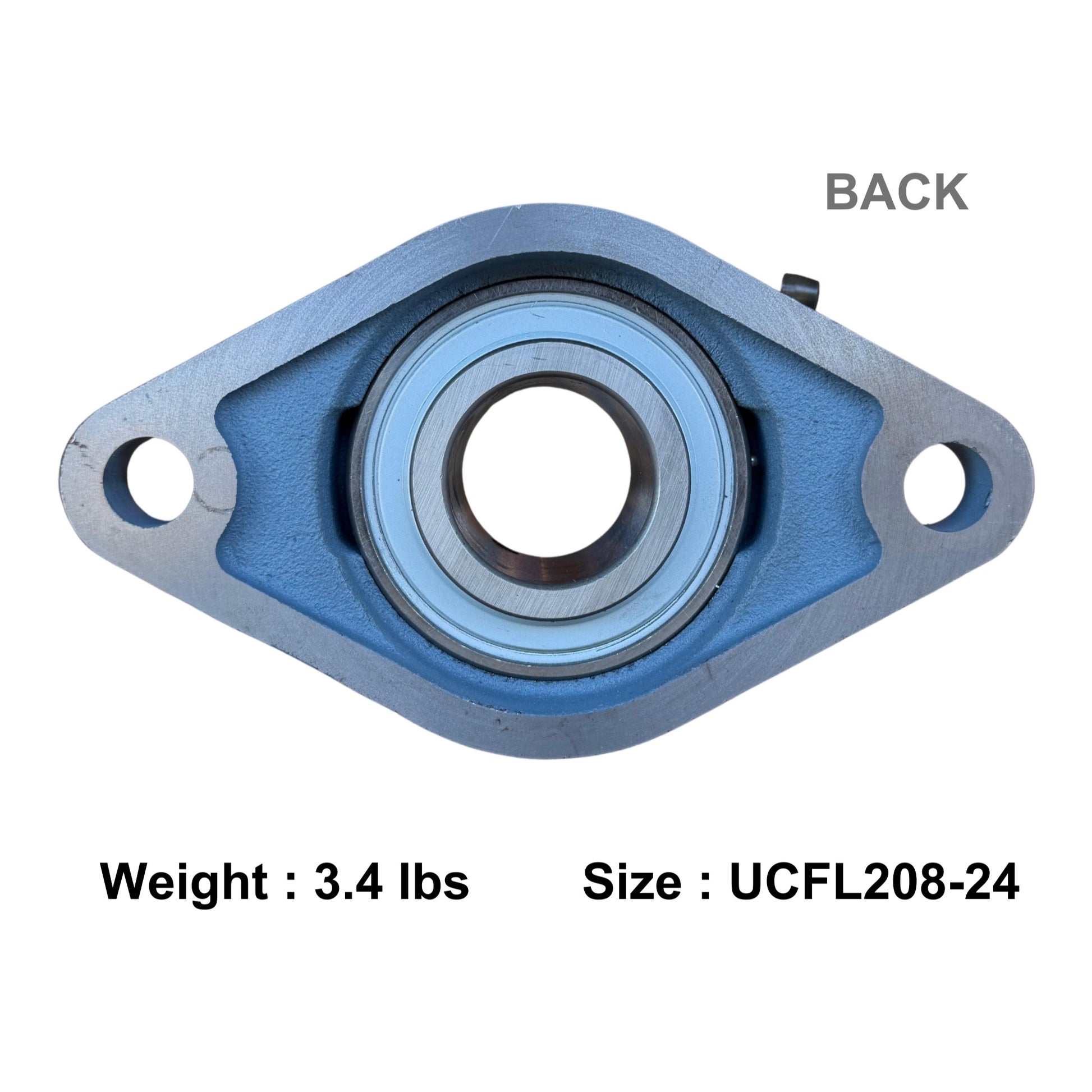

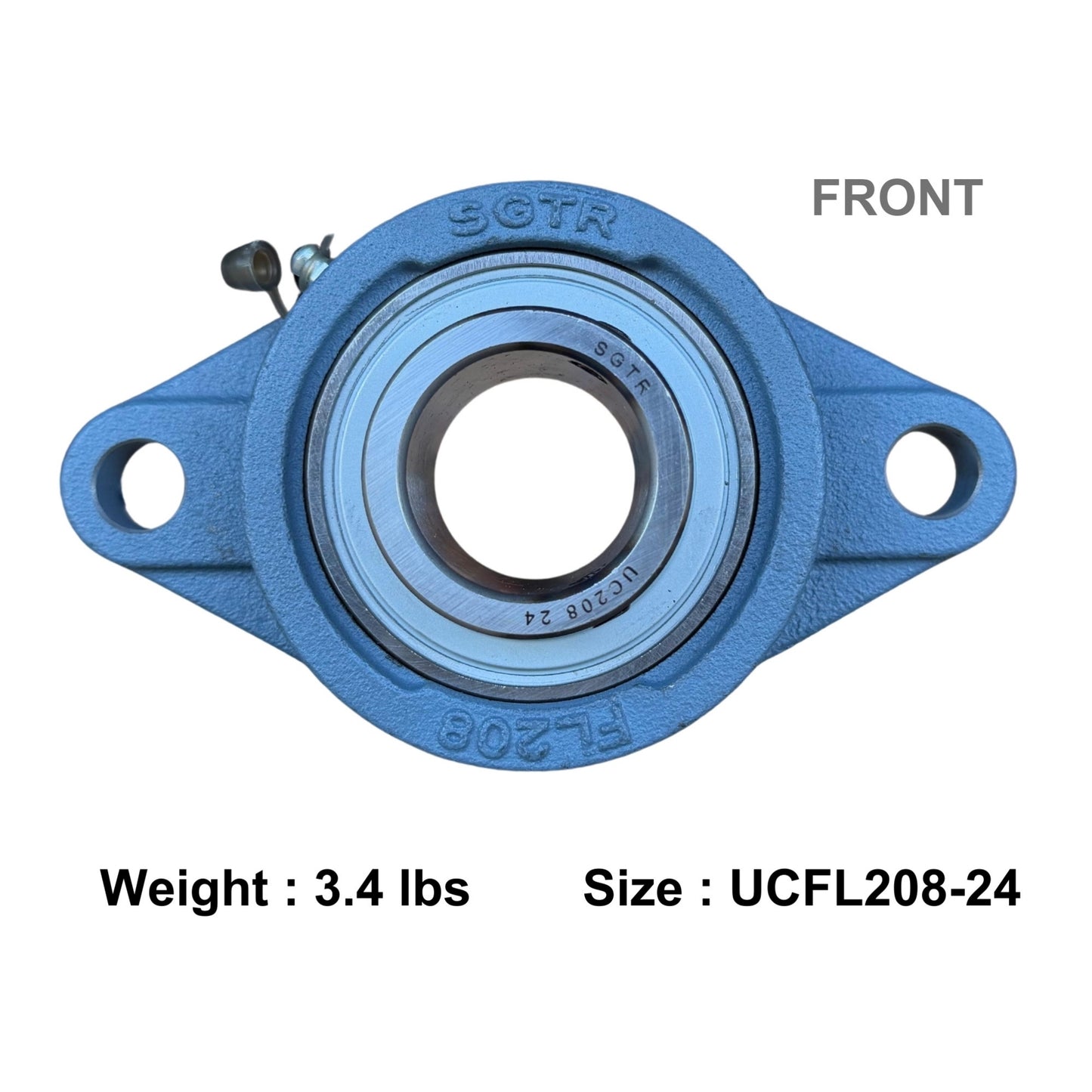

UCFL208-24 Two-Bolt Flange Bearing – 1-1/2" inch Bore

The UCFL208-24 flange bearing is designed for high load capacity and long-lasting reliability. Its cast iron housing ensures strength, while the chrome steel insert provides smooth, long-lasting operation. SGTR Bearings, a USA-based company, delivers premium-grade quality at a fraction of leading global brand prices.

• Premium-grade quality from a USA-based company
• Available at a fraction of leading global brand prices

• Fast USA shipping with bulk order discounts

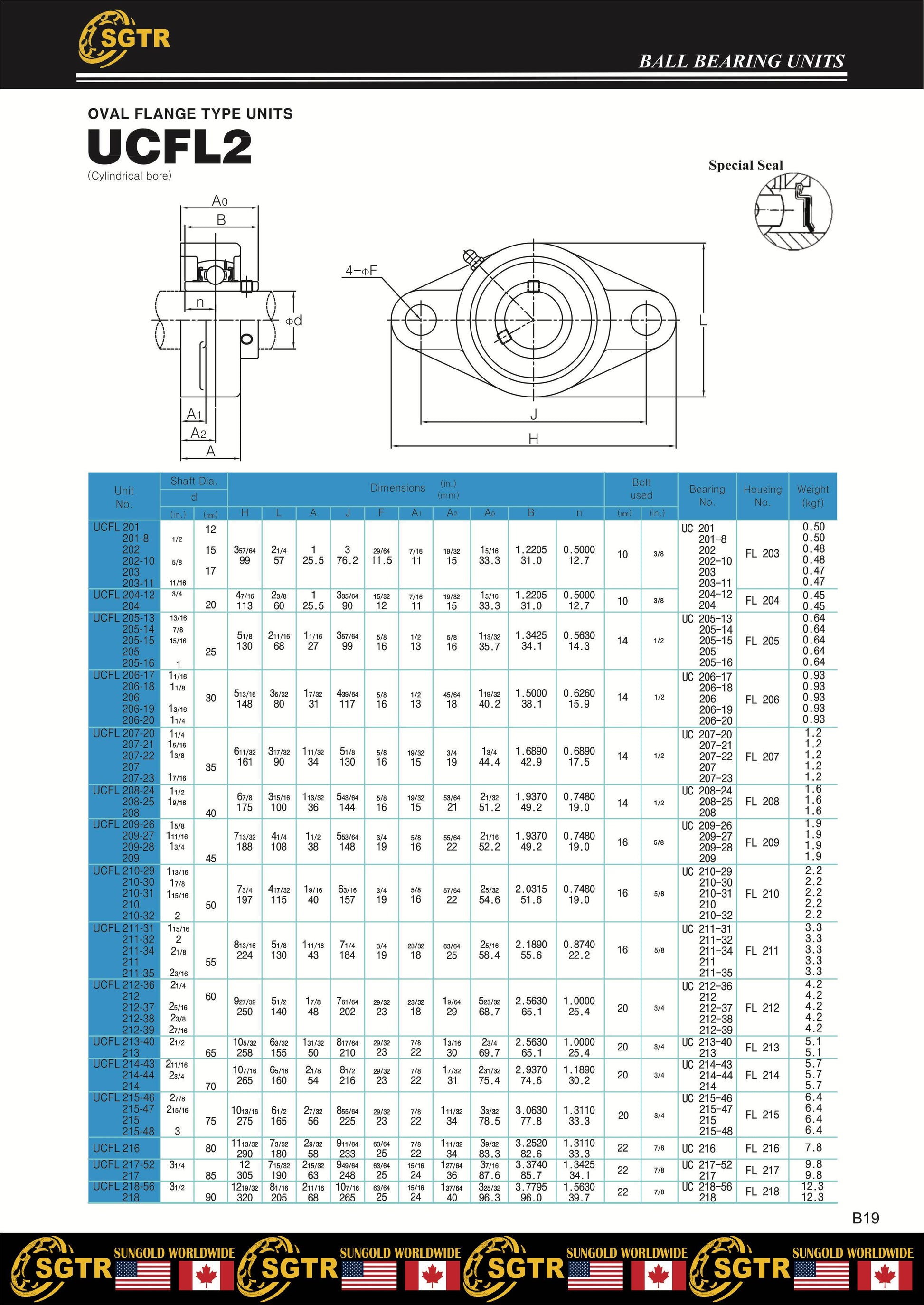

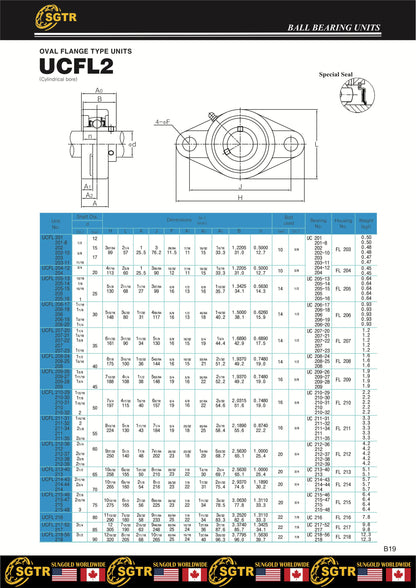

Specifications:

• Model: UCFL208-24 with Extremely Protective Seal
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel

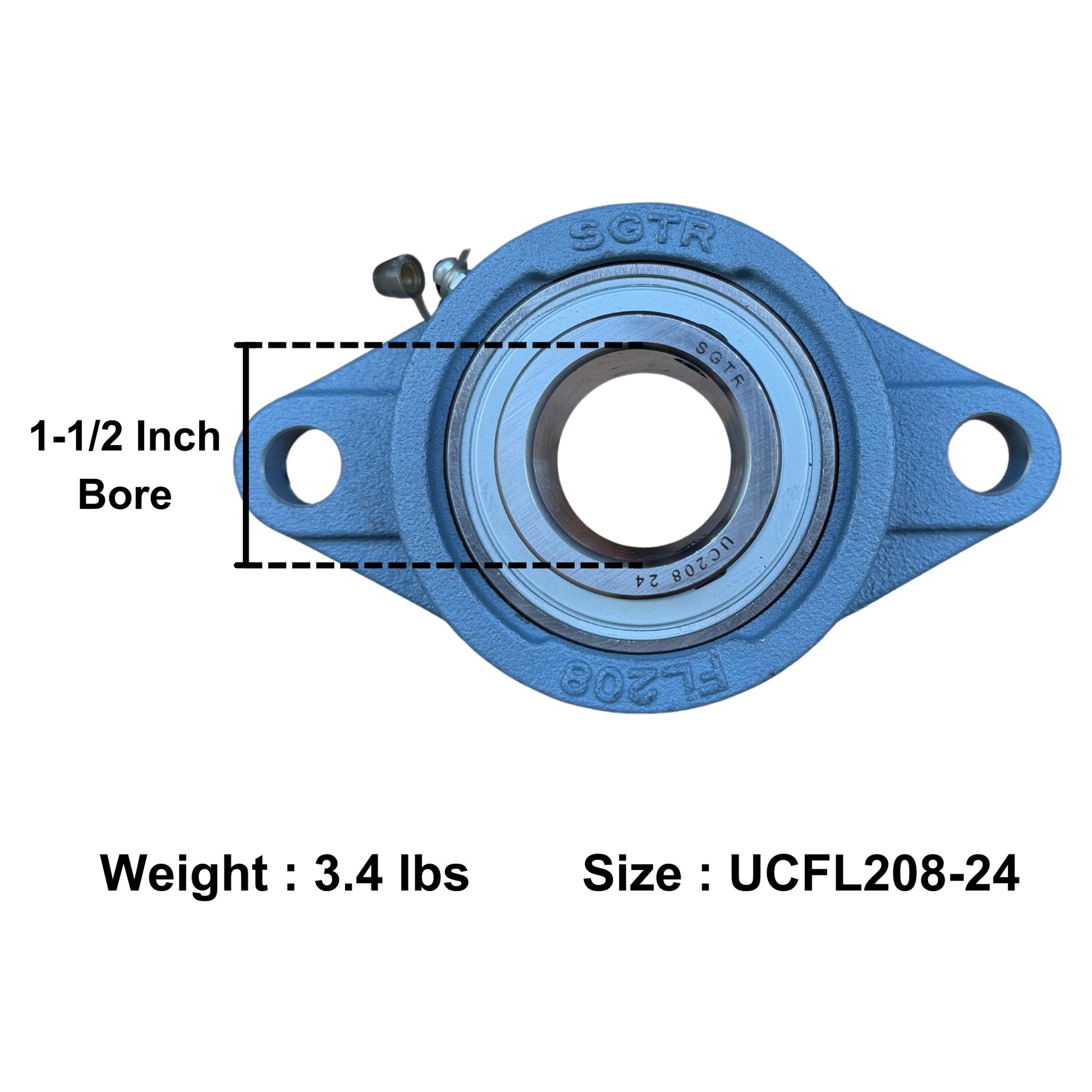

• Bore Size / Inner Diameter: 1-1/2" Inch

• Overall Length: 6-7/8"
• Overall Height: 3-15/16"
• Bolt Hole to Bolt Hole: 5-43/64"
• Housing Material: Cast Iron
• Insert Material: Chrome Steel SAE-52100
• Lubrication: Chevron SRI-2 Grease
• Static Load: 4,078 lbf
• Dynamic Load: 6,553 lbf
• Speed Limit: 4,000 RPM

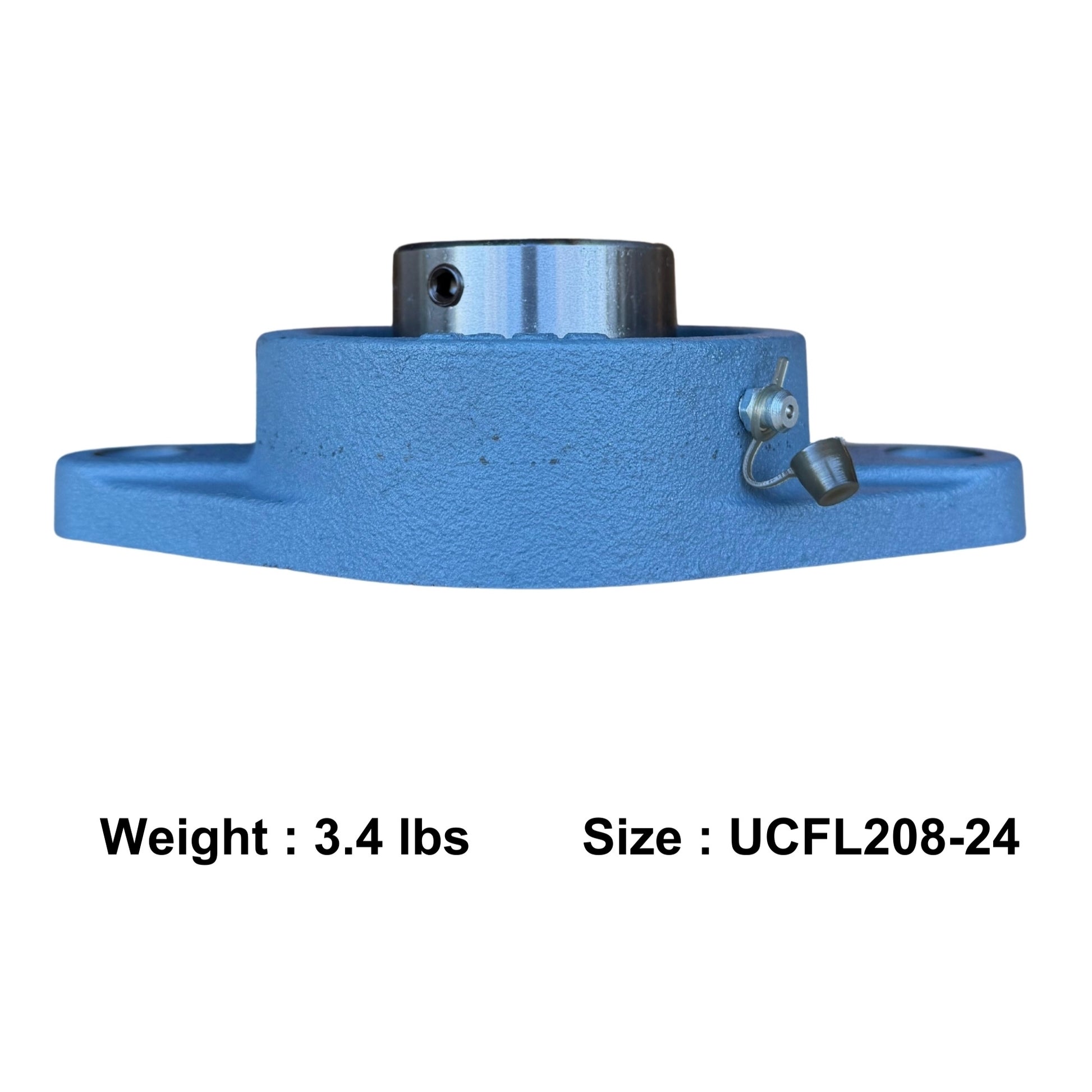

• Weight: 3.5 lb

Interchange (for reference only)

Complete unit (UCFL208-24) cross-references

• AMI: UCFT208-24
• Browning: VF2S-224
• Dodge: F2B-SC-108
• Fafnir: YCJT-1-1/2
• Link-Belt: FX3-U224N
• Peer: FHSFT208-24G
• RHP: SFT-1-1/2
• Sealmaster: SFT-24
• SKF: FYT-1-1/2-TM

Insert (UC208-24) cross-references

• AMI: UC208-24
• Browning: VS-224
• Dodge: INS-SC-108
• Fafnir/Timken: GY1108KRRB
• Hub City: YW250-1-1/2
• IPTCI: UC208-24
• Link-Belt: UG224NL
• NTN: UC208-108D1
• SKF: YAR208-108
• Sealmaster: 2-1-1/2 Insert

Explore More

• Browse our UCFL200 Series Bearings for more sizes
• See all Flange Bearings for additional options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
