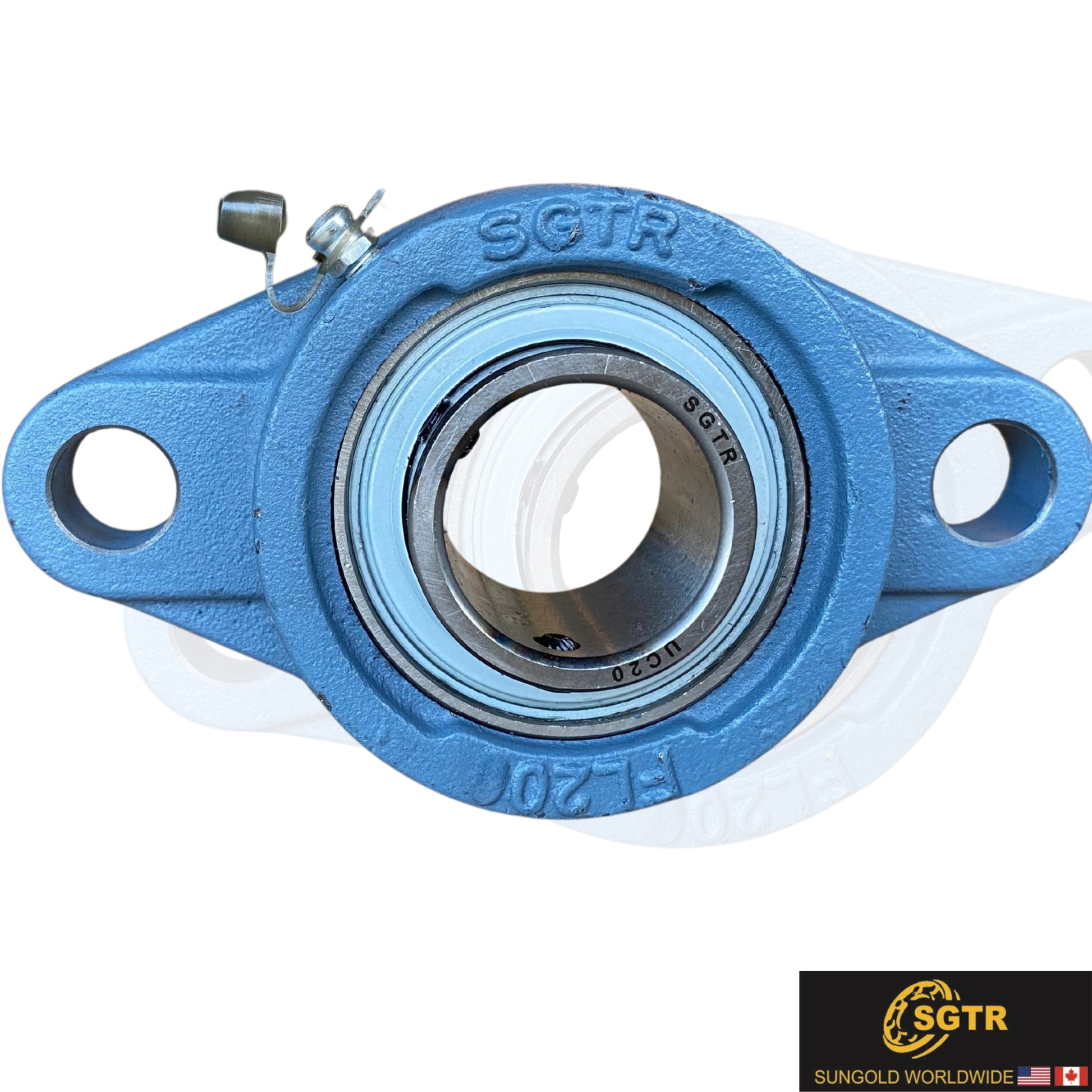

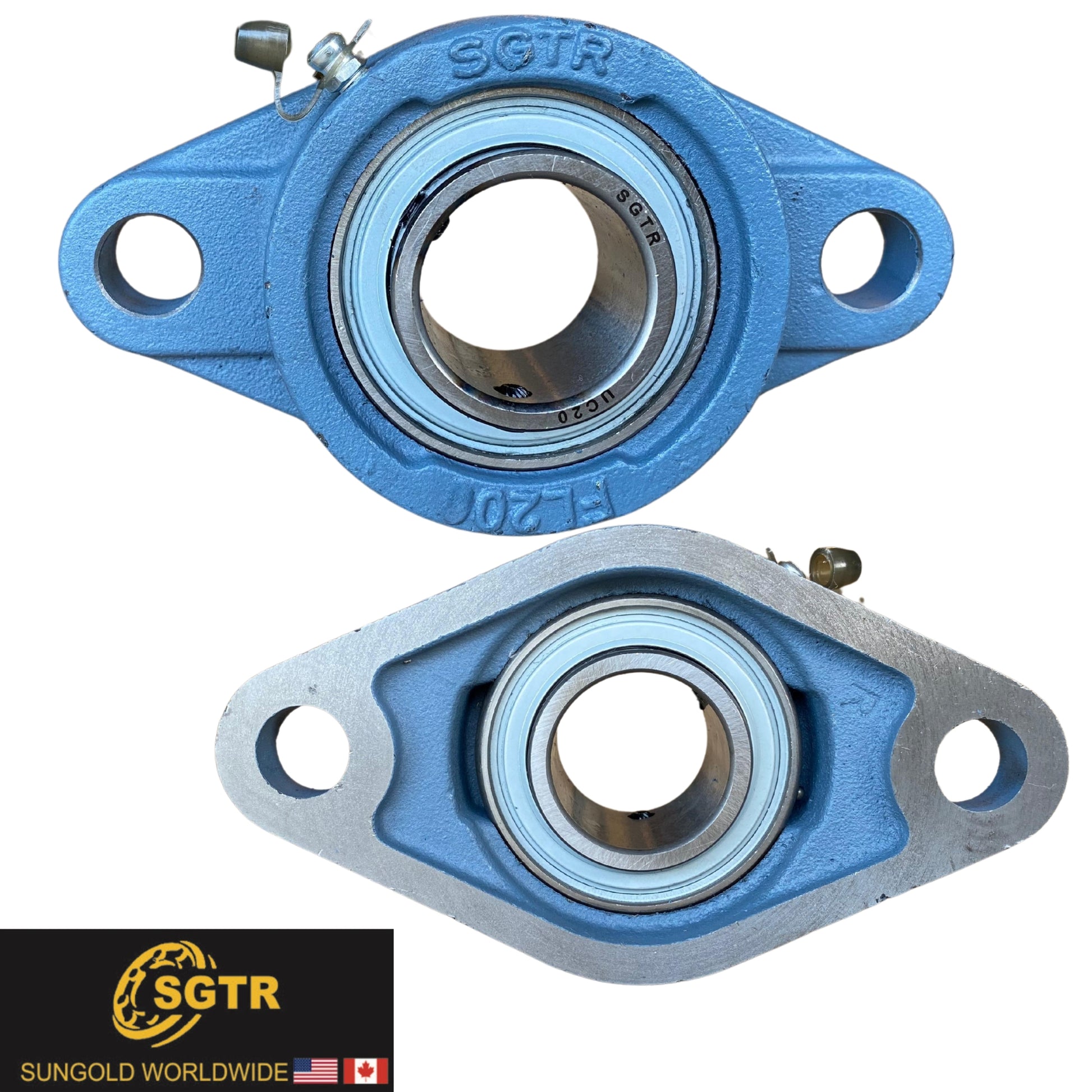

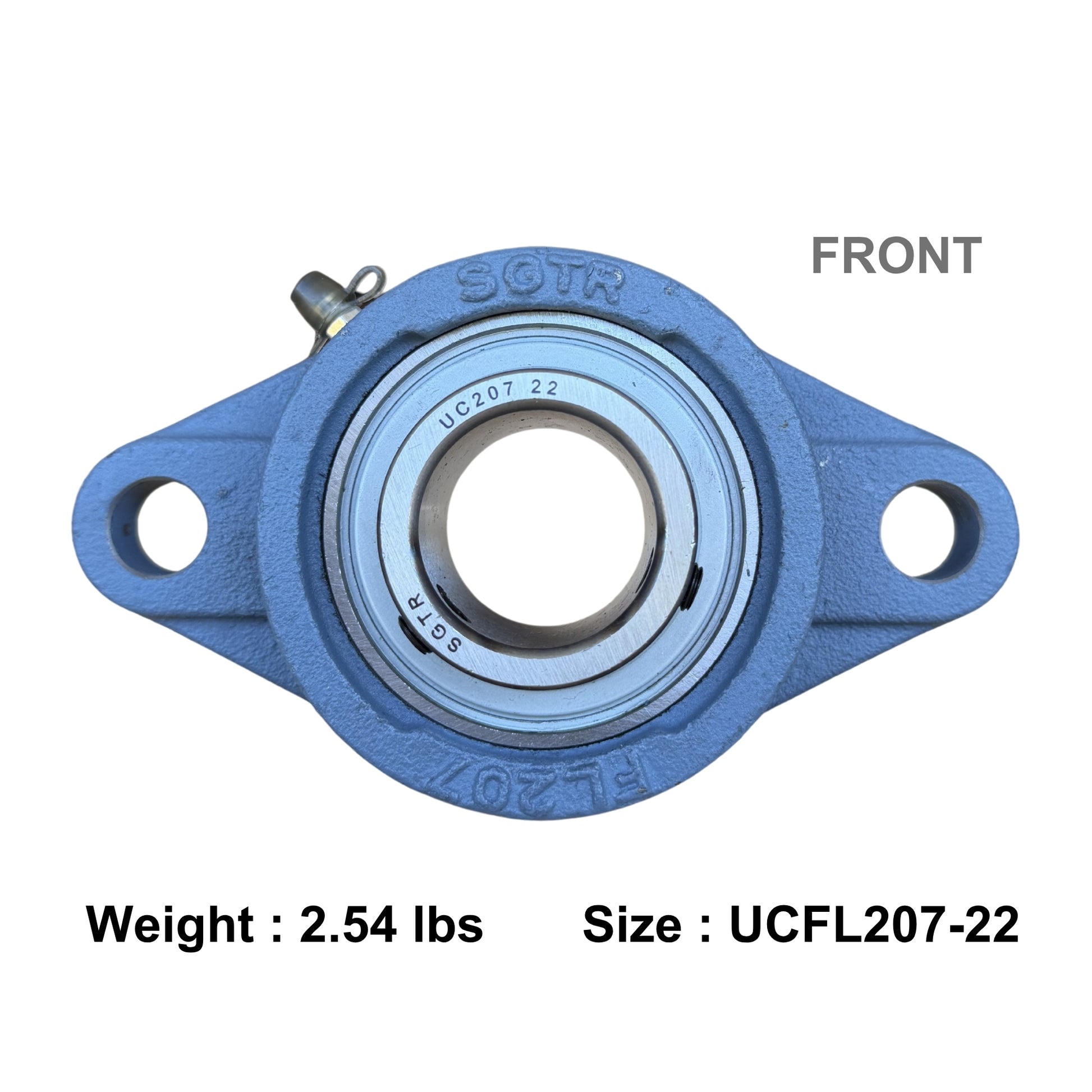

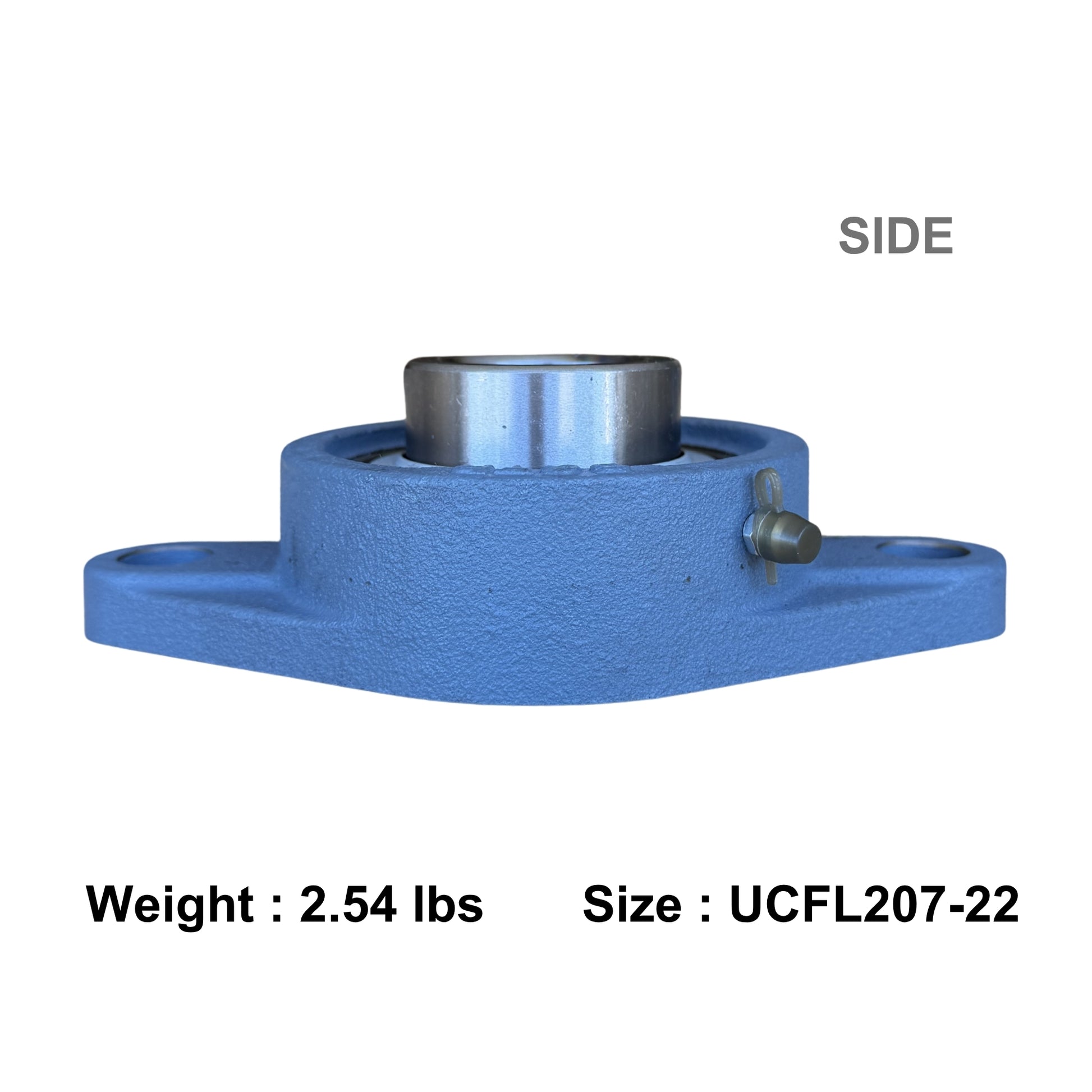

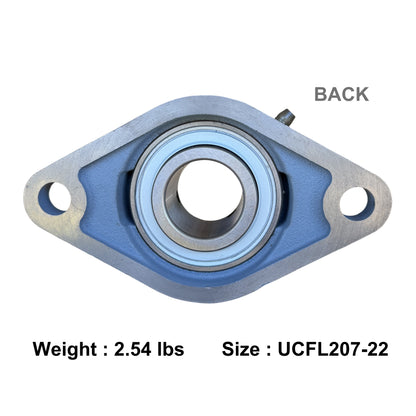

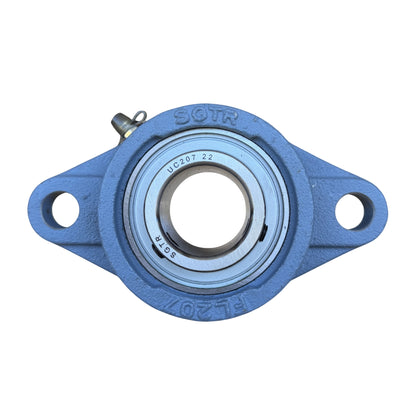

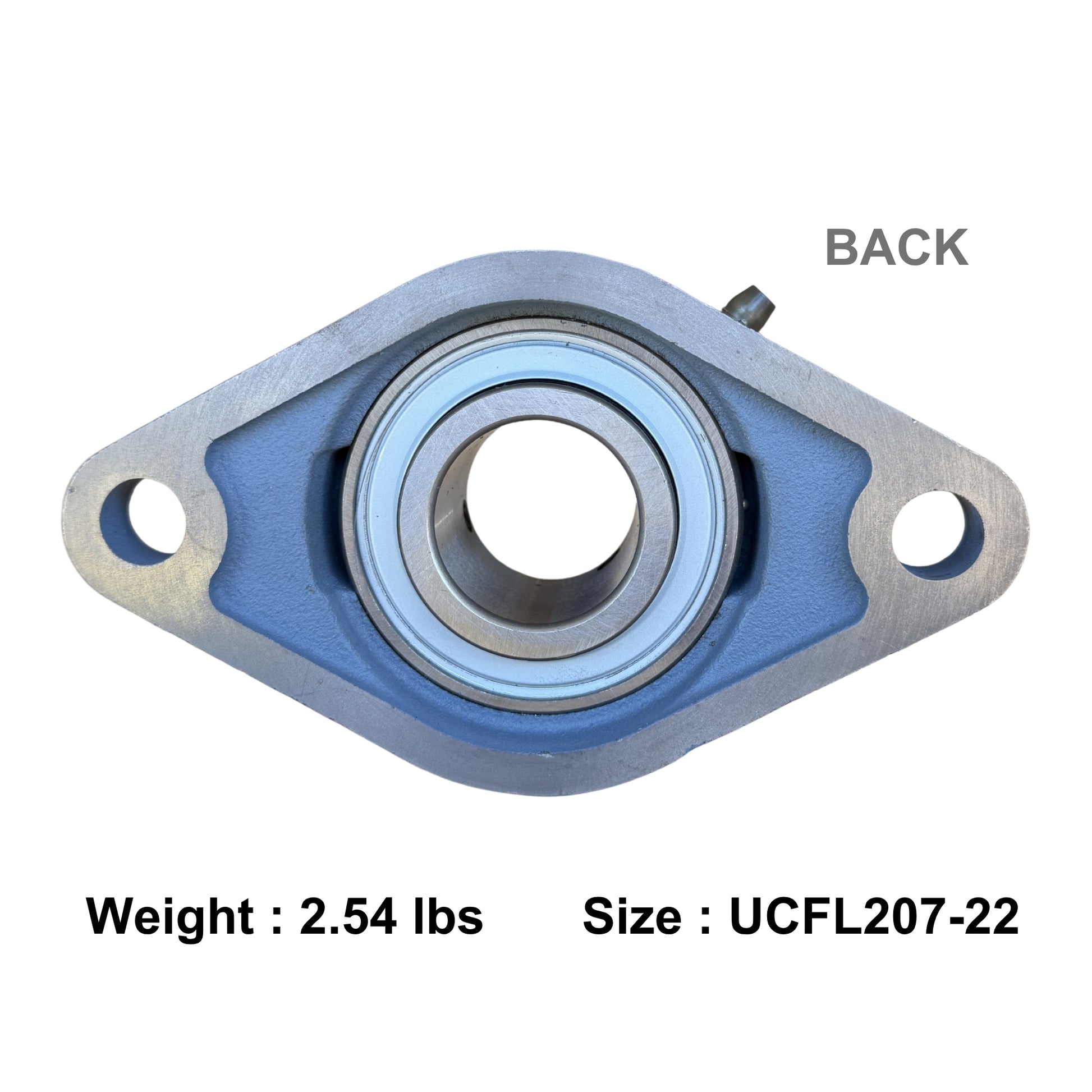

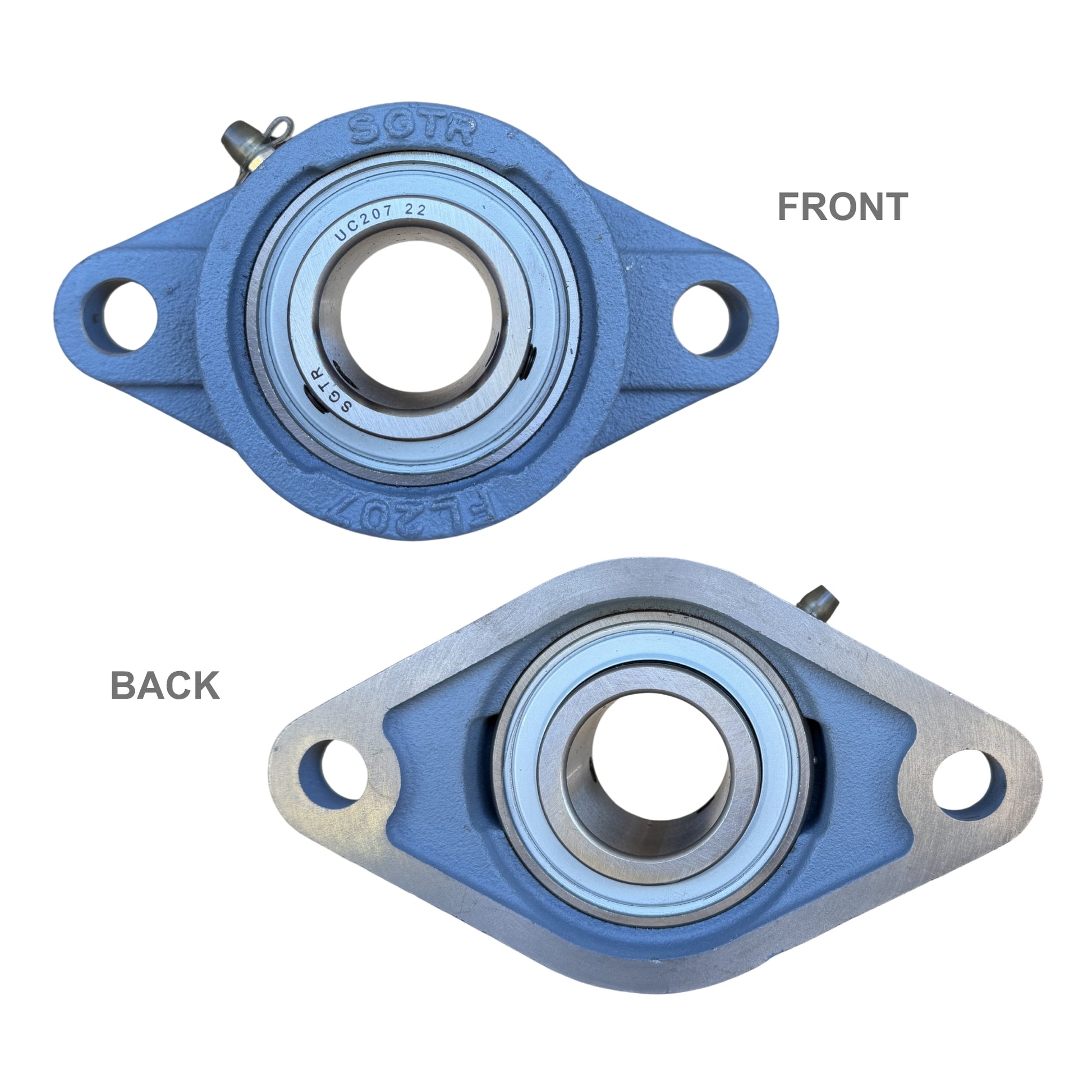

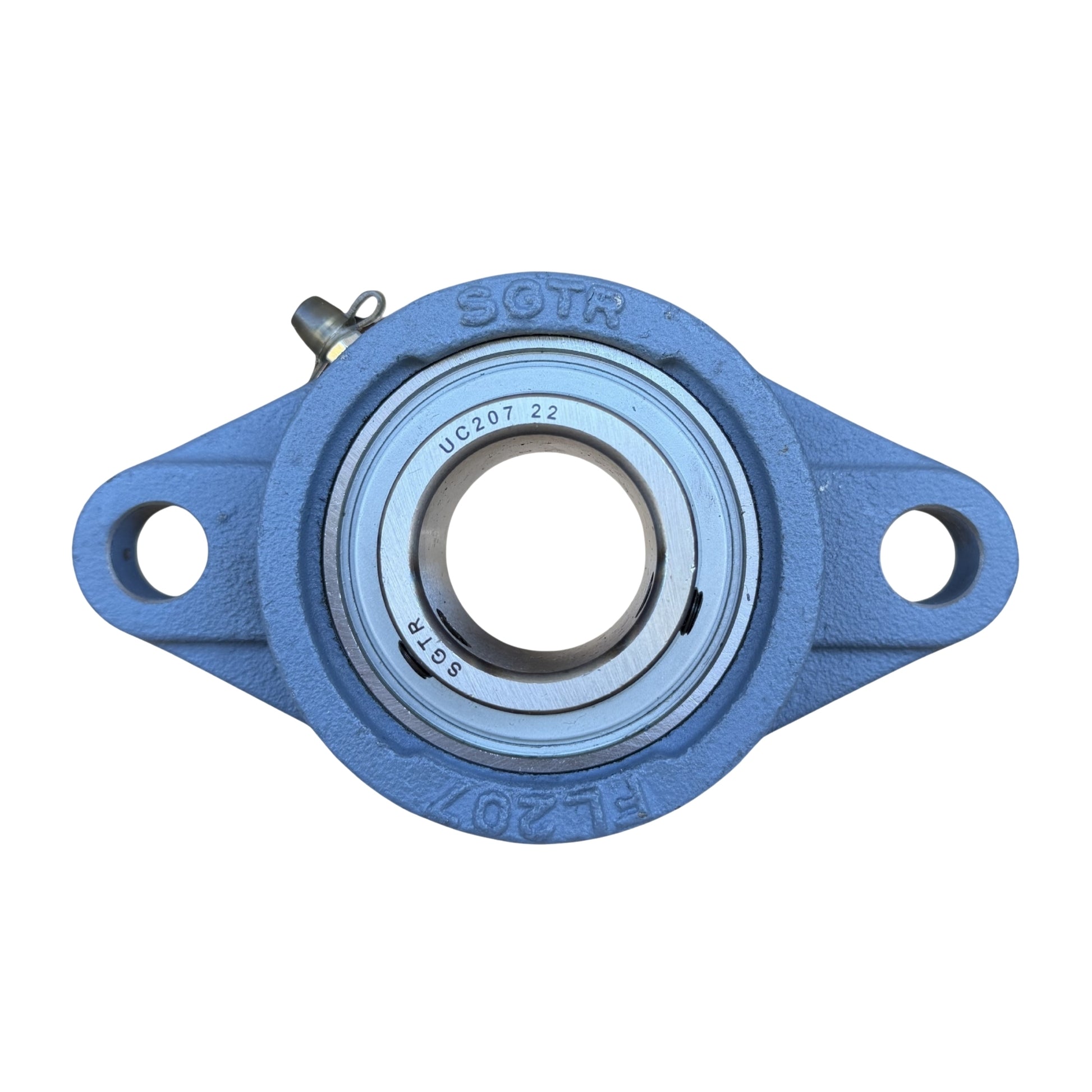

UCFL207-22 Two-Bolt Flange Bearing 1-3/8" Inch Bore

The UCFL207-22 flange bearing is engineered for reliability, precision, and long service life. Its cast iron housing and chrome steel insert provide excellent shaft support and secure alignment. SGTR Bearings, a USA-based company, delivers premium-grade quality at a fraction of leading global brand prices.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

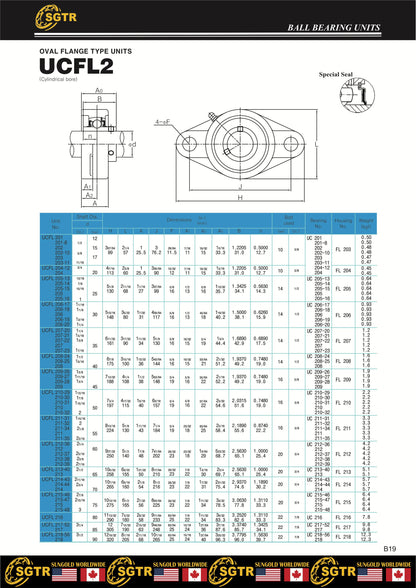

Specifications:

• Model: UCFL207-22 with Extremely Protective Seal
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel

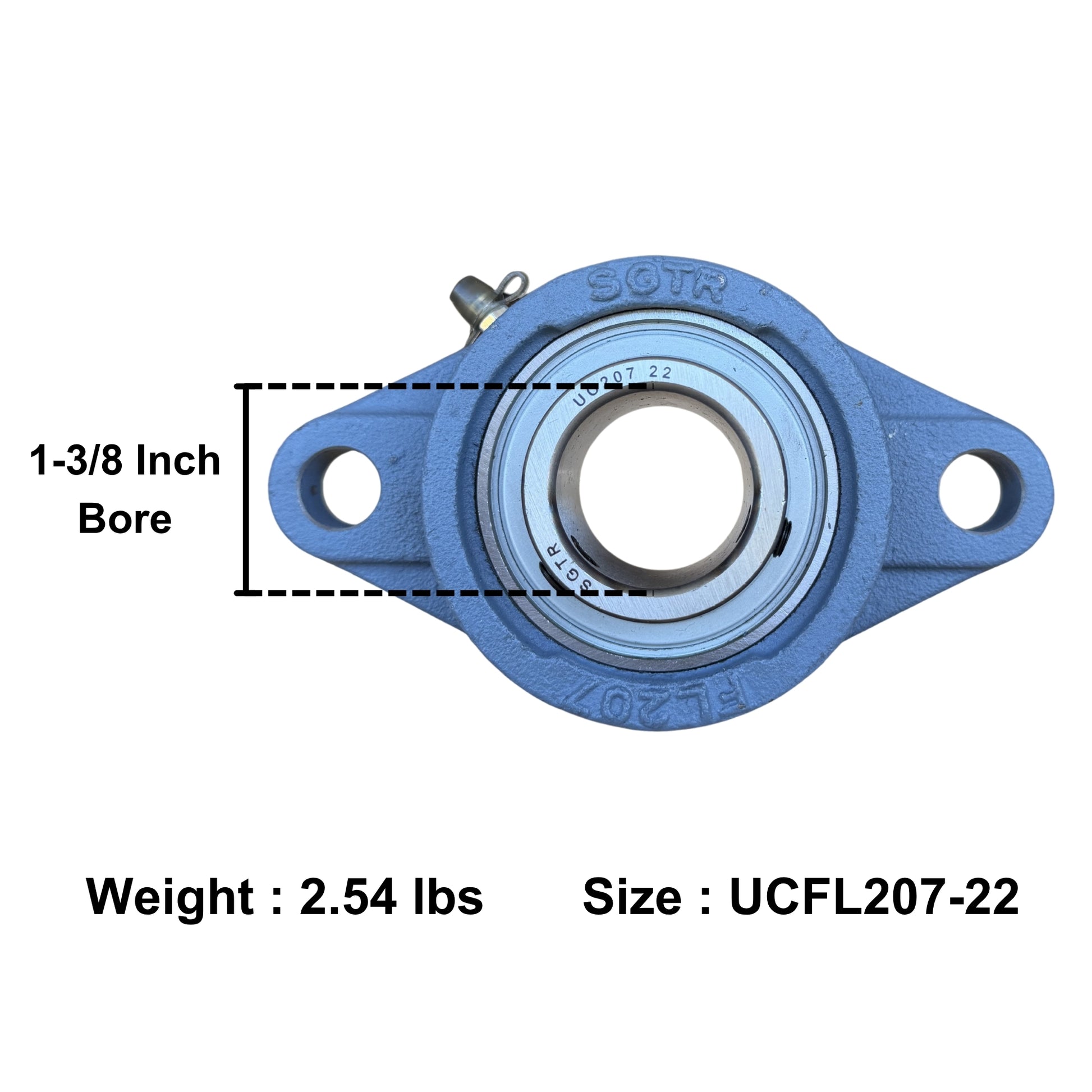

• Bore Size / Inner Diameter: 1-3/8" Inch

• Overall Length: 6-7/8"
• Overall Height: 3-17/32"
• Bolt Hole to Bolt Hole: 5-43/64"

• Lubrication: Chevron SRI-2 Grease
• Static Load: 3,495 lbf
• Dynamic Load: 5,775 lbf
• Speed Limit: 4,500 RPM
• Weight: 2.64 lb

Interchange (for reference only)

Complete unit (UCFL207-22) cross-references

• AMI: UCFT207-22
• Browning: VF2S-222
• Dodge: F2B-SC-106
• Fafnir: YCJT-1-3/8
• Link-Belt: FX3-U222N
• Peer: FHSFT207-22G
• RHP: SFT-1-3/8
• Sealmaster: SFT-22
• SKF: FYT-1-3/8-TM

Insert (UC207-22) cross-references

• AMI: UC207-22
• Browning: VS-222
• Dodge: INS-SC-106
• Fafnir/Timken: GY1106KRRB
• Hub City: YW250-1-3/8
• IPTCI: UC207-22
• Link-Belt: UG222NL
• NTN: UC207-106D1
• SKF: YAR207-106
• Sealmaster: 2-1-3/8 Insert

Explore More

• Browse our UCFL200 Series Bearings for additional sizes
• See all Flange Bearings for more options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
