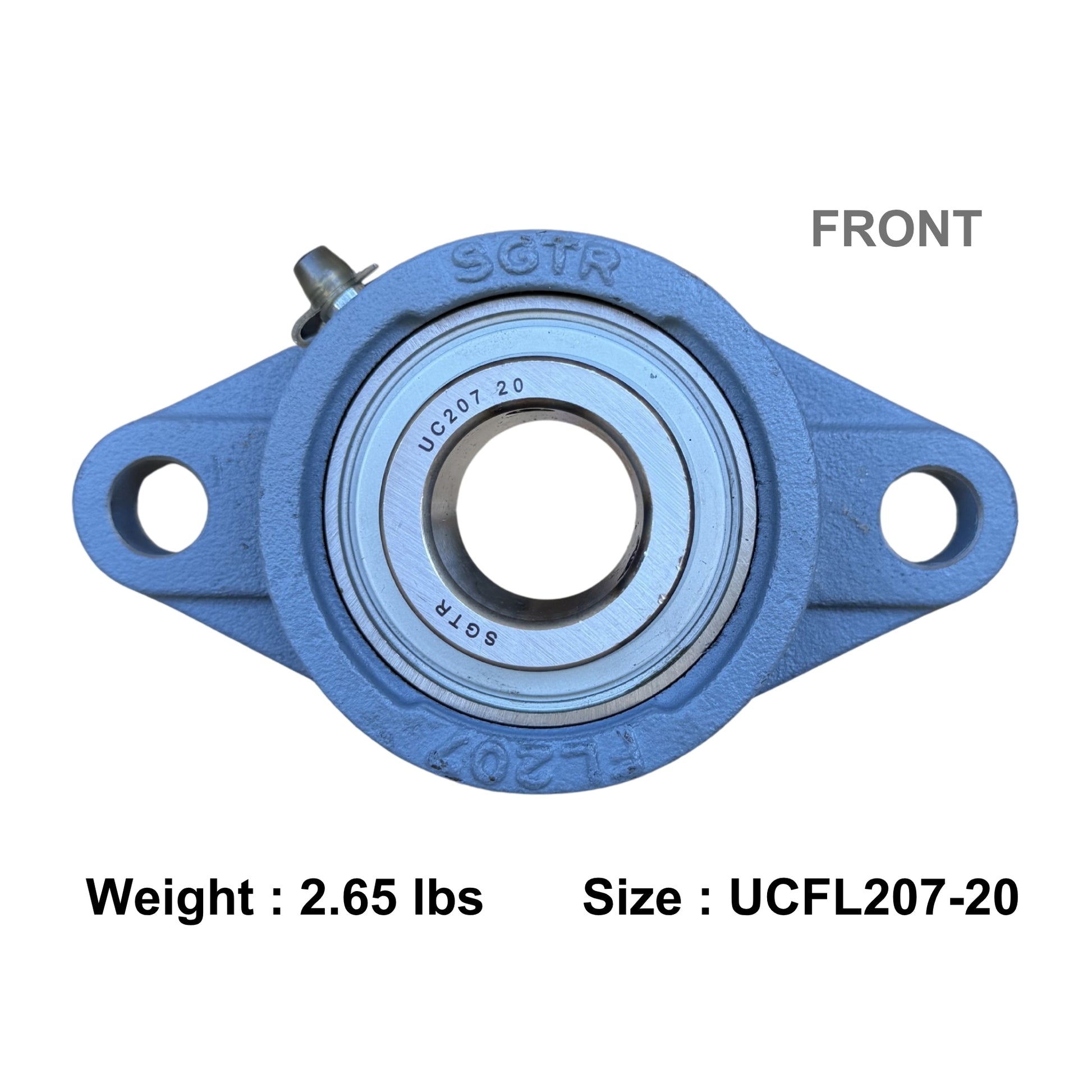

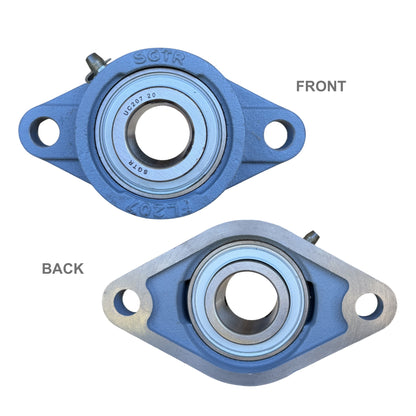

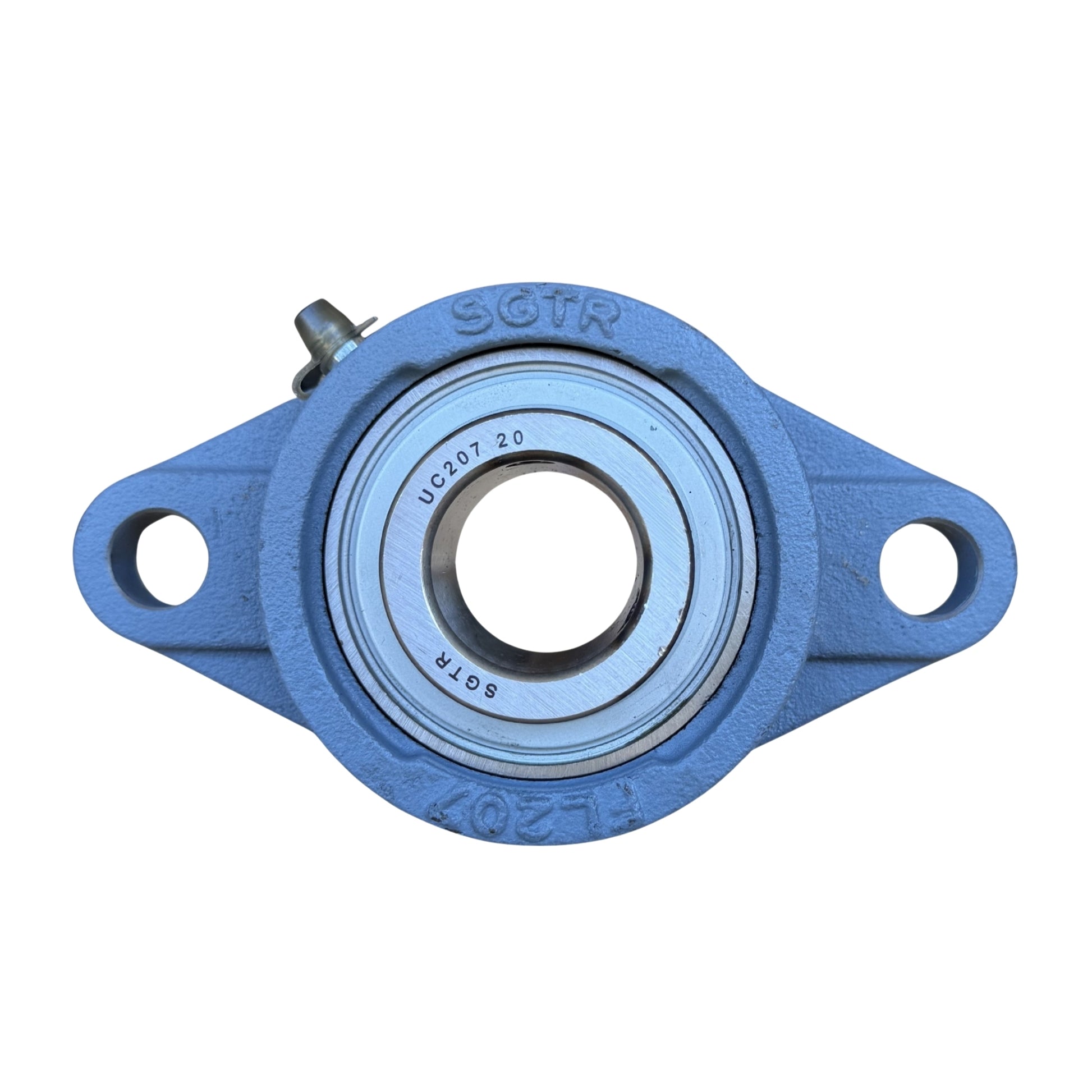

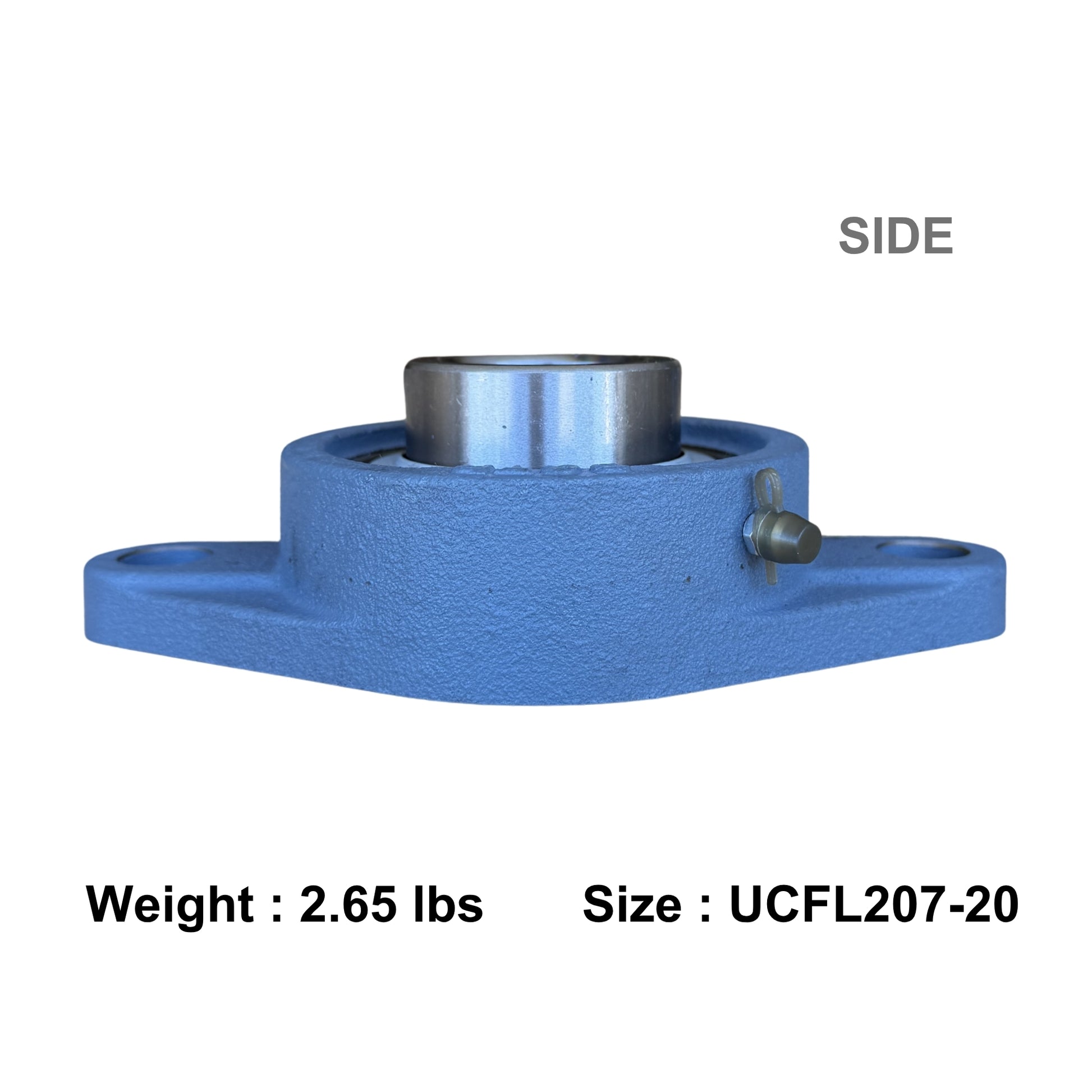

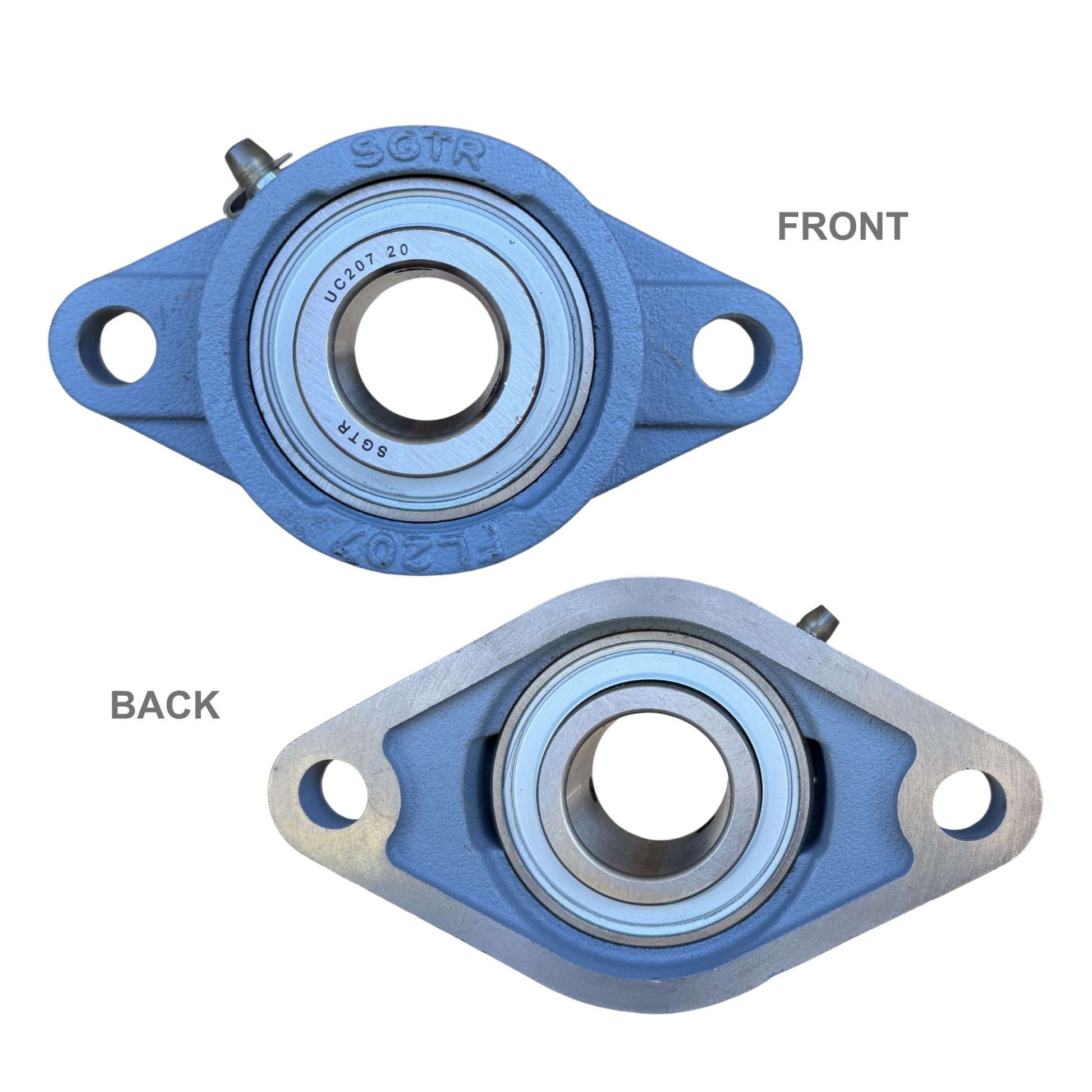

UCFL207-20 Two-Bolt Flange Bearing 1-1/4" Inch Bore

The UCFL207-20 flange bearing is designed for durability and precision in industrial, mechanical, and agricultural applications. Featuring a sturdy cast iron housing and chrome steel insert, this bearing provides excellent shaft support and alignment. SGTR Bearings, a USA-based company, offers premium-grade quality at a fraction of leading global brand prices.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

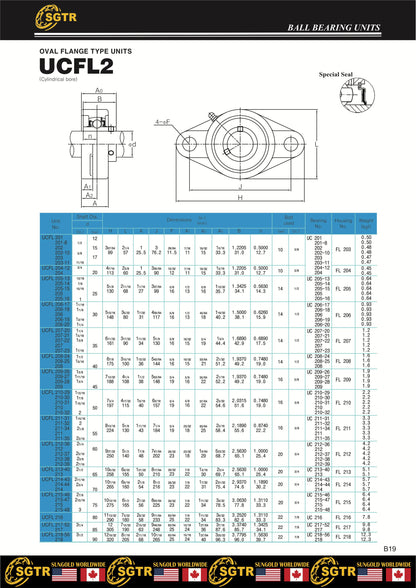

Specifications:

• Model: UCFL207-20 with Extremely Protective Seal
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel

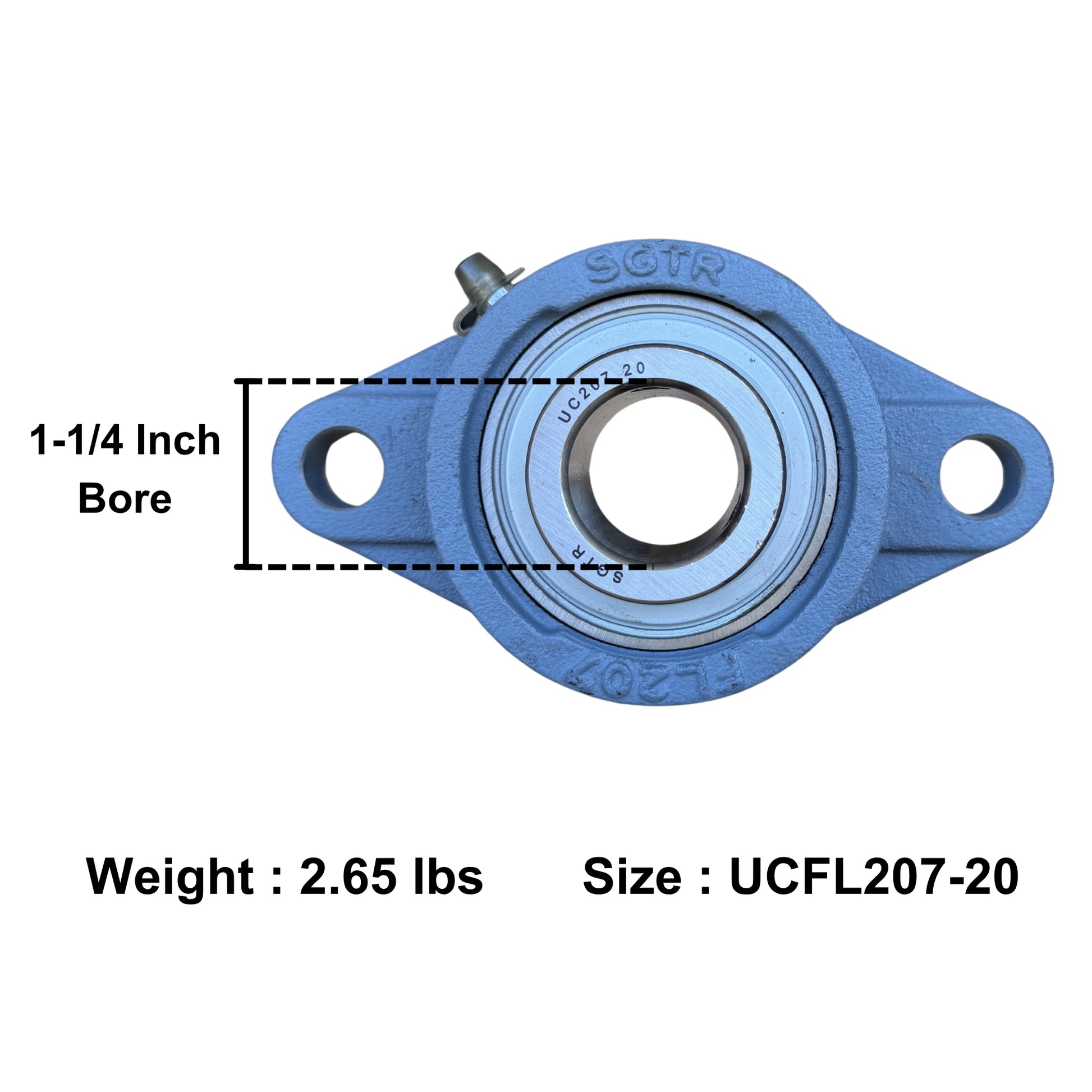

• Bore Size / Inner Diameter: 1-1/4" Inch

• Overall Length: 6-11/32"
• Overall Height: 3-17/32"
• Bolt Hole to Bolt Hole: 5-1/8"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 3,495 lbf
• Dynamic Load: 5,775 lbf
• Speed Limit: 4,500 RPM

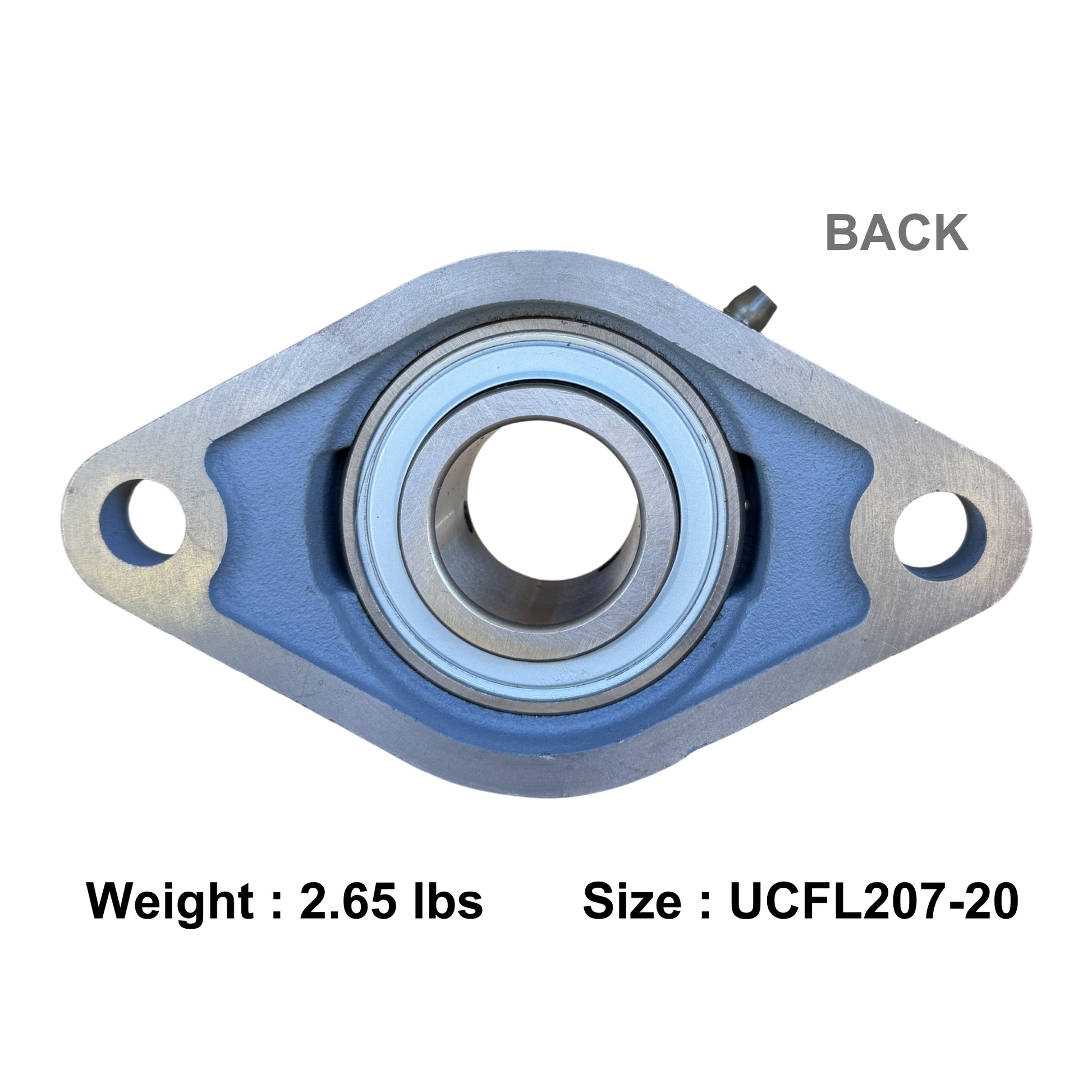

• Weight: 2.64 lb

Interchange (for reference only)

Complete unit (UCFL207-20) cross-references

• AMI: UCFT207-20
• Browning: VF2S-220
• Dodge: F2B-SC-104
• Fafnir: YCJT-1-1/4
• Link-Belt: FX3-U220N
• Peer: FHSFT207-20G
• RHP: SFT-1-1/4
• Sealmaster: SFT-20
• SKF: FYT-1-1/4-TM

Insert (UC207-20) cross-references

• AMI: UC207-20
• Browning: VS-220
• Dodge: INS-SC-104
• Fafnir/Timken: GY1104KRRB
• Hub City: YW250-1-1/4
• IPTCI: UC207-20
• Link-Belt: UG220NL
• NTN: UC207-104D1
• SKF: YAR207-104
• Sealmaster: 2-1-1/4 Insert

Explore More

• Browse our UCFL200 Series Bearings for additional sizes
• See all Flange Bearings for more options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
