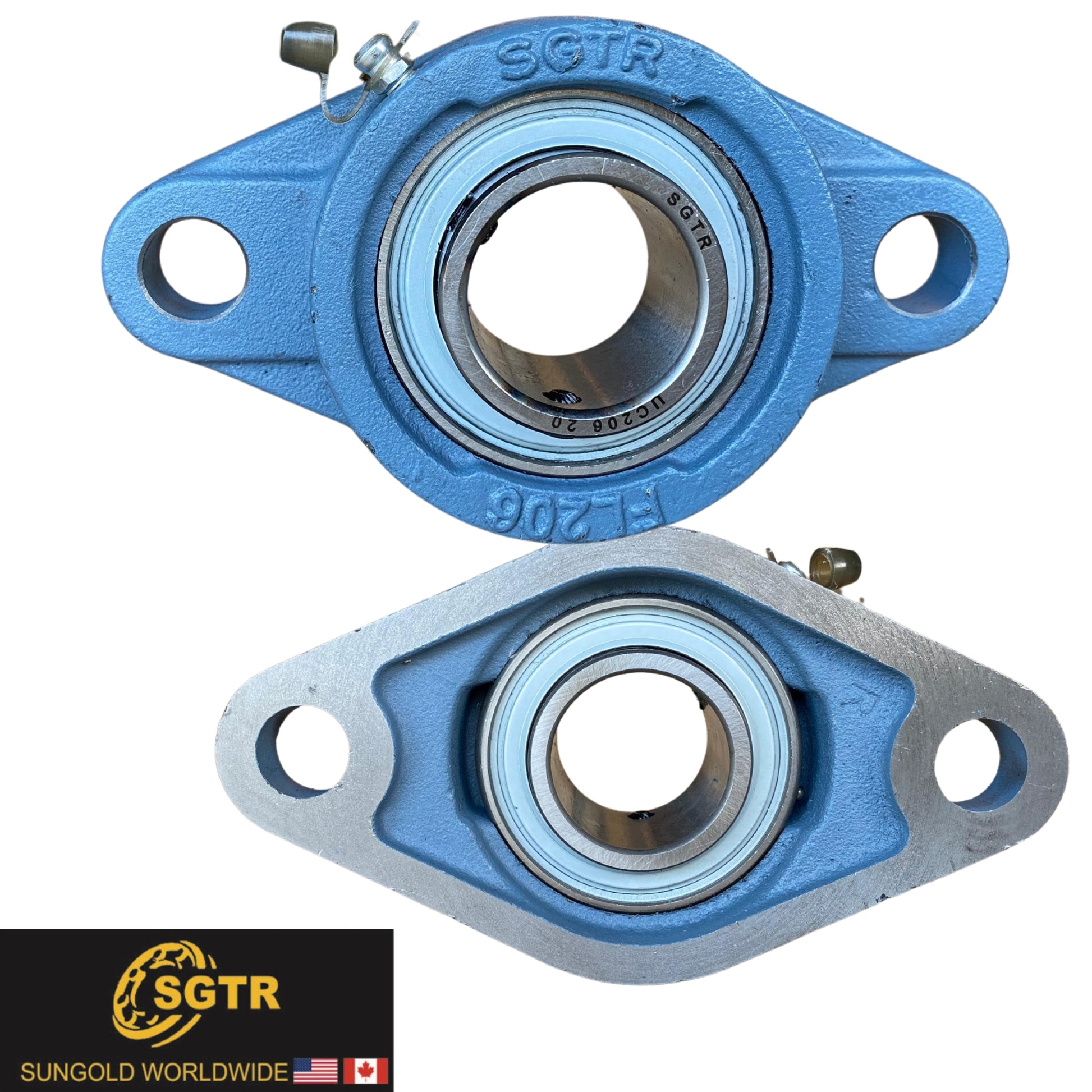

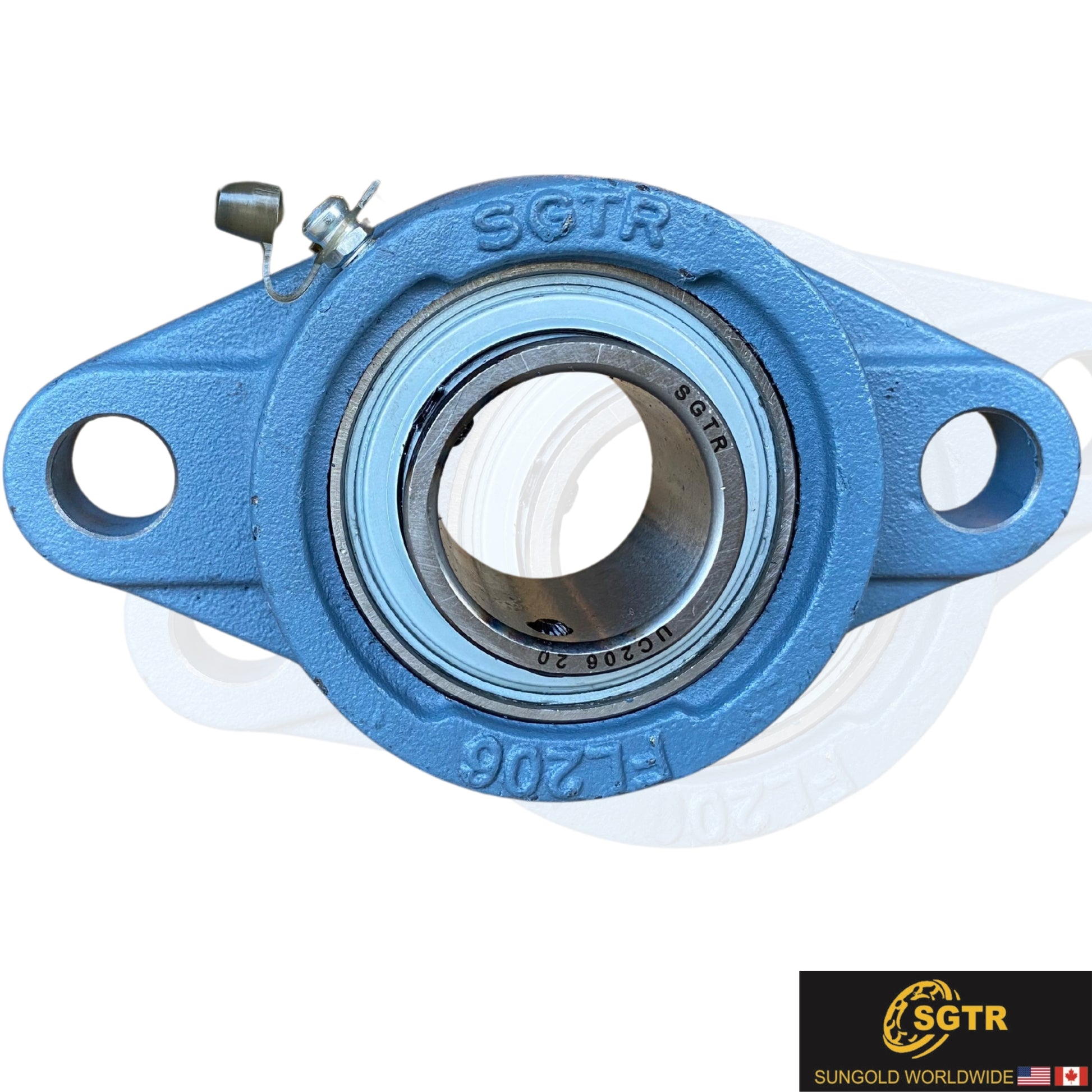

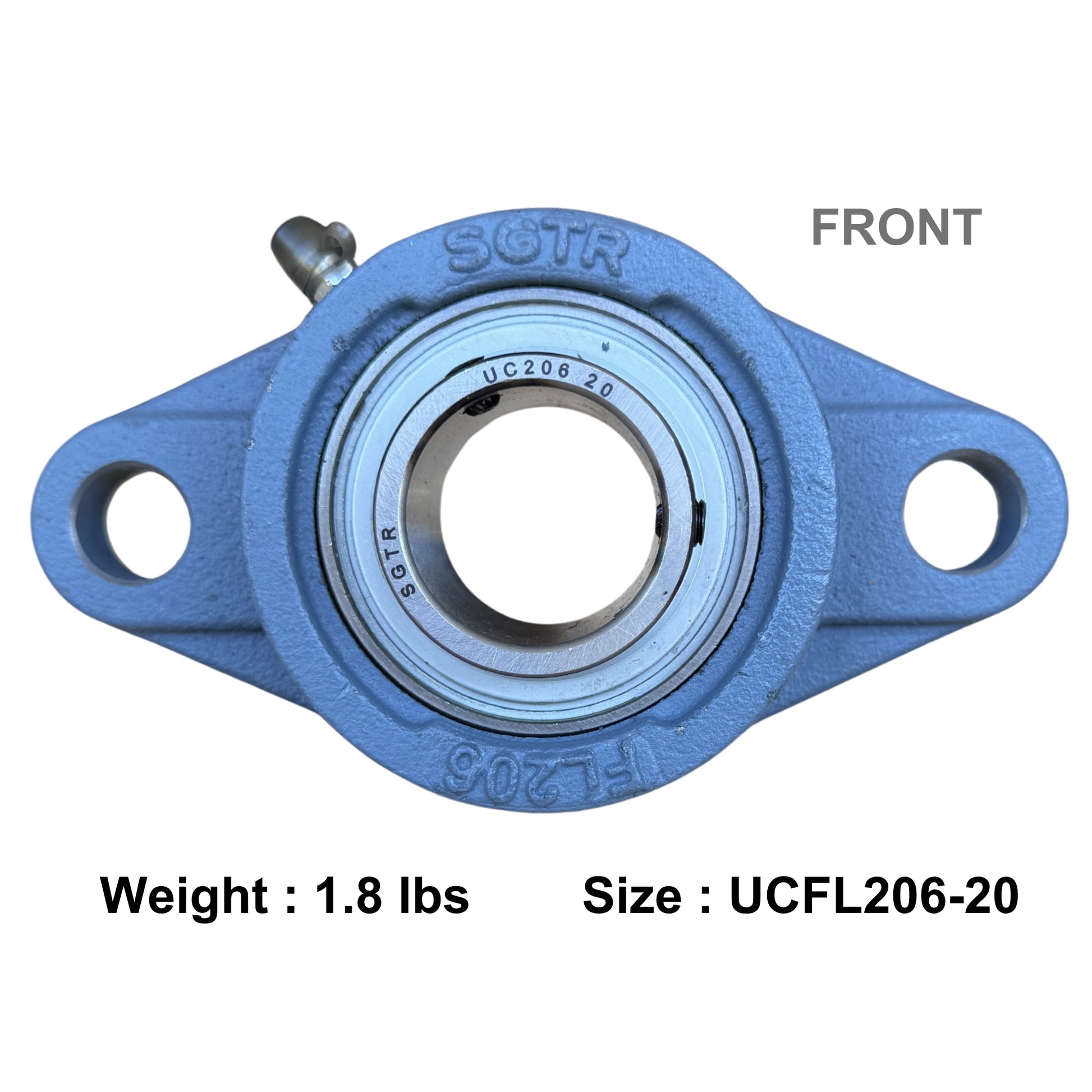

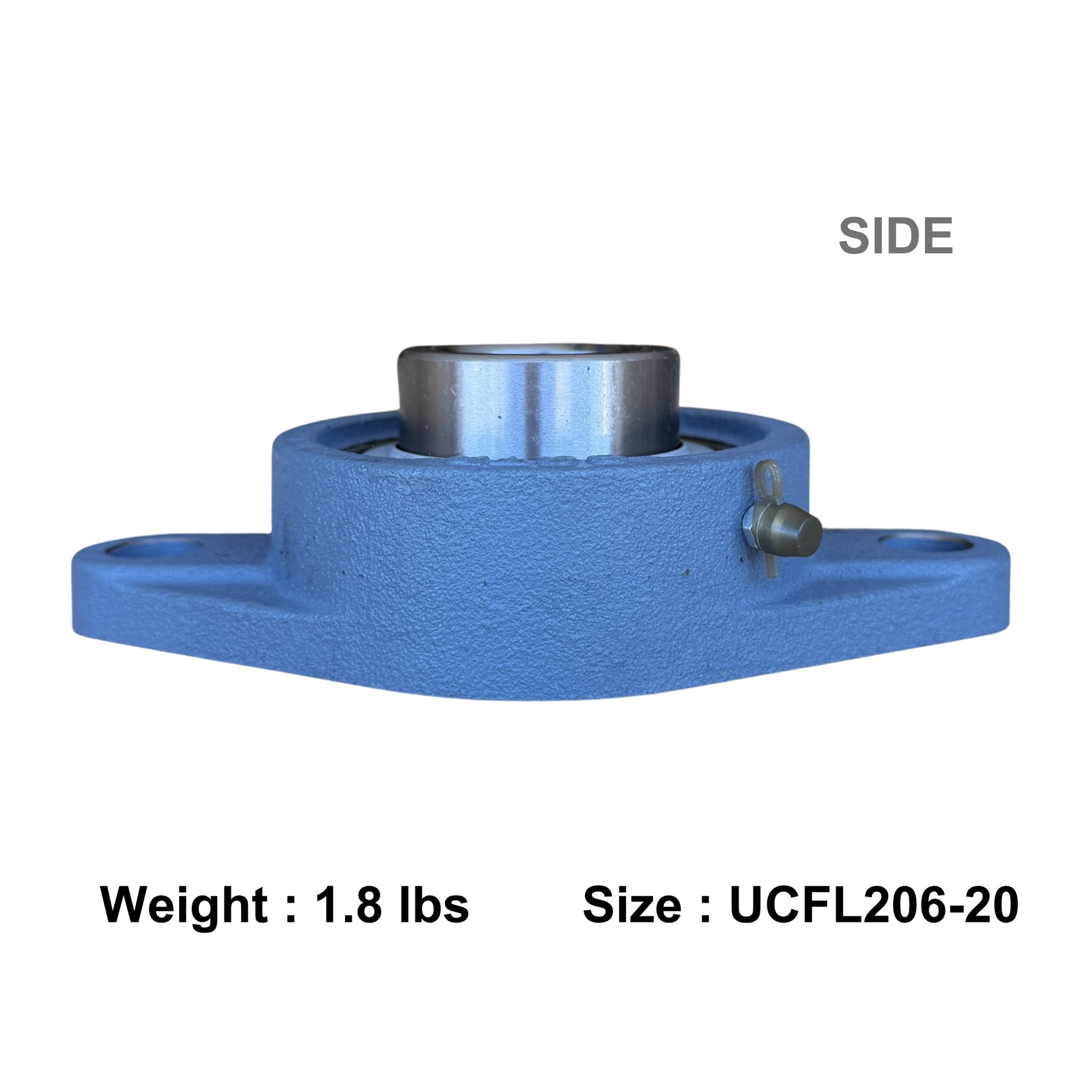

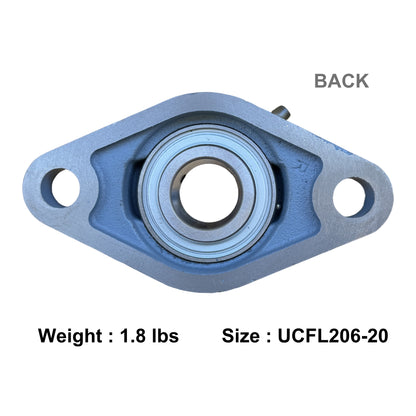

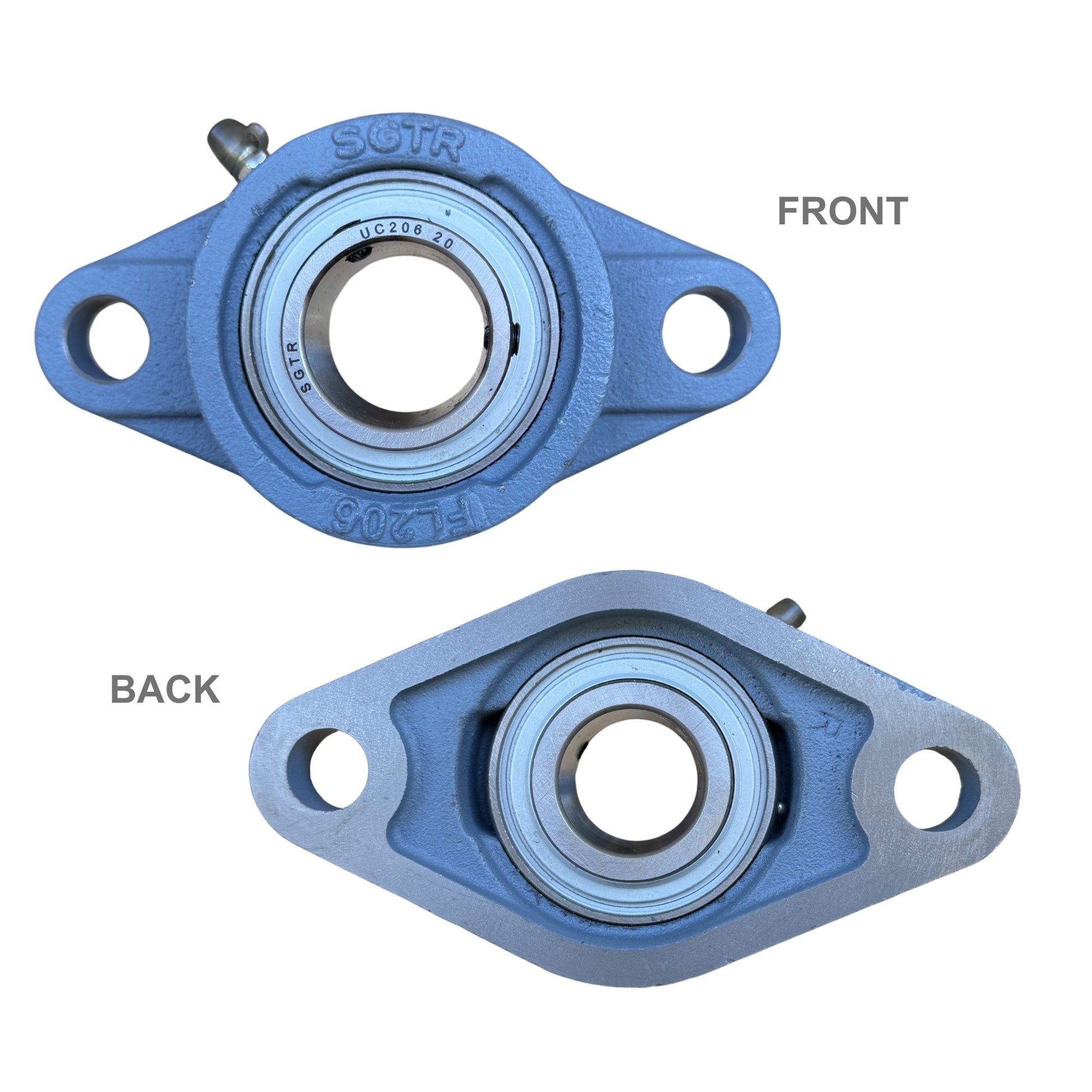

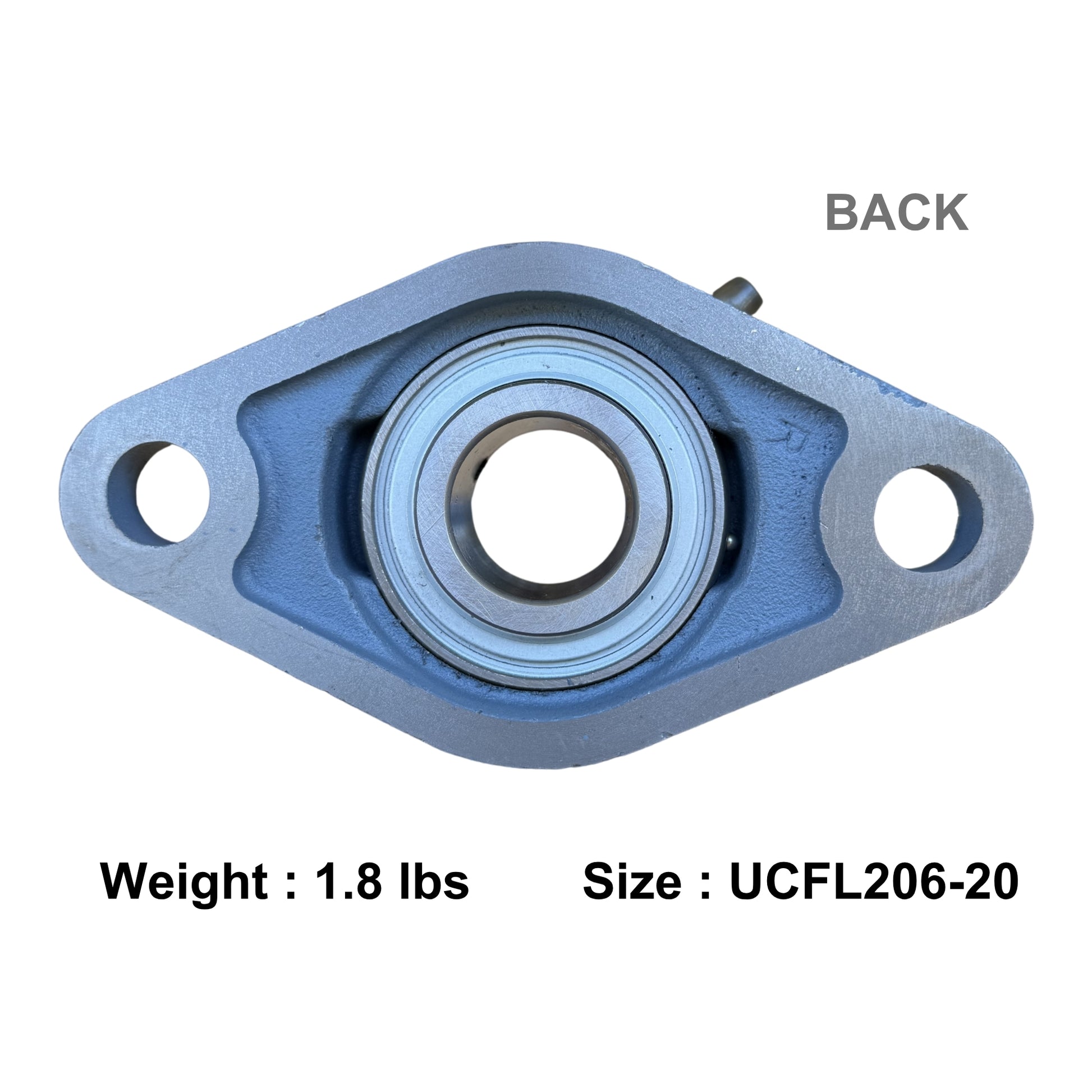

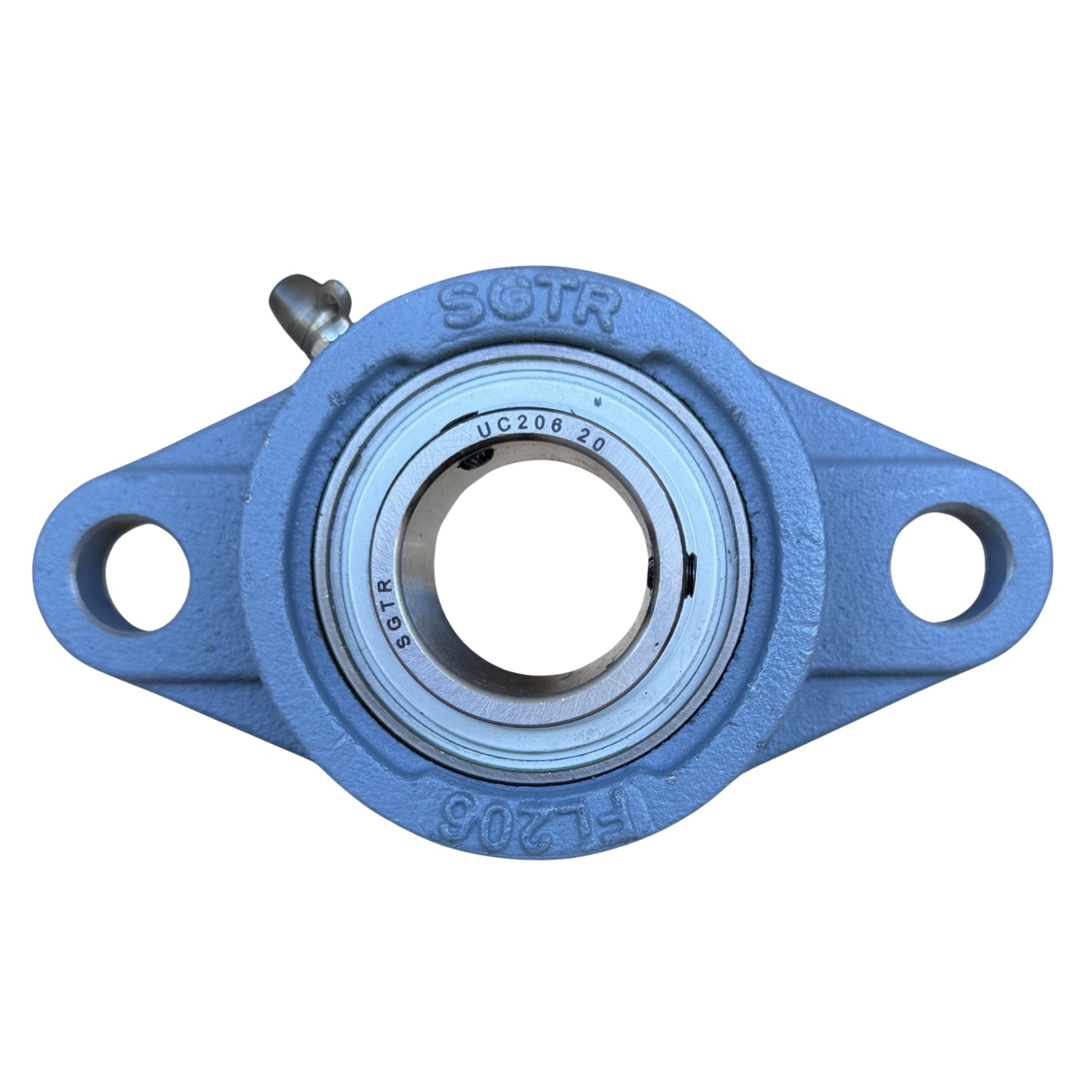

UCFL206-20 Two-Bolt Flange Bearing 1-1/4" Inch Bore

The UCFL206-20 flange bearing is engineered for strength and long service life. Built with a durable cast iron housing and a chrome steel insert, it provides secure shaft support and accurate alignment. SGTR Bearings, a USA-based company, delivers premium-grade quality at a fraction of leading global brand prices.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

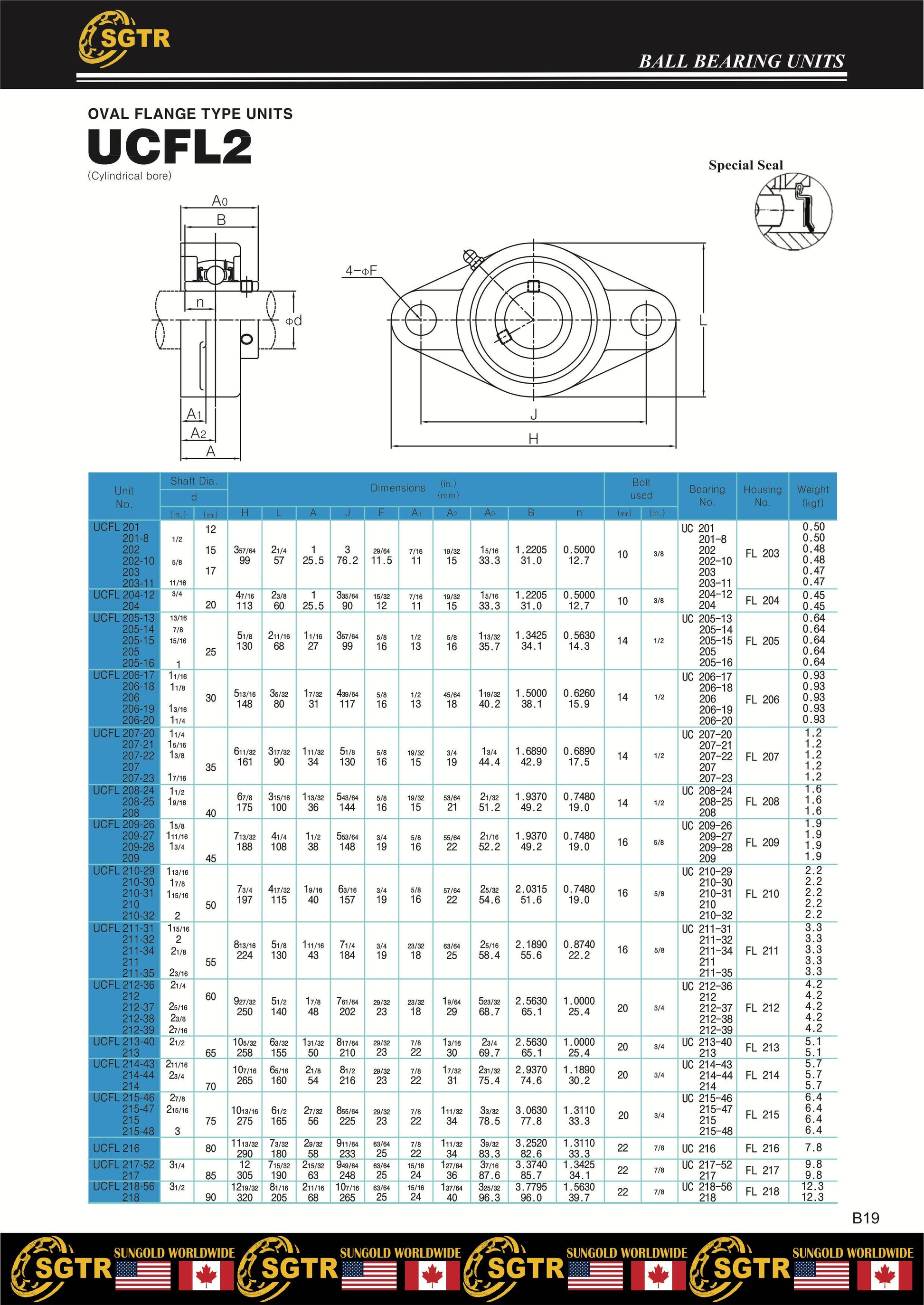

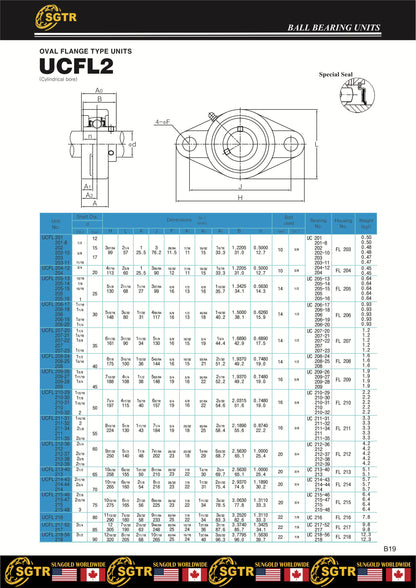

Specifications:

• Model: UCFL206-20 with Extremely Protective Seal
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel

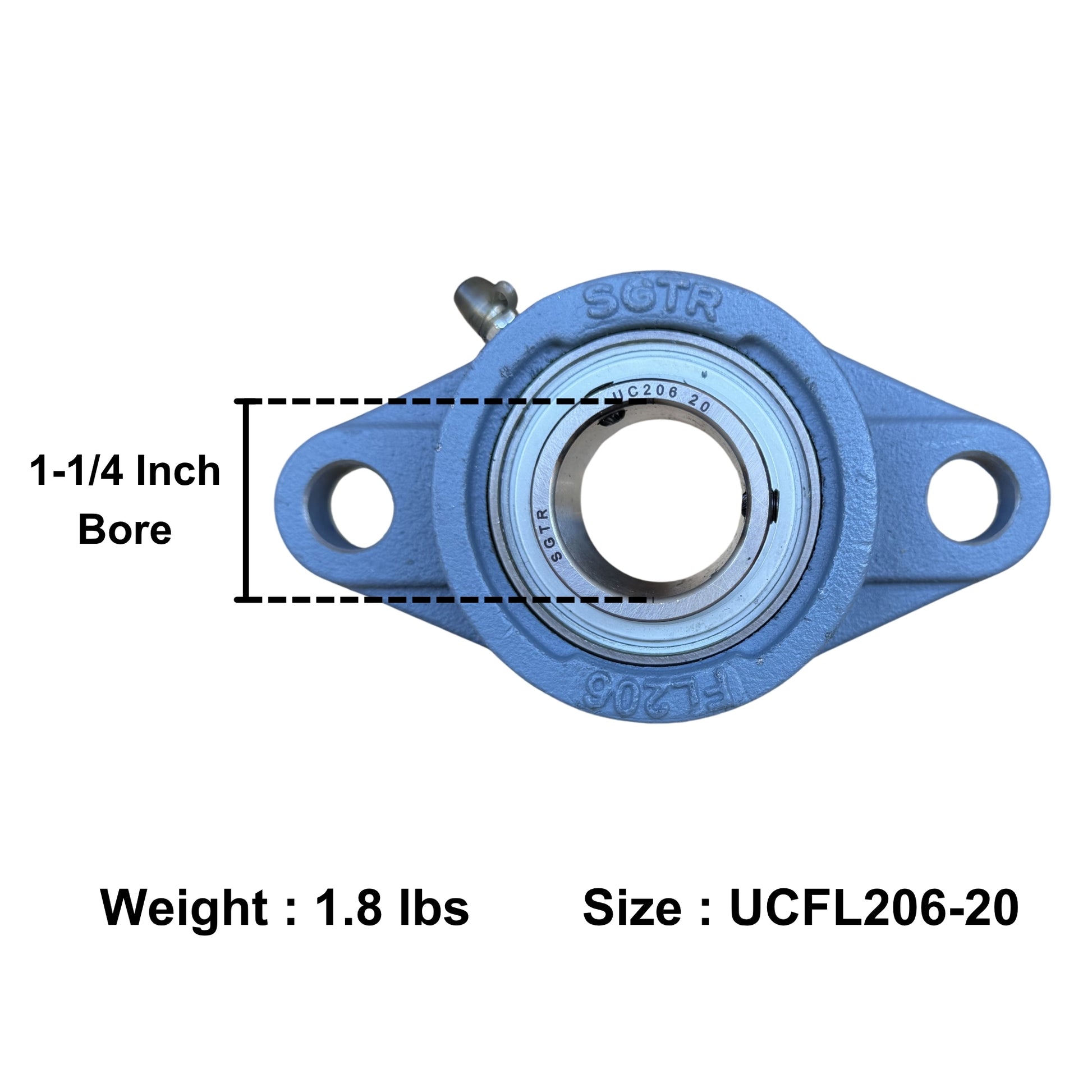

• Bore Size / Inner Diameter: 1-1/4" Inch

• Overall Length: 5-13/16"
• Overall Height: 3-5/32"
• Bolt Hole to Bolt Hole: 4-39/64"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 2,569 lbf
• Dynamic Load: 4,377 lbf
• Speed Limit: 5,300 RPM
• Weight: 2 lb

Interchange (for reference only)

Complete unit (UCFL206-20) cross-references

• AMI: UCFT206-20
• NTN: UCFL206-104D1
• Sealmaster: SFT-20R
• Dodge: 123172 / F2B-SC-104S
• Browning: VF2S-220S
• Link-Belt: FX3-U2E20N
• Fafnir: YCJT-1 1/4S

Insert (UC206-20) cross-references

• AMI: UC206-20
• Browning: VS-220
• Dodge: INS-SC-104
• Fafnir/Timken: GY1104KRRB / GC1104KRRB
• Hub City: YW250x1-1/4
• IPTCI: UC206-20
• Link-Belt: UG220N
• NTN: UC206-104D1
• SKF: YAR205-104-2F
• Sealmaster: MB220-PA / 2-1-1/4 Insert

Explore More

• Browse our UCFL200 Series Bearings for additional sizes
• See all Flange Bearings for more options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
