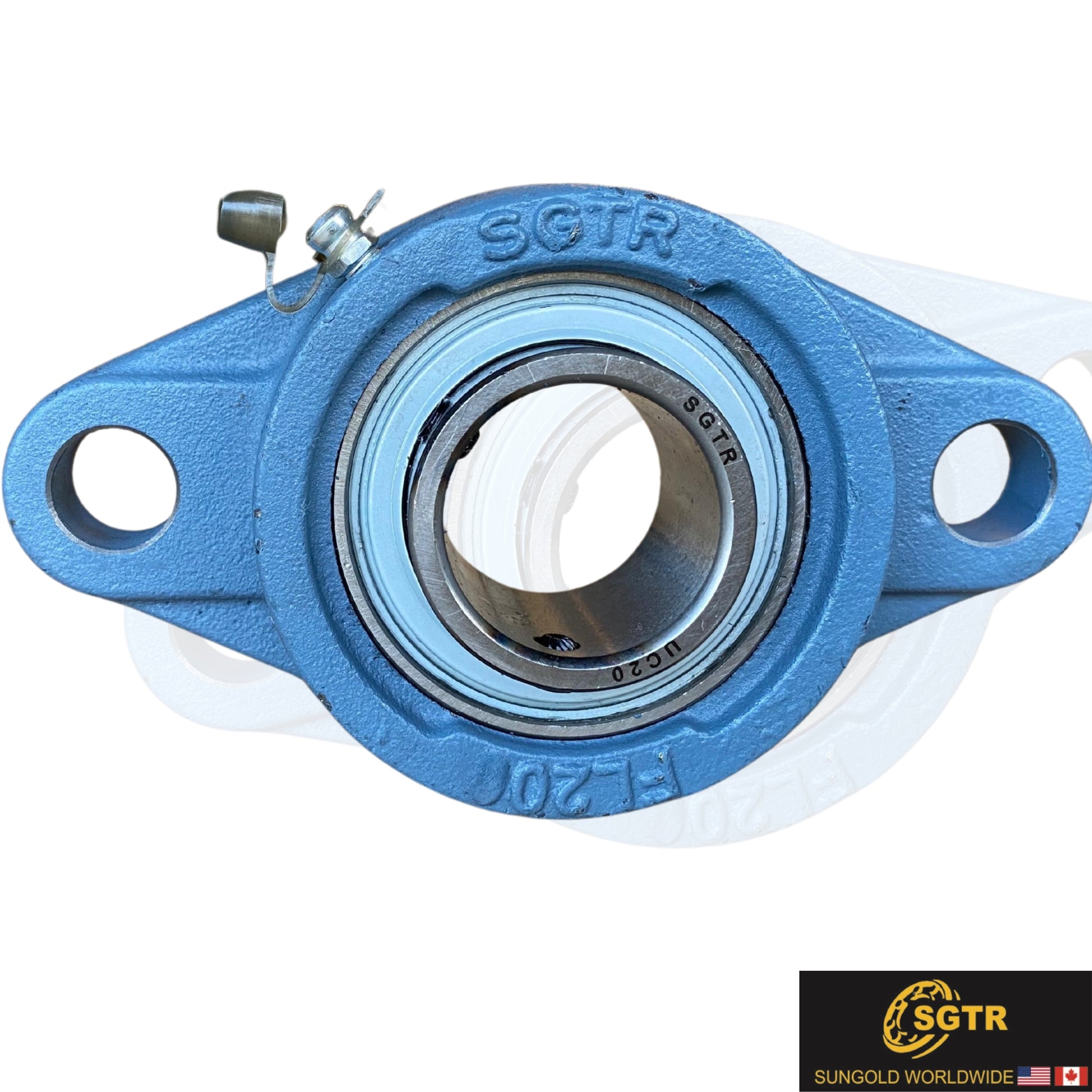

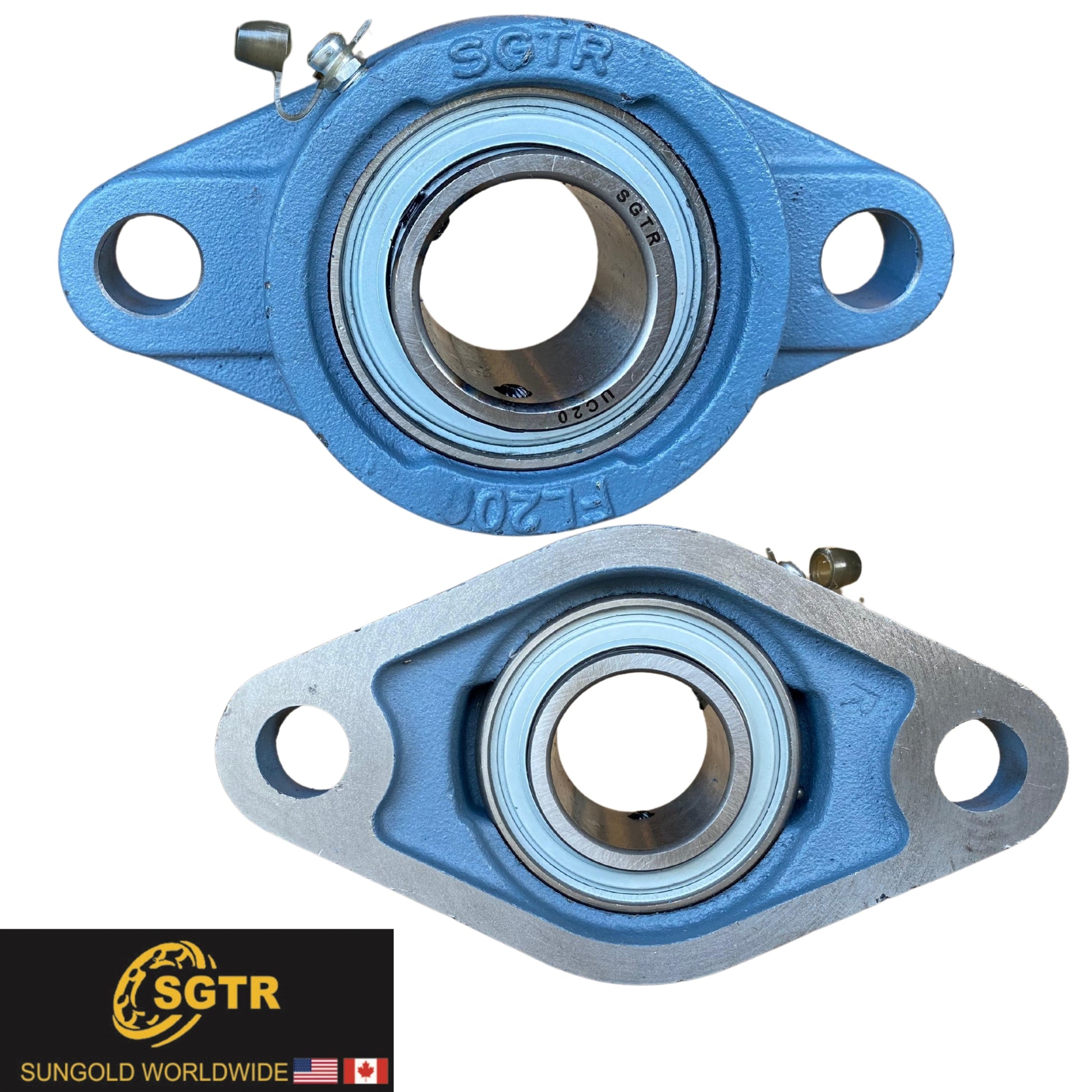

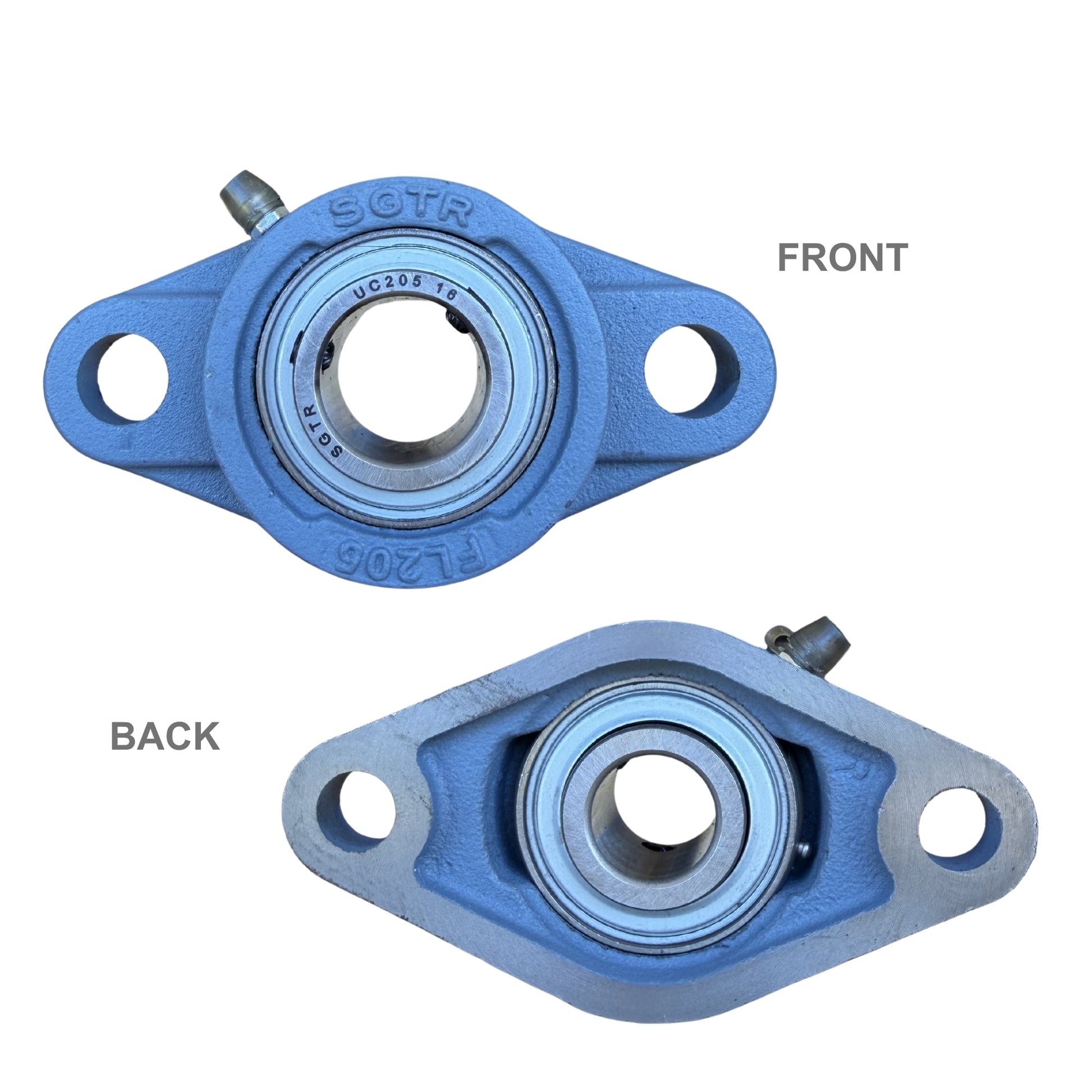

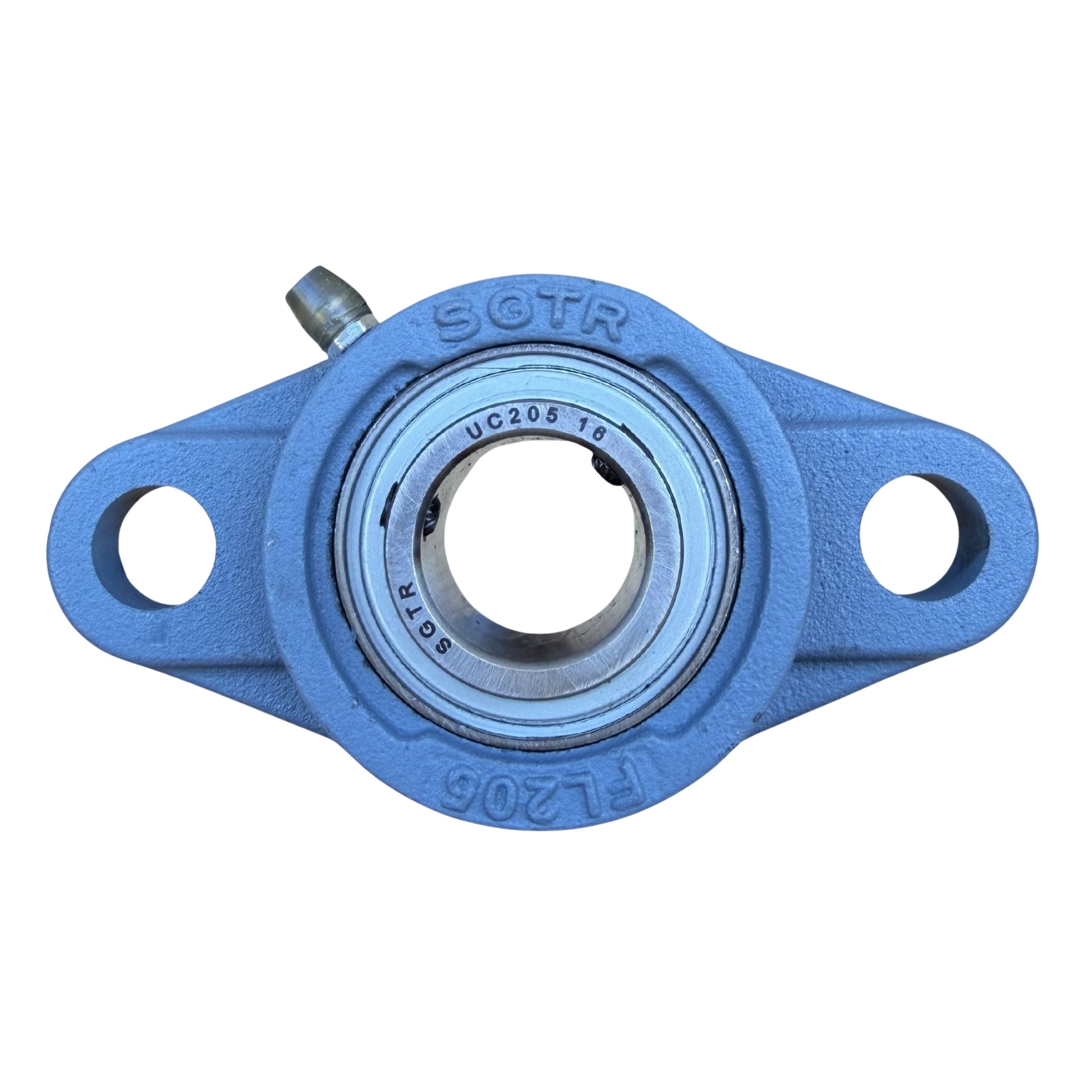

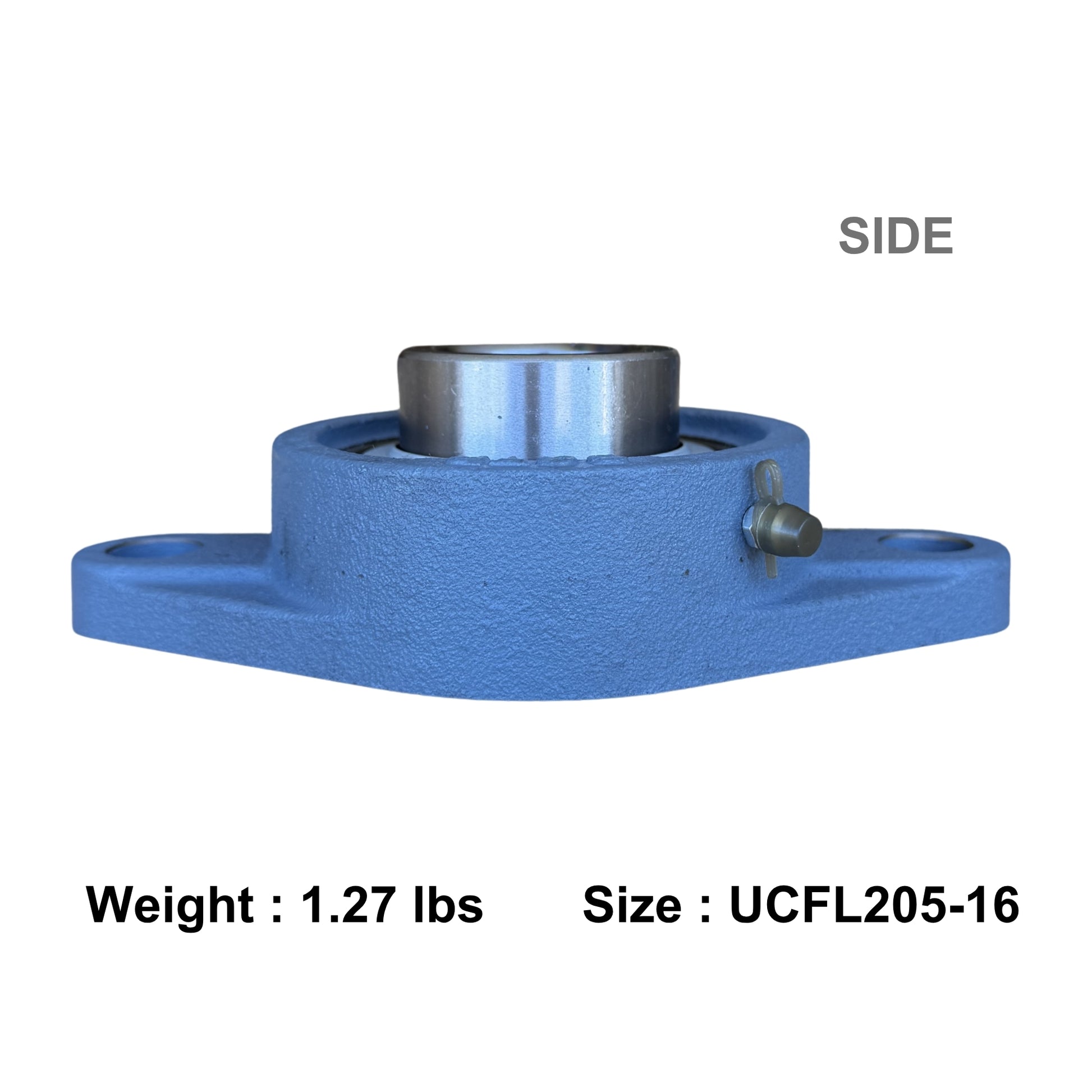

UCFL205-16 Two-Bolt Flange Bearing 1" Inch Bore

The UCFL205-16 two-bolt flange bearing offers durability and smooth operation for industrial applications. With its Premium cast iron housing and high-strength chrome steel insert, it ensures long-lasting durability and alignment. SGTR Bearings, a USA-based company, delivers premium-grade quality at a fraction of leading global brand prices.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

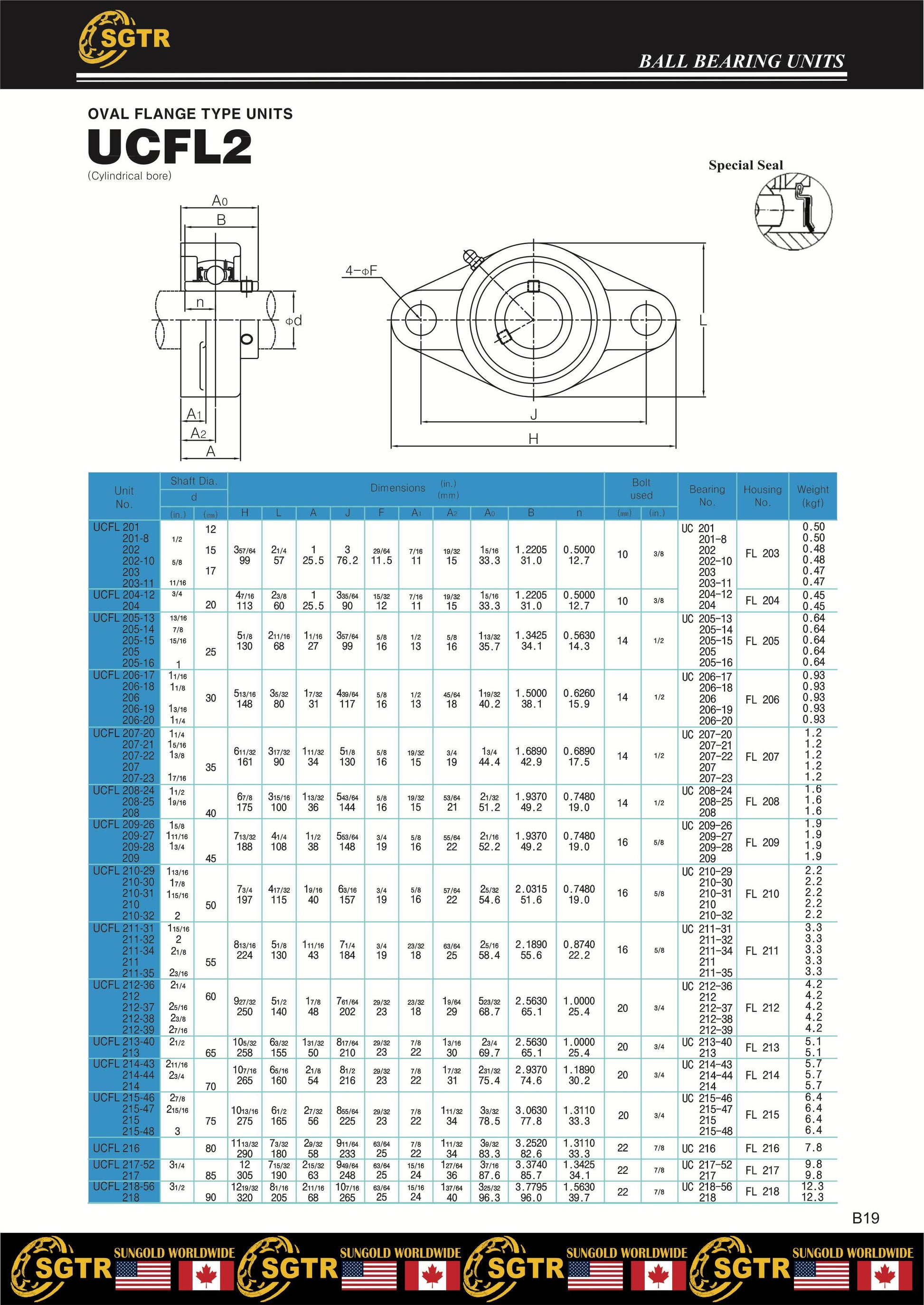

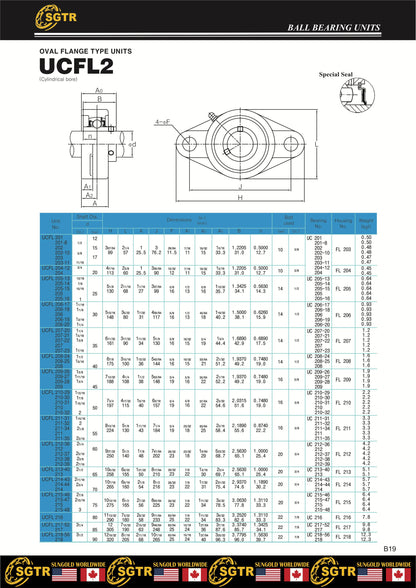

Specifications:

• Model: UCFL205-16 with Extremely Protective Seal
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel

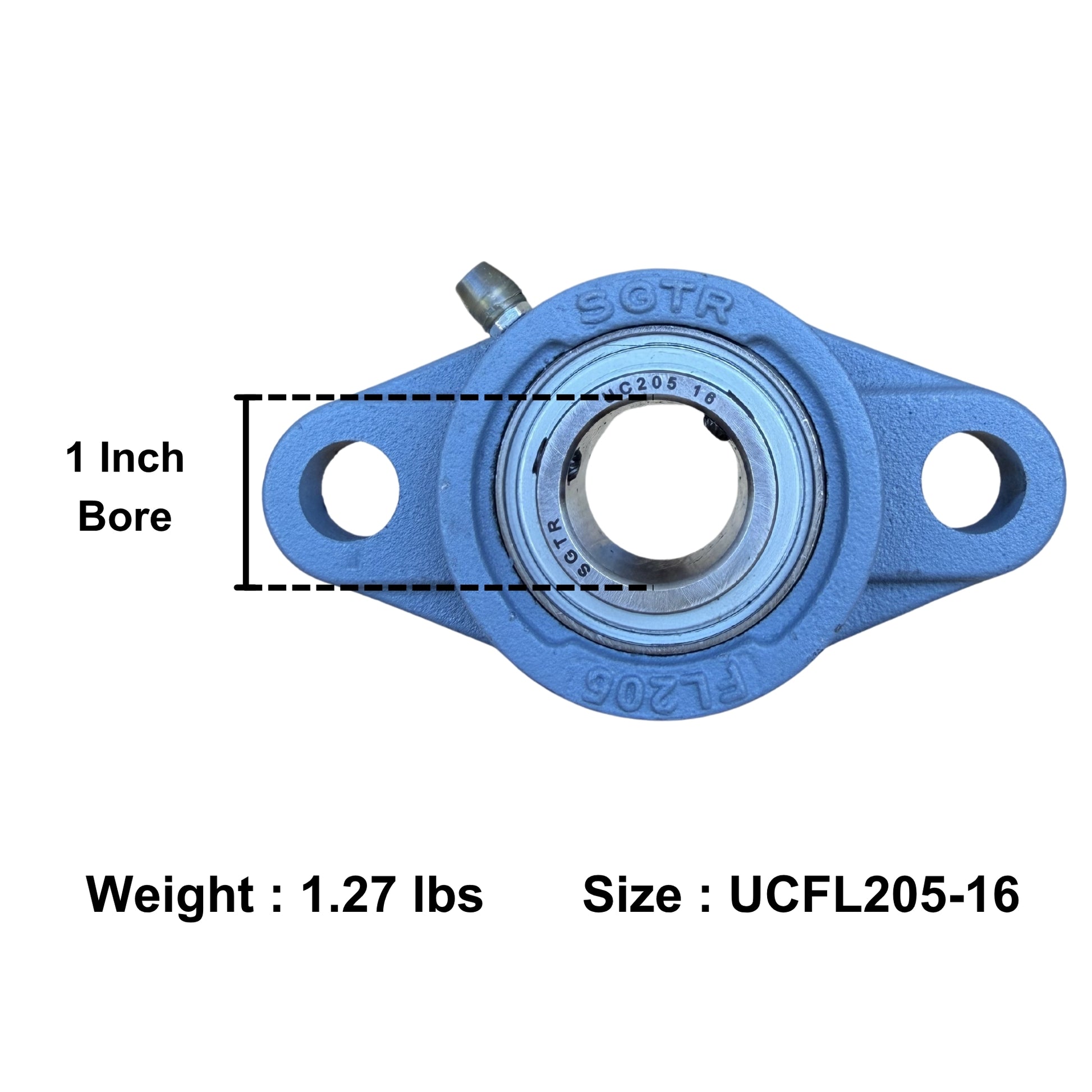

• Bore Size / Inner Diameter: 1" Inch

• Overall Length: 5-1/8"
• Overall Height: 2-11/16"
• Bolt Hole to Bolt Hole: 3-57/64"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 1,809 lbf
• Dynamic Load: 3,154 lbf
• Speed Limit: 6,250 RPM

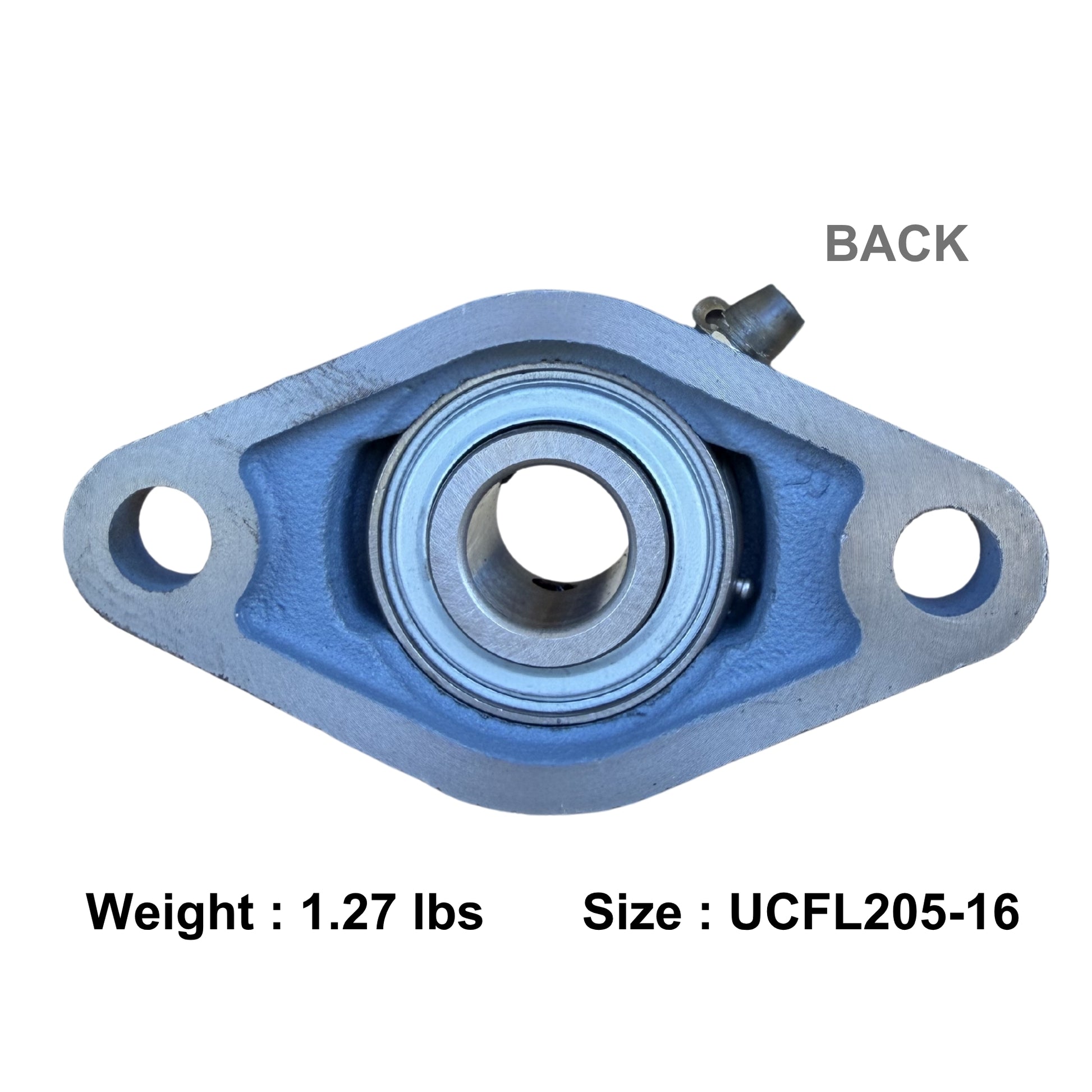

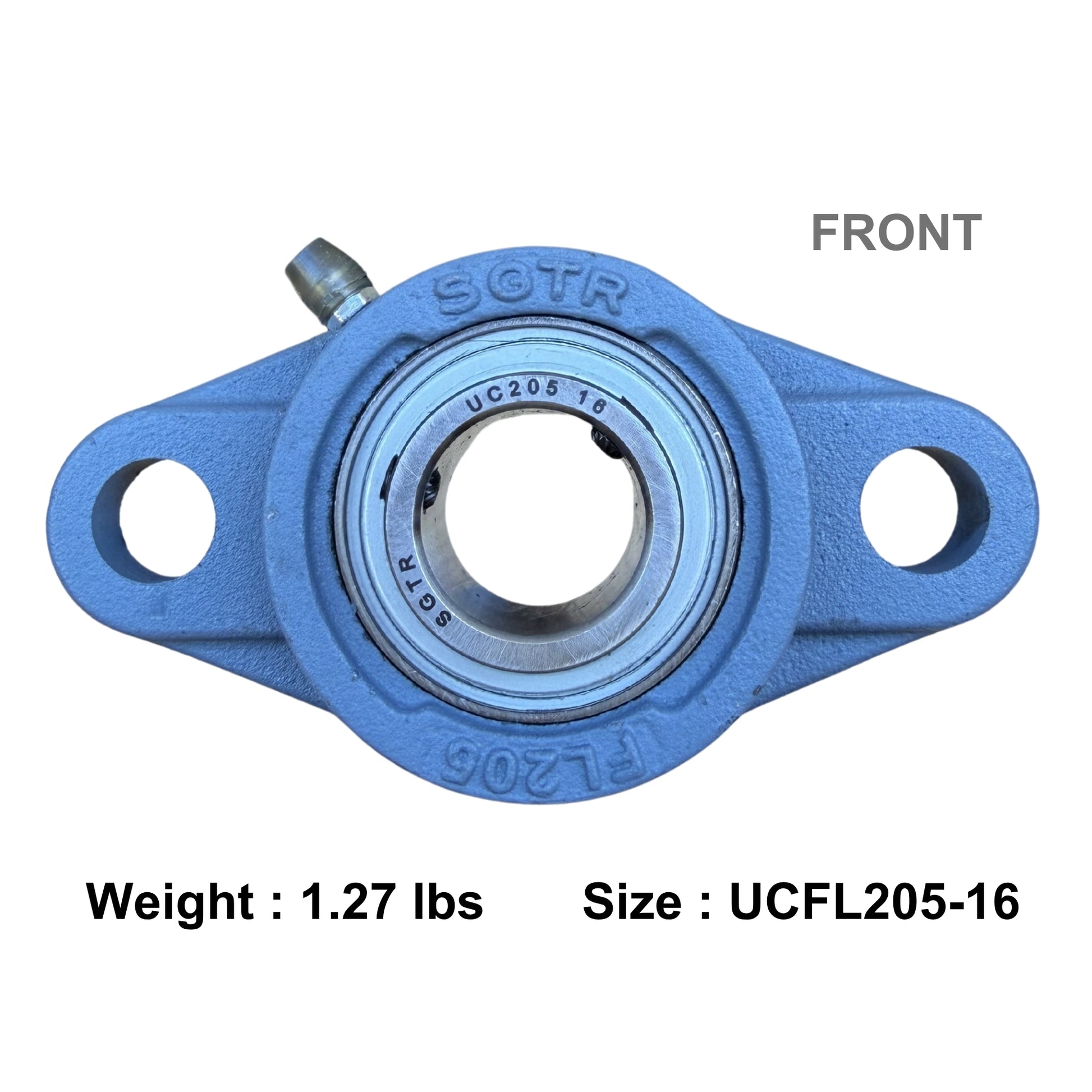

• Weight: 1.4 lb

Interchange (for reference only)

Complete unit (UCFL205-16) cross-references

• AMI: UCFT205-16
• Browning: VF2S-216
• Dodge: 124171 / F2B-SC-100
• Fafnir: YCJT-1
• Link-Belt: FX3-U216N
• Peer: FHSFT205-16G
• RHP: SFT-1
• Sealmaster: SFT-16
• SKF: FYT-1-TM
• Timpte: Trap Opener Bearing 035-48979

Insert (UC205-16) cross-references

• AMI: UC205-16
• Browning: VS-216
• Dodge: INS-SC-100
• Fafnir/Timken: GY1100KRRB
• Hub City: YW250-1
• IPTCI: UC205-16
• Link-Belt: UG216NL
• NTN: UC205-100D1
• SKF: YAR205-100
• Sealmaster: 2-1 Insert

Explore More

• Browse our UCFL200 Series Bearings for additional sizes
• See all Flange Bearings for related products
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always confirm dimensions before interchange.
