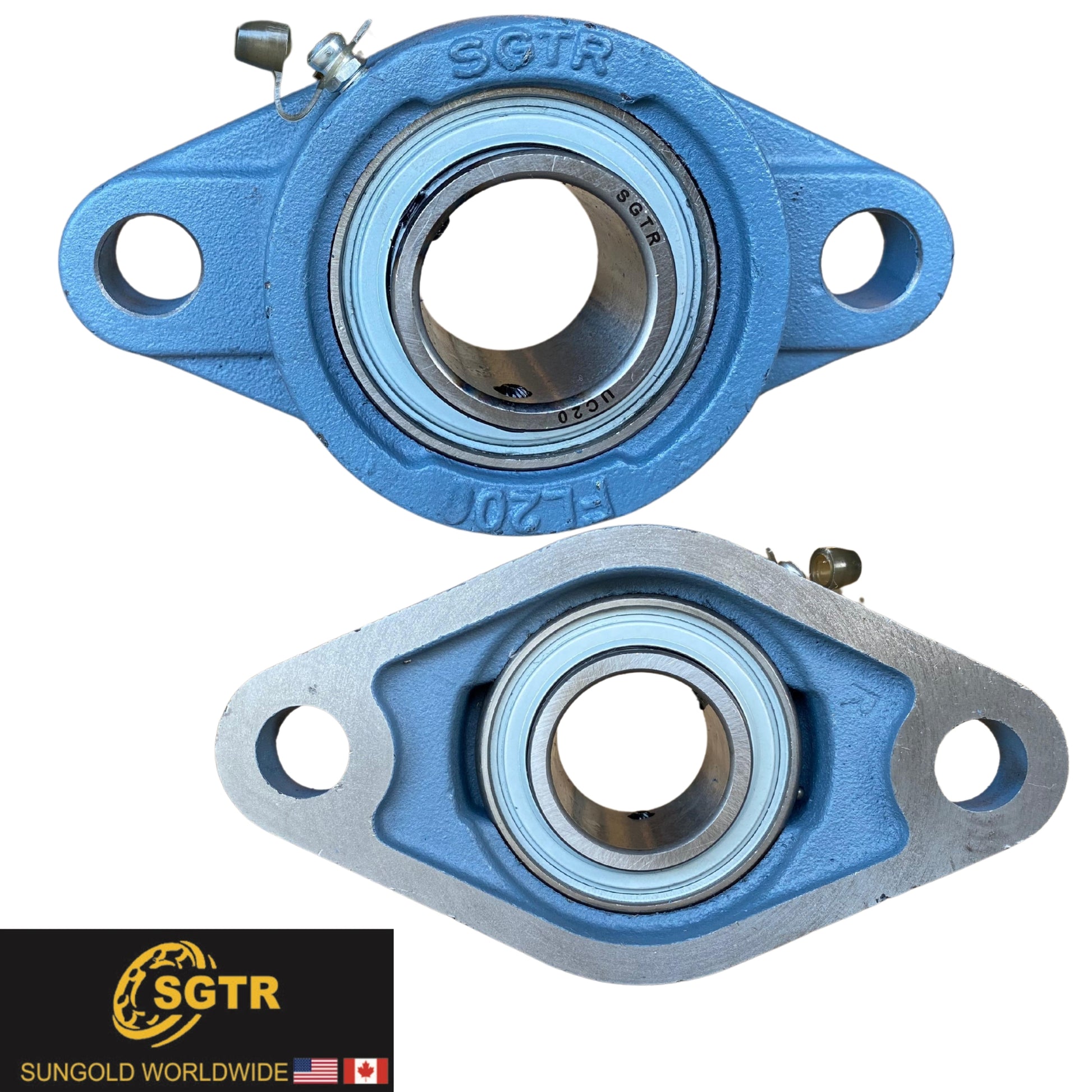

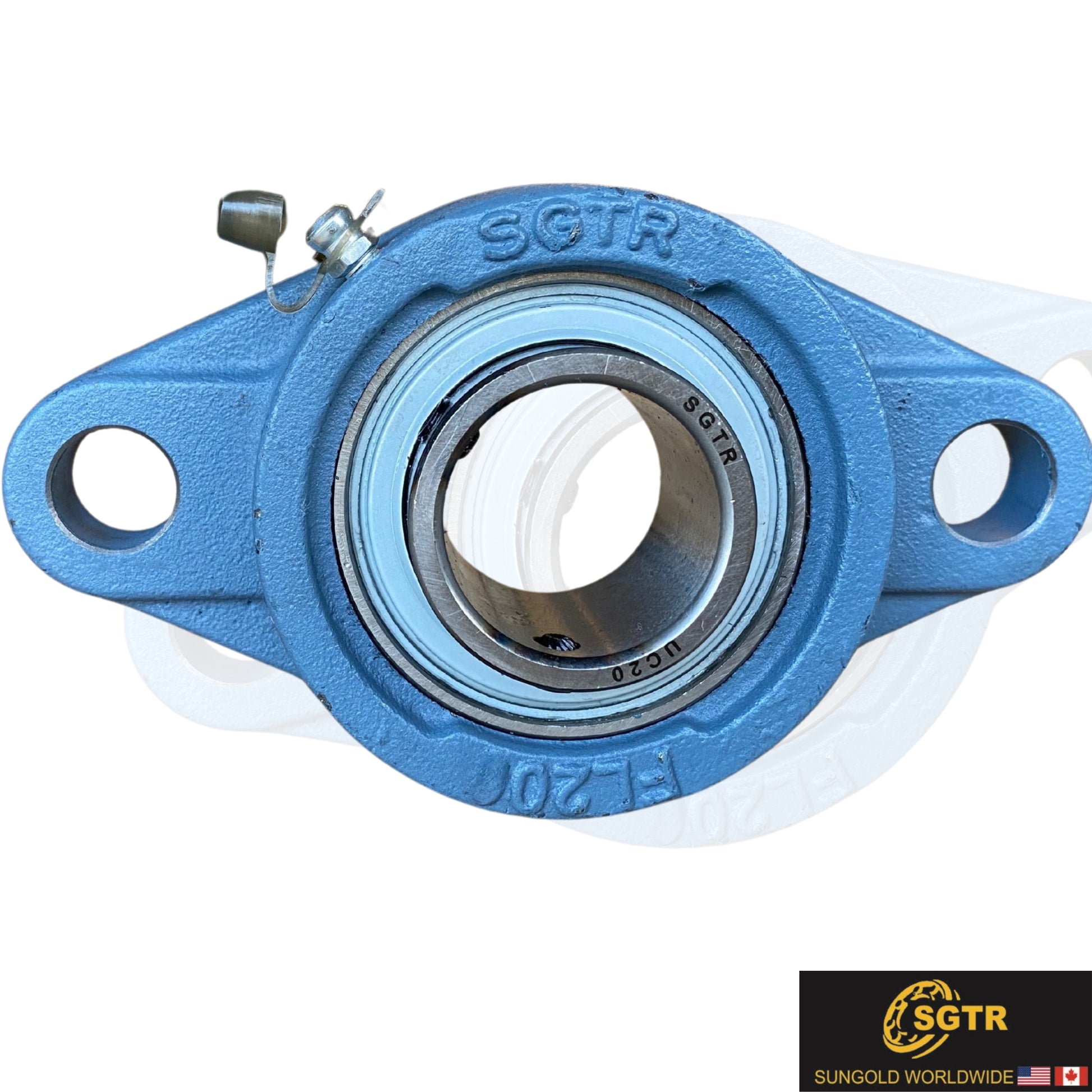

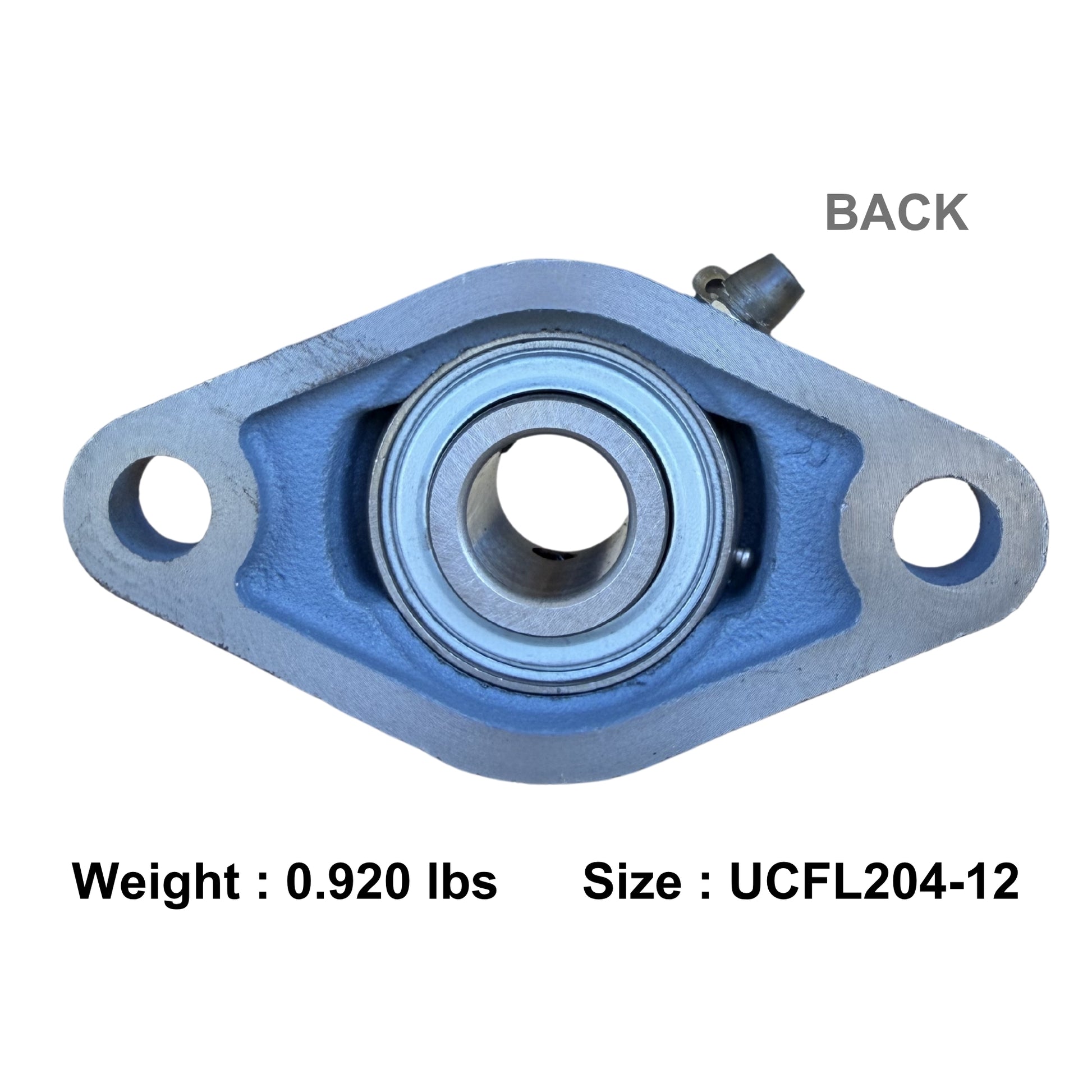

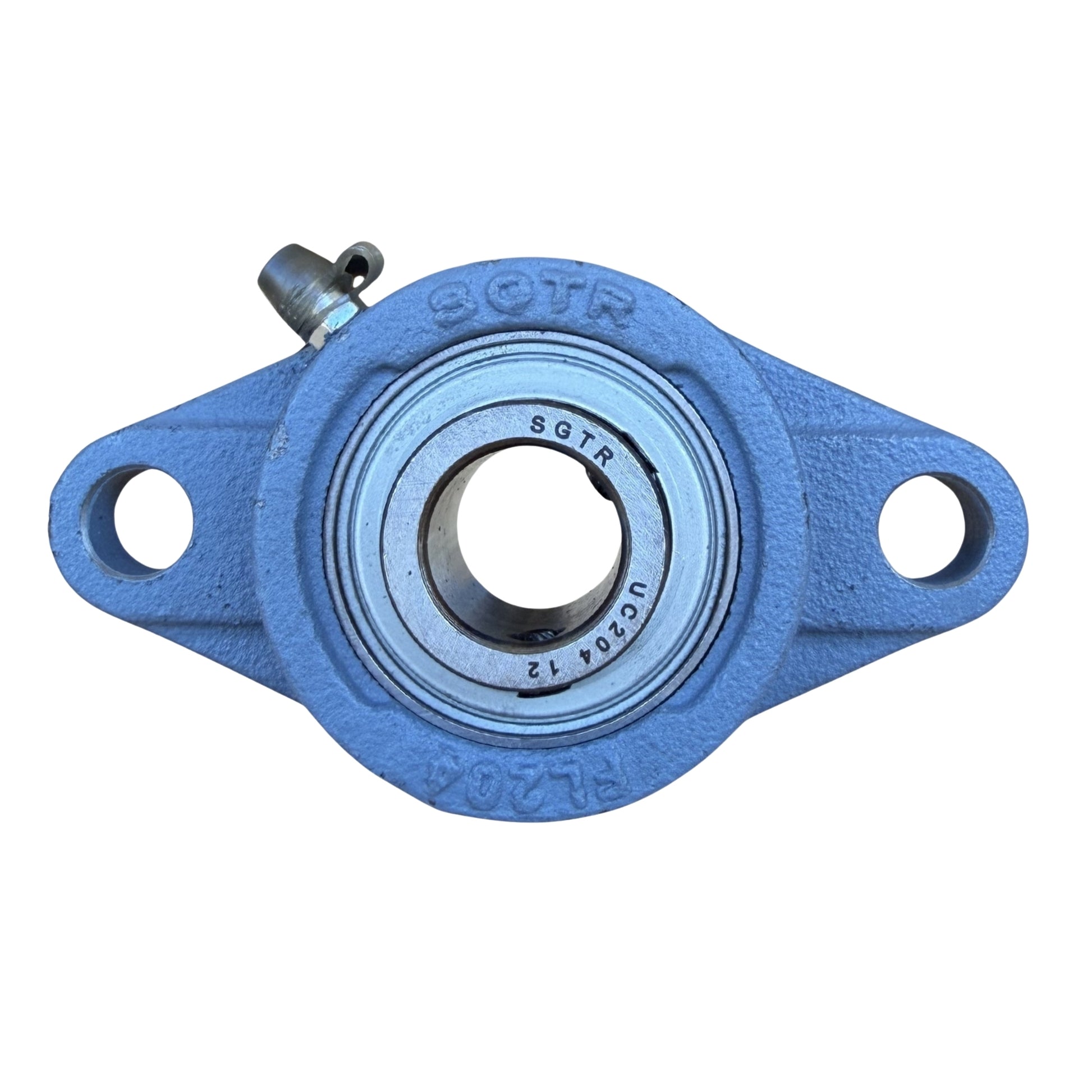

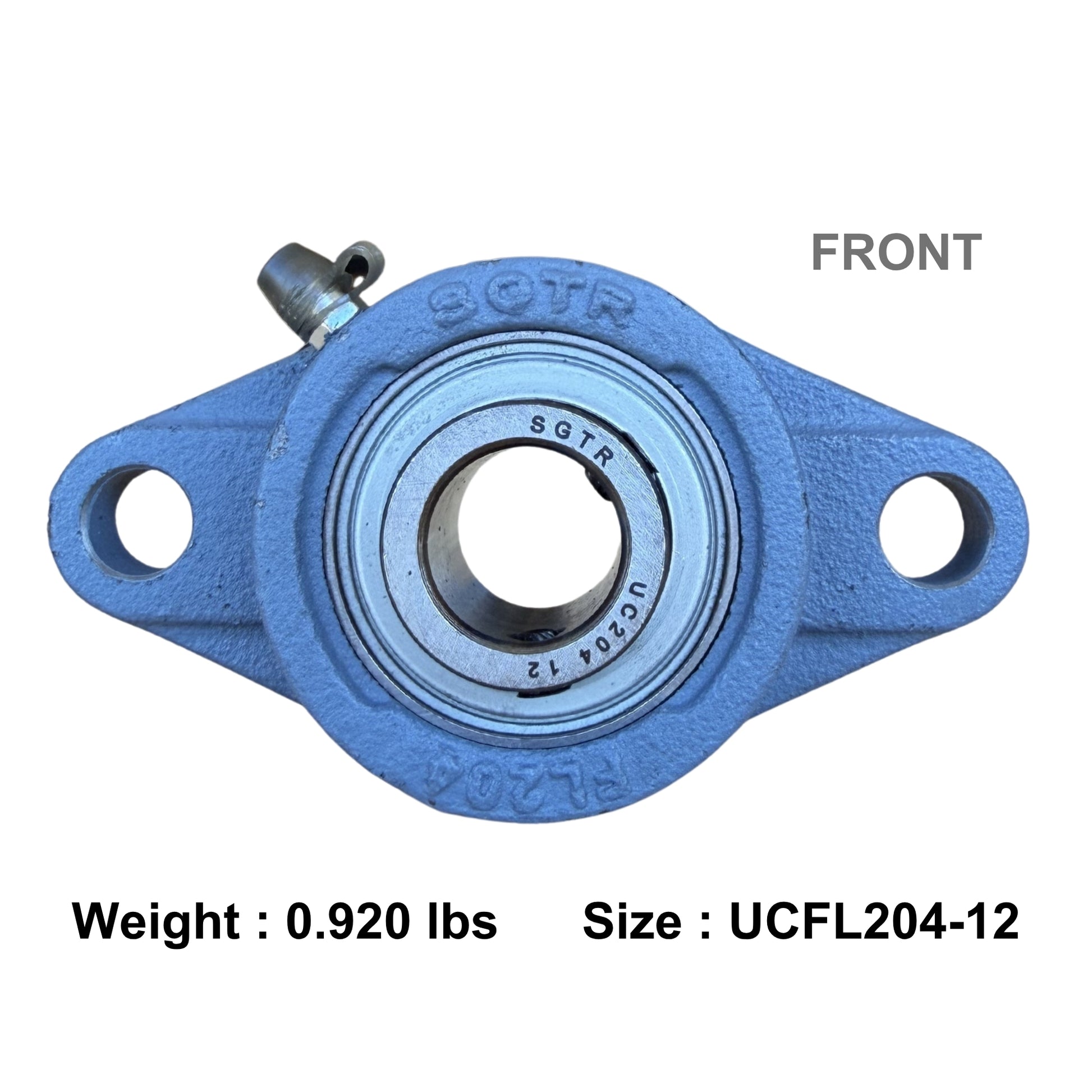

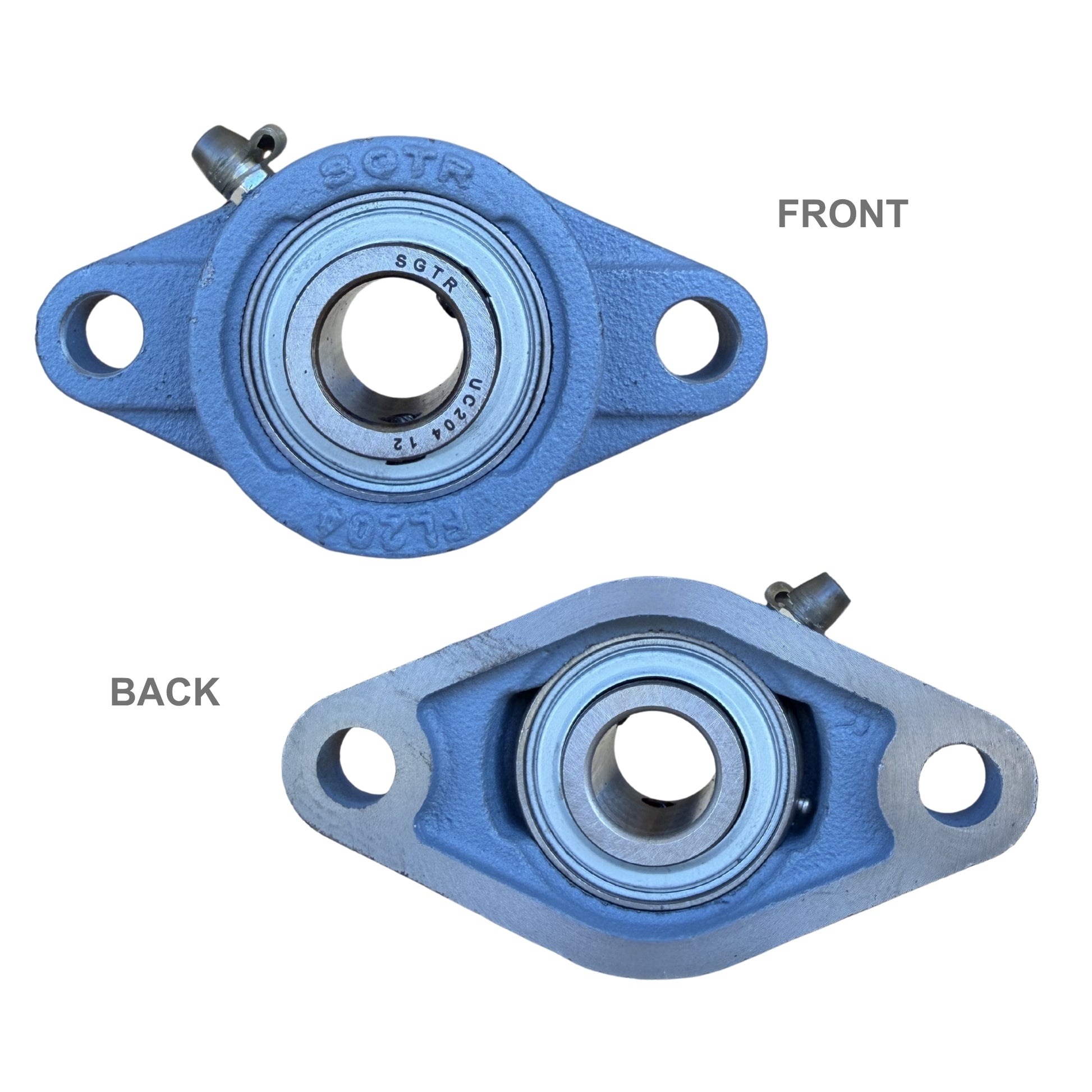

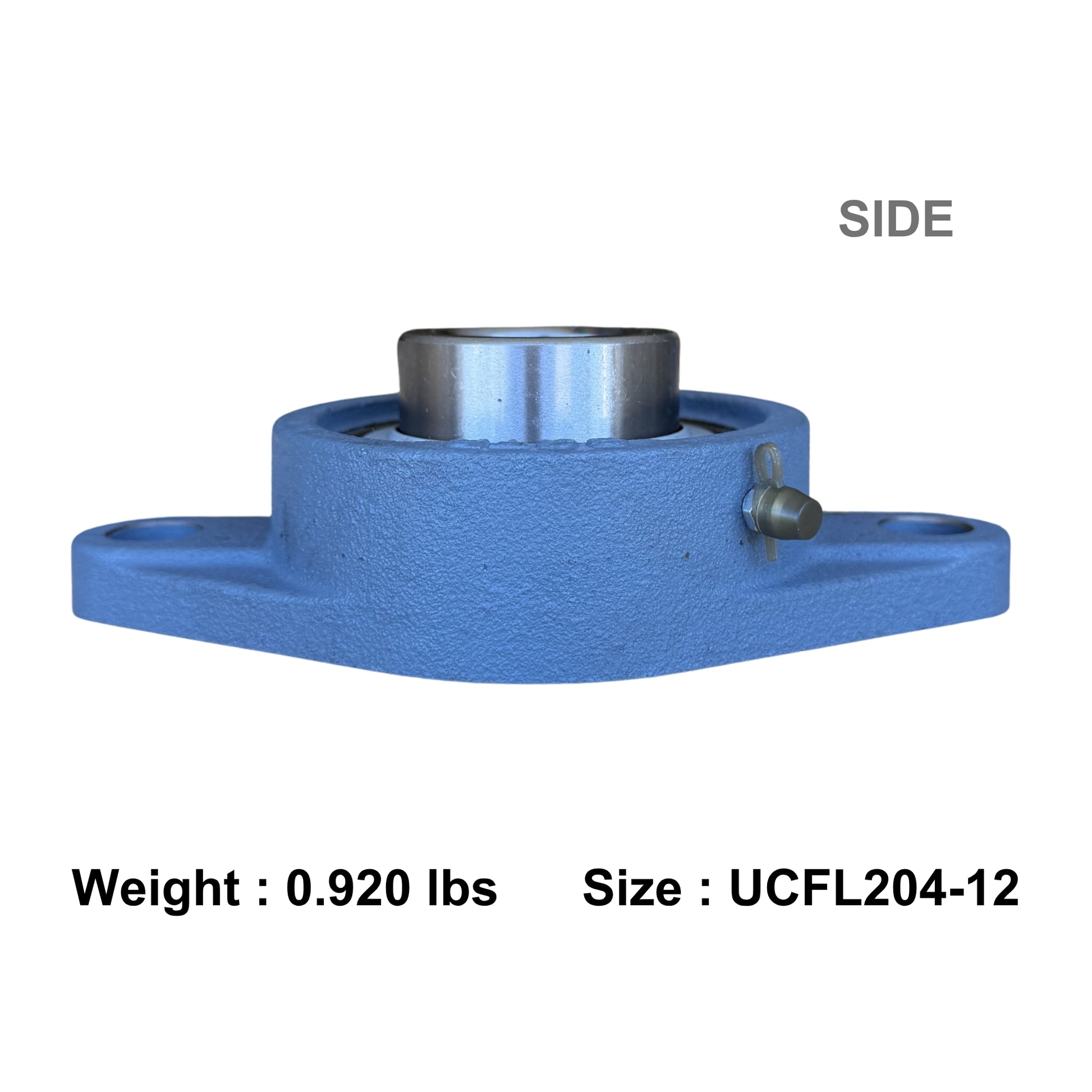

UCFL204-12 Two-Bolt Flange Bearing 3/4" Inch Bore

The UCFL204-12 two-bolt flange bearing is designed for reliable performance in light to heavy-duty applications. Built to industry-standard dimensions. With premium SGTR quality from a USA-based company—at a fraction of global brand prices, it’s a dependable and affordable choice.

- Premium-grade quality from a USA-based company
-  Available at a fraction of leading global brand prices
-  Fast USA shipping with bulk order discounts

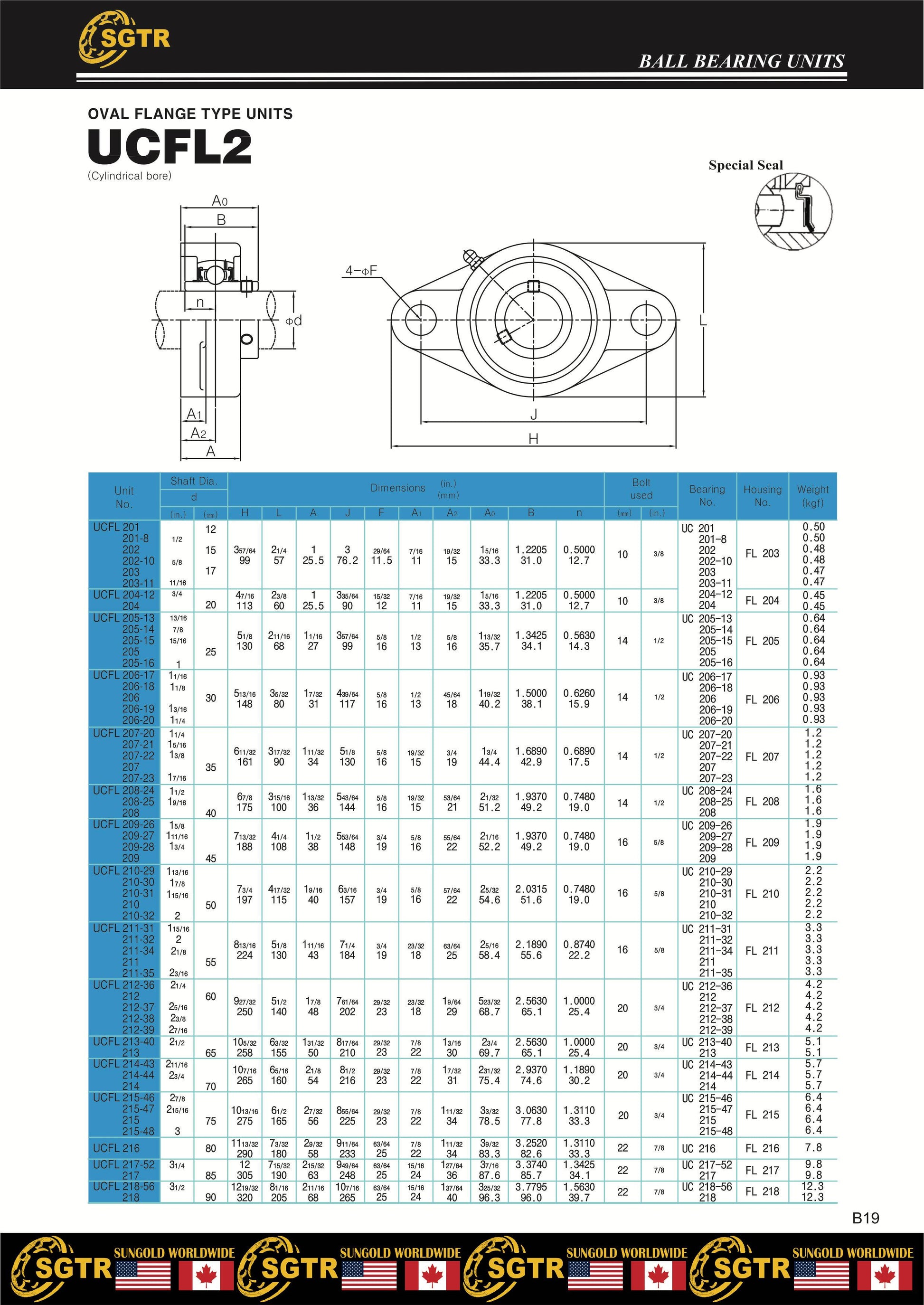

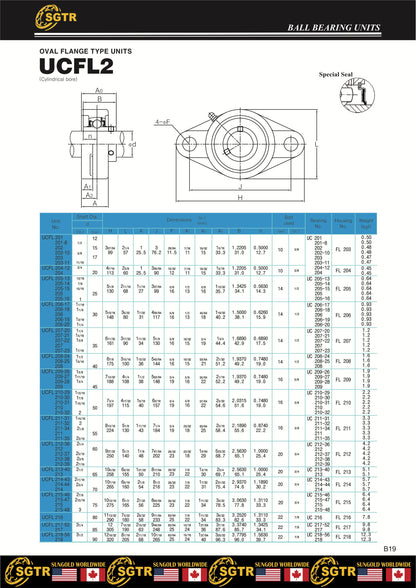

Specifications:

• Model: UCFL204-12 with Extremely Protective Seal
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel

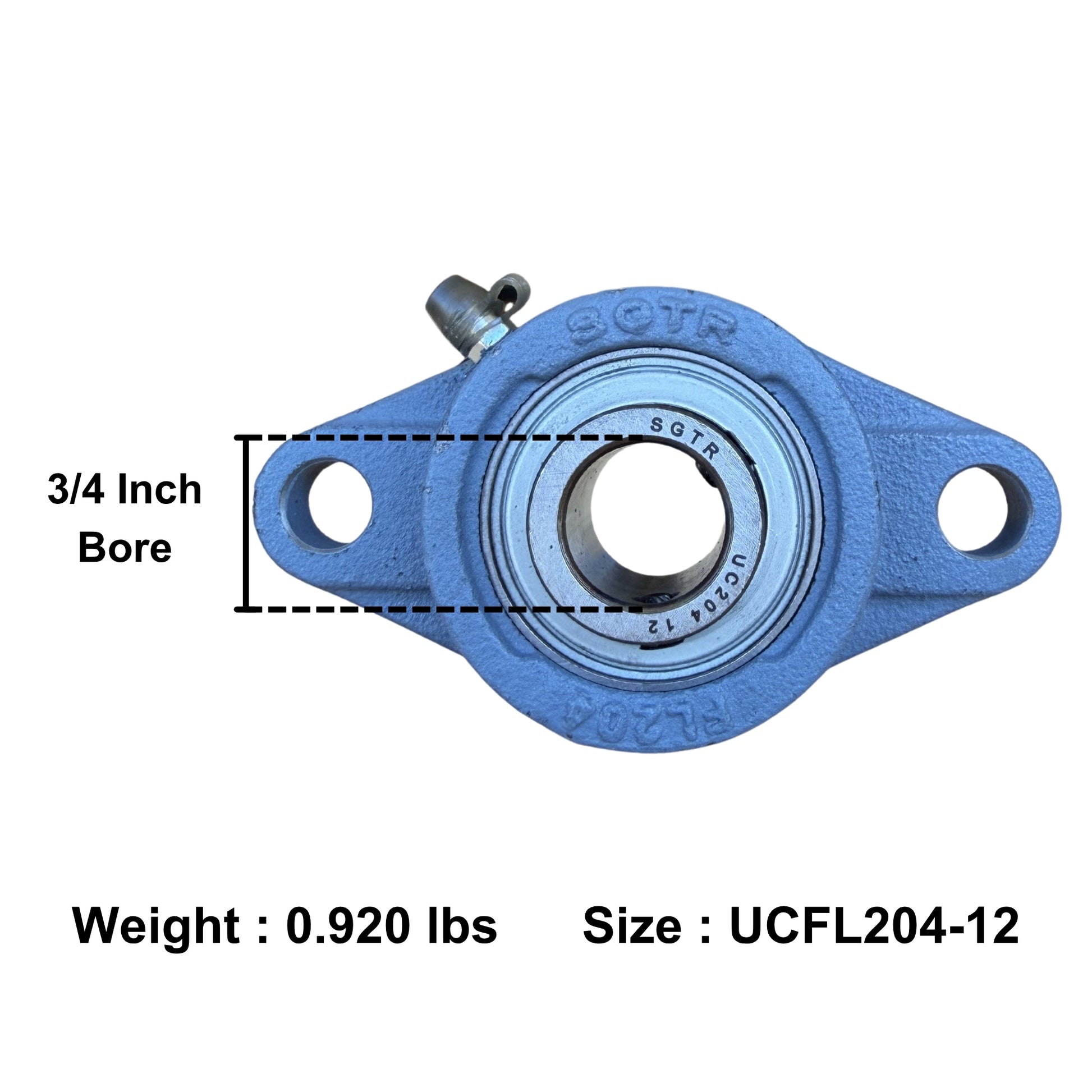

• Bore Size / Inner Diameter: 3/4" Inch

• Overall Length: 4-7/16"
• Overall Height: 2-3/8"
• Bolt Hole to Bolt Hole: 3-35/64"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 1,495 lbf
• Dynamic Load: 2,882 lbf
• Speed Limit: 7,450 RPM
• Weight: 1 lb

Interchange (for reference only)

Complete unit (UCFL204-12) cross-references

• AMI: UCFT204-12
• Browning: VF2S-212
• Dodge: F2B-SC-012
• Fafnir: YCJT-3/4
• Link-Belt: FX3-U212N
• Peer: FHSFT204-12G
• RHP: SFT-3/4
• Sealmaster: SFT-12
• SKF: FYT-3/4-TM

Insert (UC204-12) cross-references

• AMI: UC204-12
• Browning: VS-212
• Dodge: INS-SC-012
• Fafnir/Timken: GY1012KRRB
• Hub City: YW250-3/4
• IPTCI: UC204-12
• Link-Belt: UG212NL
• NTN: UC204-012D1
• SKF: YAR204-012
• Sealmaster: 2-3/4 Insert

Explore More

• Browse our UCFL200 Series Bearings for more sizes
• See all Flange Bearings for related options
• Explore our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always confirm dimensions before interchange.
