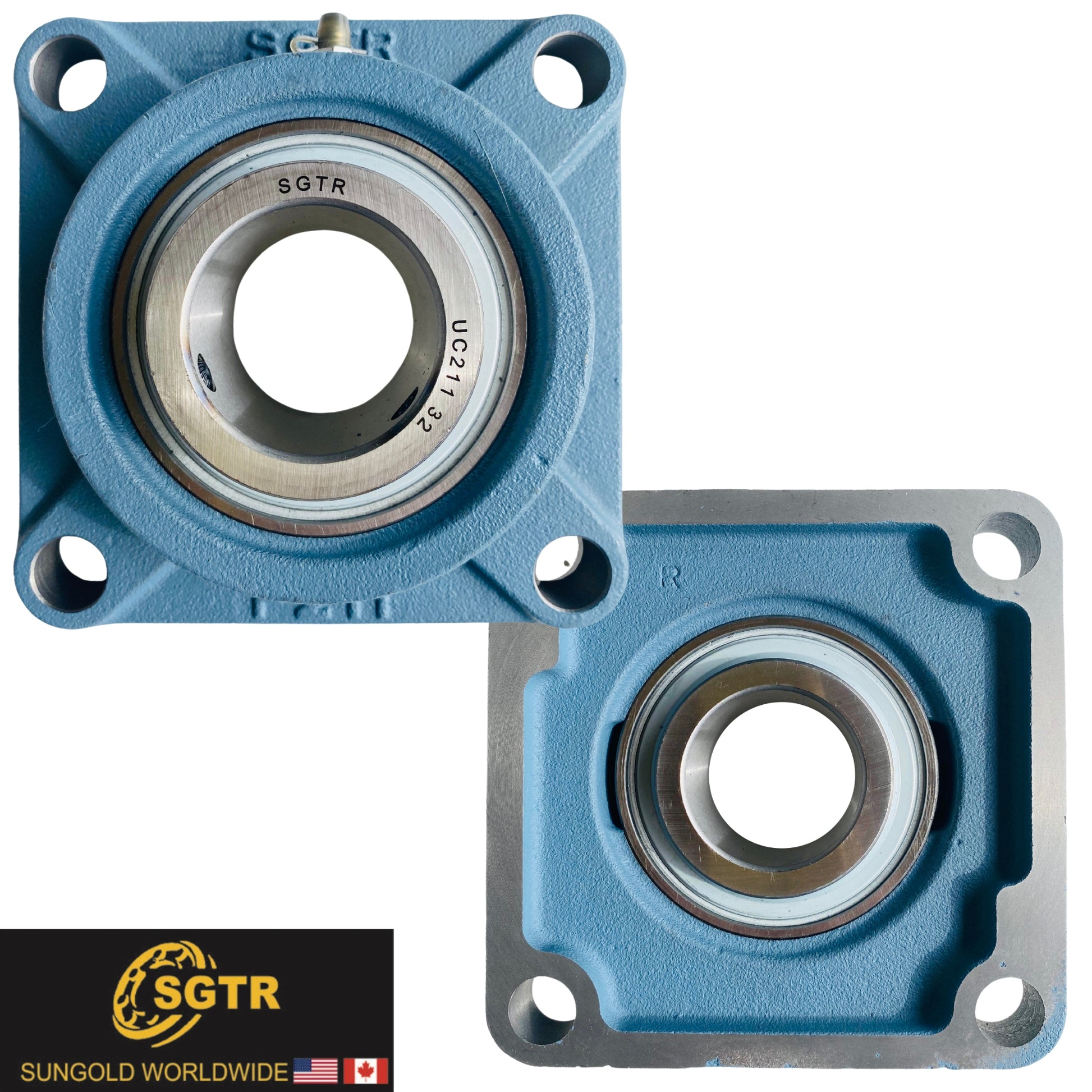

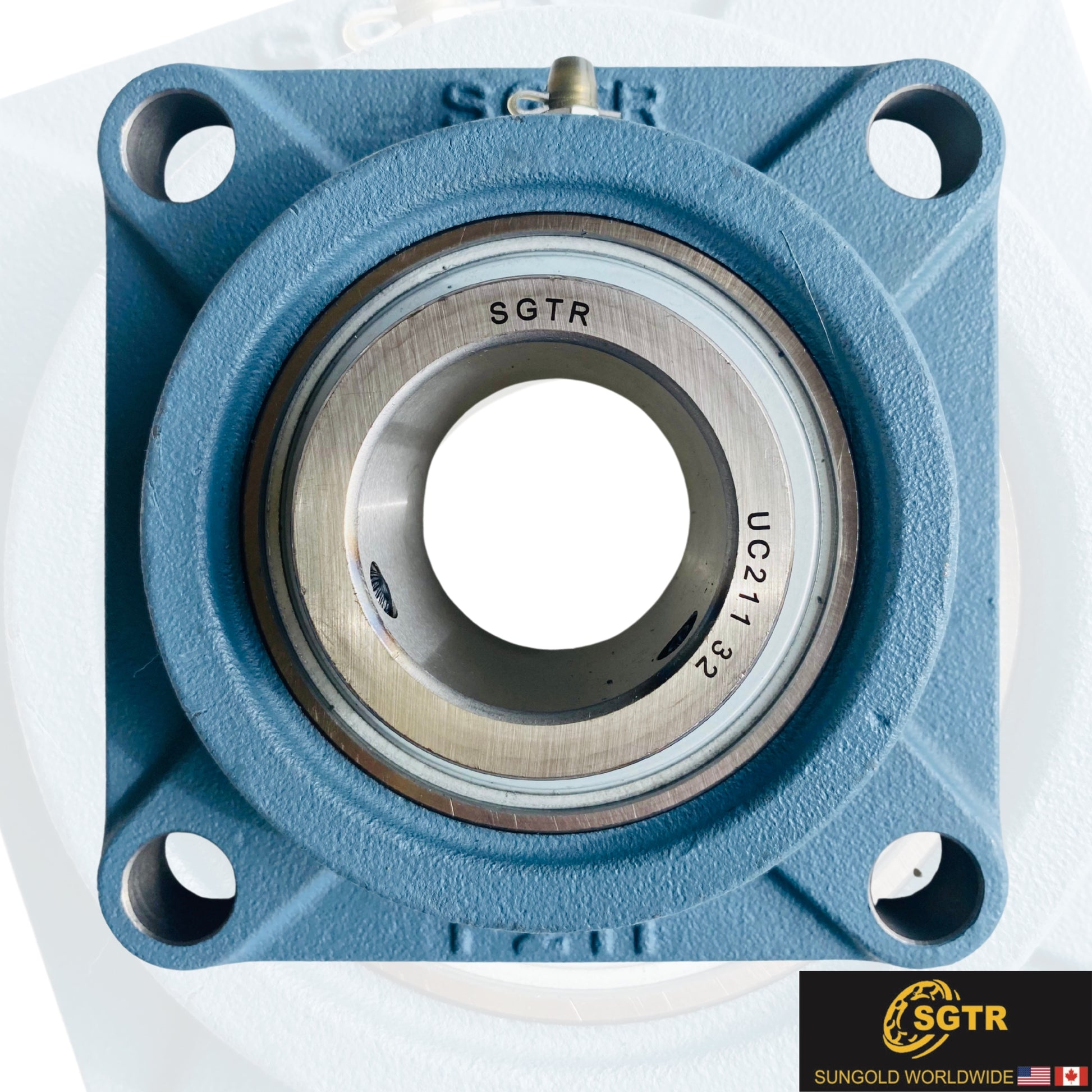

UCF211-32 4-Bolt Square Flange Bearing, 2" Bore

The UCF211-32 four-bolt flange bearing delivers dependable shaft support and precise alignment for heavy-duty industrial applications. With a 2" bore size, this mounted unit is ideal for conveyors, agricultural machinery, and processing equipment.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

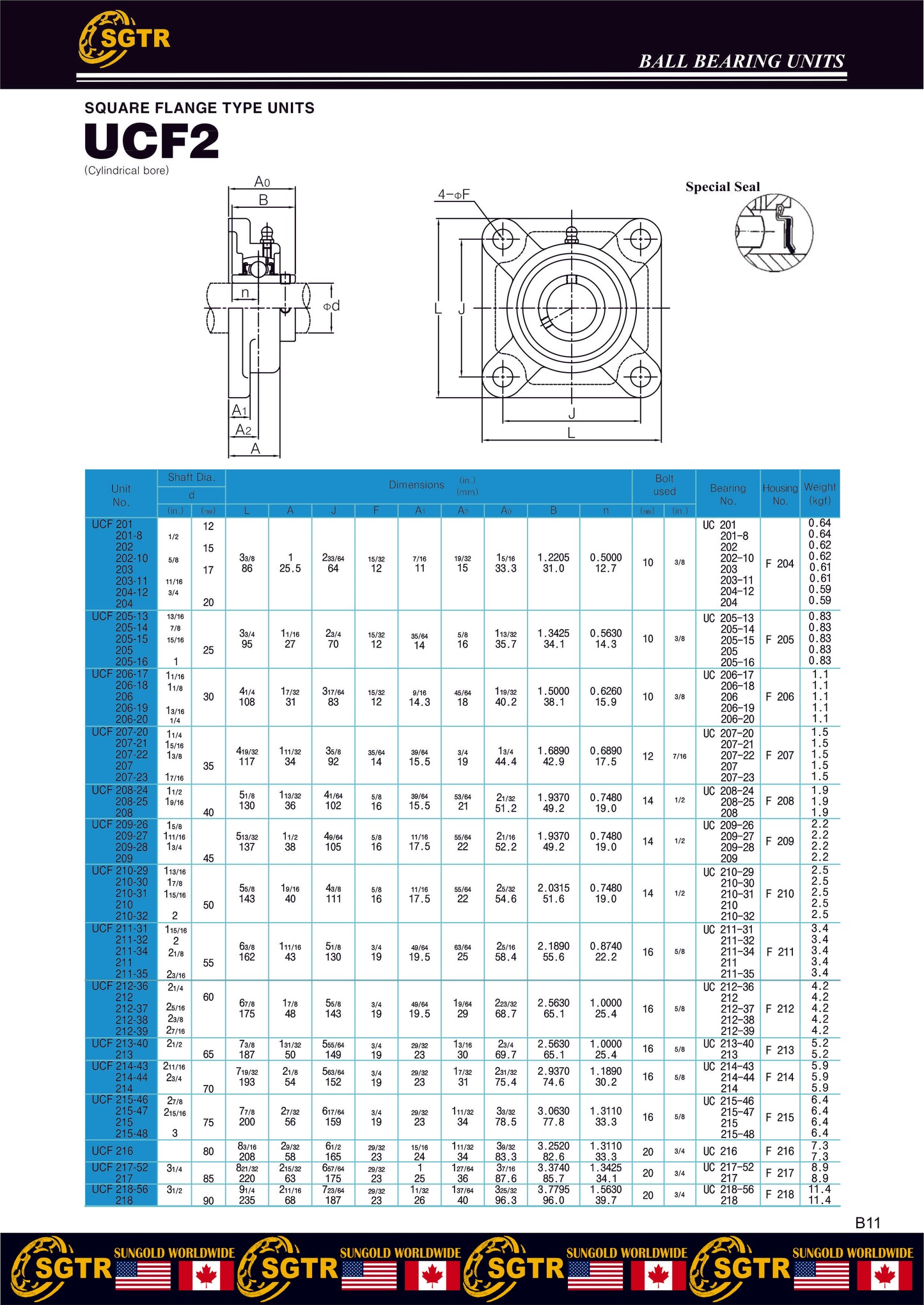

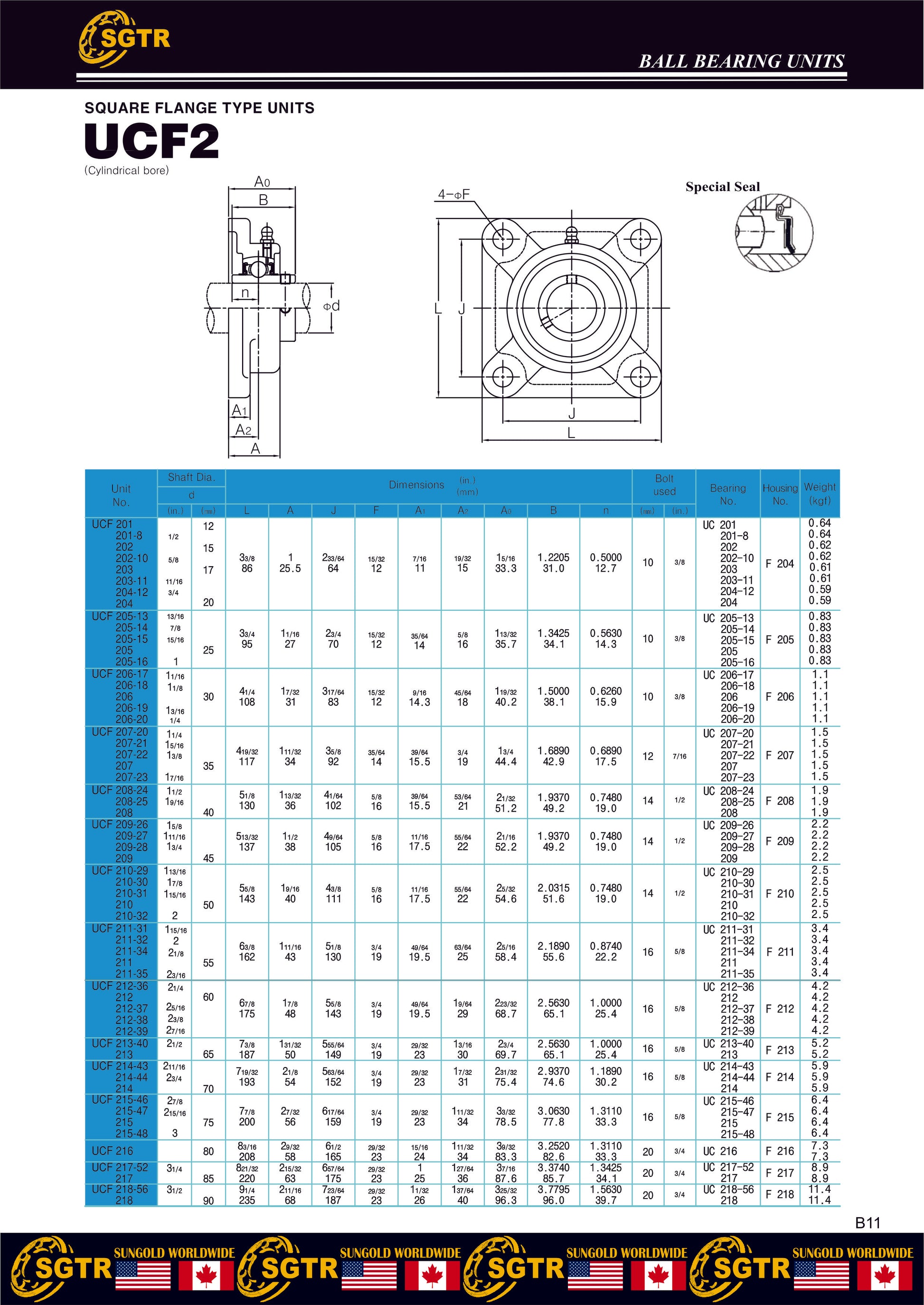

Specifications:

• Model: UCF211-32 Four-Bolt Flange Bearing
• Bore Size / Inner Diameter : 2" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Length: 6-3/8"
• Bolt Hole to Bolt Hole: 5-1/8"
• Housing Material: Cast Iron
• Insert Material: Chrome Steel SAE-52100
• Lubrication: Chevron SRI-2 Grease
• Static Load: 6,607 lbf
• Dynamic Load: 9,743 lbf
• Speed Limit: 3,100 RPM
• Weight: 7.6 lb

Interchange (for reference only)

Complete unit (UCF211-32) cross-references

• AMI: UCF211-32
• Browning: VF4S-232
• Dodge: F4B-SC-200
• Fafnir: RCJC-2 / YCJ-2
• Link-Belt: F3-U232N
• NSK: UCF211-32S
• NTN: UCF211-200T
• Peer: FHSFJ211-32G
• RHP: SF-2
• Sealmaster: SF-2
• SKF: FY-2-TM

Insert (UC211-32) cross-references

• AMI: UC211-32
• Browning: VS-232
• Dodge: INS-SC-2
• Fafnir/Timken: GY1200KRRB
• Hub City: YW250-2
• IPTCI: UC211-32
• Link-Belt: UG232NL
• NTN: UC211-200D1
• SKF: YAR211-200
• Sealmaster: 2-2 Insert

Explore More:

• Browse our UCF200 Series Bearings for additional sizes
• View all Flange Bearings for more options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always confirm dimensions before interchange.
