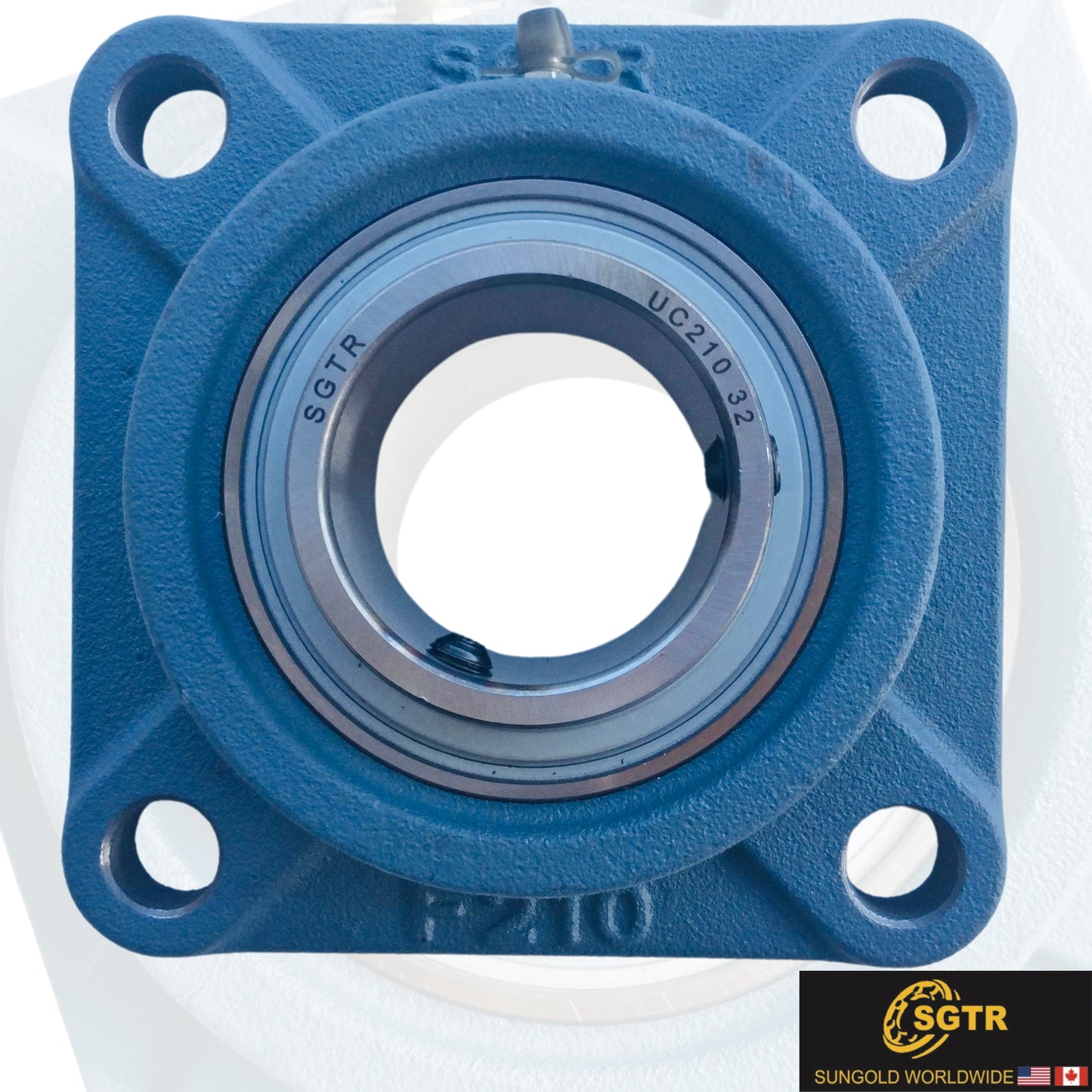

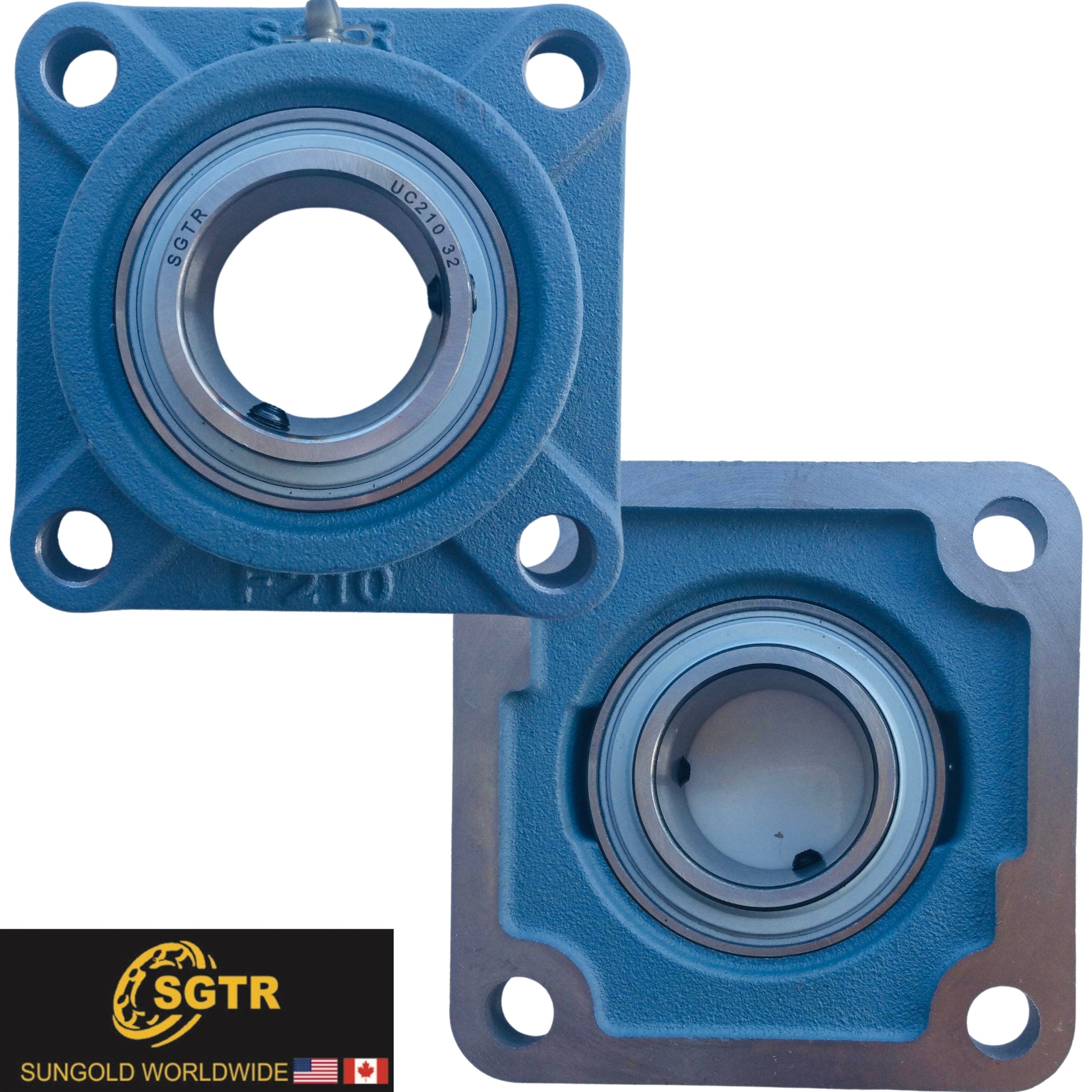

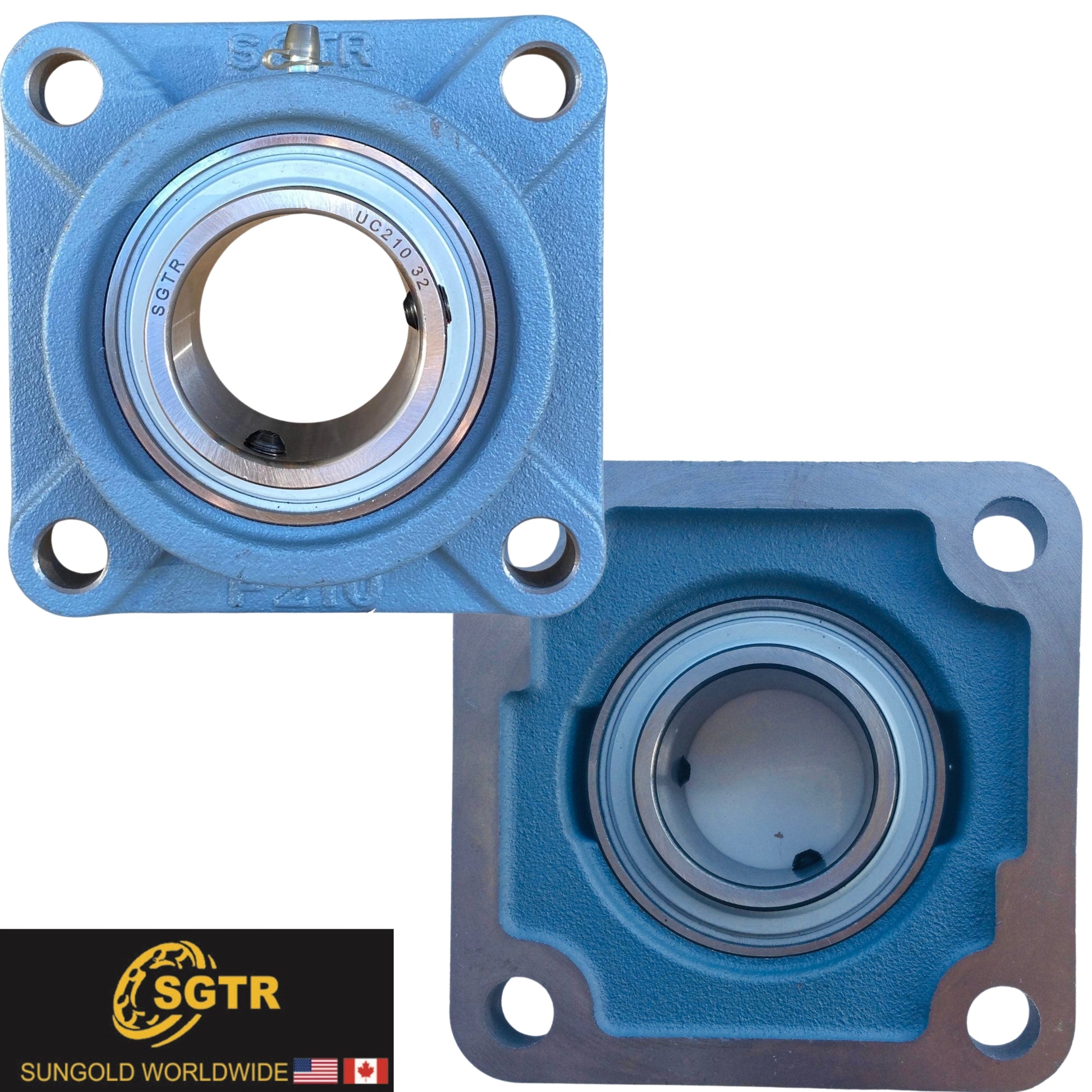

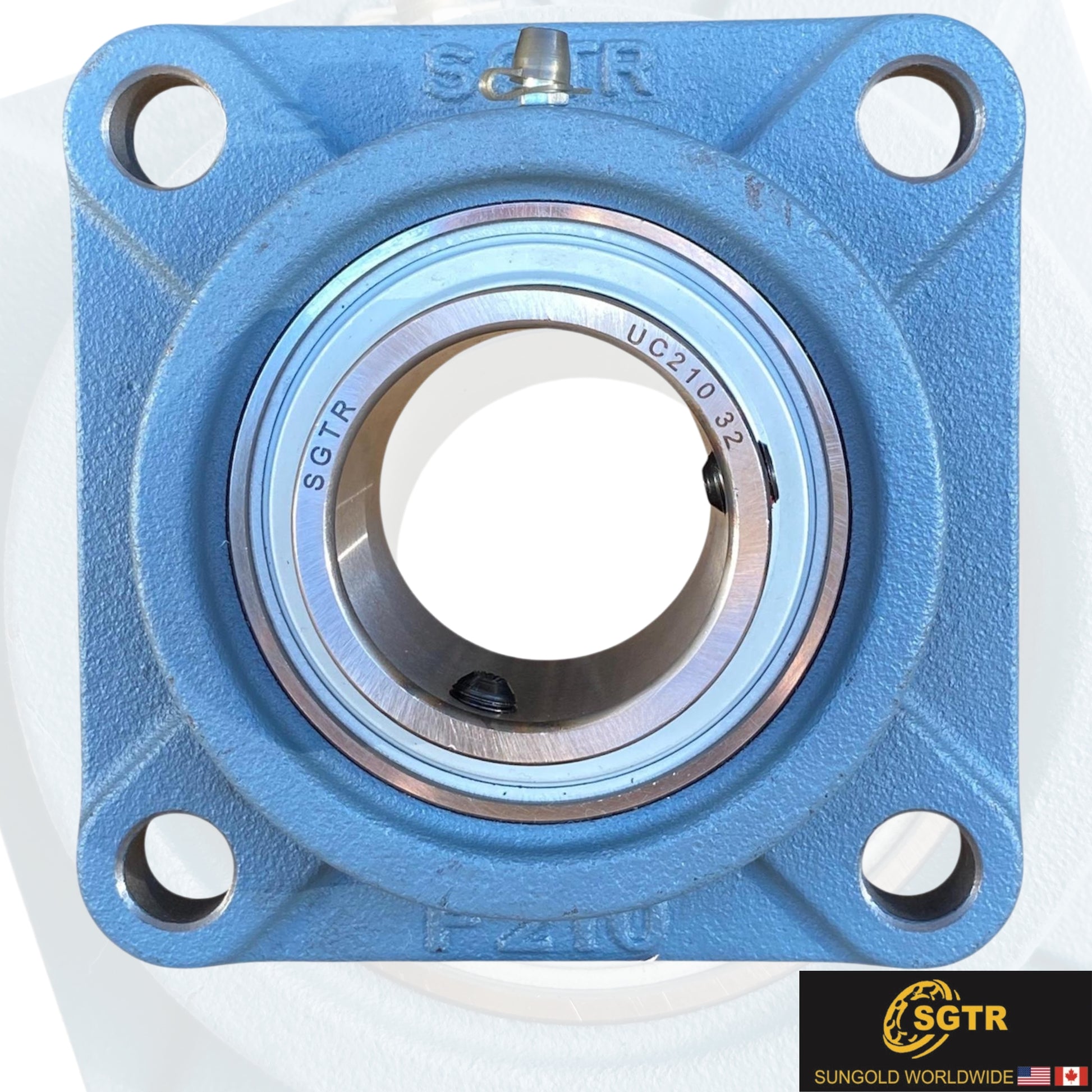

UCF210-32 4-Bolt Square Flange Bearing, 2" inch Bore

The UCF210-32 four-bolt flange bearing is designed for secure shaft mounting and precise alignment in demanding industrial applications. With a 2" bore size, this mounted unit is a reliable choice for conveyors, processing equipment, and heavy machinery.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

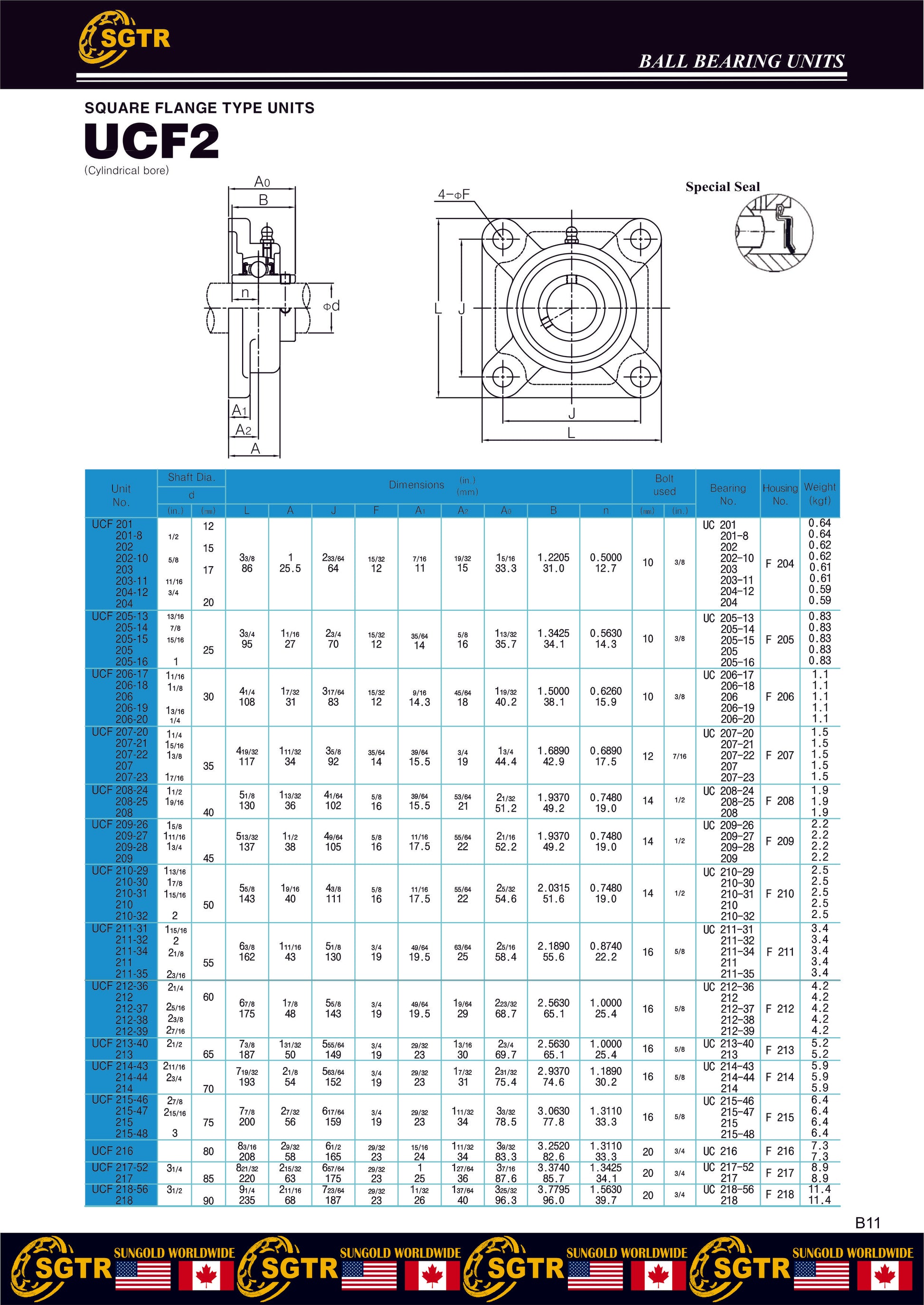

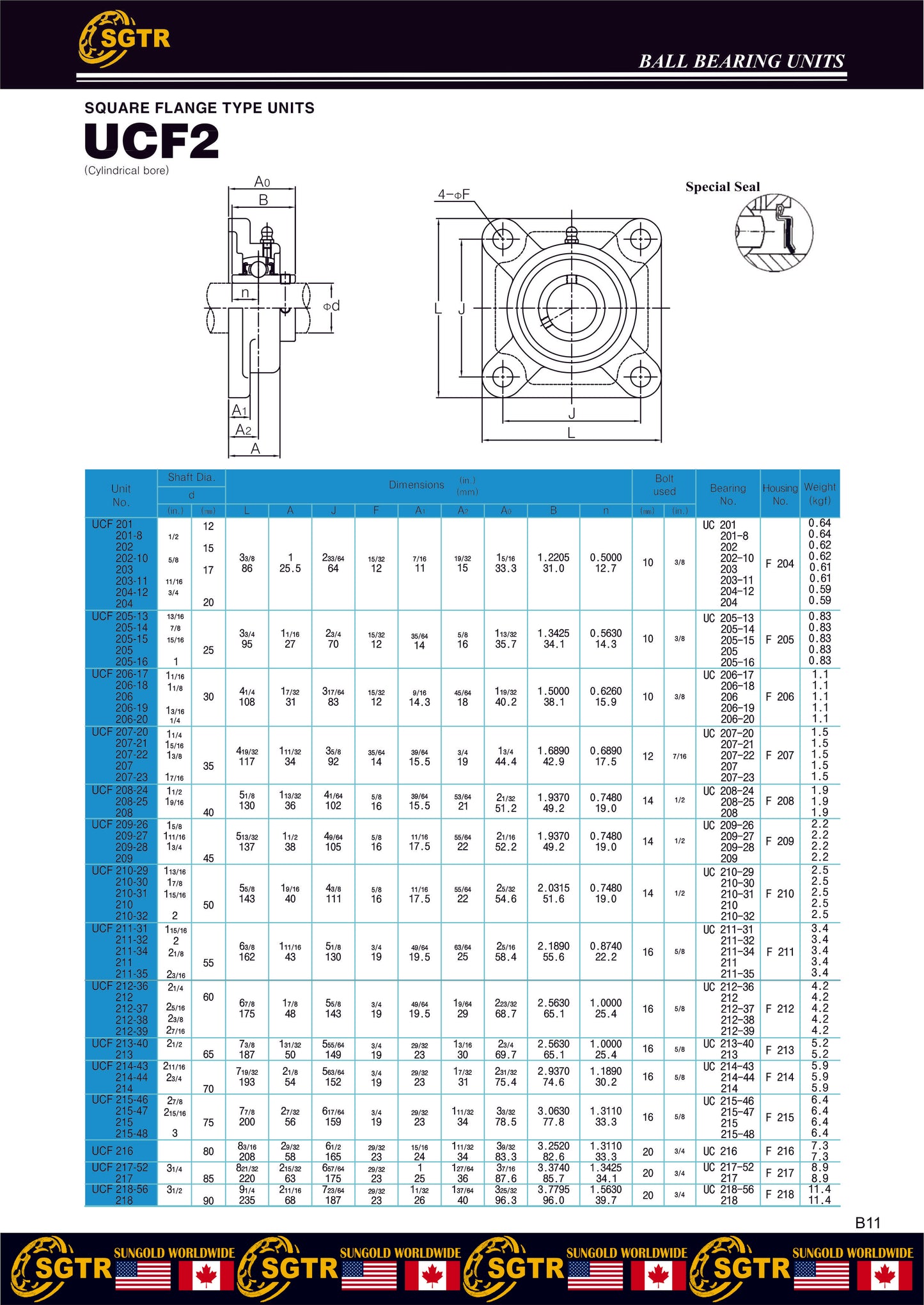

Specifications:

• Model: UCF210-32 Four-Bolt Flange Bearing
• Bore Size/ Inner Diameter: 2" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Length: 5-5/8"
• Bolt Hole to Bolt Hole: 4-3/8"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 5,328 lbf
• Dynamic Load: 7,866 lbf
• Speed Limit: 3,400 RPM
• Weight: 5.5 lb

Interchange (for reference only)

Complete unit (UCF210-32) cross-references

• AMI: UCF210-32
• Browning: VF4S-220 (similar series)
• Dodge: F4B-SC (2" bore equivalent)
• NTN: UCF210-200
• Other: FG16210.2 / FG56210.2, UGLF210-32, FB220X2, FB250X2

Insert (UC210-32) cross-references

• AMI: UC210-32
• Browning: VS-232
• Dodge: INS-SC-2
• Fafnir/Timken: GY1200KRRB
• Hub City: YW250-2
• IPTCI: UC210-32
• Link-Belt: UG232NL
• NTN: UC210-32 / UC210-200D1
• SKF: YAR211-200
• Sealmaster: 2-2 Insert

Explore More:

• Browse our UCF200 Series Bearings for additional sizes
• View all Flange Bearings for more options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always confirm dimensions before interchange.
