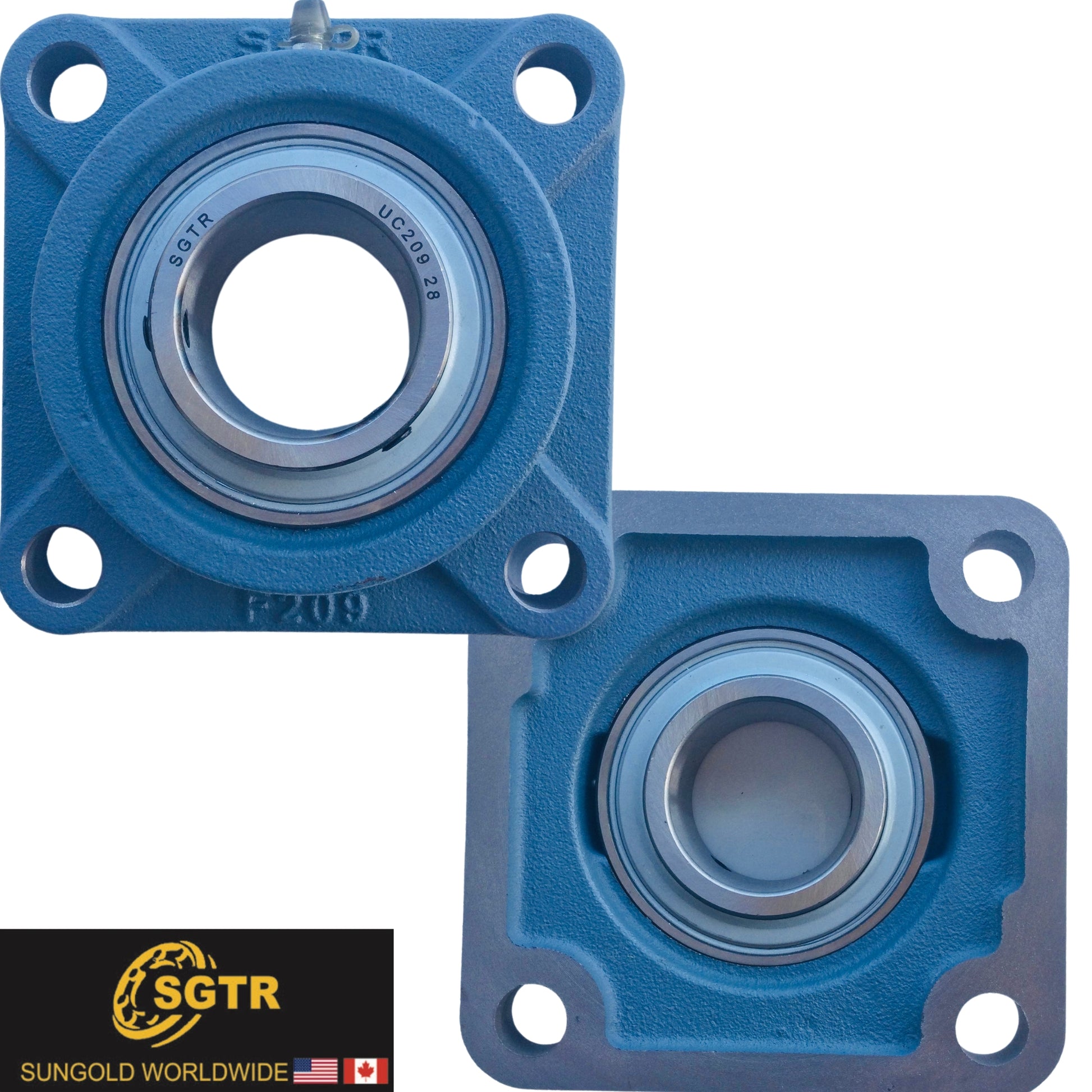

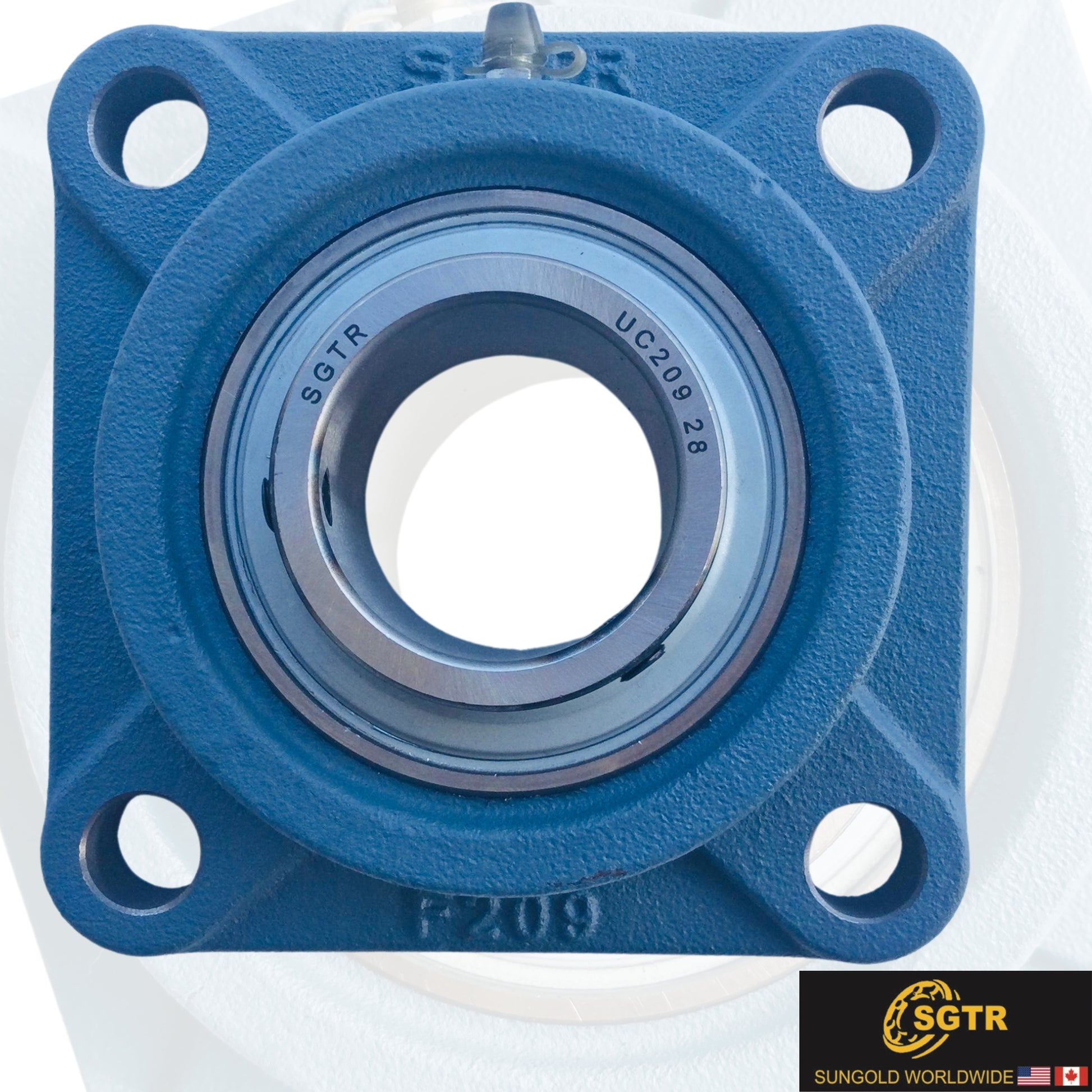

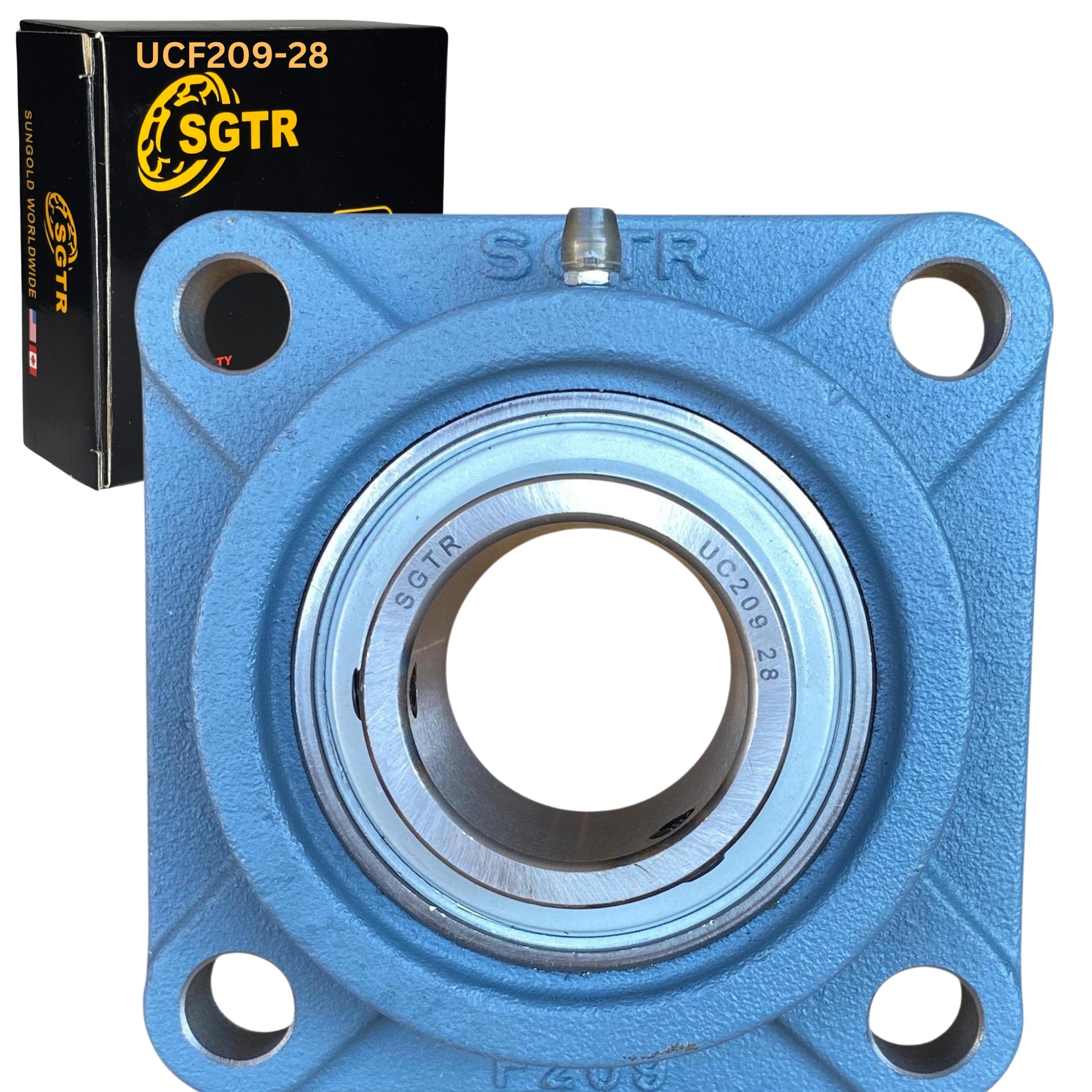

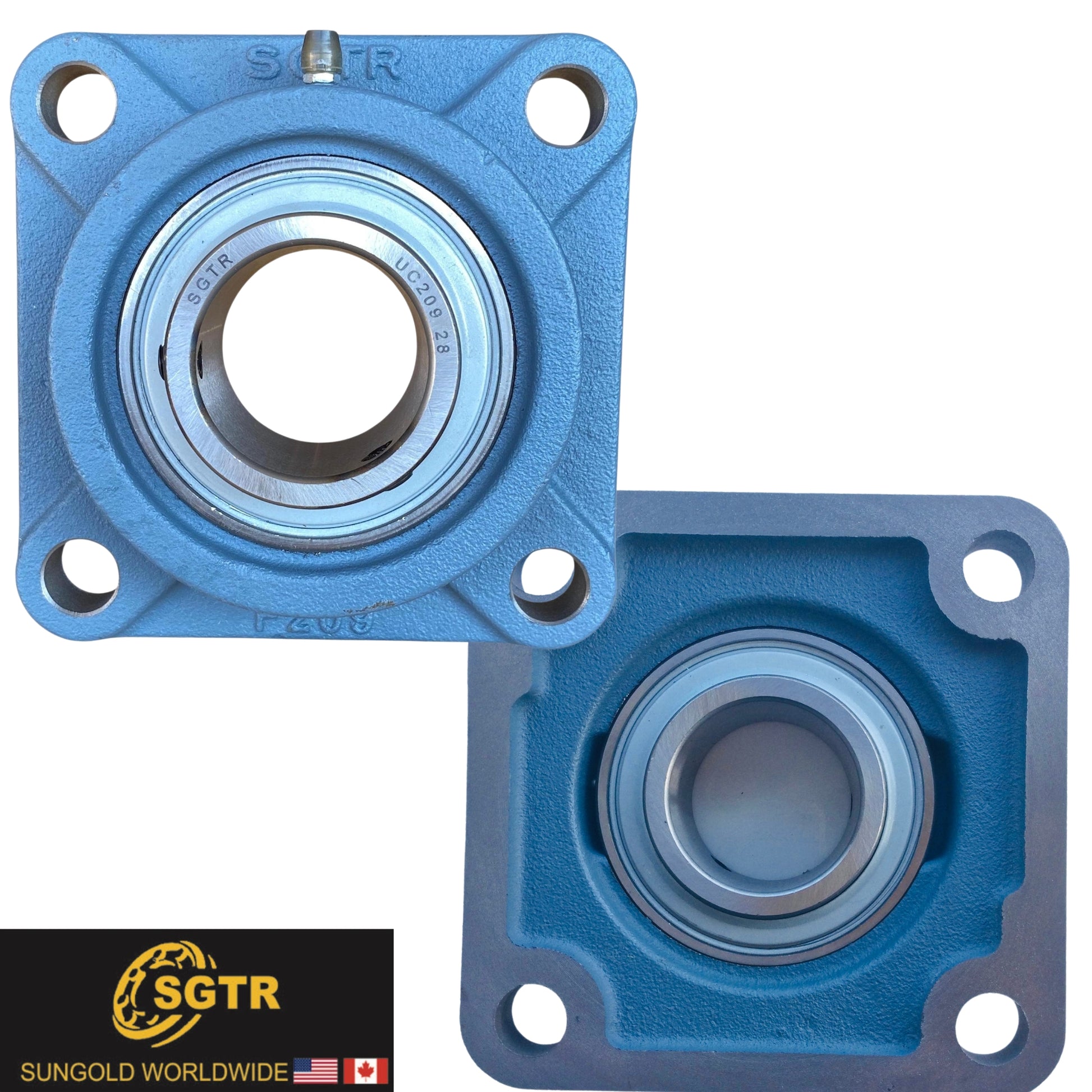

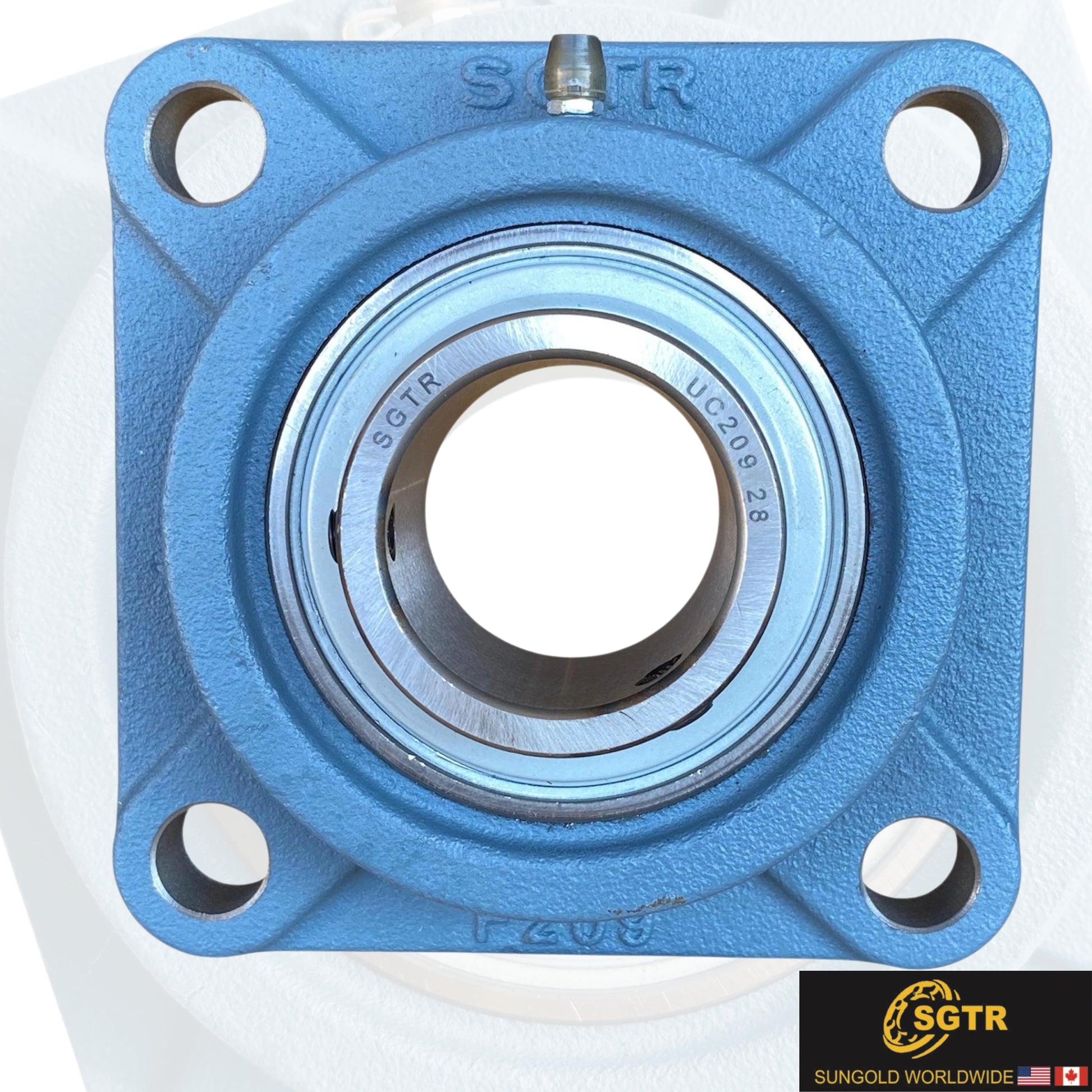

UCF209-28 4-Bolt Square Flange Bearing, 1-3/4" inch Bore

The UCF209-28 four-bolt flange bearing provides secure shaft mounting and precise alignment for heavy-duty applications. With a 1-3/4 inch bore size, this mounted bearing unit is ideal for conveyors, processing equipment, and industrial machinery.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

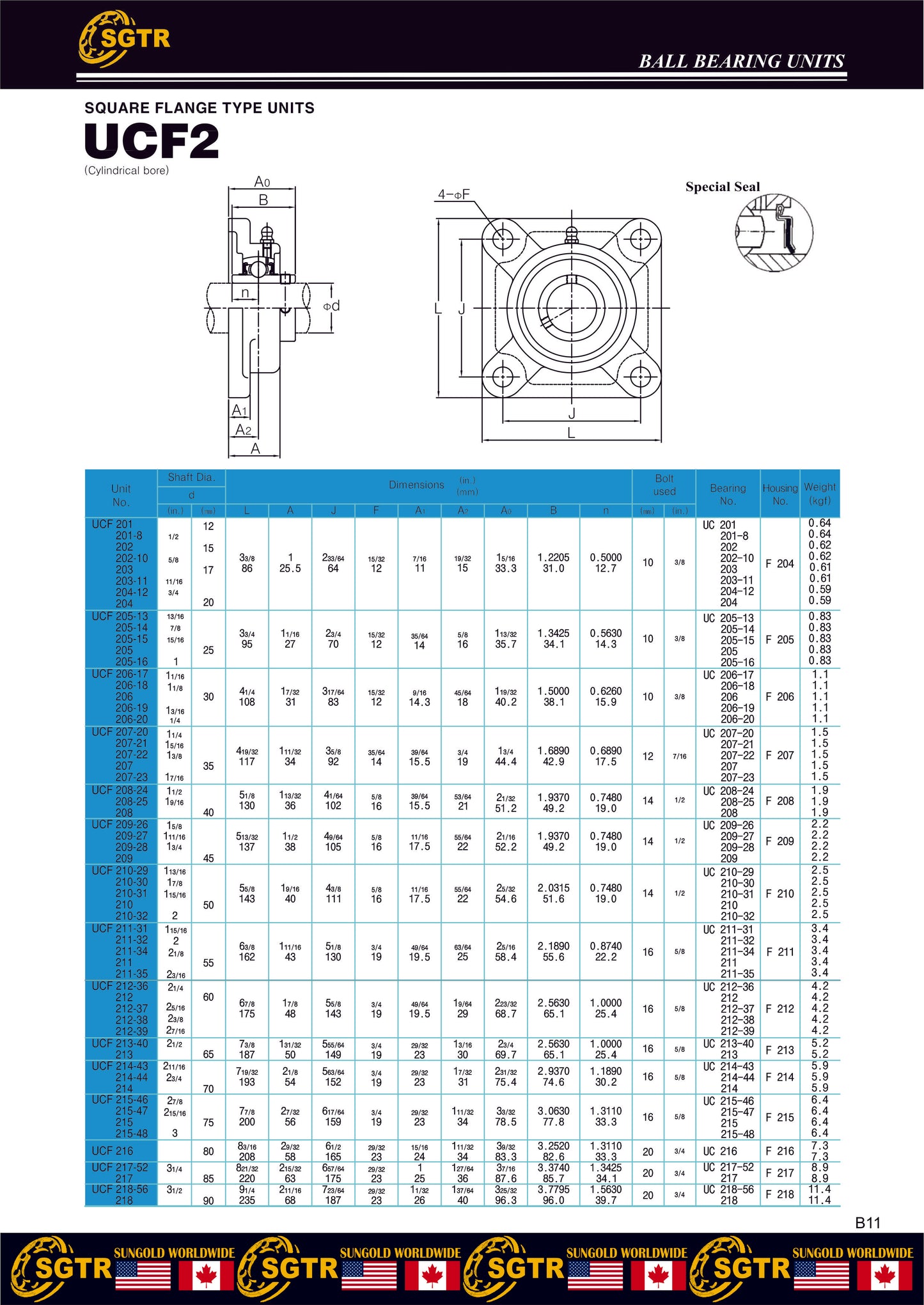

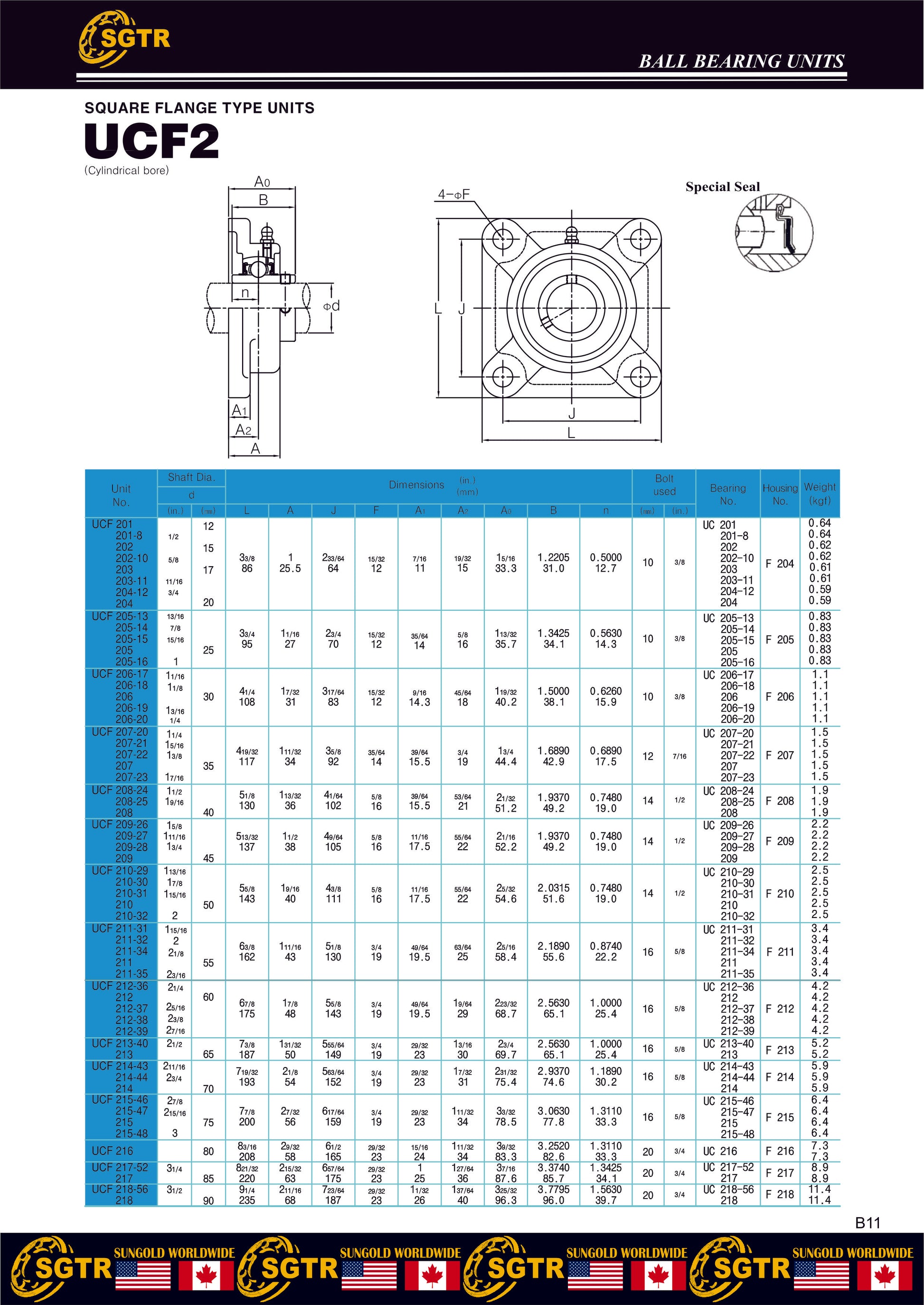

Specifications:

• Model: UCF209-28 Four-Bolt Flange Bearing
• Bore Size/ Inner Diameter: 1-3/4" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Length: 5-25/64"
• Bolt Hole to Bolt Hole: 4-9/64"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 4,676 lbf
• Dynamic Load: 7,160 lbf
• Speed Limit: 3,700 RPM
• Weight: 4.8 lb

Interchange (for reference only)

Complete unit (UCF209-28) cross-references

• AMI: UCF209-28
• Browning: VF4S-228
• Dodge: F4B-SC-112
• Fafnir: RCJC-1-3/4 / YCJ-1-3/4
• Link-Belt: F3-U228N
• NSK: UCF209-28S
• NTN: UCF209-112T
• Peer: FHSFJ209-28G
• RHP: SF-1-3/4
• Sealmaster: SF-1-3/4
• SKF: FY-1-3/4-TM

Insert (UC209-28) cross-references

• AMI: UC209-28
• Browning: VS-228
• Dodge: INS-SC-112
• Fafnir: GY1112KRRB
• Hub City: YW250-1-3/4
• IPTCI: UC209-28
• Link-Belt: UG228NL
• NTN: UC209-112D1
• SKF: YAR209-112
• Sealmaster: 2-1-3/4 Insert

Explore More:

• Browse our UCF200 Series Bearings for additional sizes
• View all Flange Bearings for more options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always confirm dimensions before interchange.
