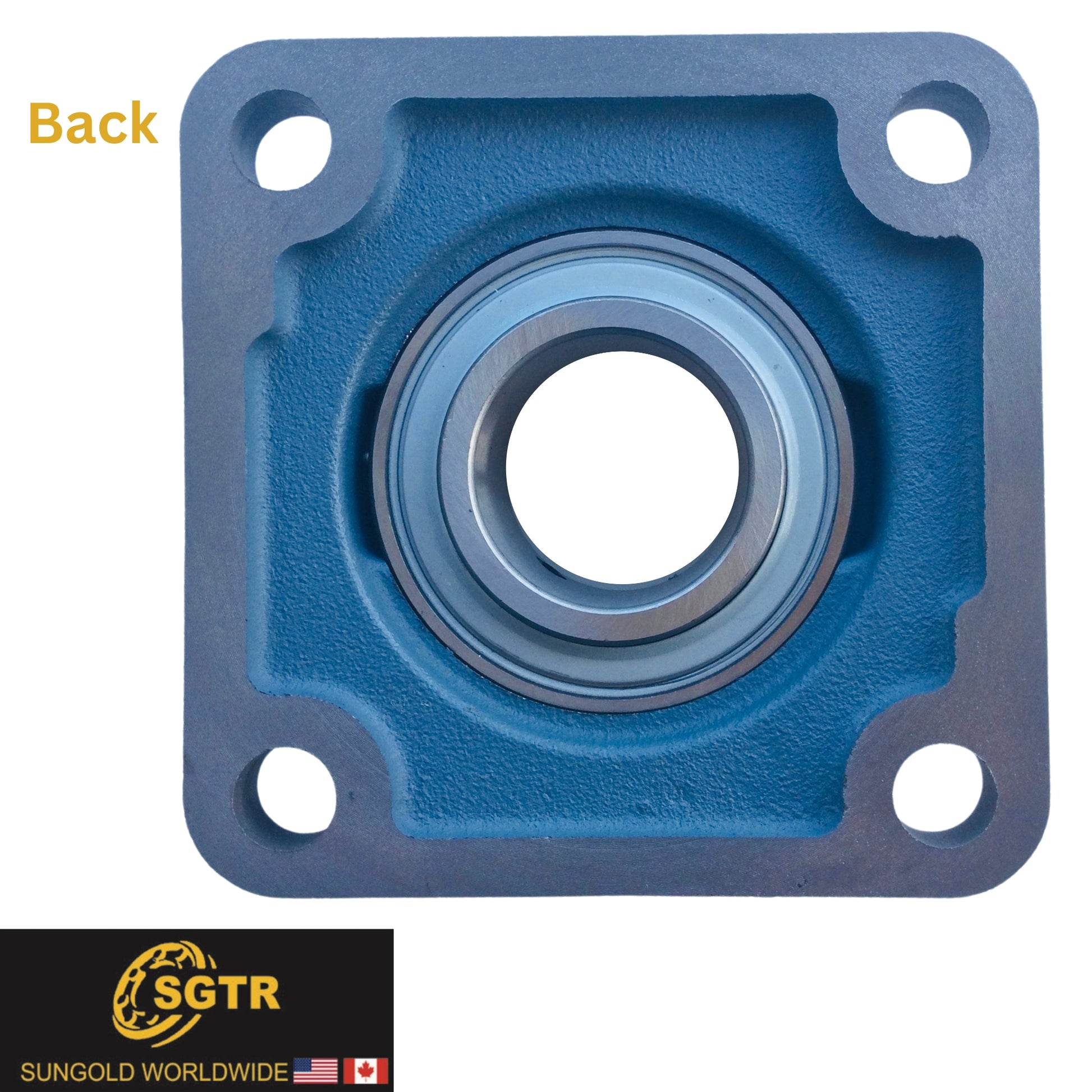

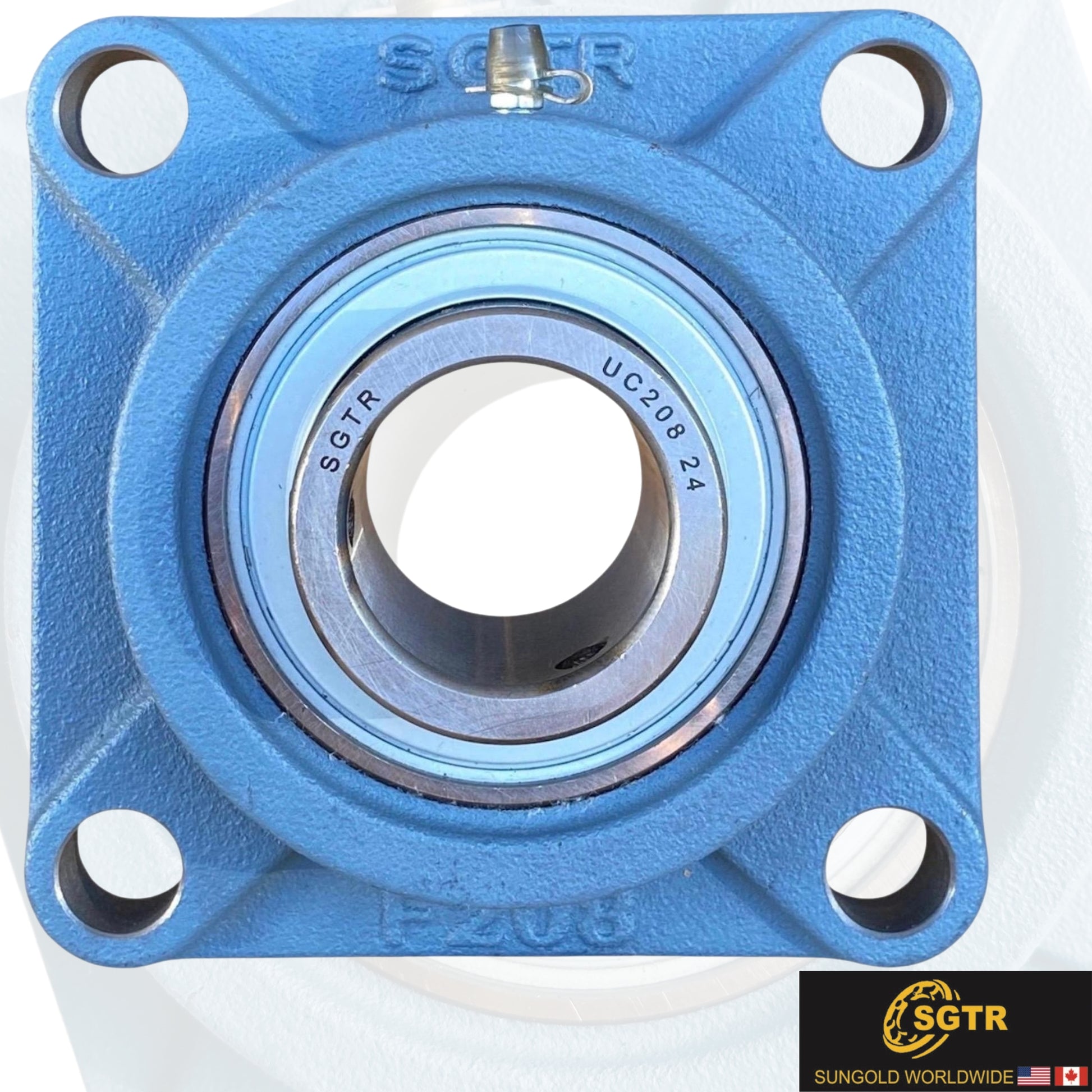

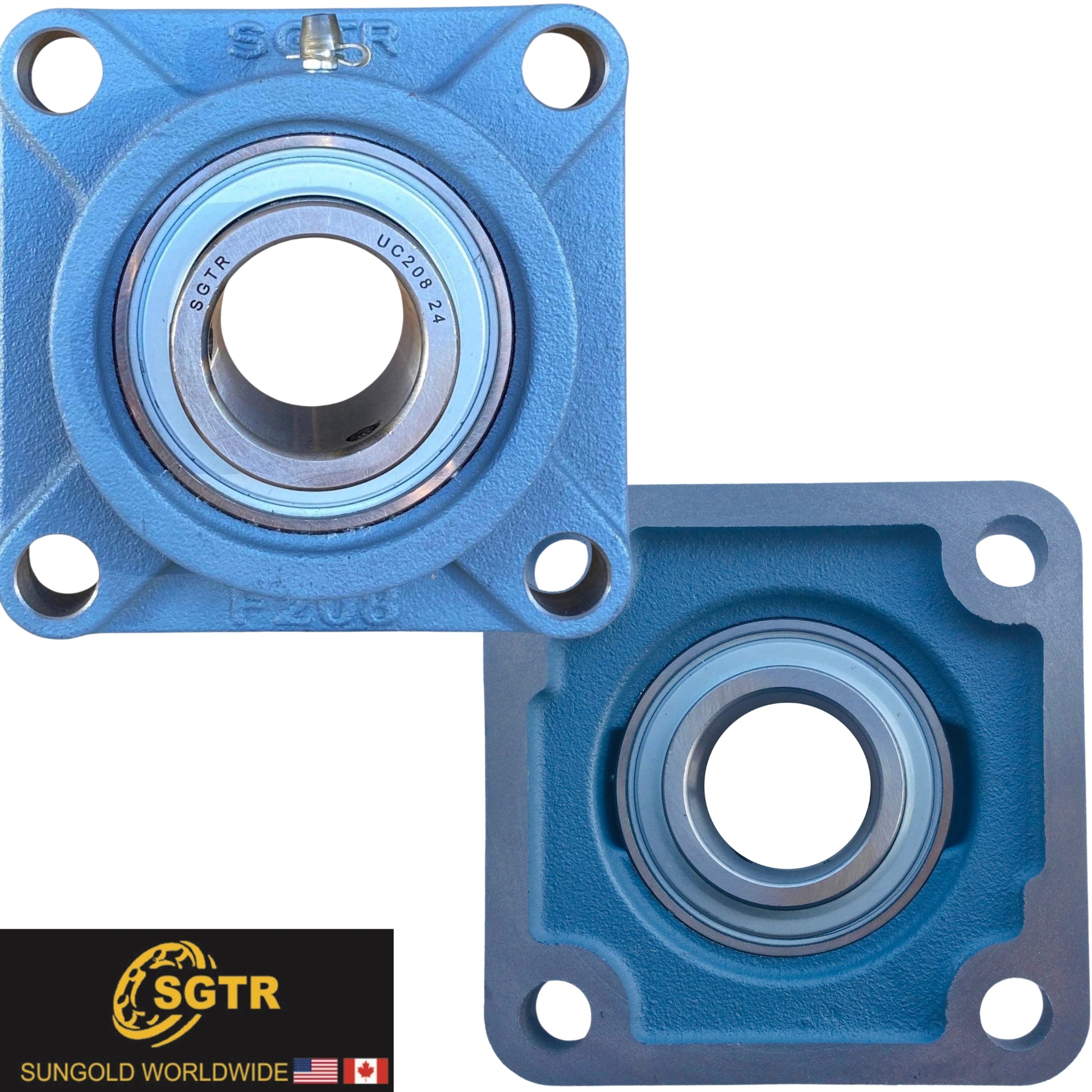

UCF208-24 4-Bolt Square Flange Bearing, 1-1/2" inch Bore

The UCF208-24 four-bolt flange bearing delivers reliable shaft support and precise alignment for industrial applications. With a 1-1/2 inch bore size, this mounted bearing unit is widely used in conveyors, processing equipment, and heavy-duty machinery.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

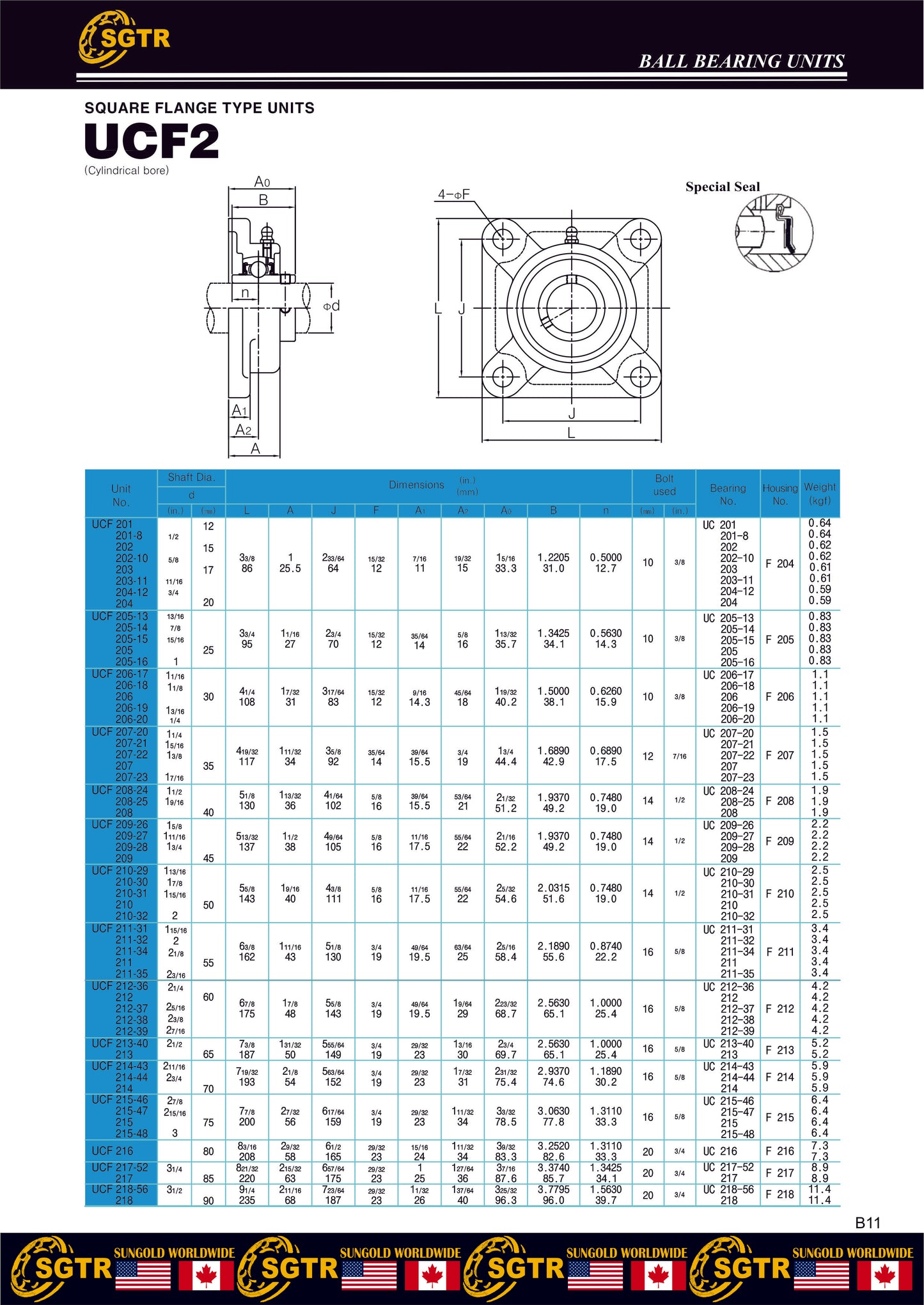

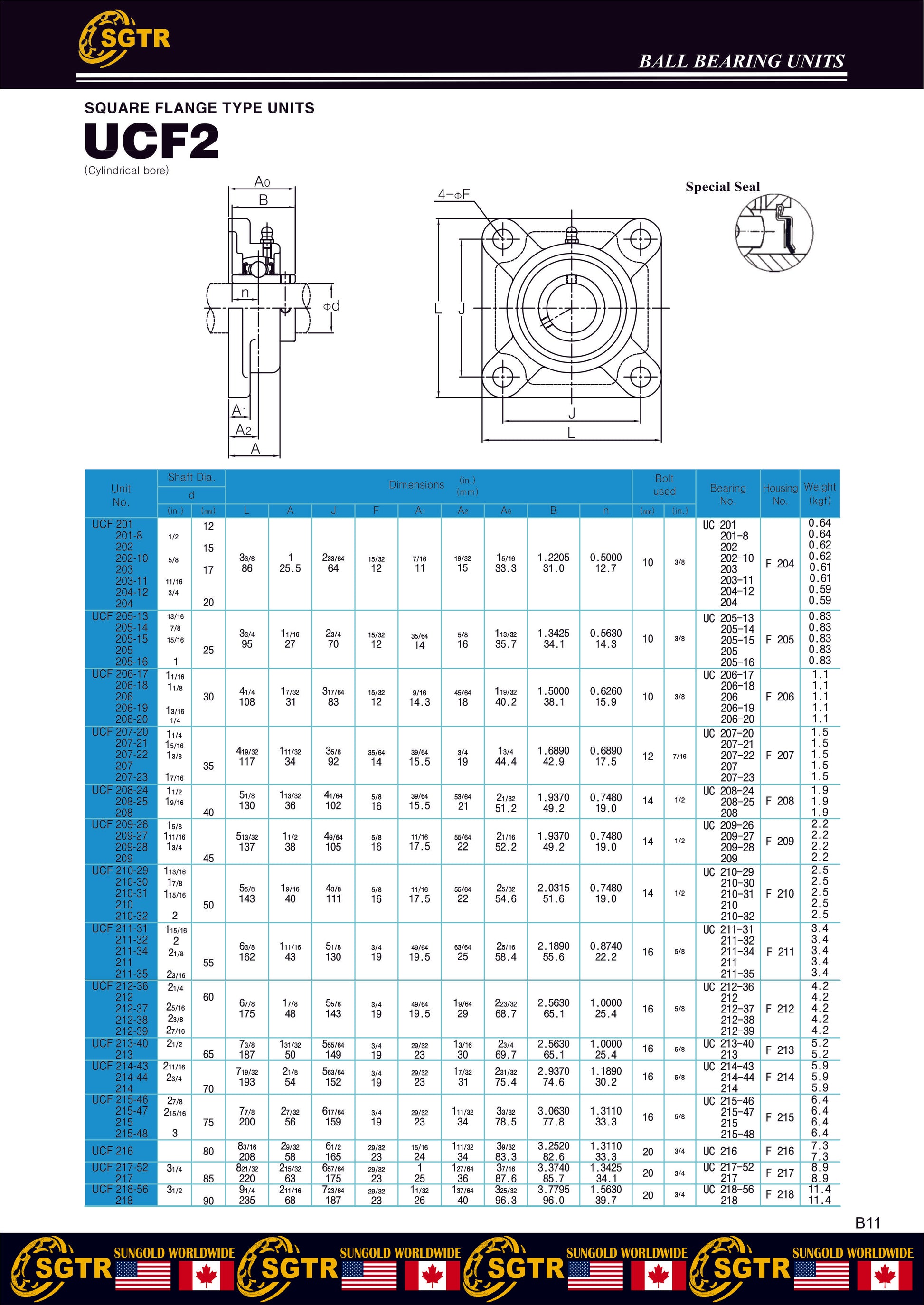

Specifications:

• Model: UCF208-24 Four-Bolt Flange Bearing
• Bore Size/ Inner Diameter: 1-1/2" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Length: 5-1/8"
• Bolt Hole to Bolt Hole: 4-1/64"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 4,078 lbf
• Dynamic Load: 6,634 lbf
• Speed Limit: 4,000 RPM
• Weight: 4.2 lb

Interchange (for reference only)

Complete unit (UCF208-24) cross-references

• AMI: UCF208-24
• Browning: VF4S-224
• Dodge: F4B-SC-108
• Fafnir: RCJC-1-1/2 / YCJ-1-1/2
• Link-Belt: F3-U224N
• NSK: UCF208-24S
• NTN: UCF208-108T
• Peer: FHSFJ208-28G
• RHP: SF-1-1/2
• Sealmaster: SF-1-1/2
• SKF: FY-1-1/2-TM

Insert (UC208-24) cross-references

• AMI: UC208-24
• Browning: VS-224
• Dodge: INS-SC-108
• Fafnir: GY1108KRRB
• Hub City: YW250-1-1/2
• IPTCI: UC208-24
• Link-Belt: UG224NL
• NTN: UC208-108D1
• SKF: YAR208-108
• Sealmaster: 2-1-1/2 Insert

Explore More:

• Browse our UCF200 Series Bearings for additional sizes
• View all Flange Bearings for broader options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
