UCF207-23 4-Bolt Square Flange Bearing, 1-7/16" inch Bore

The UCF207-23 four-bolt flange bearing delivers strong shaft support and precise alignment for industrial machinery. With a 1-7/16 inch bore size, this mounted bearing unit is widely used in conveyors, processing systems, and heavy-duty equipment.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

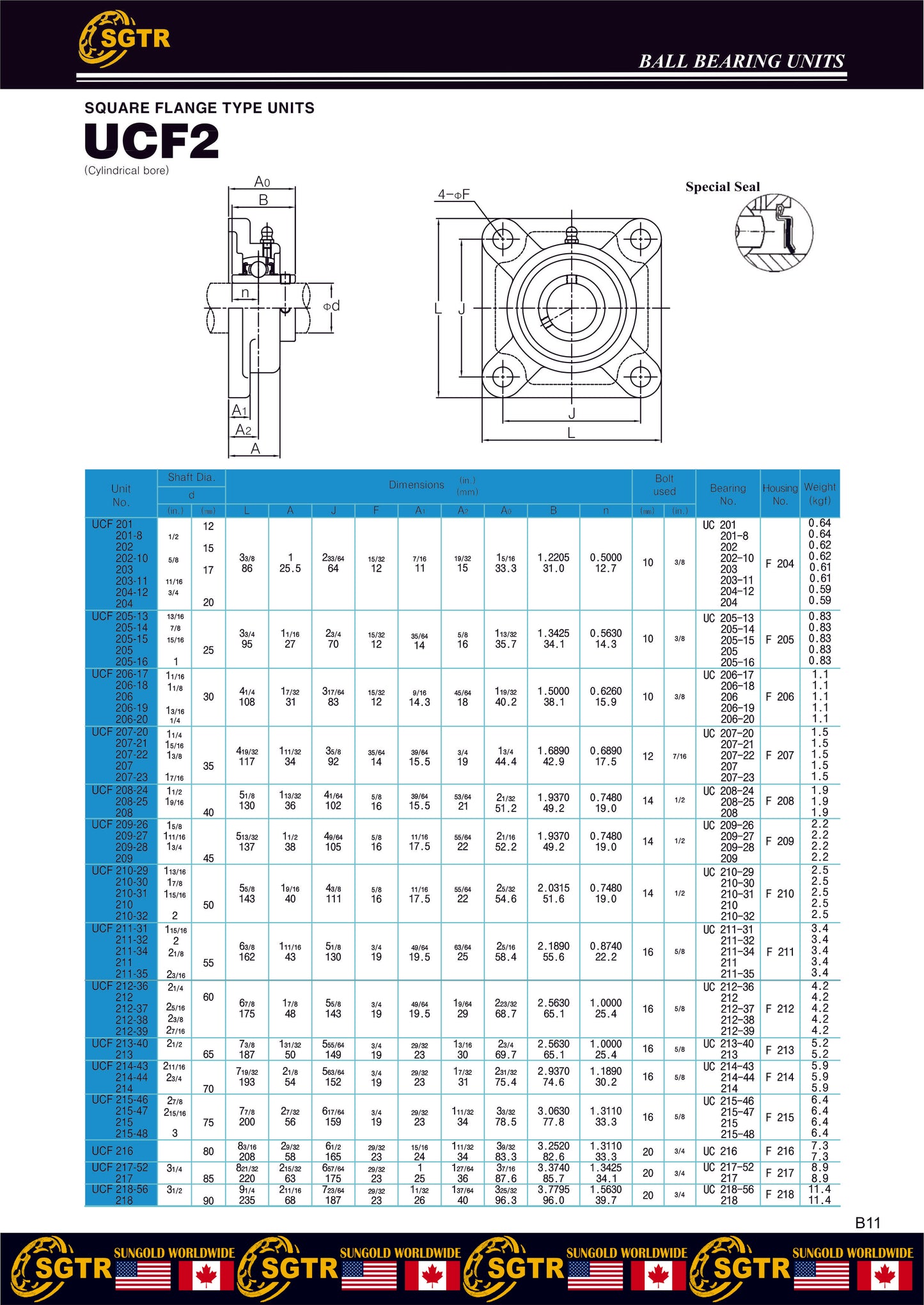

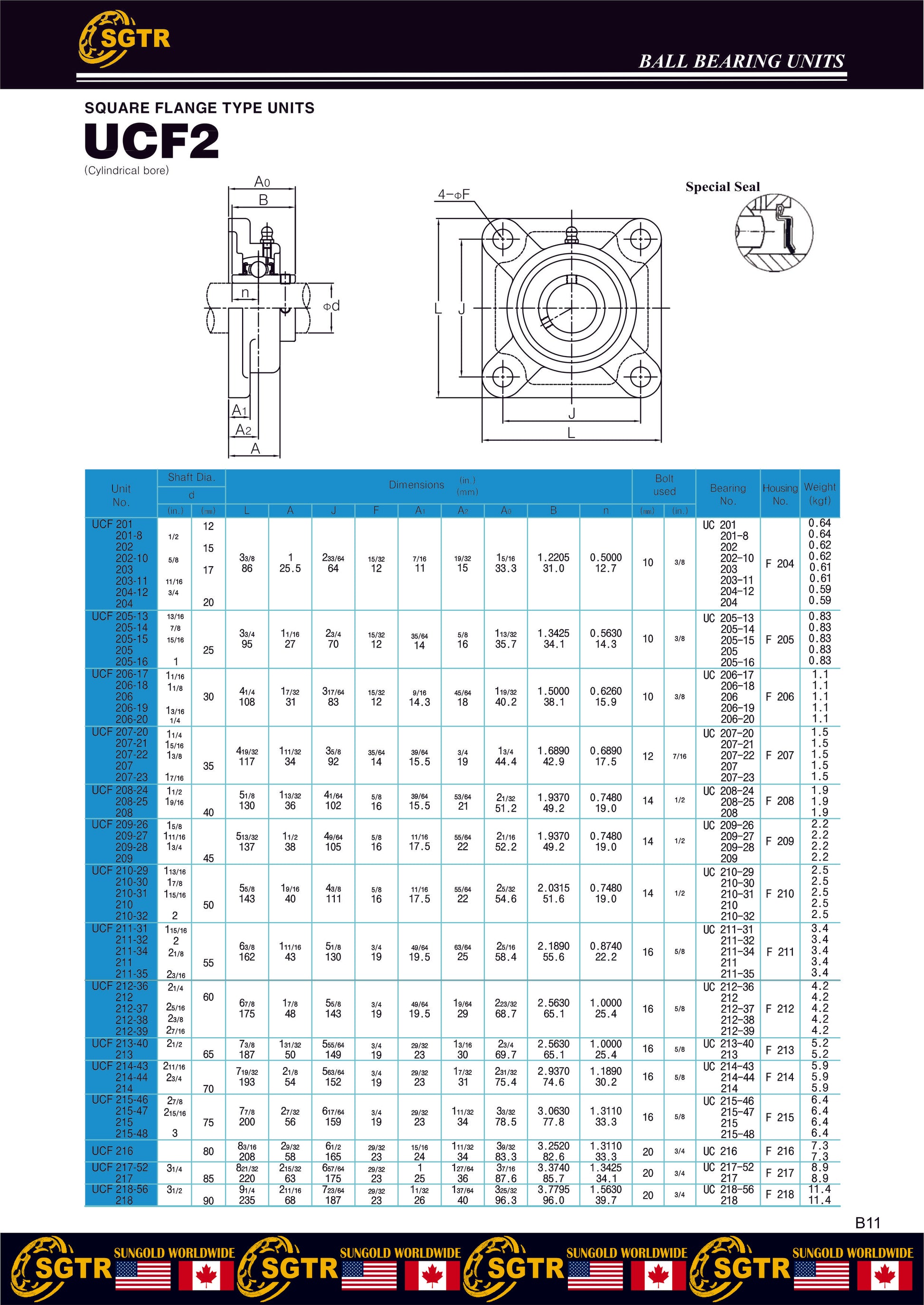

Specifications:

• Model: UCF207-23 Four-Bolt Flange Bearing
• Bore Size/ Inner Diameter: 1-7/16" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Length: 4-39/64"
• Bolt Hole to Bolt Hole: 3-5/8"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 3,496 lbf
• Dynamic Load: 5,775 lbf
• Speed Limit: 4,500 RPM
• Weight: 3.3 lb

Interchange (for reference only)

Complete unit (UCF207-23) cross-references

• AMI: UCF207-23
• Browning: VF4S-223
• Dodge: F4B-SC-107
• Fafnir: RCJC-1-7/16 / YCJ-1-7/16
• Link-Belt: F3-U223N
• NSK: UCF207-23S
• NTN: UCF207-107T
• Peer: FHSFJ207-23G
• RHP: SF-1-7/16
• Sealmaster: SF-1-7/16
• SKF: FY-1-7/16-TM

Insert (UC207-23) cross-references

• AMI: UC207-23
• Browning: VS-223
• Dodge: INS-SC-107
• Fafnir: GY1107KRRB
• Hub City: YW250-1-7/16
• IPTCI: UC207-23
• Link-Belt: UG223NL
• NTN: UC207-107D1
• SKF: YAR207-107
• Sealmaster: 2-1-7/16 Insert

Explore More:

• Browse our UCF200 Series Bearings for more sizes
• View all Flange Bearings for additional options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
