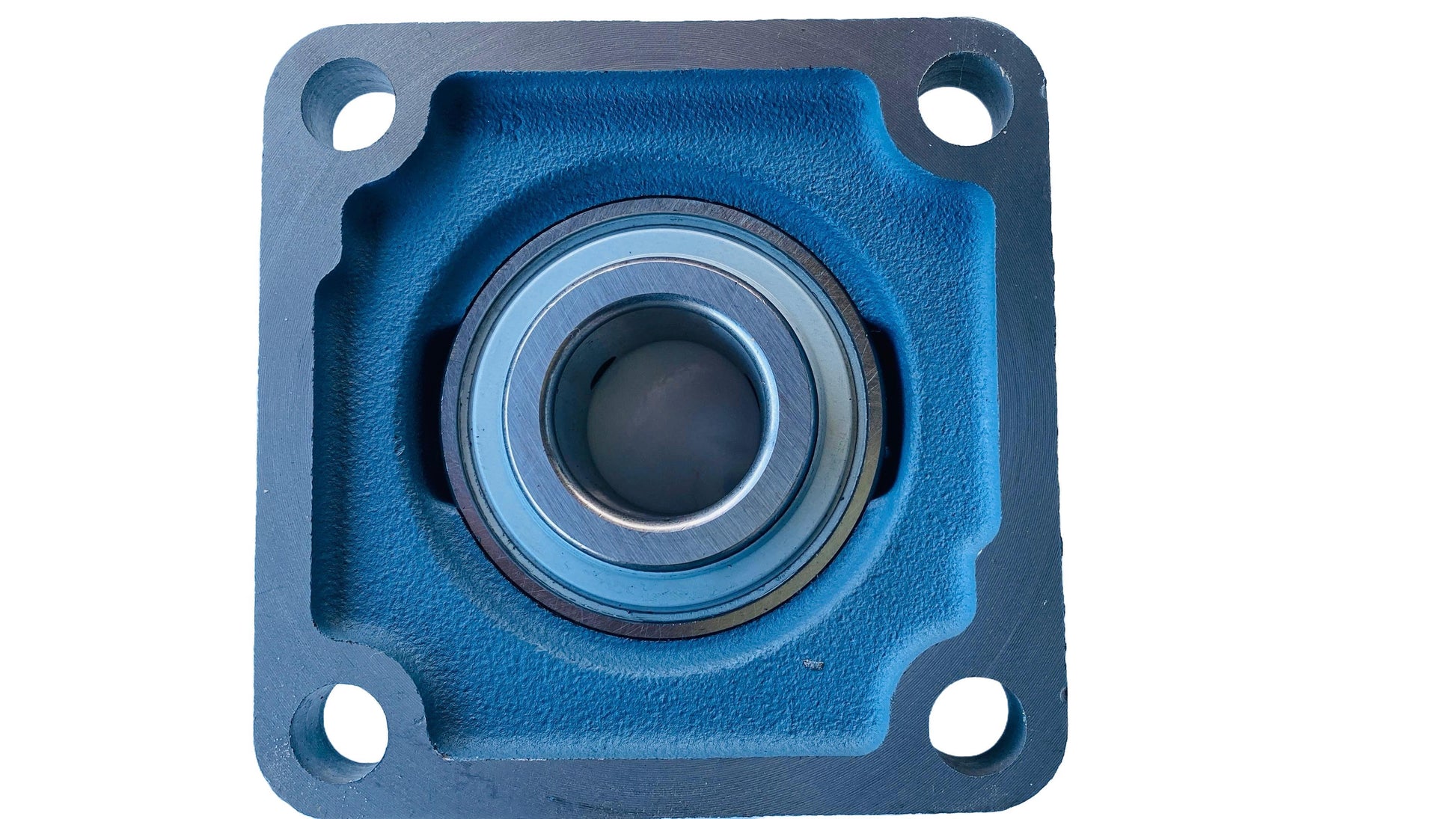

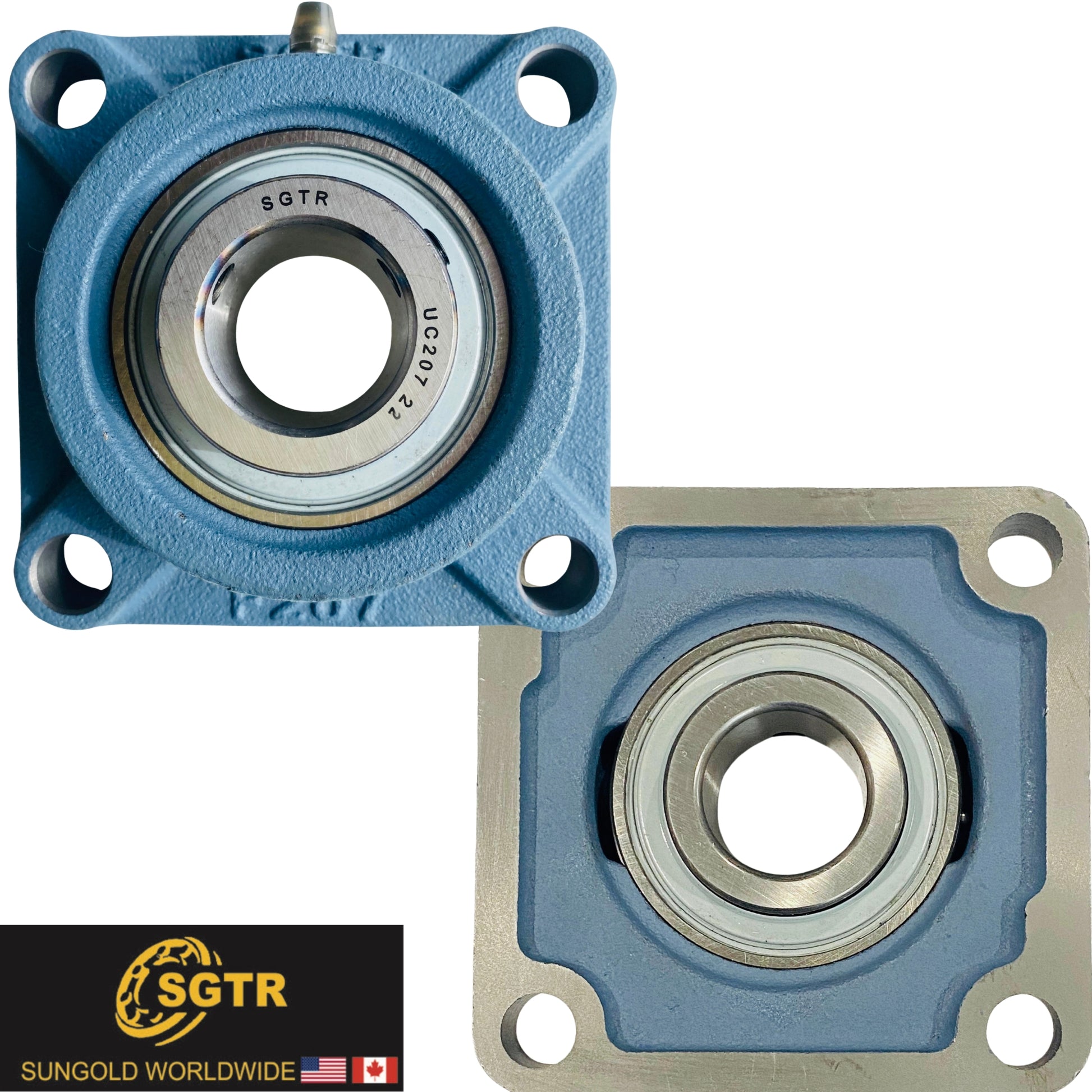

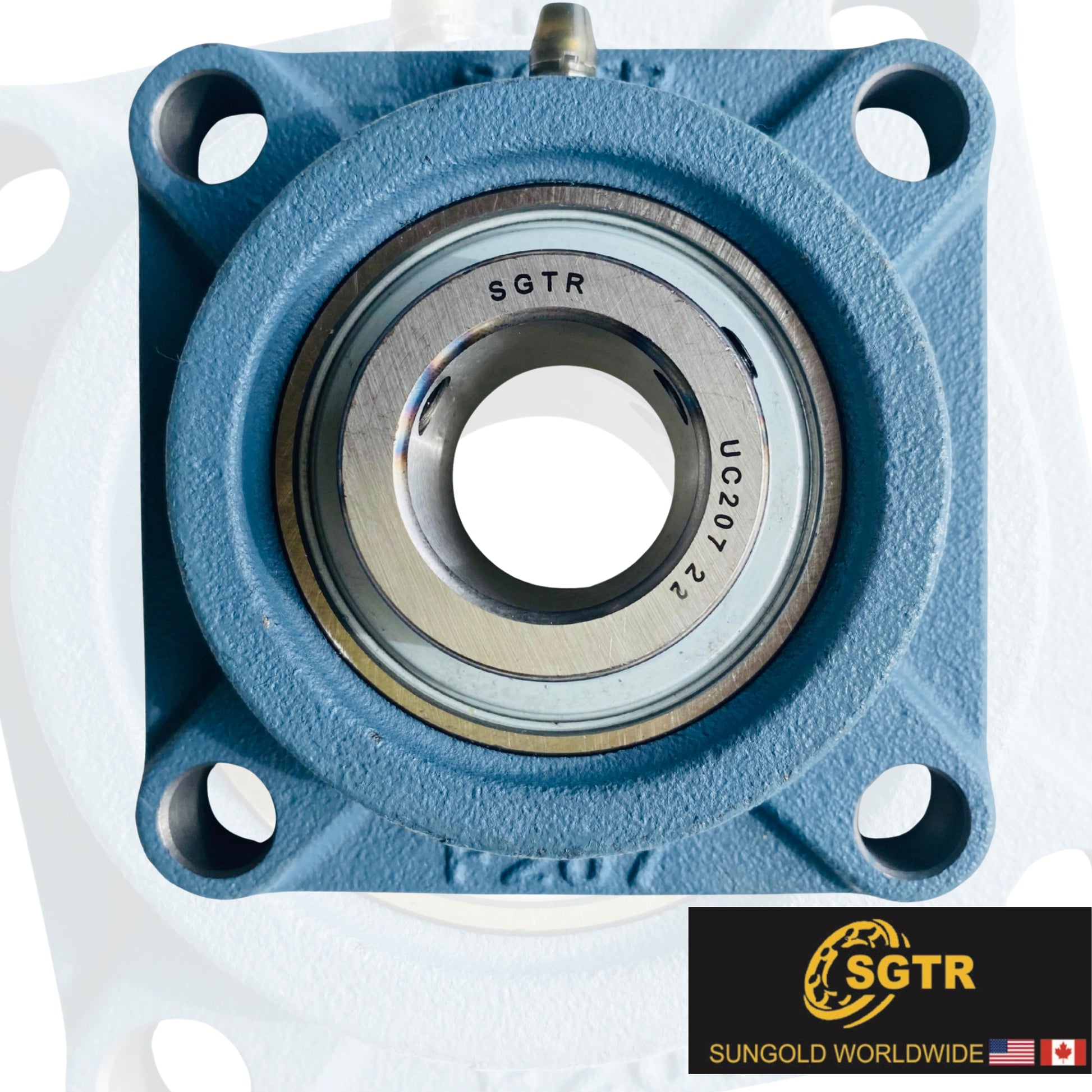

UCF207-22 4-Bolt Square Flange Bearing, 1-3/8" inch Bore

The UCF207-22 four-bolt flange bearing is designed for secure shaft mounting and precise alignment in industrial applications. With a 1-3/8 inch bore size, this mounted bearing unit is ideal for conveyors, processing machinery, and heavy-duty equipment.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

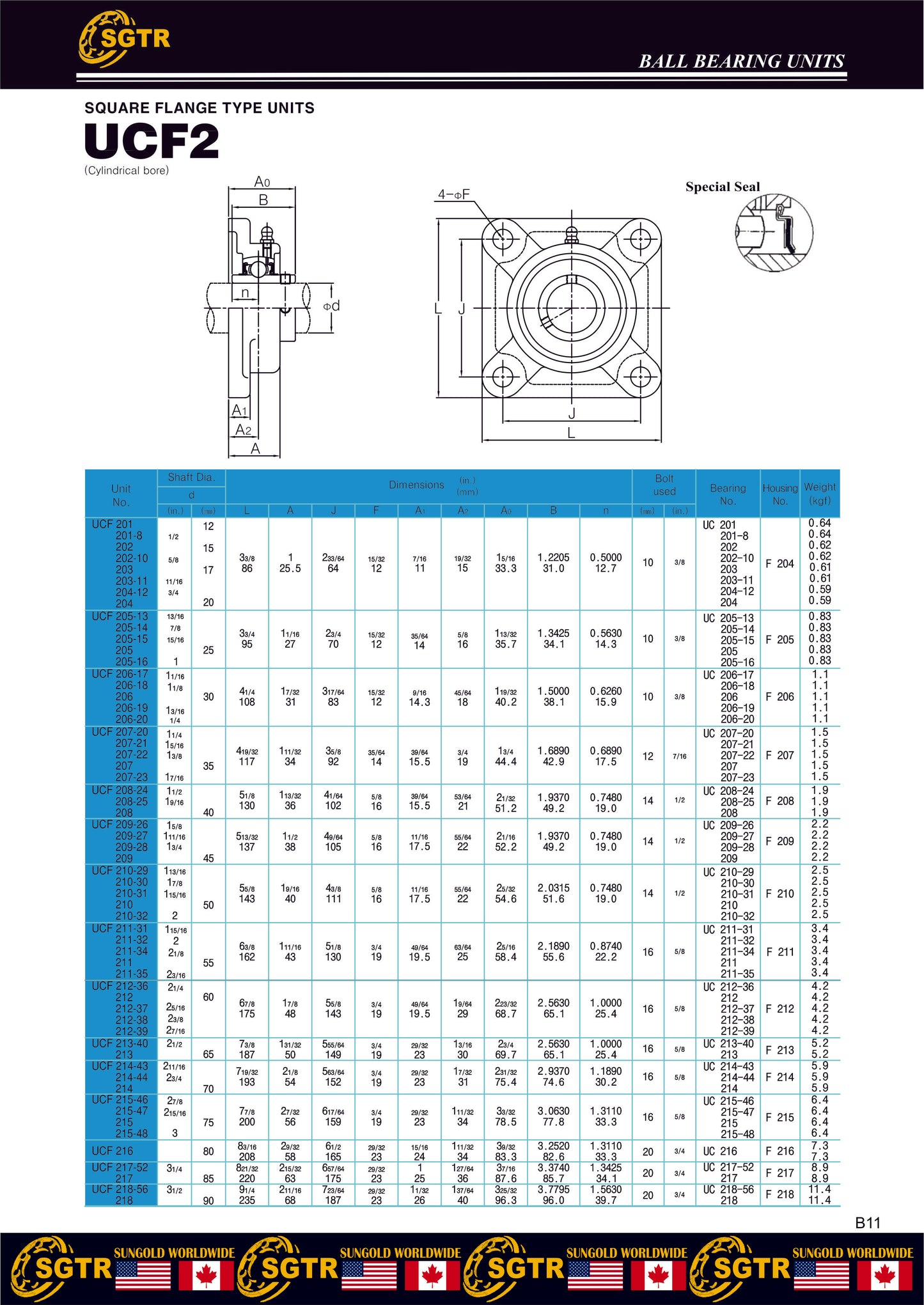

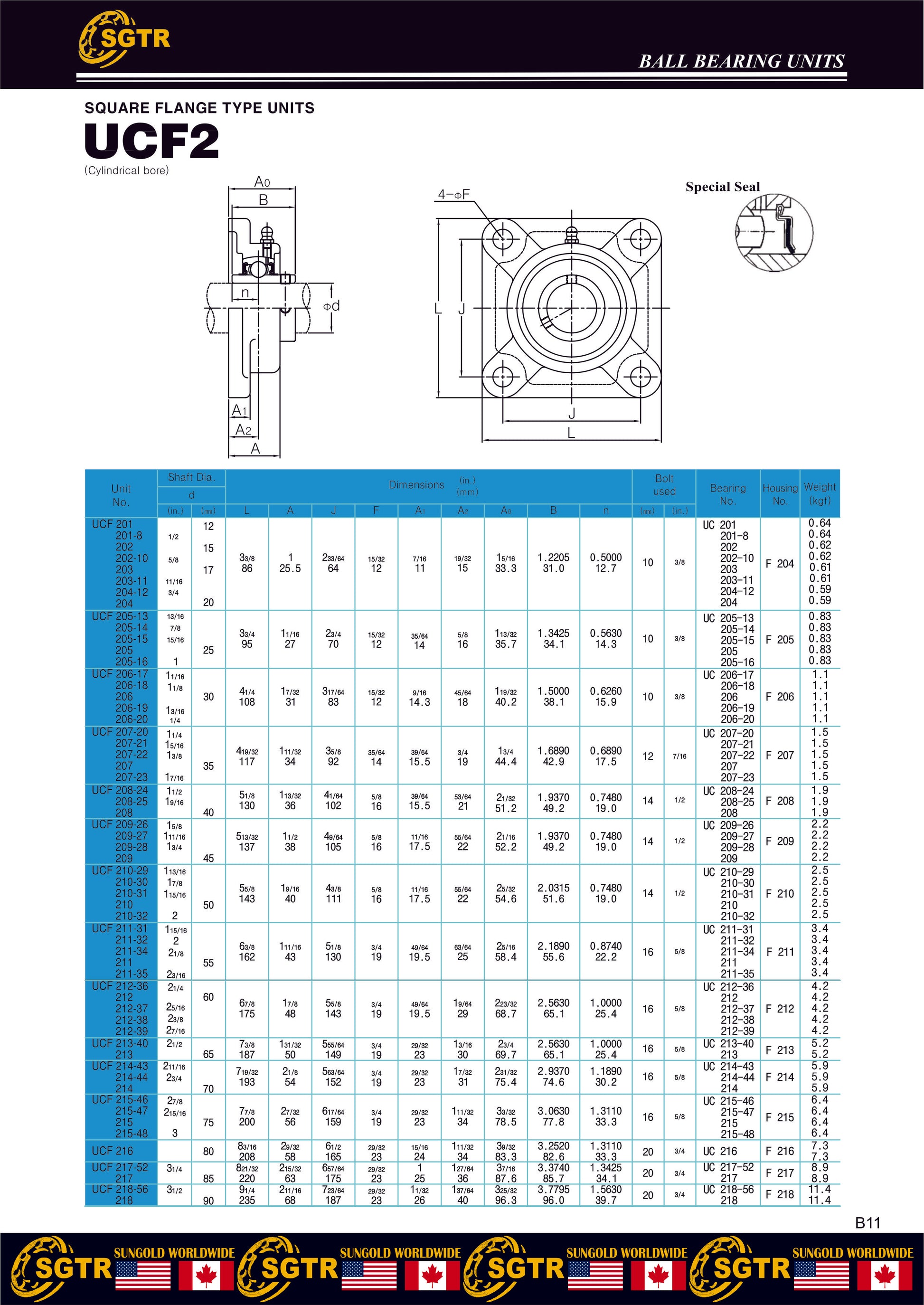

Specifications:

• Model: UCF207-22 Four-Bolt Flange Bearing
• Bore Size/ Inner Diameter: 1-3/8" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Length: 4-39/64"
• Bolt Hole to Bolt Hole: 3-5/8"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 3,495 lbf
• Dynamic Load: 5,775 lbf
• Speed Limit: 4,500 RPM
• Weight: 3.3 lb

Interchange (for reference only)

Complete unit (UCF207-22) cross-references

• AMI: UCF207-22
• Browning: VF4S-222
• Dodge: F4B-SC-106
• Fafnir: RCJC-1-3/8 / YCJ-1-3/8
• Link-Belt: F3-U222N
• NSK: UCF207-22S
• NTN: UCF207-106T
• Peer: FHSFJ207-22G
• RHP: SF-1-3/8
• Sealmaster: SF-1-3/8
• SKF: FY-1-3/8-TM

Insert (UC207-22) cross-references

• AMI: UC207-22
• Browning: VS-222
• Dodge: INS-SC-106
• Fafnir: GY1106KRRB
• Hub City: YW250-1-3/8
• IPTCI: UC207-22
• Link-Belt: UG222NL
• NTN: UC207-106D1
• SKF: YAR207-106
• Sealmaster: 2-1-3/8 Insert

Explore More:

• Browse our UCF200 Series Bearings for additional sizes
• View all Flange Bearings for broader options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always confirm dimensions before interchange.
