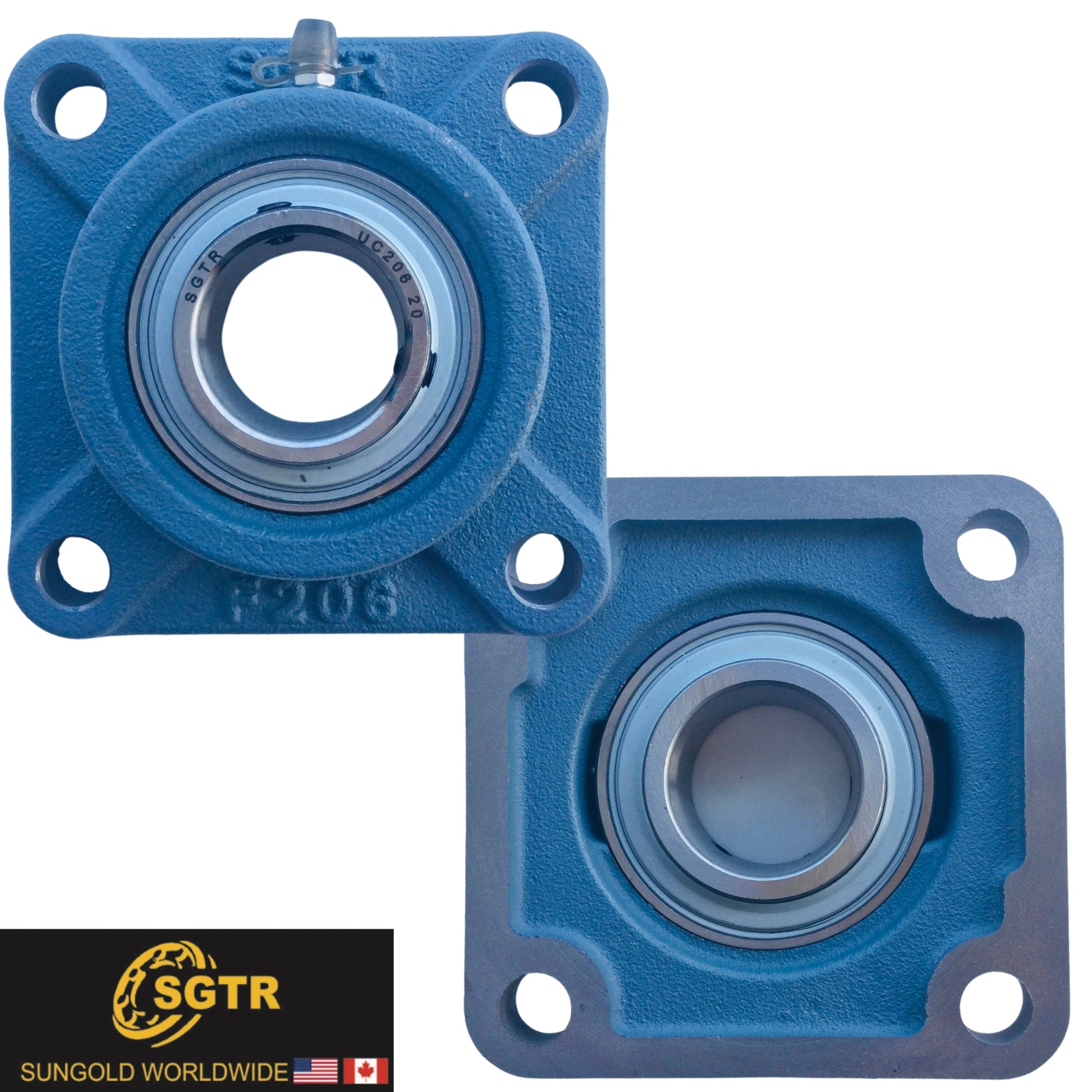

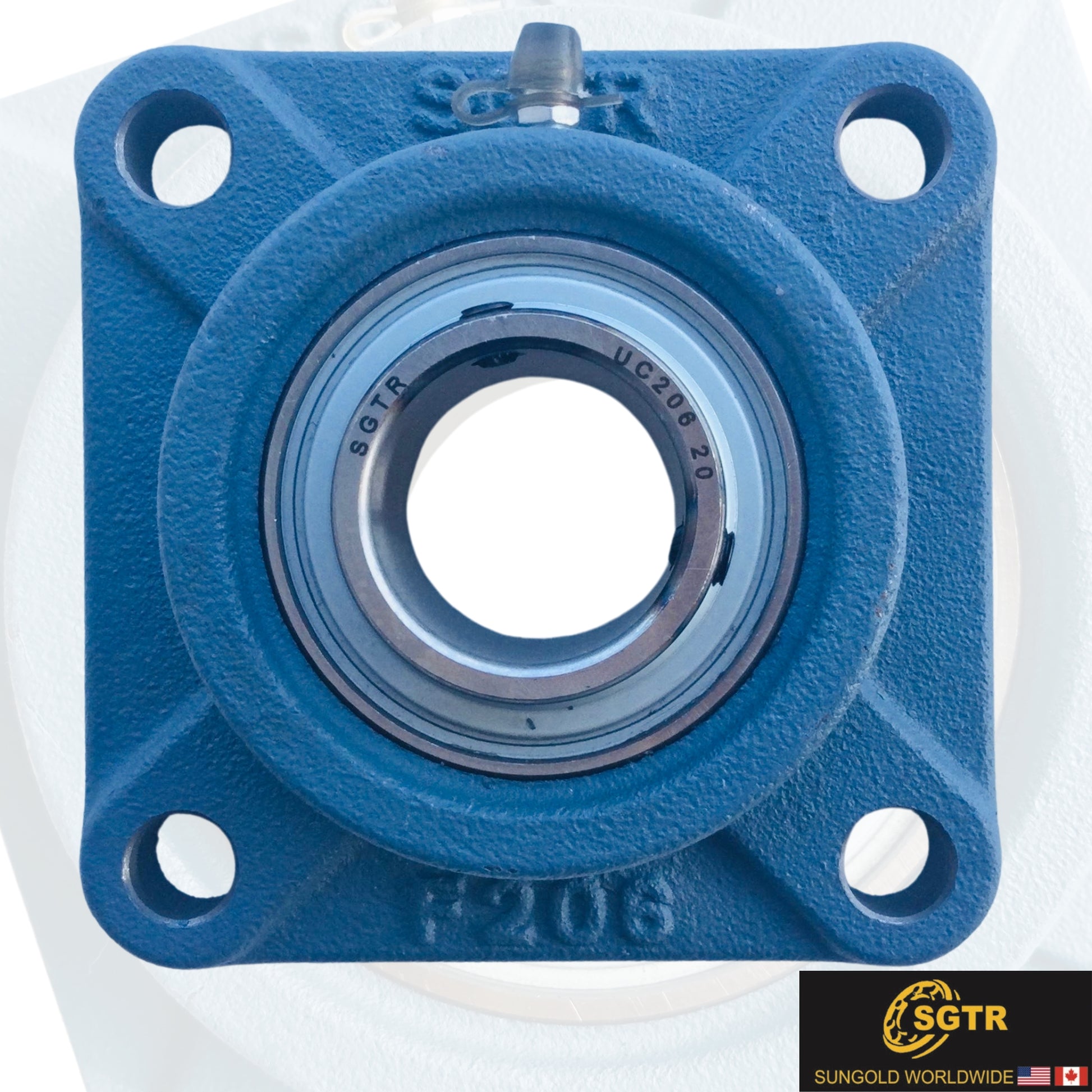

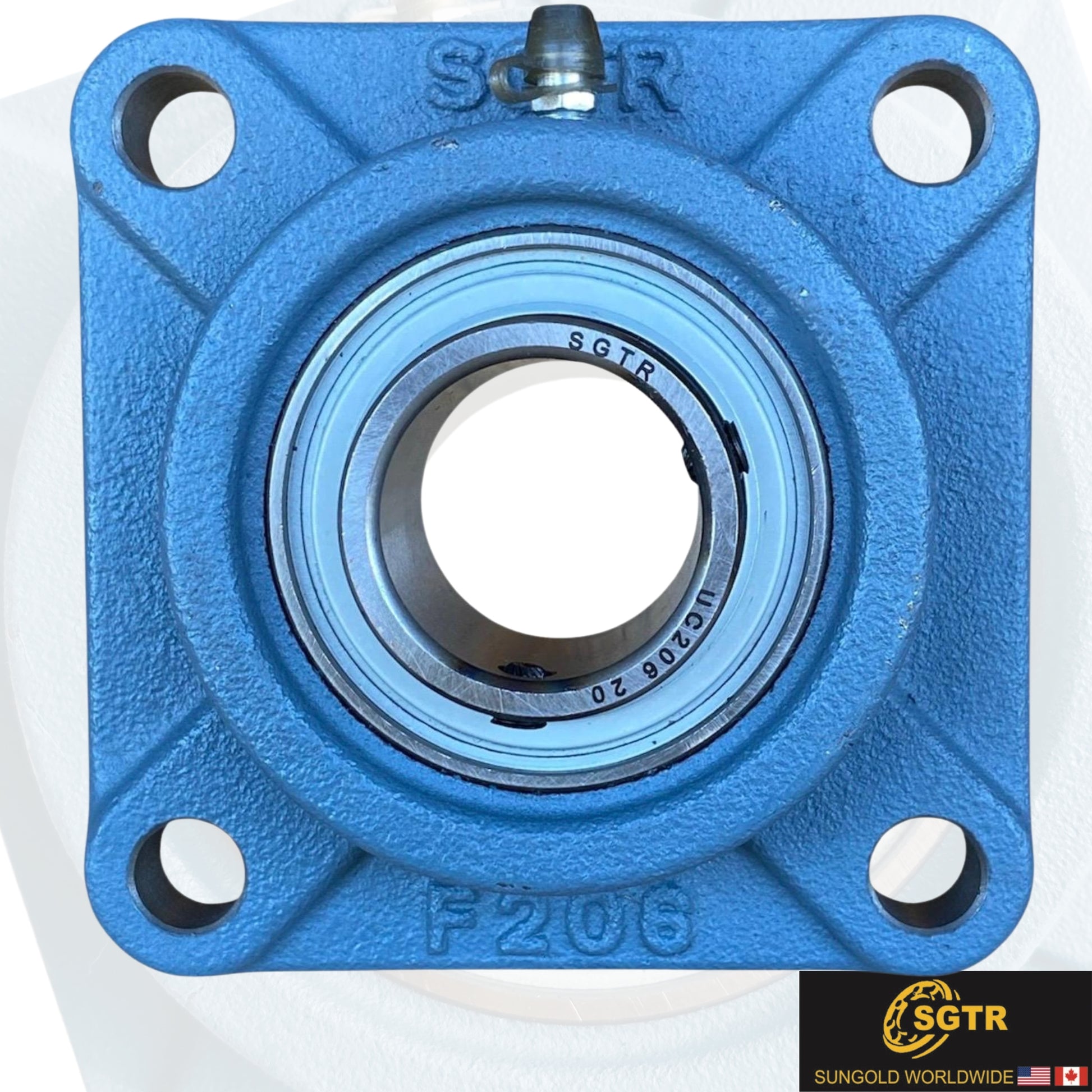

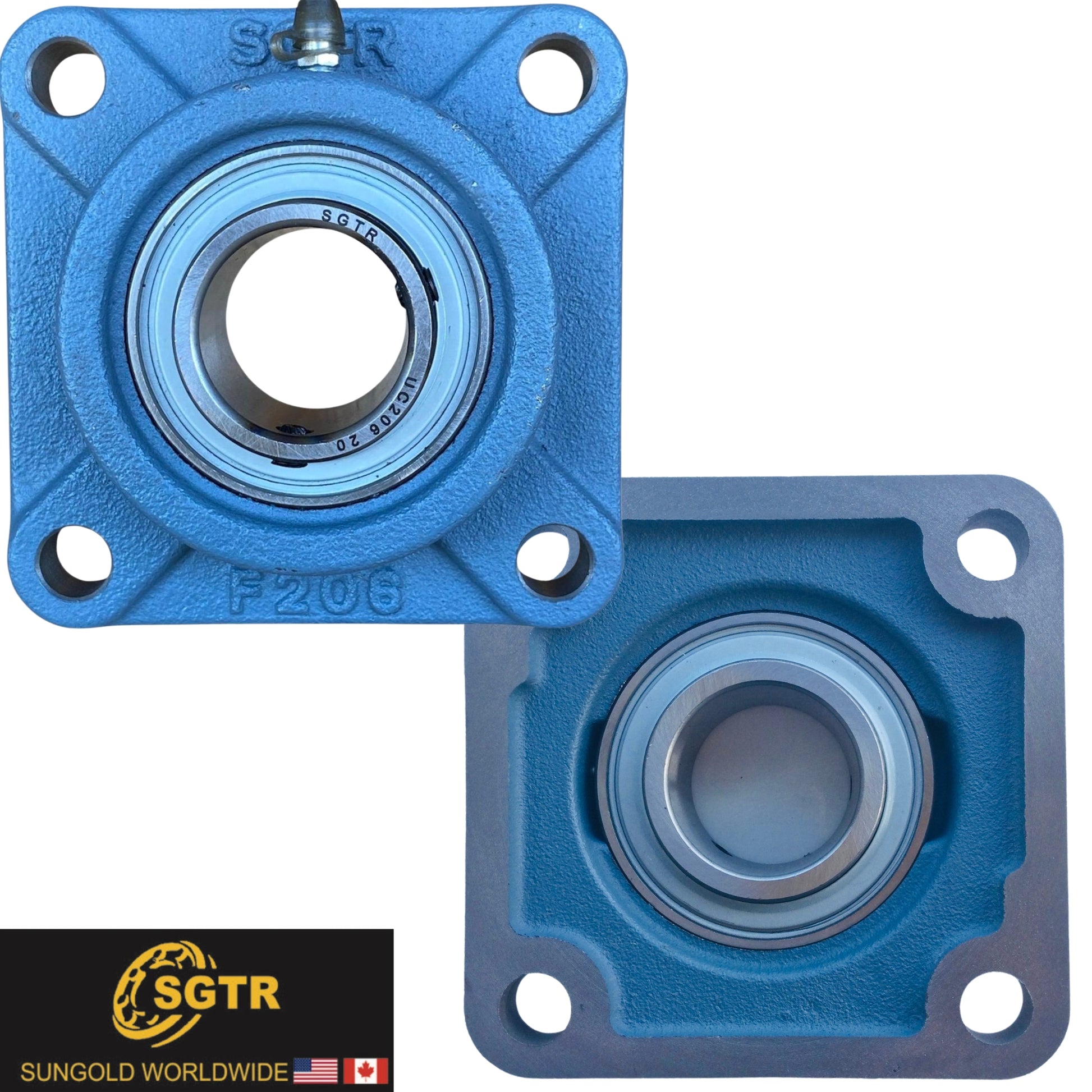

UCF206-20 4-Bolt Square Flange Bearing, 1-1/4" inch Bore

The UCF206-20 four-bolt flange bearing is engineered for secure shaft mounting and precise alignment in industrial applications. With a 1-1/4-inch bore size, this mounted bearing unit excels in conveyors, processing equipment, and heavy-duty machinery environments.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

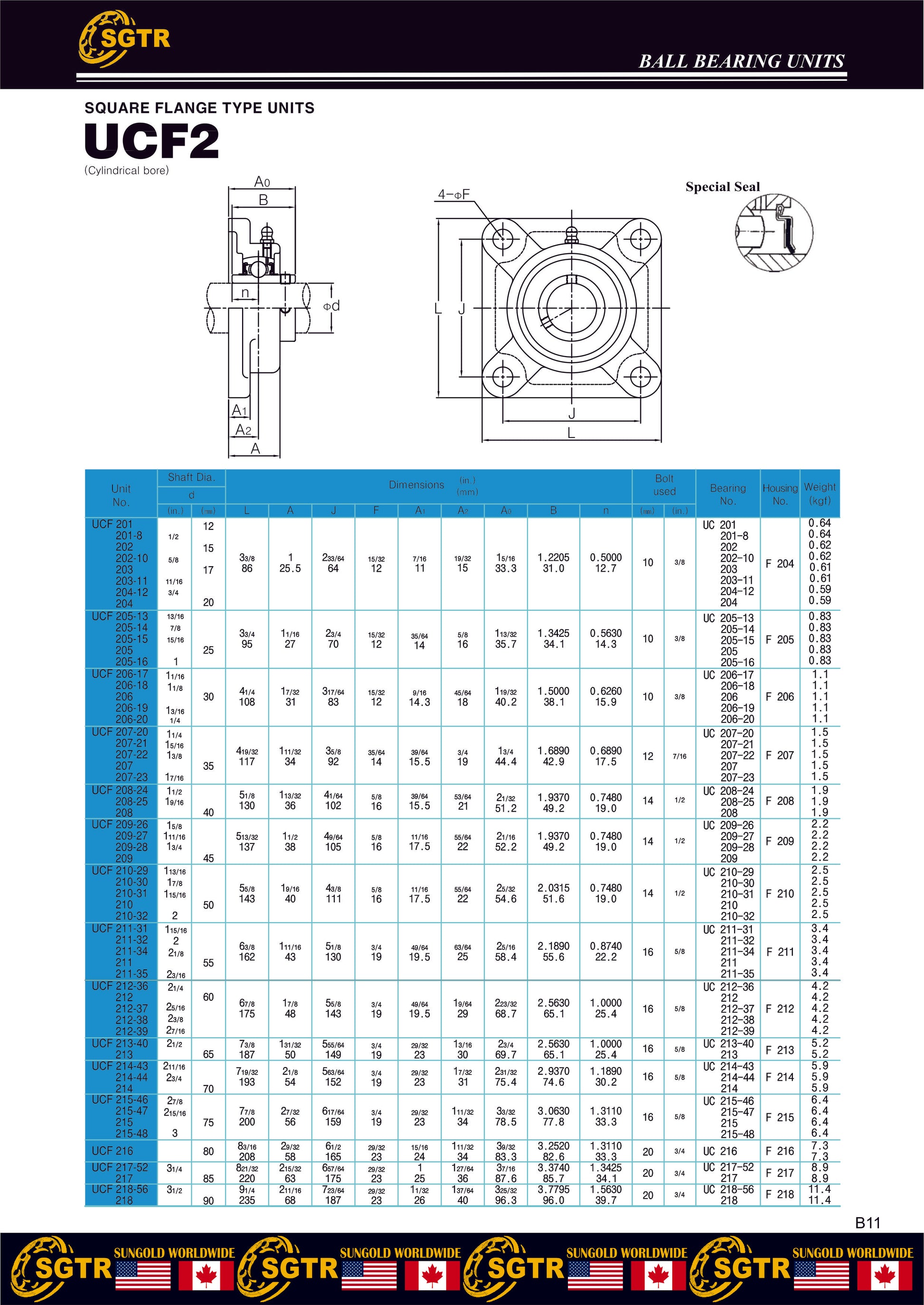

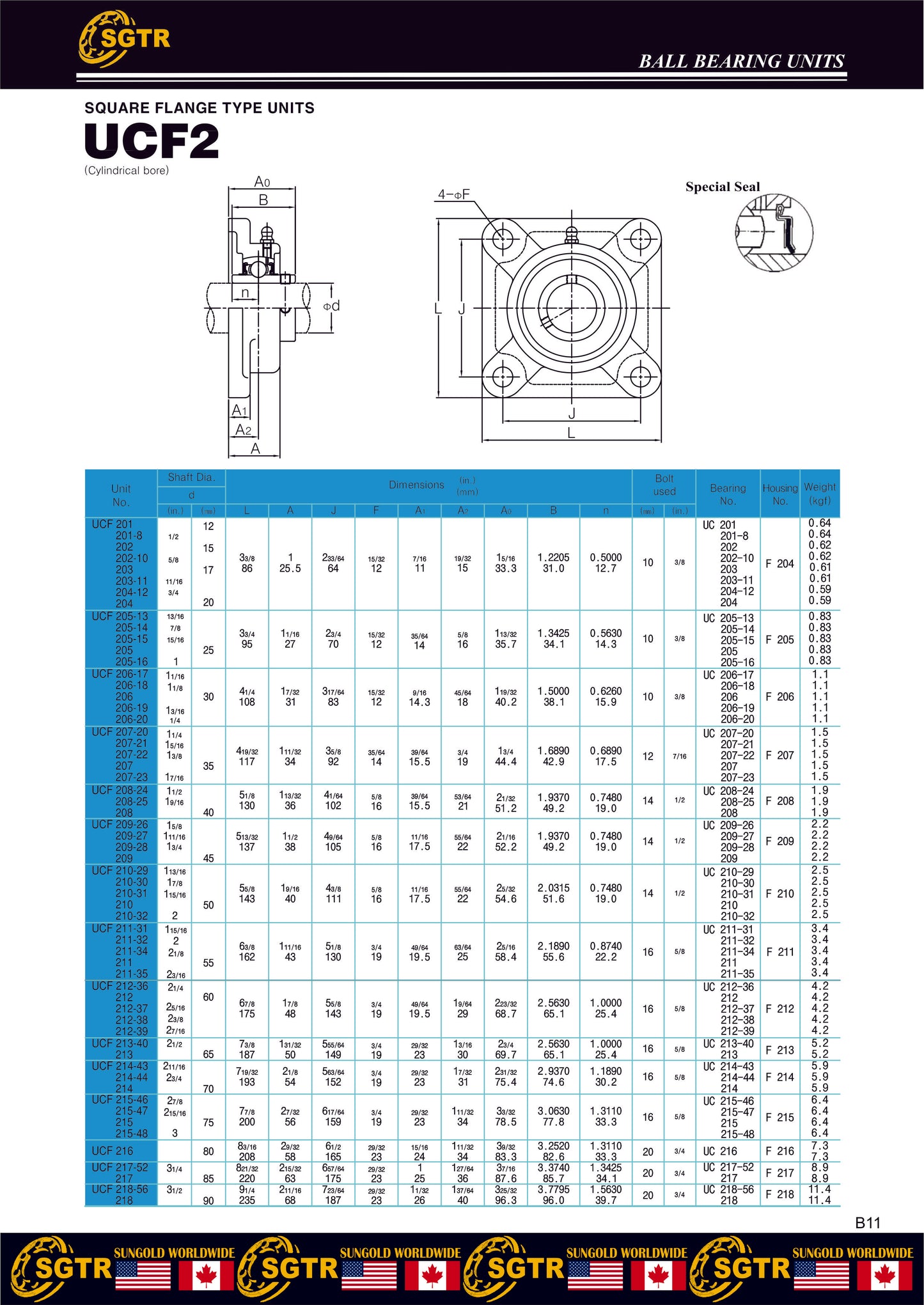

Specifications:

• Model: UCF206-20 Four-Bolt Flange Bearing
• Bore Size/ Inner Diameter: 1-1/4" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Length: 4-1/4"
• Bolt Hole to Bolt Hole: 3-17/64"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 2,570 lbf
• Dynamic Load: 4,377 lbf
• Speed Limit: 5,300 RPM
• Weight: 2.42 lb

Interchange (for reference only)

Complete unit (UCF206-20) cross-references

• UCF206 1-1/4
• UGLF206-20
• FB220X1-1/4S
• FB250X1-1/4S

Insert (UC206-20) cross-references

• UC206.20
• GC1104KRRB
• UC206-104D1
• UC206-20S
• 1026-104G
• UC206-20
• GY1104KRRB
• YAR205-104-2F
• INS-SC-104
• VS-220
• YW250x1-1/4
• UG220N
• MB220-PA

Explore More:

• Browse our UCF200 Series Bearings for additional sizes
• View all Flange Bearings for broader options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
