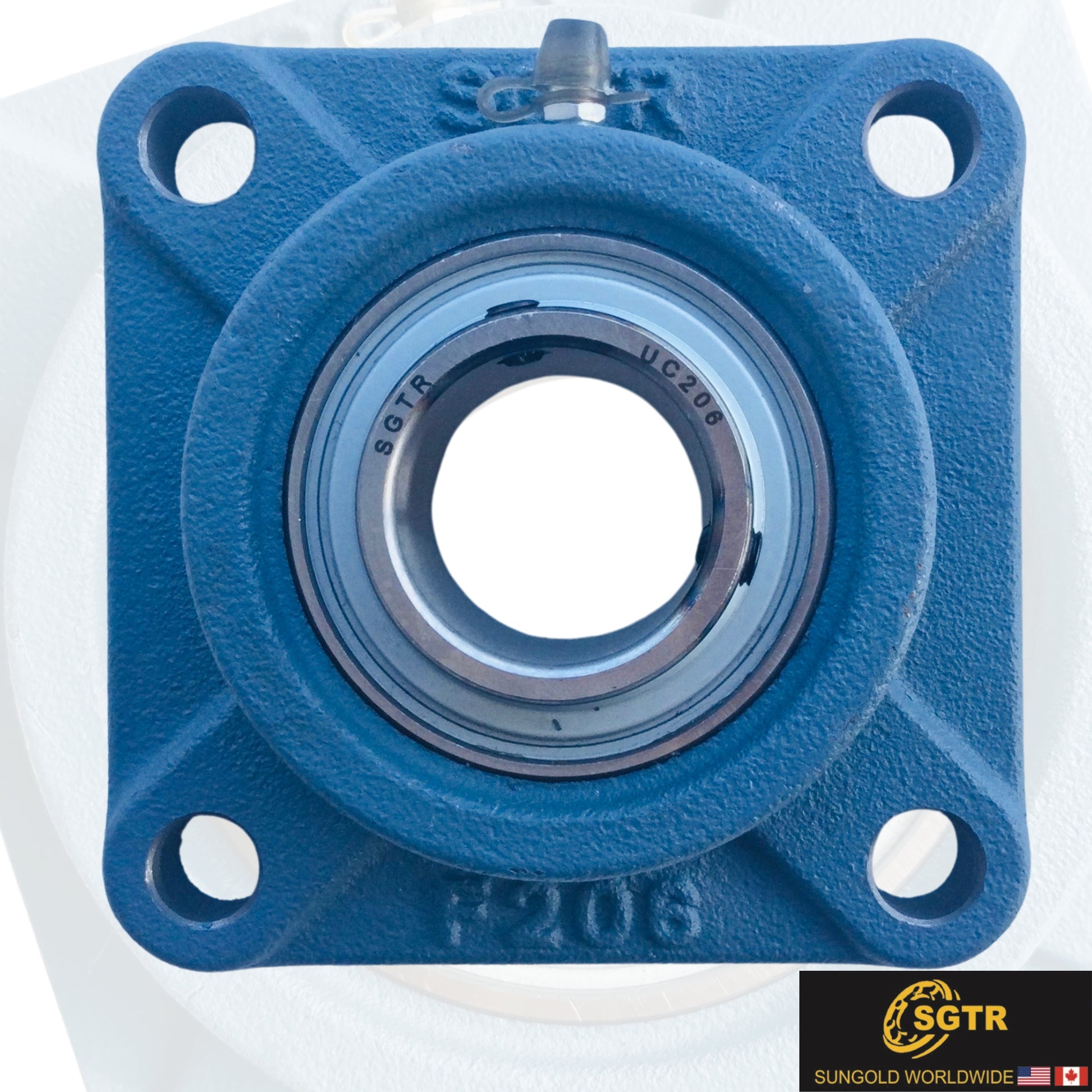

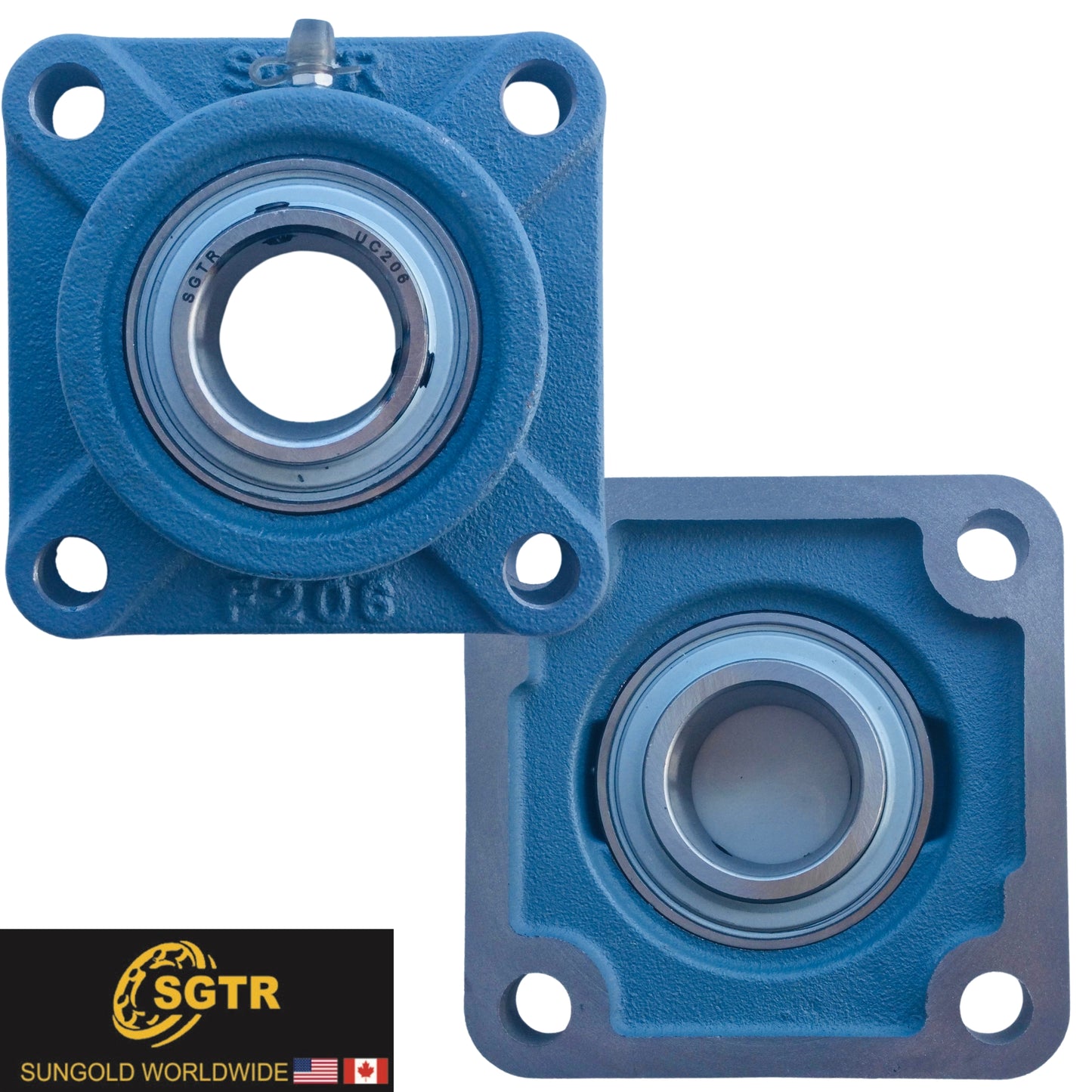

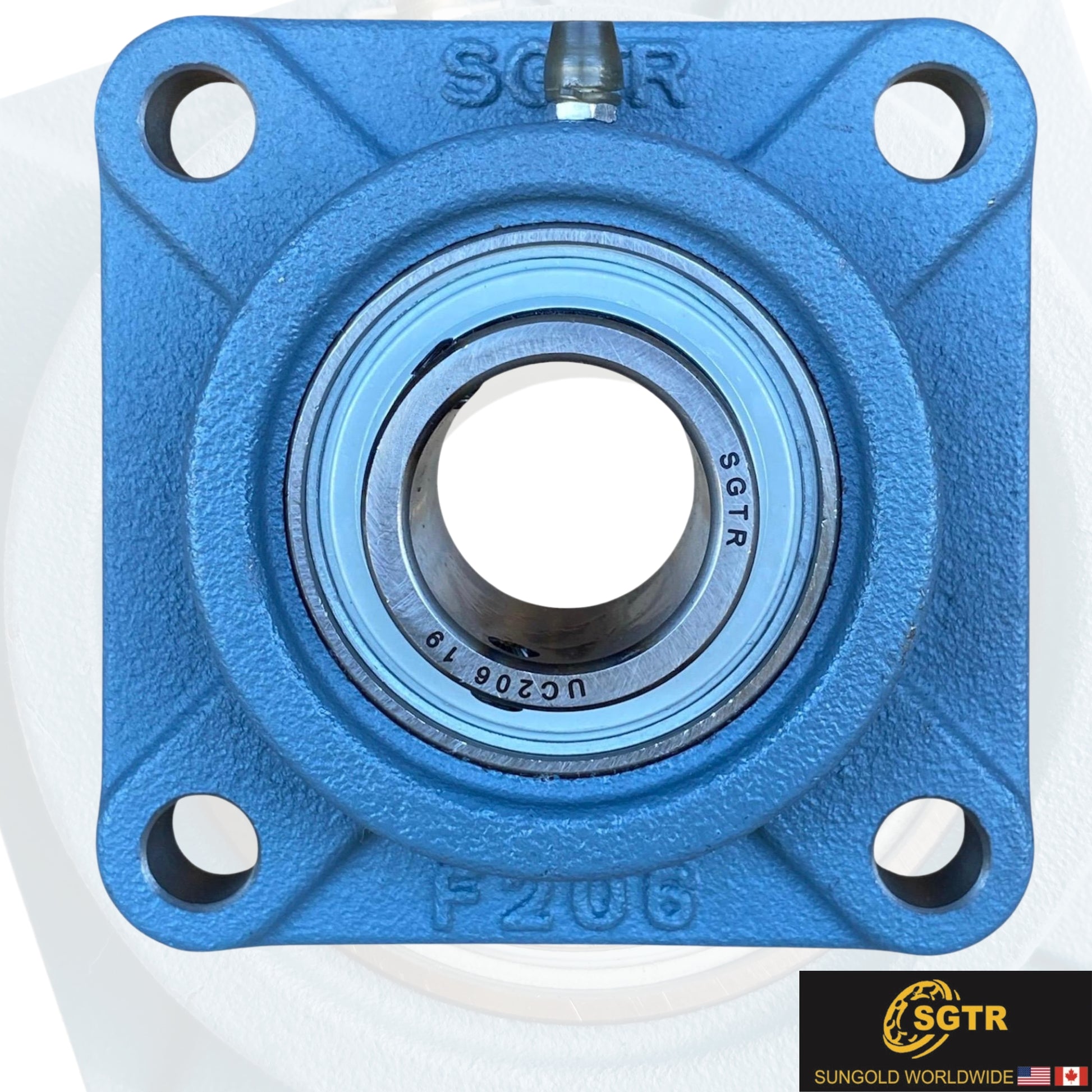

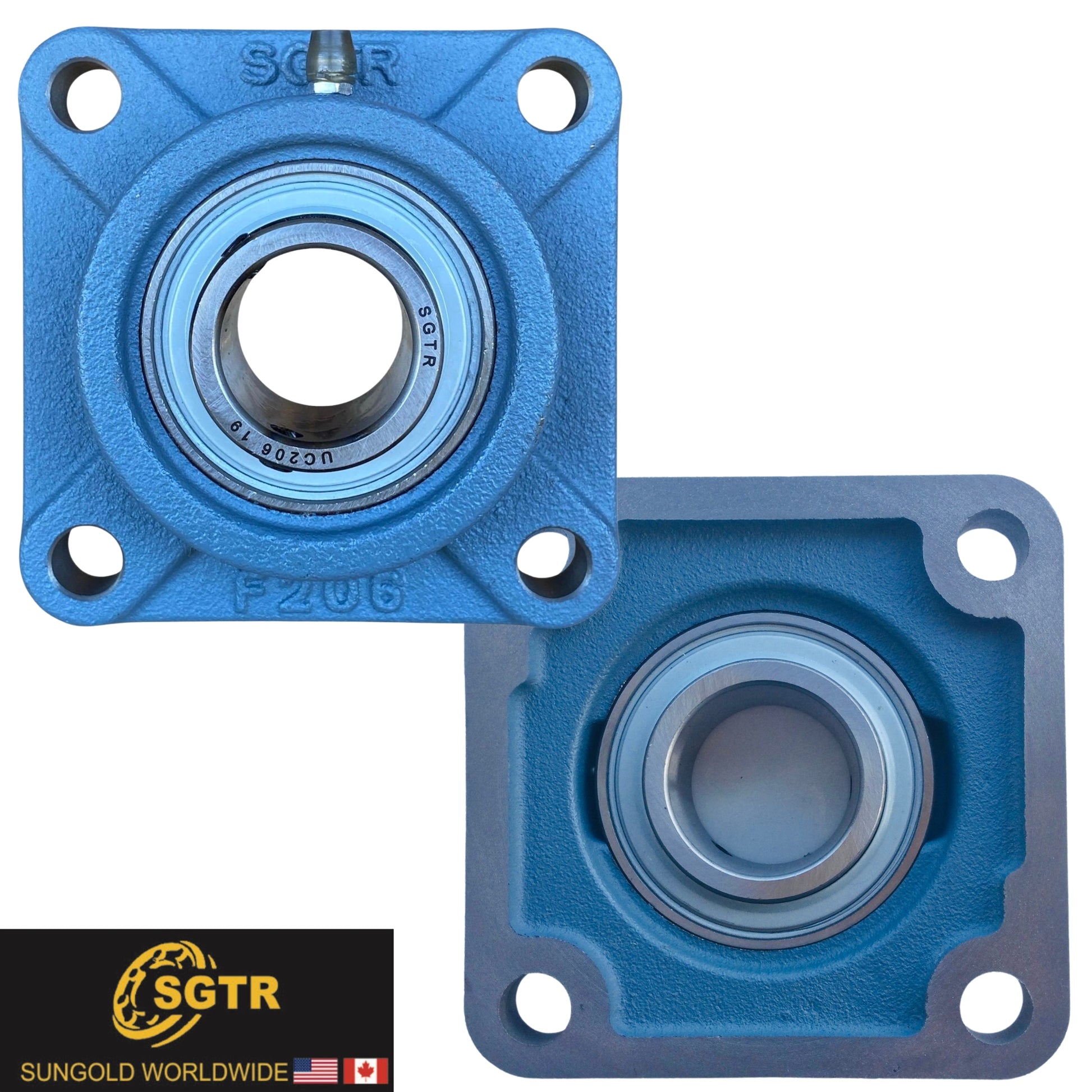

UCF206-19 4-Bolt Square Flange Bearing, 1-3/16" inch Bore

The UCF206-19 four-bolt flange bearing offers reliable shaft mounting and precise alignment. With a 1-3/16 inch bore size, this mounted bearing unit is ideal for conveyors, agricultural machinery, and processing equipment.

Premium-grade quality from a USA-based company
Available at a fraction of leading global brand prices
Fast USA shipping with bulk order discounts

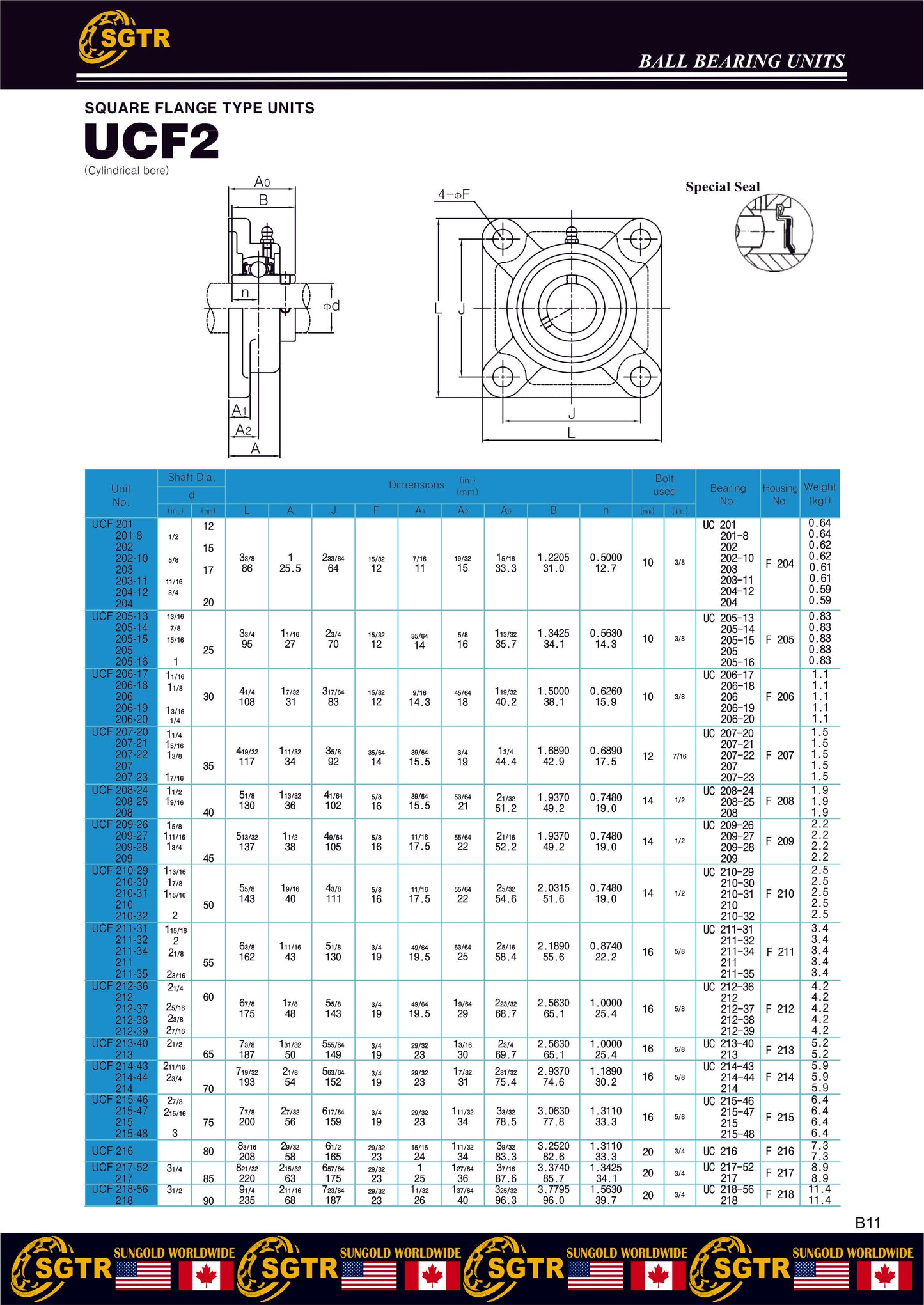

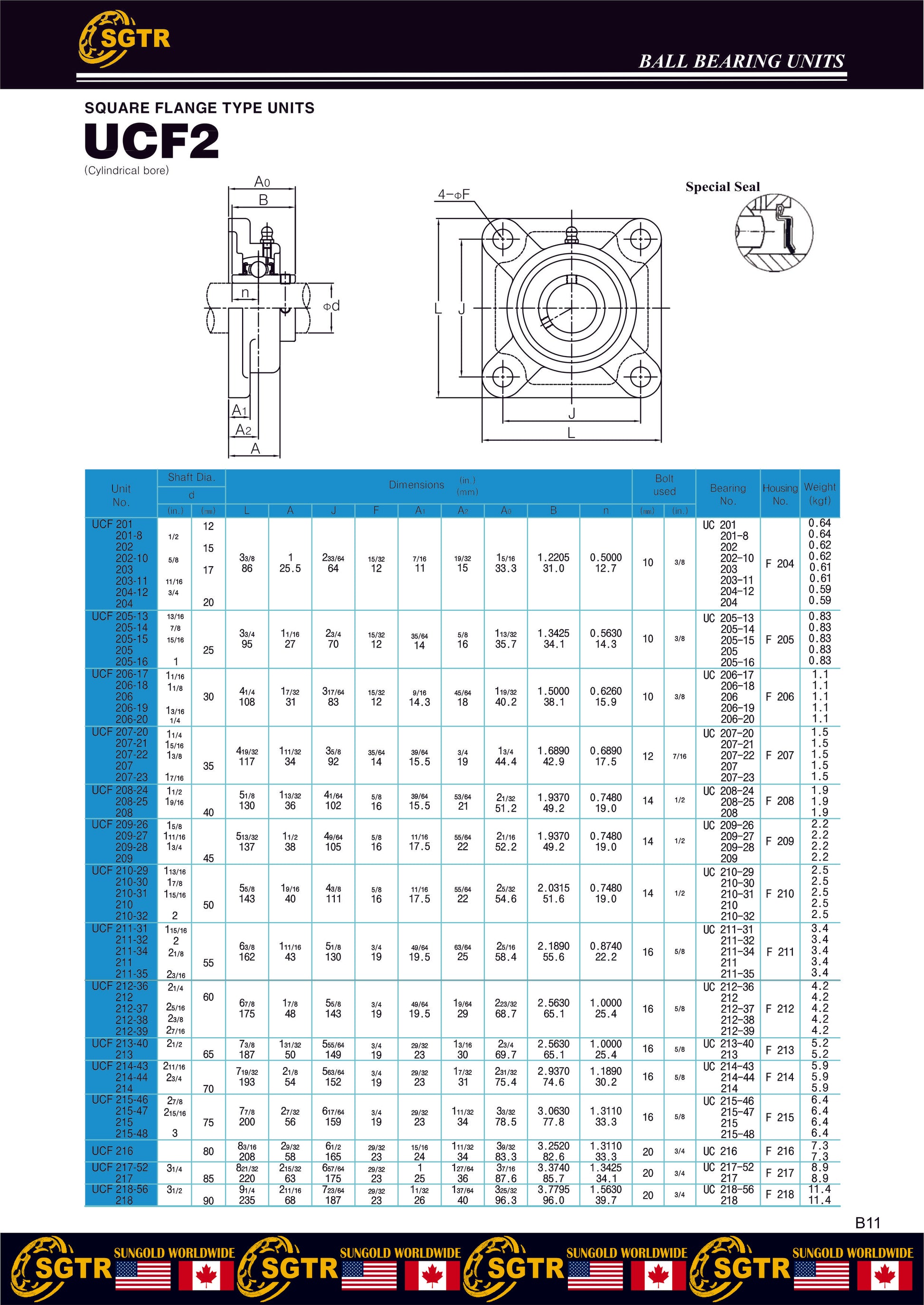

Specifications:

• Model: UCF206-19 Four-Bolt Flange Bearing
• Bore Size/ Inner Diameter: 1-3/16" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Length: 4-1/4"
• Bolt Hole to Bolt Hole: 3-17/64"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 2,570 lbf
• Dynamic Load: 4,377 lbf
• Speed Limit: 5,300 RPM
• Weight: 2.42 lb

Interchange (for reference only)

Complete unit (UCF206-19) cross-references

• AMI: UCF206-19
• Browning: VF4S-219
• Dodge: F4B-SC-019
• Fafnir: RCJC-1-3/16, YCJ-1-3/16
• Link-Belt: F3-U219N
• NSK: UCF206-19S
• NTN: UCF206-103T
• Peer: FHSFJ206-19G
• RHP: SF-1-3/16
• Sealmaster: SF-1-3/16
• SKF: FY-1-3/16-TM

Insert (UC206-19) cross-references

• AMI: UC206-19
• Browning: VS-219
• Dodge: INS-SC-103
• Fafnir: GY1103KRRB
• Hub City: YW250-1-3/16
• IPTCI: UC206-19
• Link-Belt: UG219NL
• NTN: UC206-103D1
• SKF: YAR206-103
• Sealmaster: 2-1-3/16 Insert

Explore More:

• Browse our UCF200 Series Bearings for additional sizes
• View all Flange Bearings for more options
• Check our Bearing Housings for compatible units

 Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
