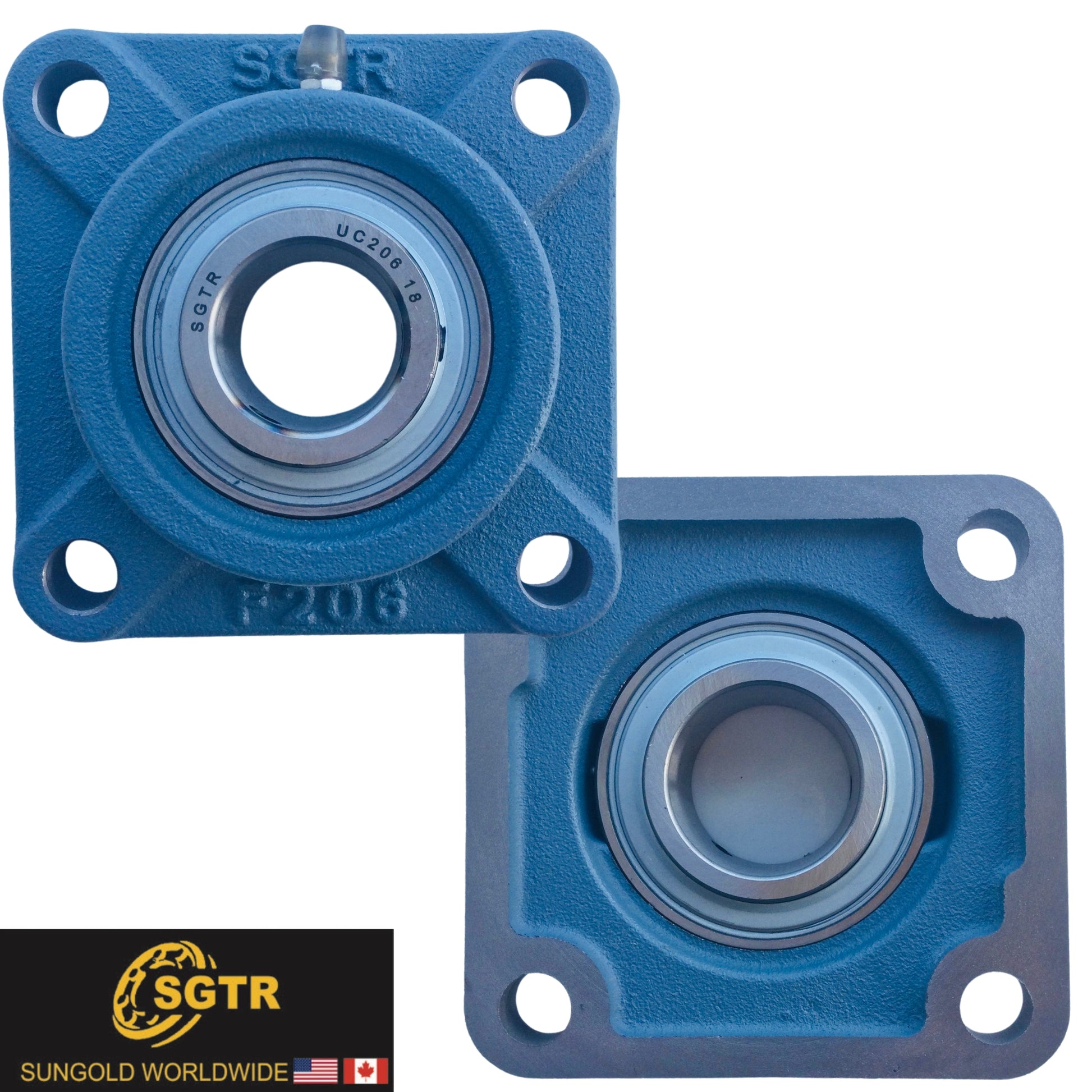

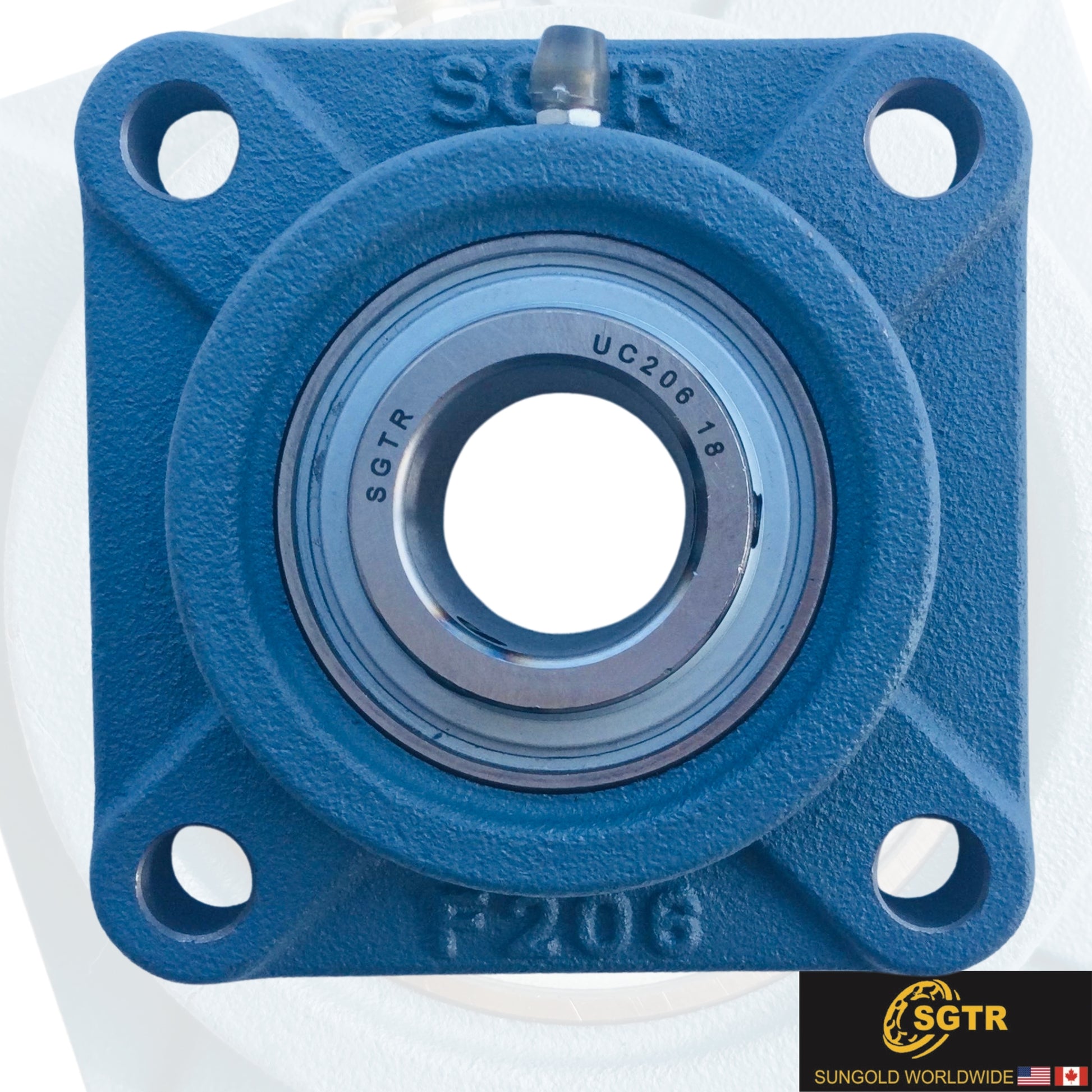

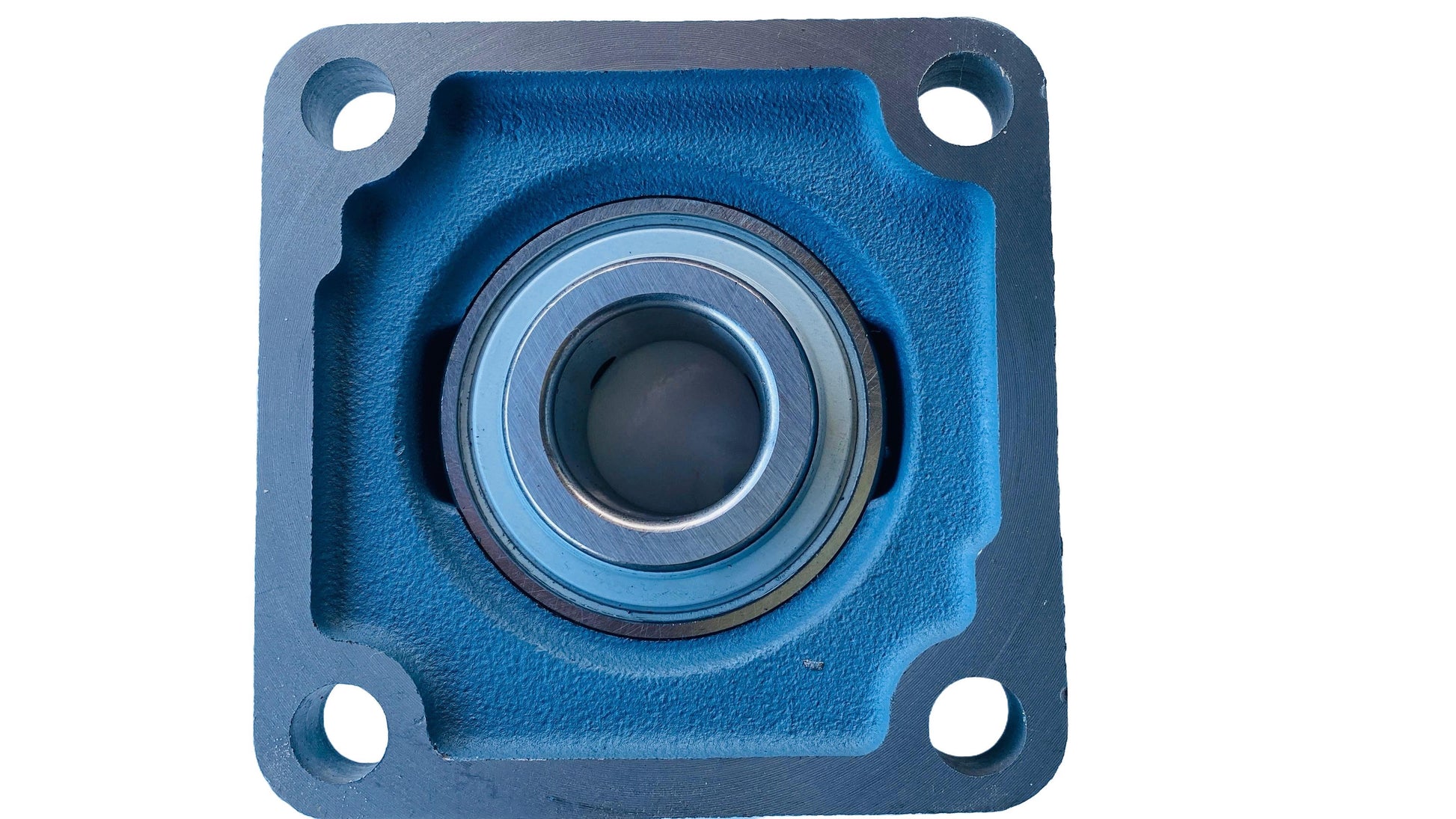

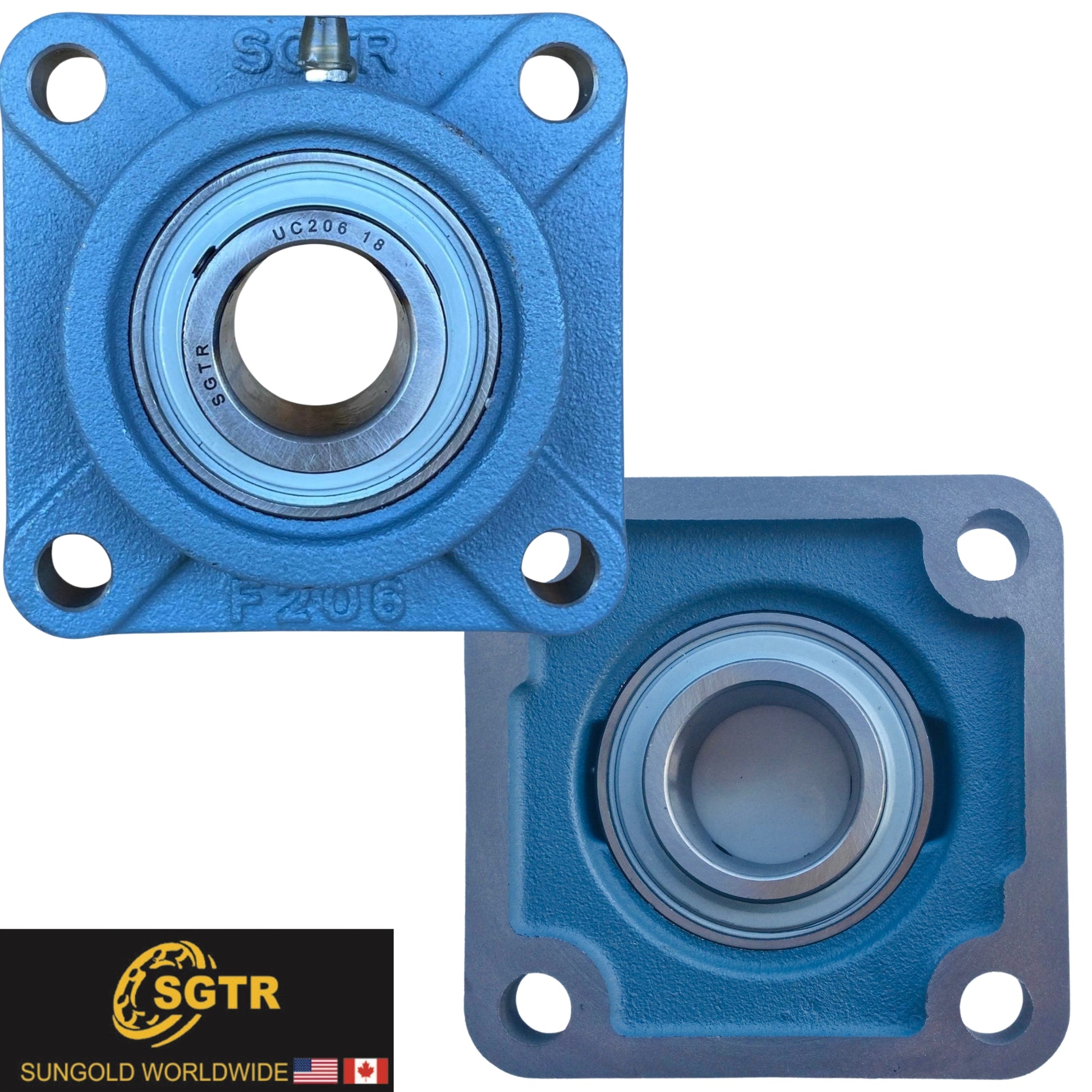

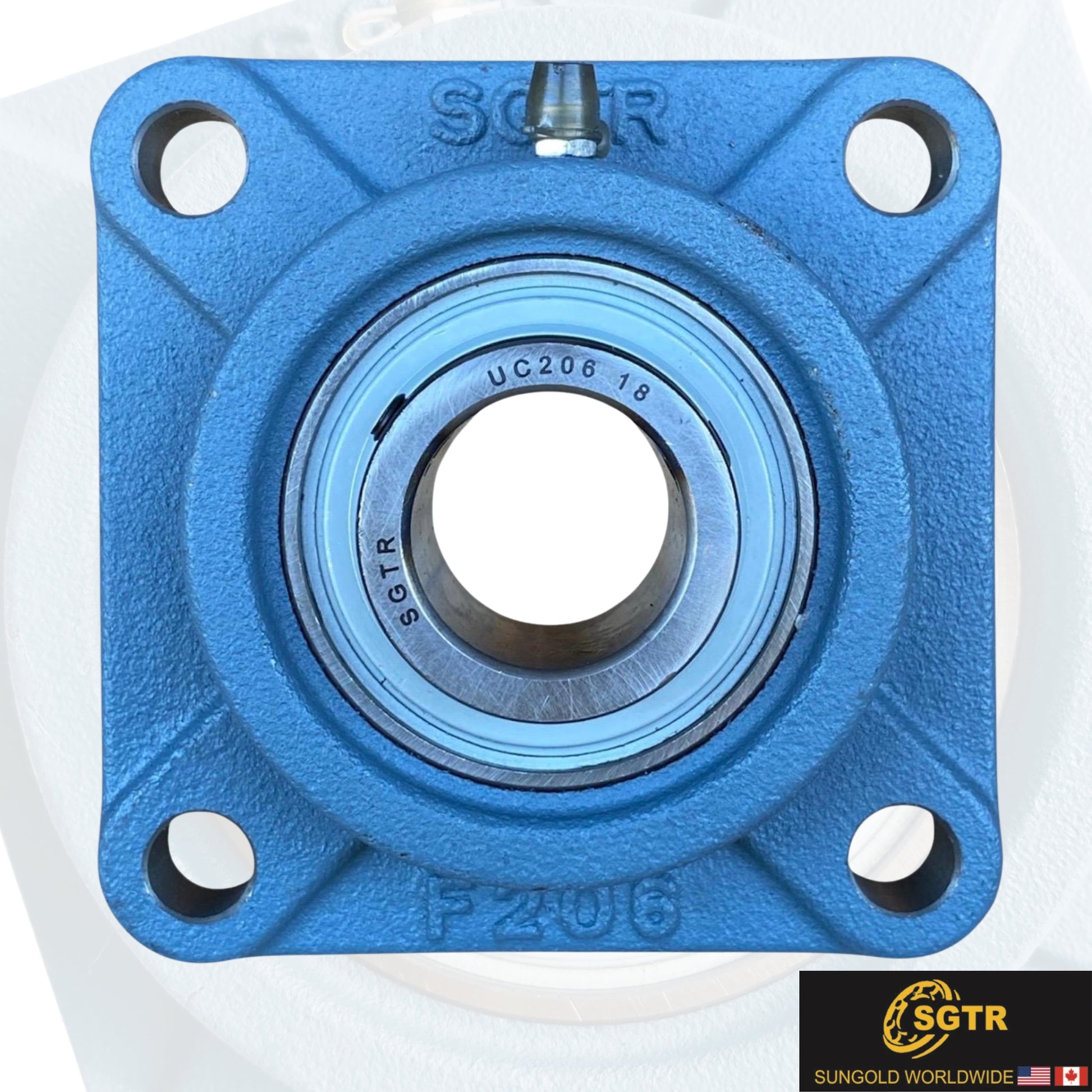

UCF206-18 4-Bolt Square Flange Bearing, 1-1/8" inch Bore

The UCF206-18 four-bolt flange bearing is designed for dependable shaft support and alignment. With a 1-1/8 inch bore size, this mounted bearing unit suits conveyors, heavy machinery, and general industrial use.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

• Model: UCF206-18 Four-Bolt Flange Bearing
• Bore Size/ Inner Diameter: 1-1/8" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Length: 4-1/4"
• Bolt Hole to Bolt Hole: 3-17/64"
• Housing Material: Cast Iron
• Insert Material: Chrome Steel SAE-52100
• Lubrication: Chevron SRI-2 Grease
• Static Load: 2,570 lbf
• Dynamic Load: 4,377 lbf
• Speed Limit: 5,300 RPM
• Weight: 2.42lb

Interchange (for reference only)

Complete unit (UCF206-18) cross-references

• AMI: UCF206-18
• Browning: VF4S-218
• Dodge: F4B-SC-018
• Fafnir: RCJC-1-1/8, YCJ-1-1/8
• Link-Belt: F3-U218N
• NSK: UCF206-18S
• NTN: UCF206-102T
• Peer: FHSFJ206-18G
• RHP: SF-1-1/8
• Sealmaster: SF-1-1/8
• SKF: FY-1-1/8-TM

Insert (UC206-18) cross-references

• AMI: UC206-18
• Browning: VS-218
• Dodge: INS-SC-102
• Fafnir: GY1102KRRB
• Hub City: YW250-1-1/8
• IPTCI: UC206-18
• Link-Belt: UG218NL
• NTN: UC206-102D1
• SKF: YAR206-102
• Sealmaster: 2-1-1/8 Insert

Explore More:

• Browse our UCF200 Series Bearings for additional sizes
• View all Flange Bearings for broader options
• Check our Bearing Housings for compatible units

 Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
