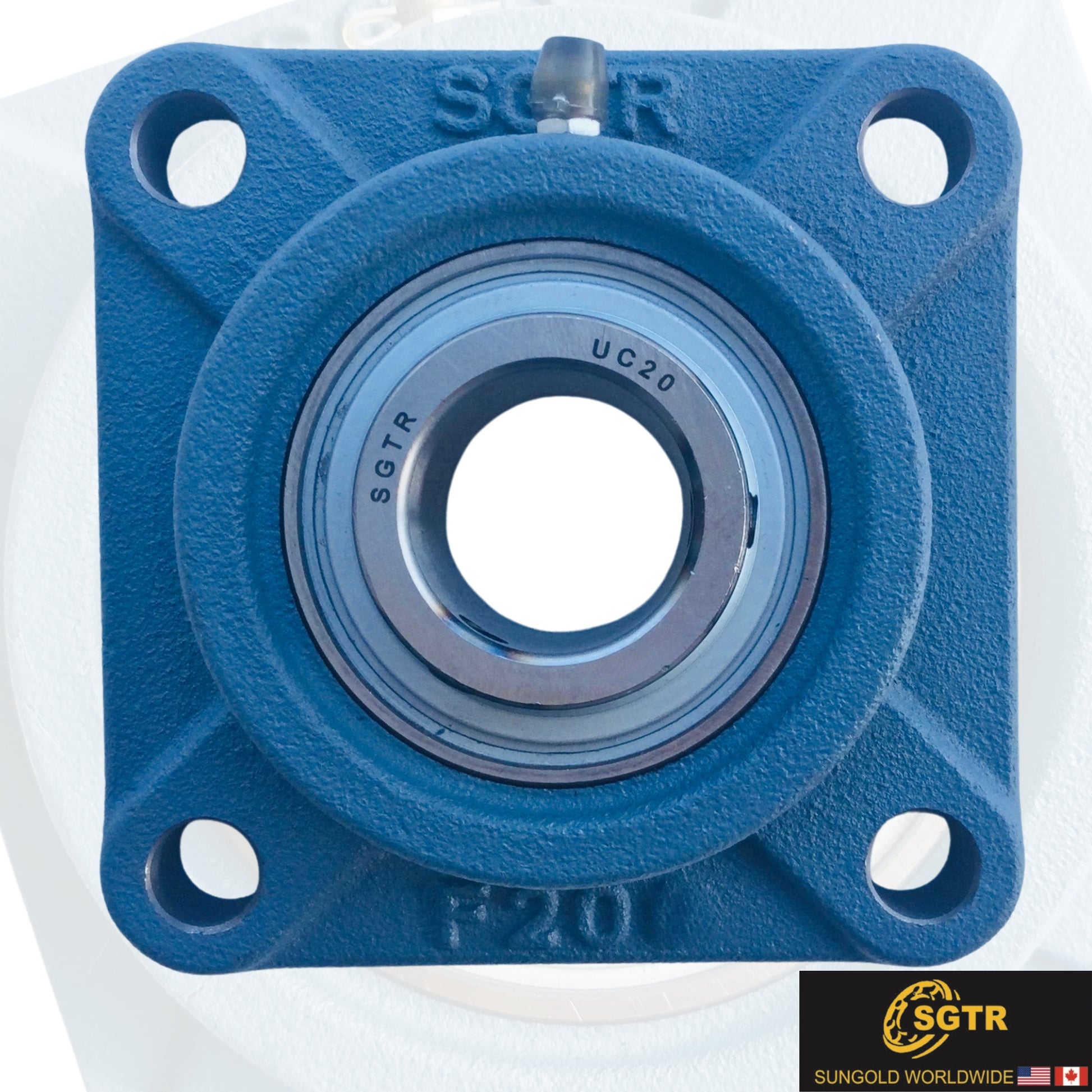

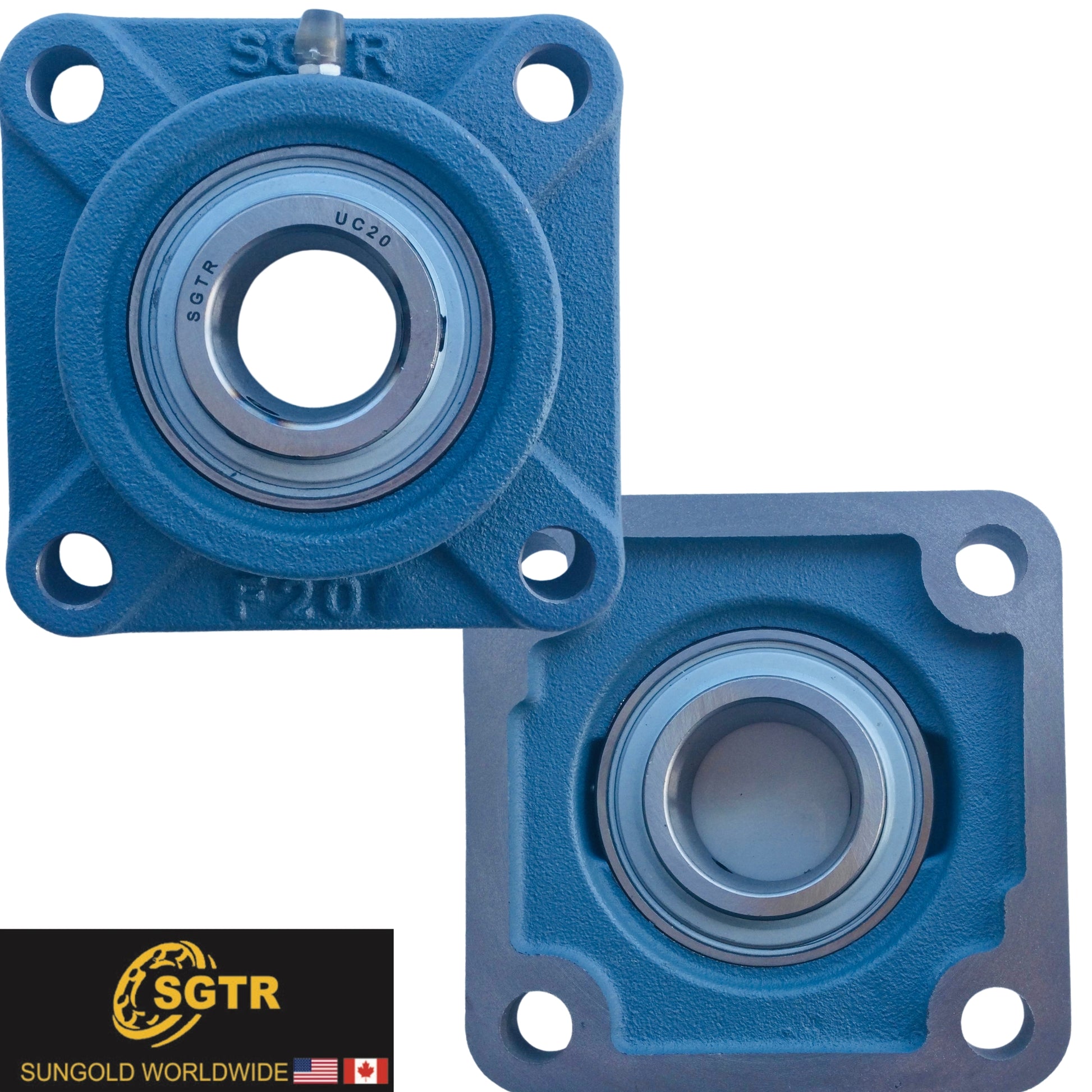

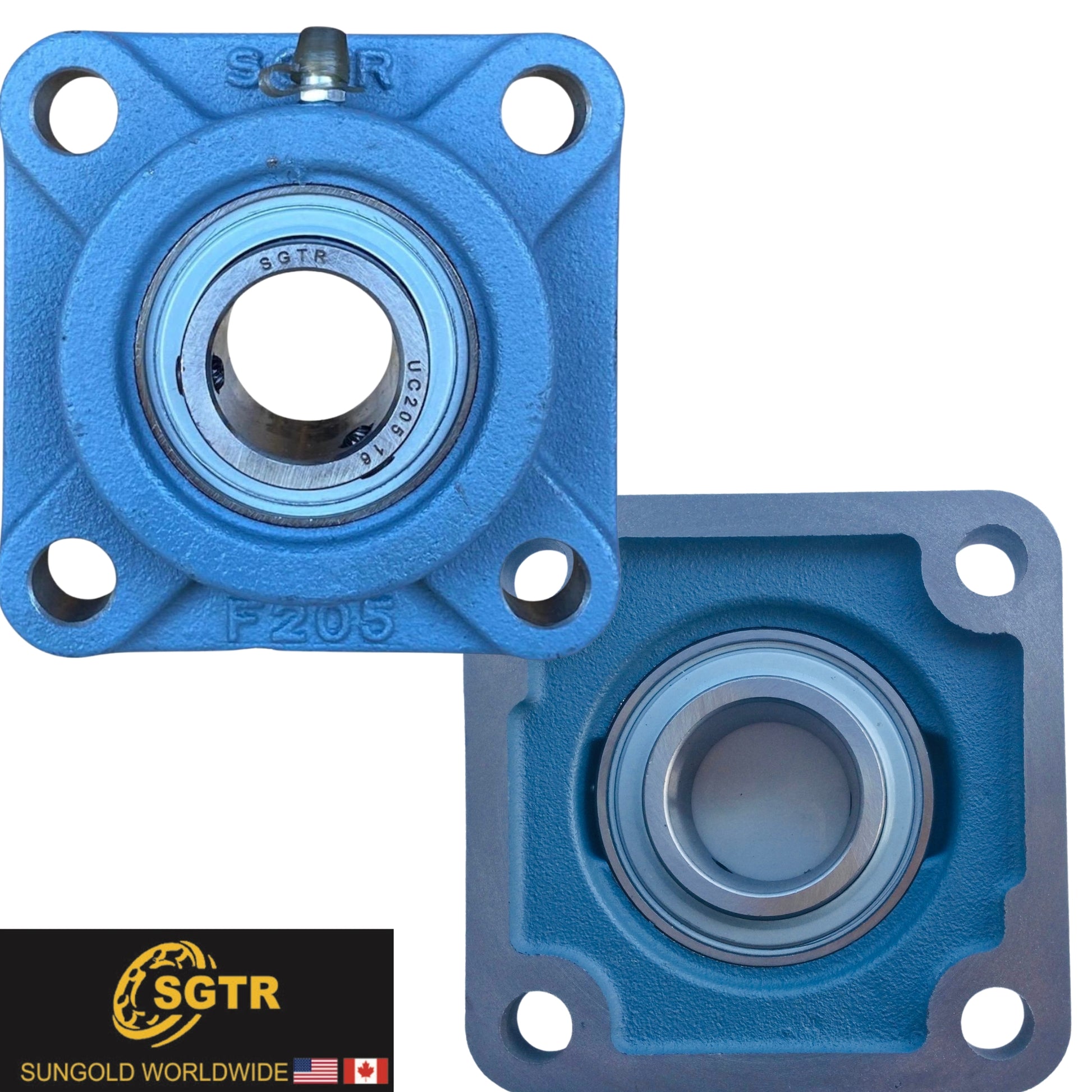

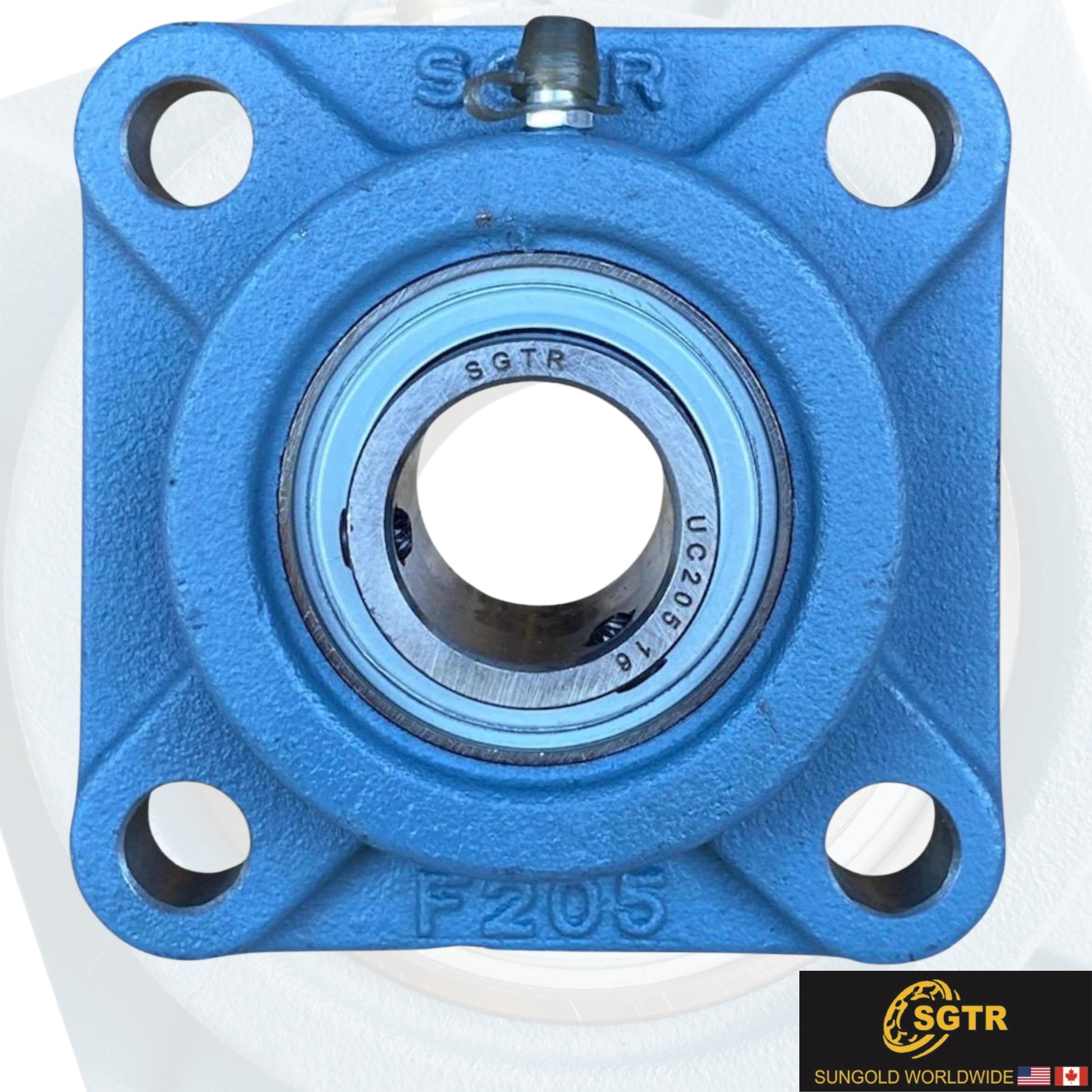

UCF205-16 4-Bolt Square Flange Bearing, 1" inch Bore

The UCF205-16 four-bolt flange bearing provides secure shaft support and smooth alignment. With a 1-inch bore size, this mounted bearing unit is widely used in conveyors, industrial equipment, and general machinery.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

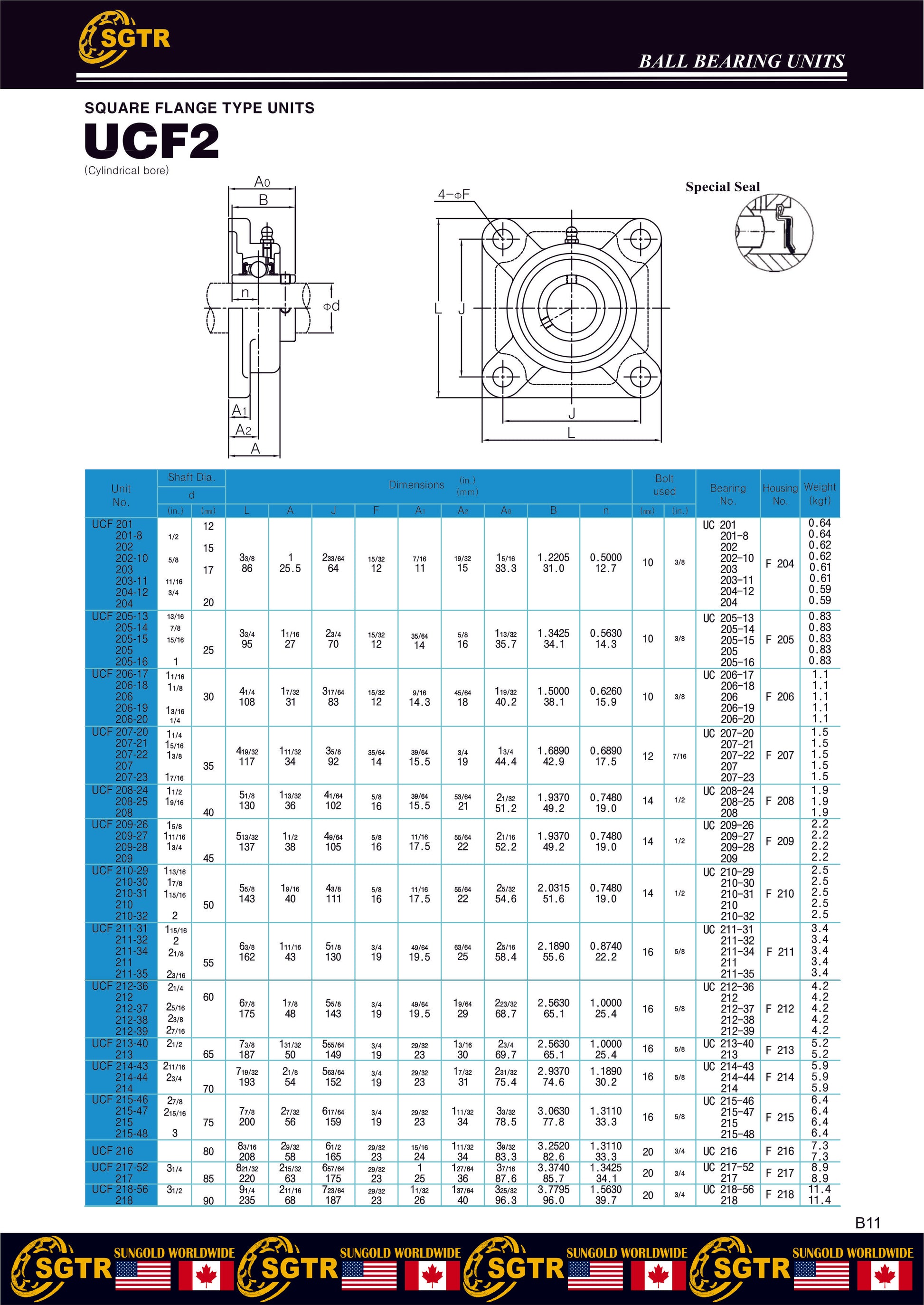

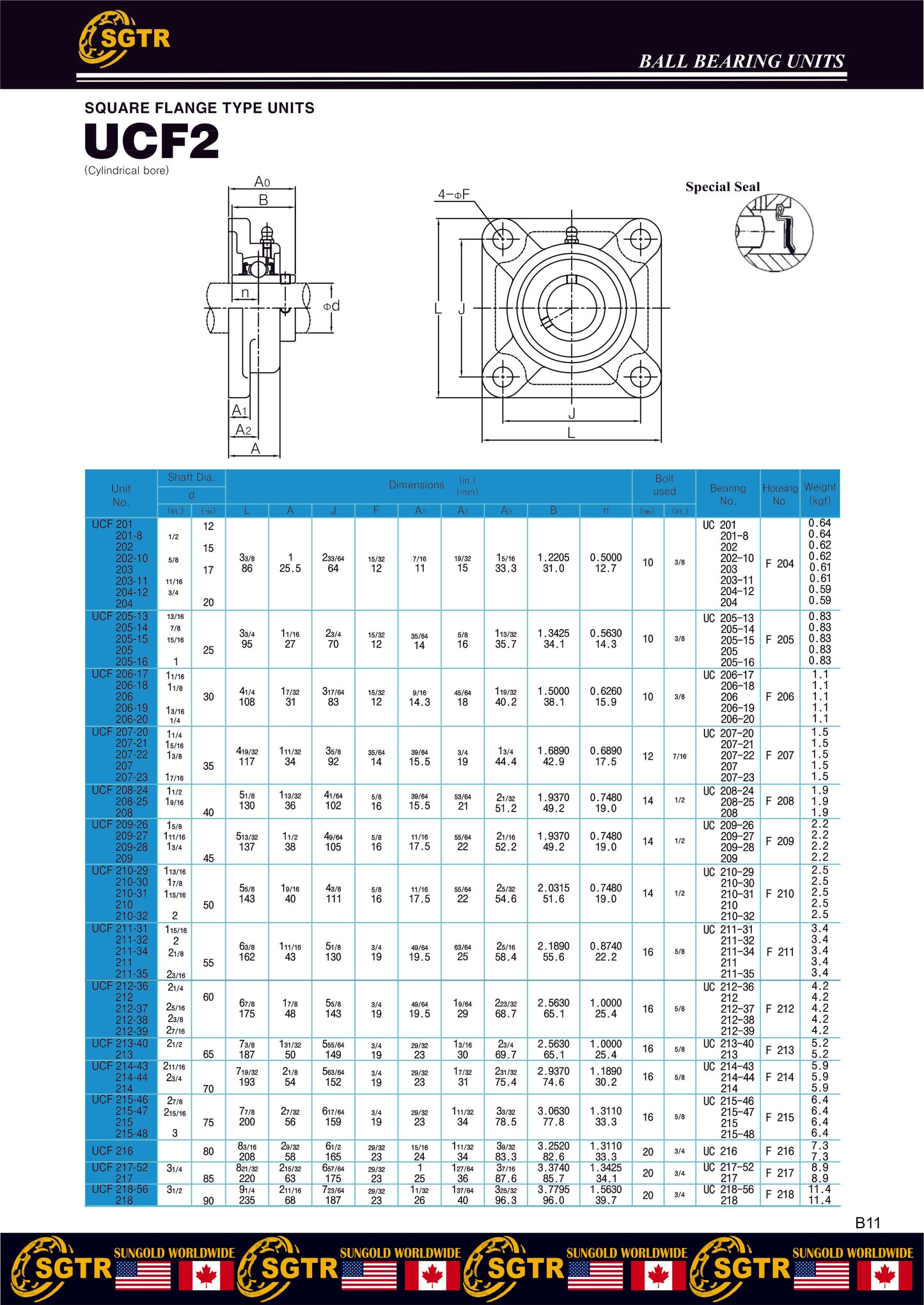

Specifications:

• Model: UCF205-16 Four-Bolt Flange Bearing
• Bore Size/ Inner Diameter: 1" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Length: 95 mm
• Bolt Hole to Bolt Hole: 70 mm
• Lubrication: Chevron SRI-2 Grease
• Static Load: 1,810 lbf
• Dynamic Load: 3,154 lbf
• Speed Limit: 6,250 RPM
• Weight: 1.82 lb

Interchange (for reference only)

Complete unit (UCF205-16) cross-references

• AMI: UCF205-16
• Browning: VF4S-216
• Dodge: F4B-SC-100
• Fafnir: RCJC-1, YCJ-1
• Link-Belt: F3-U216N
• NSK: UCF205-16S
• NTN: UCF205-100T
• Peer: FHSFJ205-16G
• RHP: SF-1
• Sealmaster: SF-1
• SKF: FY-1-TM

Insert (UC205-16) cross-references

• AMI: UC205-16
• Browning: VS-216
• Dodge: INS-SC-100
• Fafnir: GY1100KRRB
• Hub City: YW250-1
• IPTCI: UC205-16
• Link-Belt: UG216NL
• NTN: UC205-100D1
• SKF: YAR205-100
• Sealmaster: 2-1 Inser

Explore More:

• Browse our UCF200 Series Bearings for additional sizes
• View all Flange Bearings for broader options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
