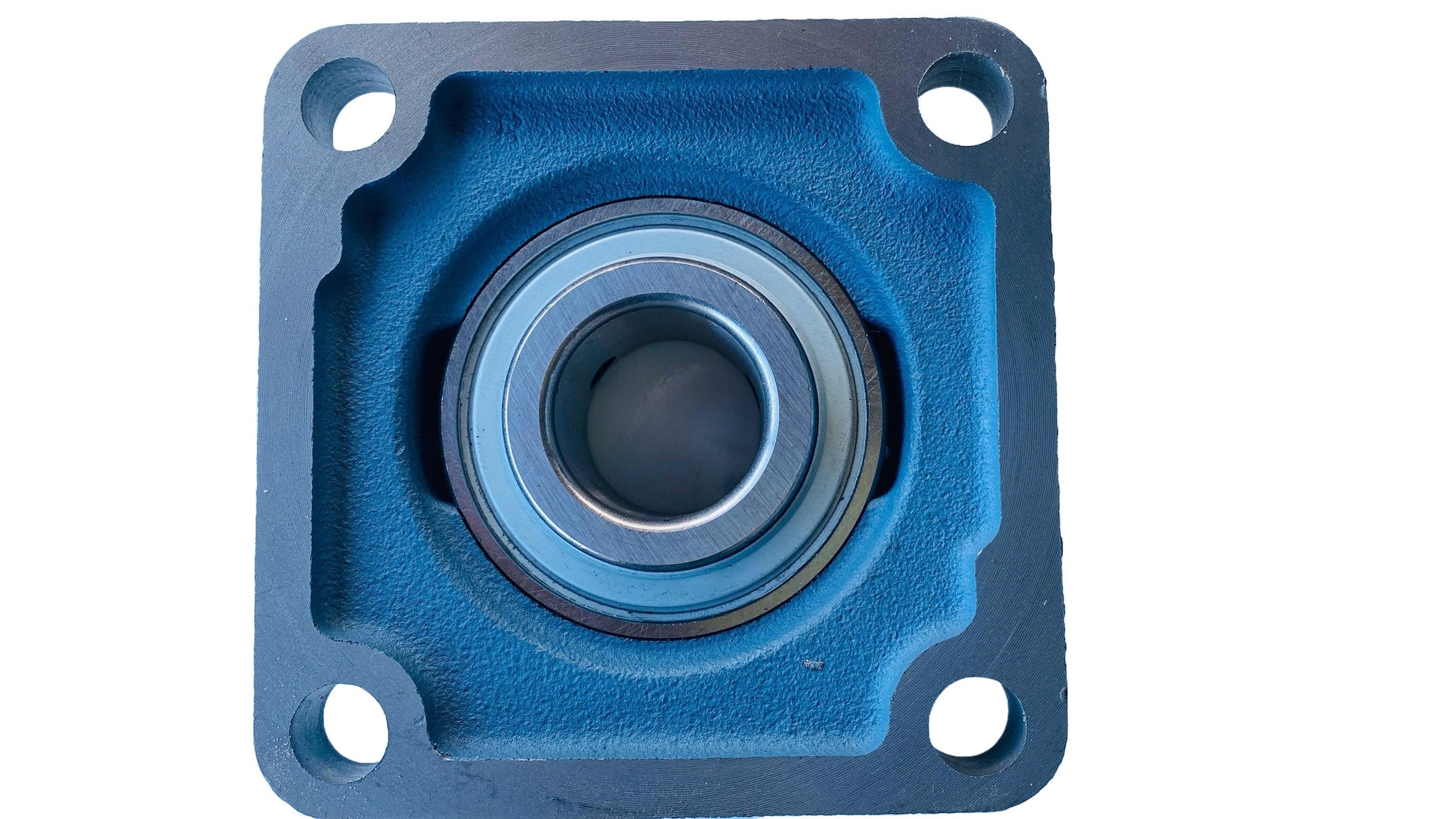

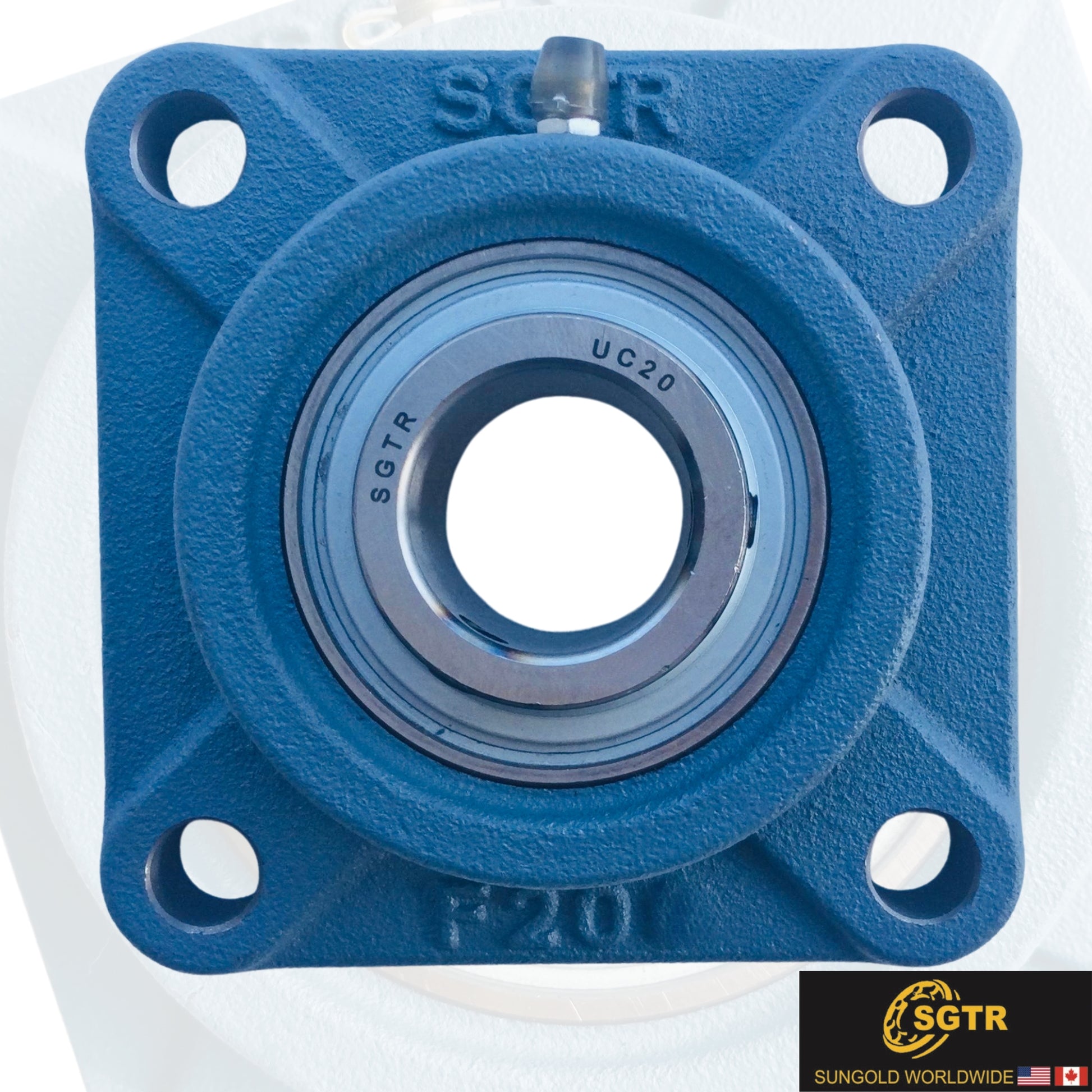

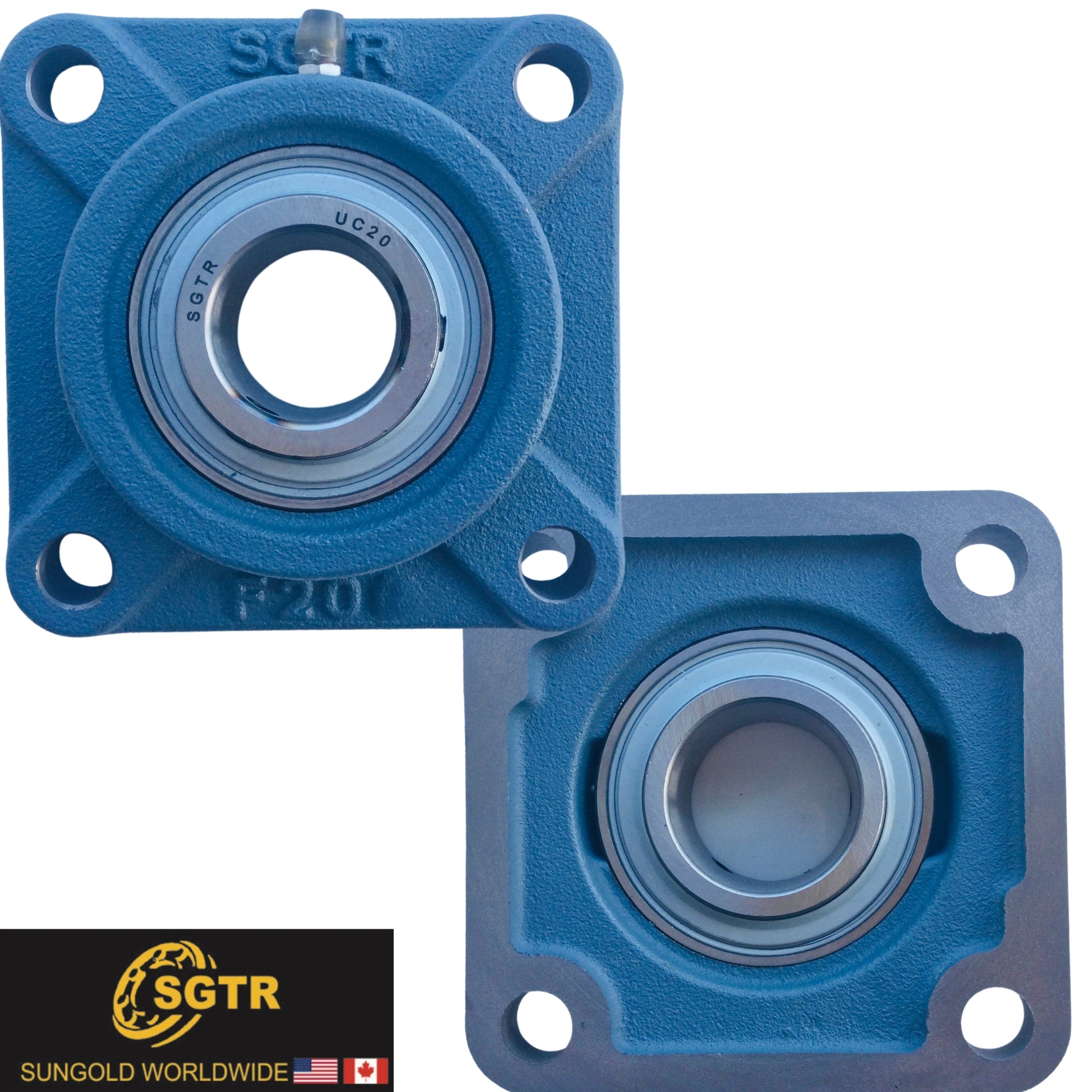

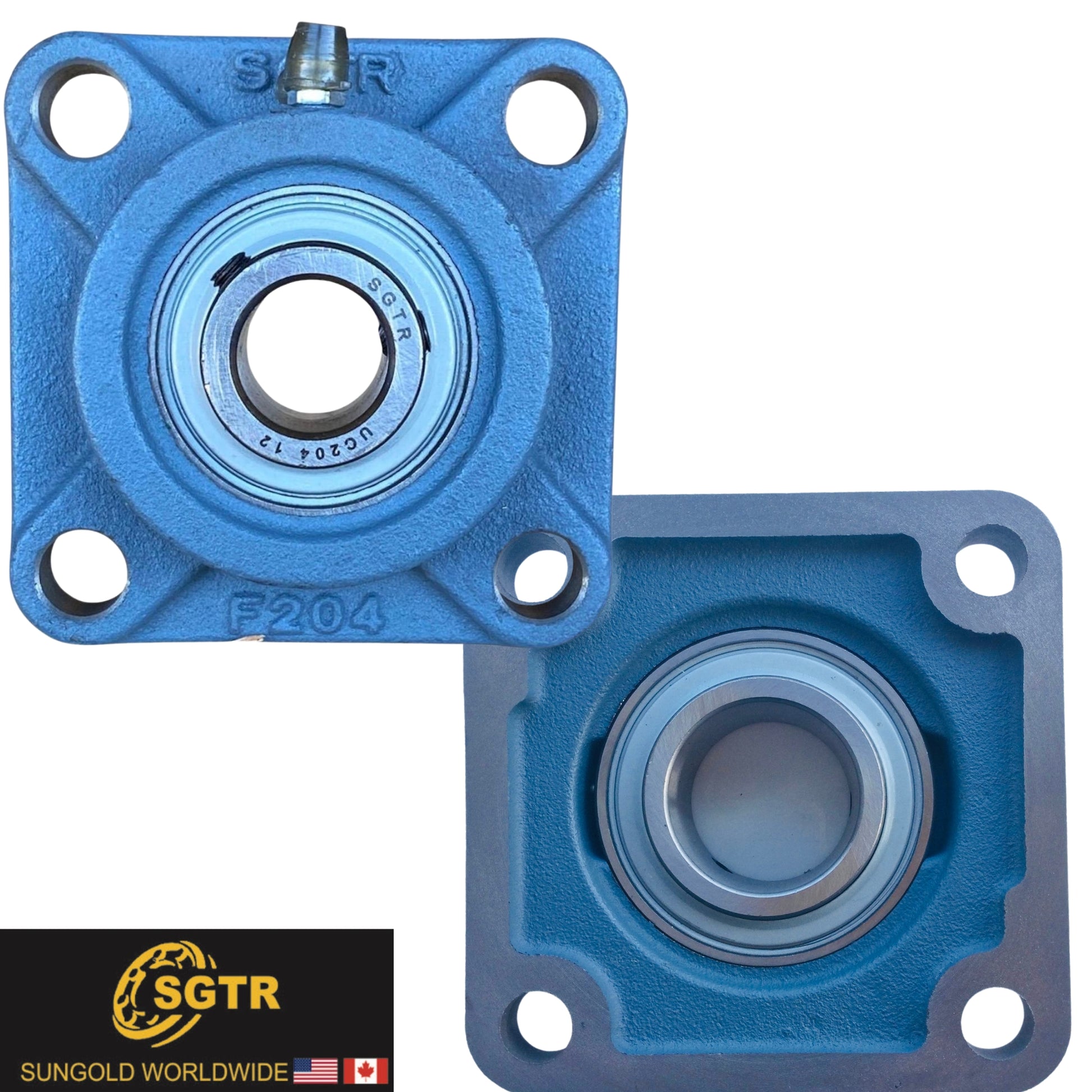

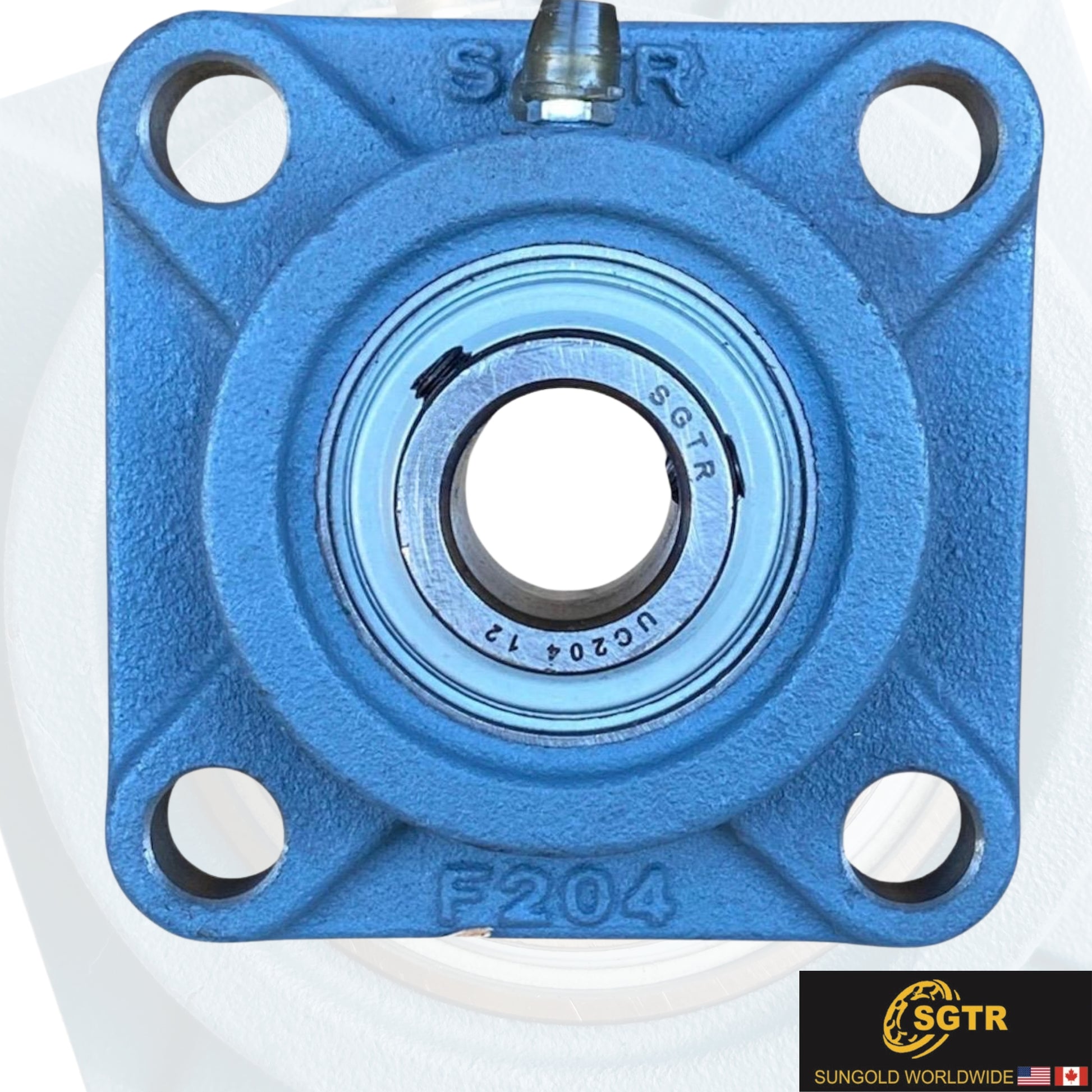

UCF204-12 4-Bolt Square Flange Bearing, 3/4" inch Bore

The UCF204-12 four-bolt flange bearing is designed for precise alignment and dependable performance. With a 3/4 inch bore size, this mounted bearing unit is perfect for light to medium-duty conveyors, processing equipment, and industrial applications.

- USA-based company with fast nationwide shipping
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

• Model: UCF204-12 Four-Bolt Flange Bearing
• Bore Size: 3/4" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Length: 3-3/8"
• Bolt Hole to Bolt Hole: 2-33/64"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 1,495 lbf
• Dynamic Load: 2,882 lbf
• Speed Limit: 7,450 RPM
• Weight: 1.3 lb

Interchange (for reference only)

Complete unit (UCF204-12) cross-references

• AMI: UCF204-12
• Browning: VF4S-212
• Dodge: F4B-SC-012
• Fafnir: RCJC-3/4, YCJ-3/4
• Link-Belt: F3-U212N
• NSK: UCF204-12S
• NTN: UCF204-012T
• Peer: FHSFJ204-12G
• RHP: SF-3/4
• Sealmaster: SF-3/4
• SKF: FY-3/4-TM

Insert (UC204-12) cross-references

• AMI: UC204-12
• Browning: VS-212
• Dodge: INS-SC-012
• Fafnir: GY1012KRRB
• Hub City: YW250-3/4
• IPTCI: UC204-12
• Link-Belt: UG212NL
• NTN: UC204-012D1
• SKF: YAR204-012
• Sealmaster: 2-3/4 Insert

Explore More:

• Browse our UCF200 Series Bearings for additional sizes
• View all Flange Bearings for broader options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
