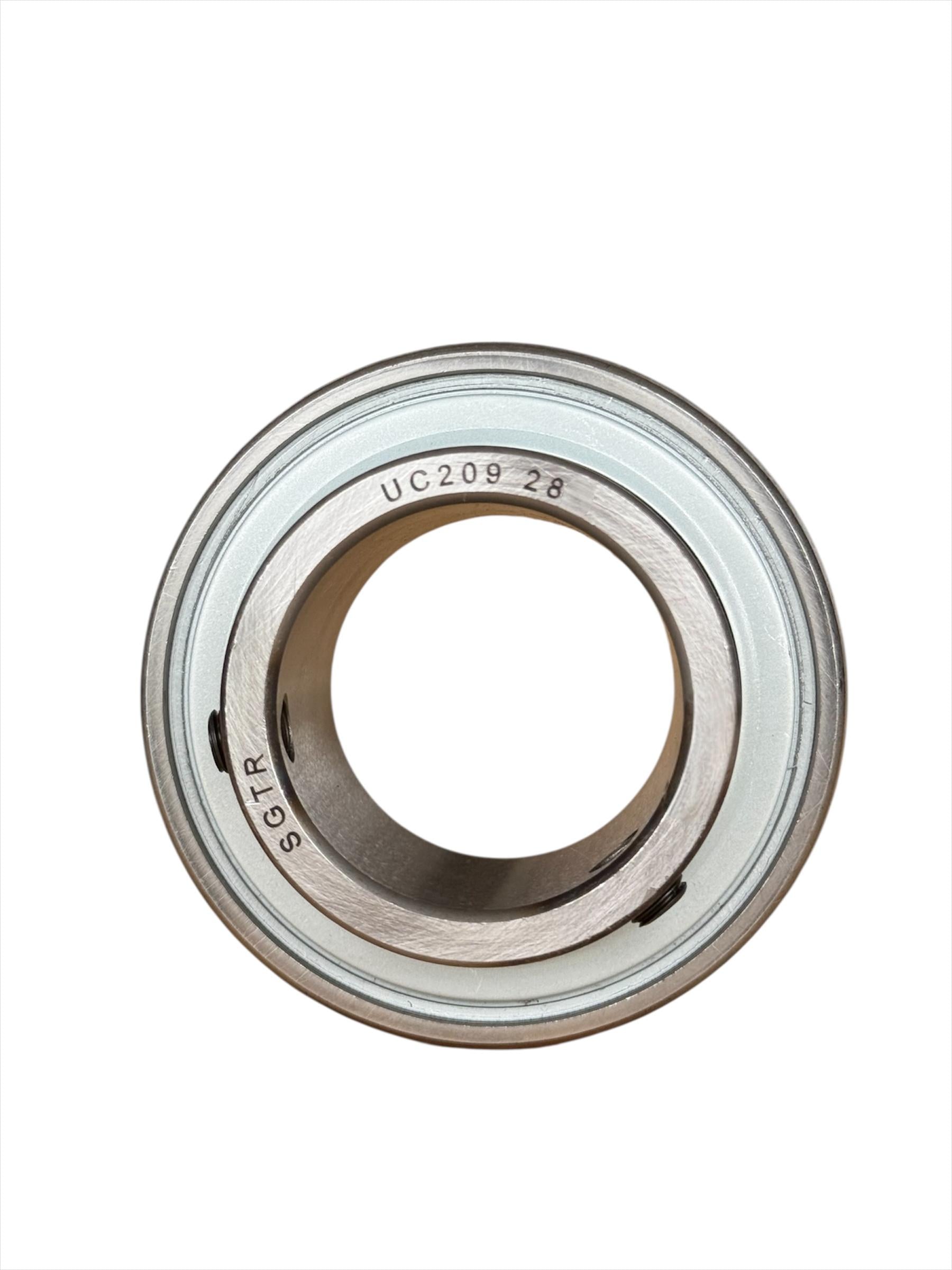

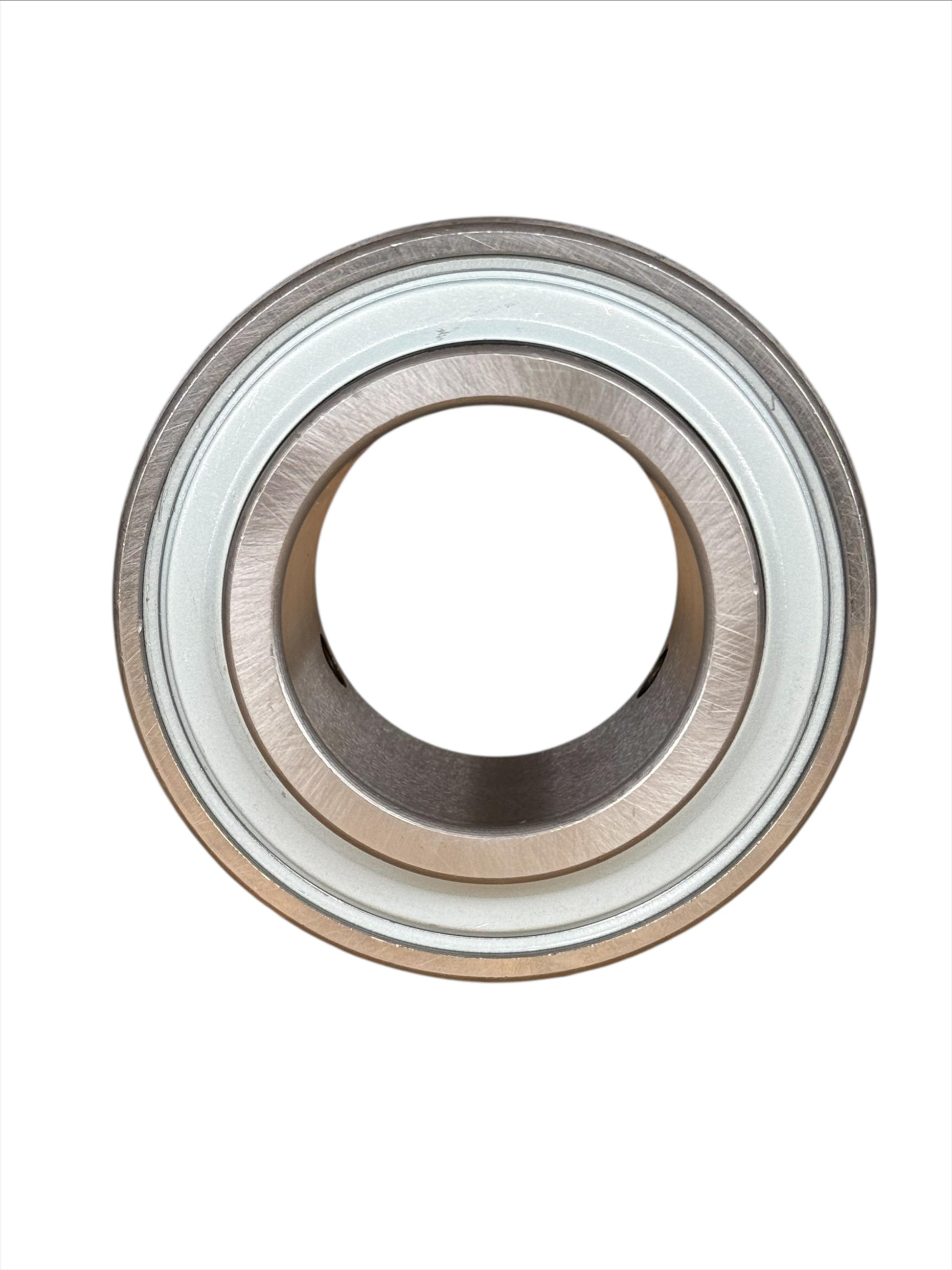

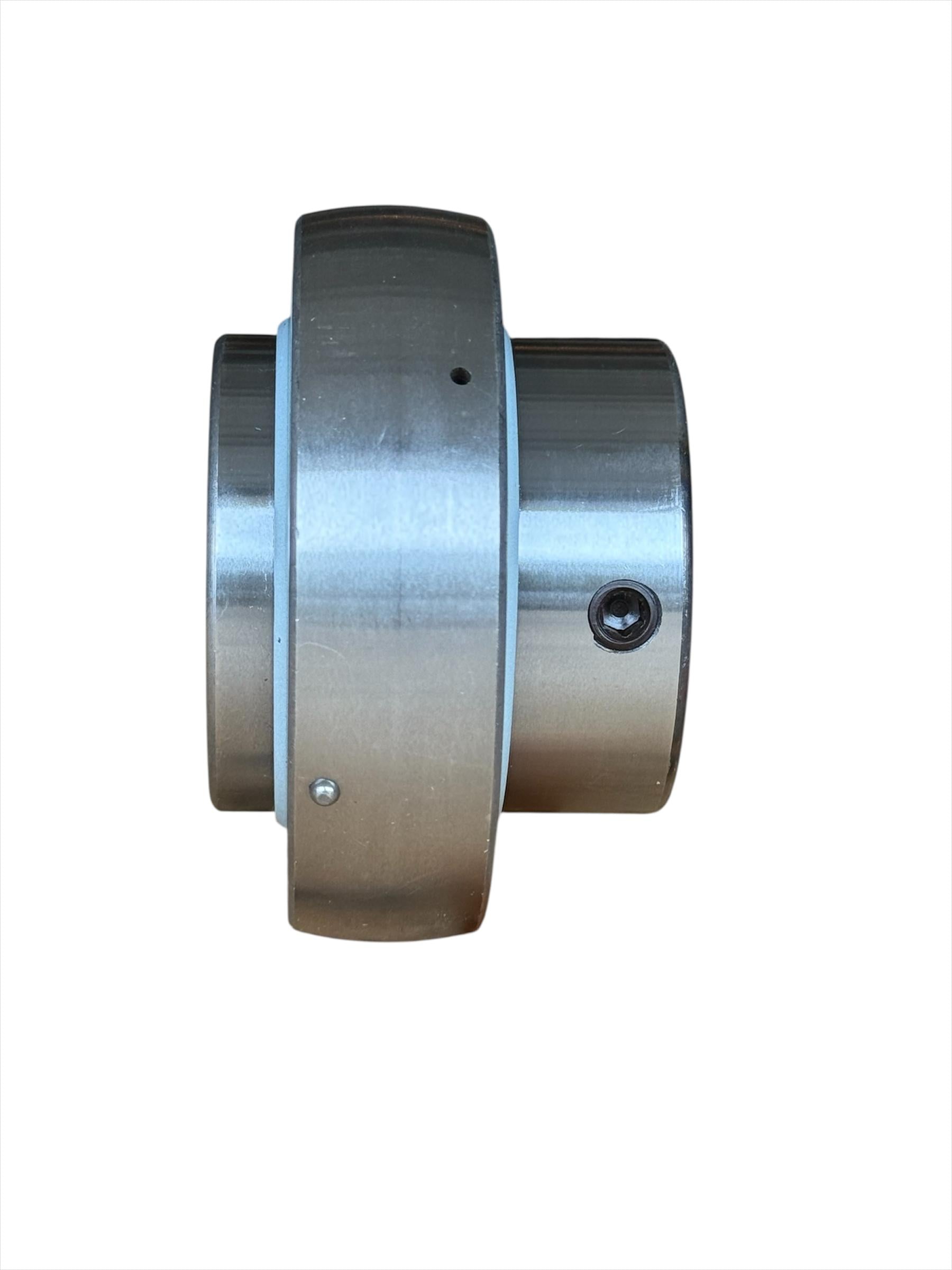

UC209-28 Insert Ball Bearing 1-3/4" inch Bore

The UC209-28 insert bearing delivers maximum performance and durability for heavy-duty applications. Made from AISI 52100 chrome steel, this bearing is built for durability, smooth operation, and long service life.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

• Model: UC209-28 with Extremely Protective Seal
• Bearing Material: AISI 52100 Chrome Steel
• Bore Size/ Inner Diameter: 1-3/4" Inch
• Inner Diameter: 1-3/4"
• Outer Diameter: 85mm
• Width: 22mm
• Material: Chrome Steel SAE-52100
• Lubrication: Chevron SRI-2 Grease
• Static Load: 4,676 lbf
• Dynamic Load: 7,160 lbf
• Speed Limit: 3,700 RPM

Interchange:

• AMI: UC209-28
• Browning: VS-228
• Dodge: INS-SC-112
• Fafnir/Timken: GY1112KRRB
• Hub City: YW250-1-3/4
• IPTCI: UC209-28
• Link-Belt: UG228NL
• NTN: UC209-112D1
• SKF: YAR209-112
• Sealmaster: 2-1-3/4 Insert
