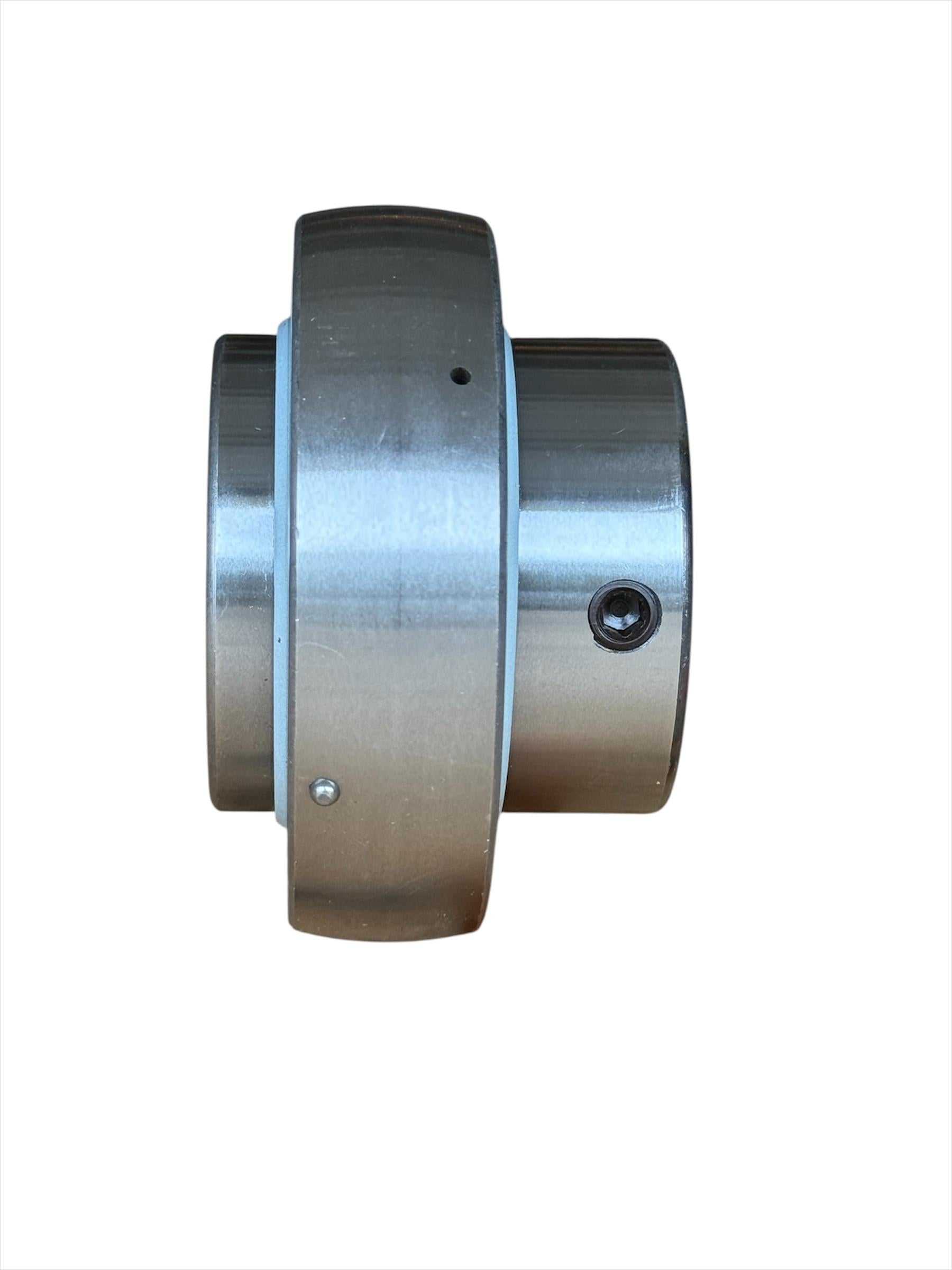

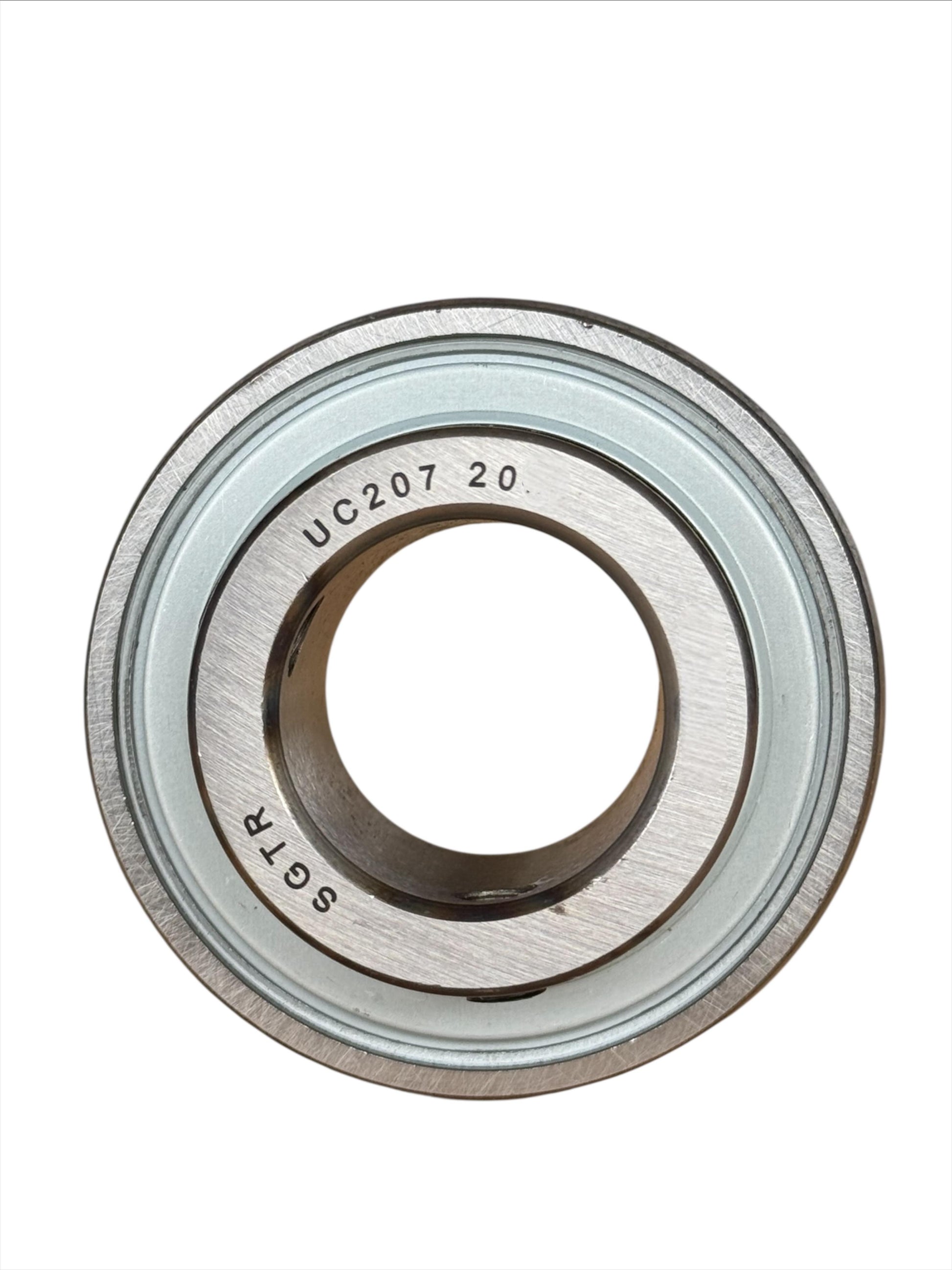

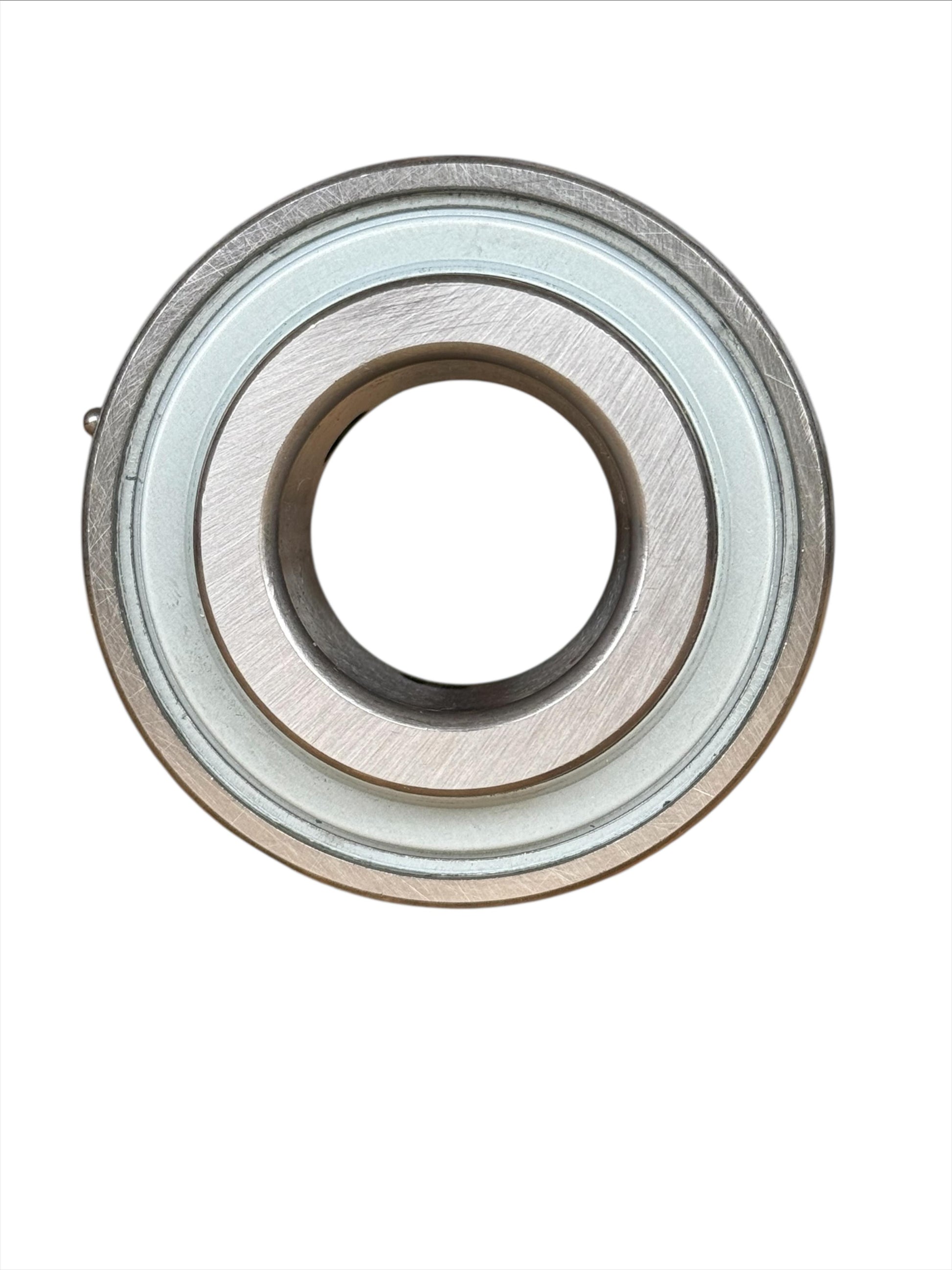

UC207-20 Insert Ball Bearing 1-1/4" inch Bore

The UC207-20 insert bearing provides long-lasting performance with excellent load capacity. Made from AISI 52100 chrome steel, this bearing is built for durability, smooth operation, and long service life.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

• Model: UC207-20 with Extremely Protective Seal
• Bearing Material: AISI 52100 Chrome Steel
• Bore Size / Inner Diameter: 1-1/4" Inch
• Outer Diameter: 72mm
• Width: 20mm
• Lubrication: Chevron SRI-2 Grease
• Static Load: 3,496 lbf
• Dynamic Load: 5,775 lbf
• Speed Limit: 4,500 RPM

Interchange:

• AMI: UC207-20
• Browning: VS-220
• Dodge: INS-SC-104
• Fafnir/Timken: GY1104KRRB
• Hub City: YW250-1-1/4
• IPTCI: UC207-20
• Link-Belt: UG220NL
• NTN: UC207-104D1
• SKF: YAR207-104
• Sealmaster: 2-1-1/4 Insert
