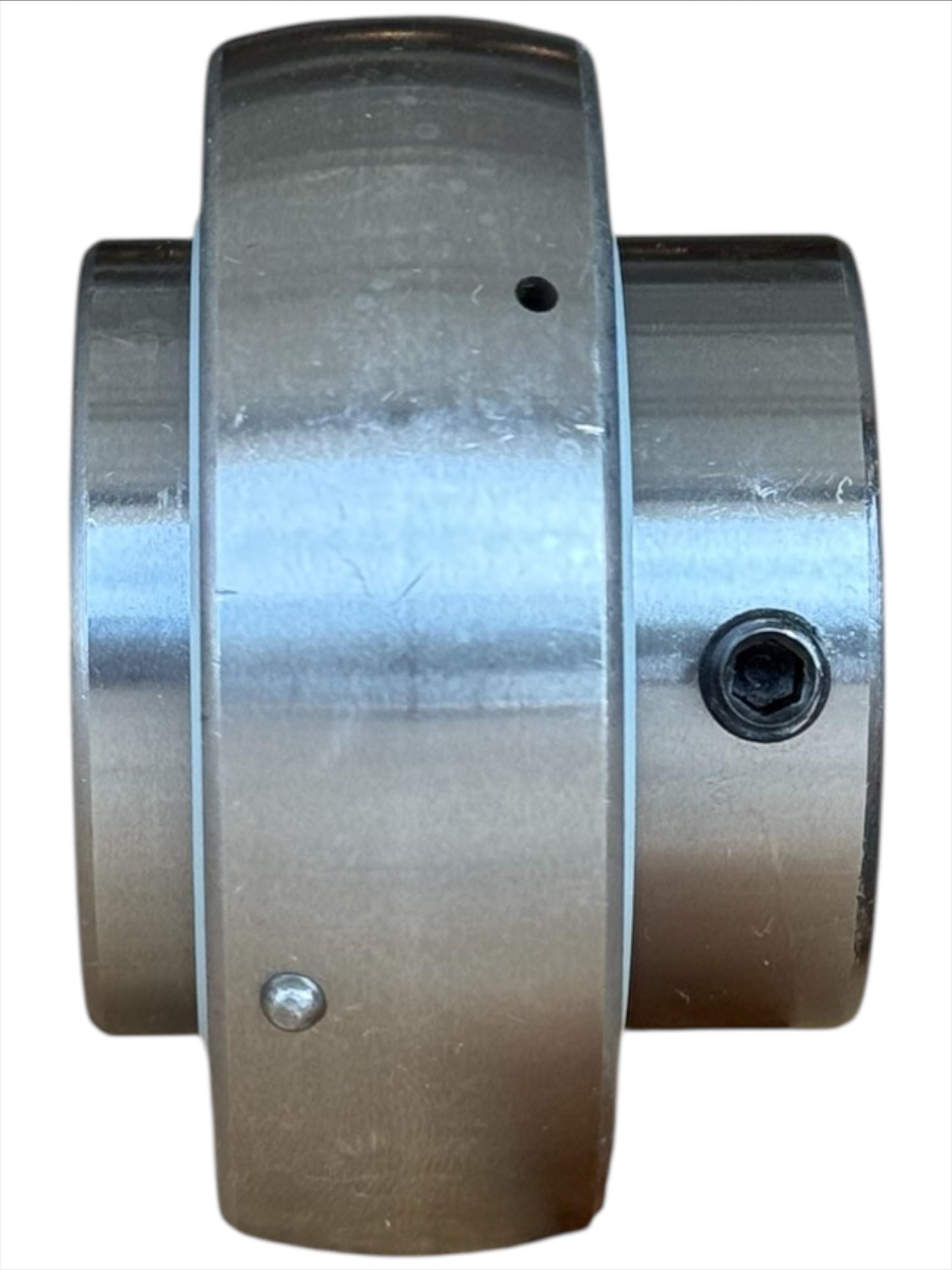

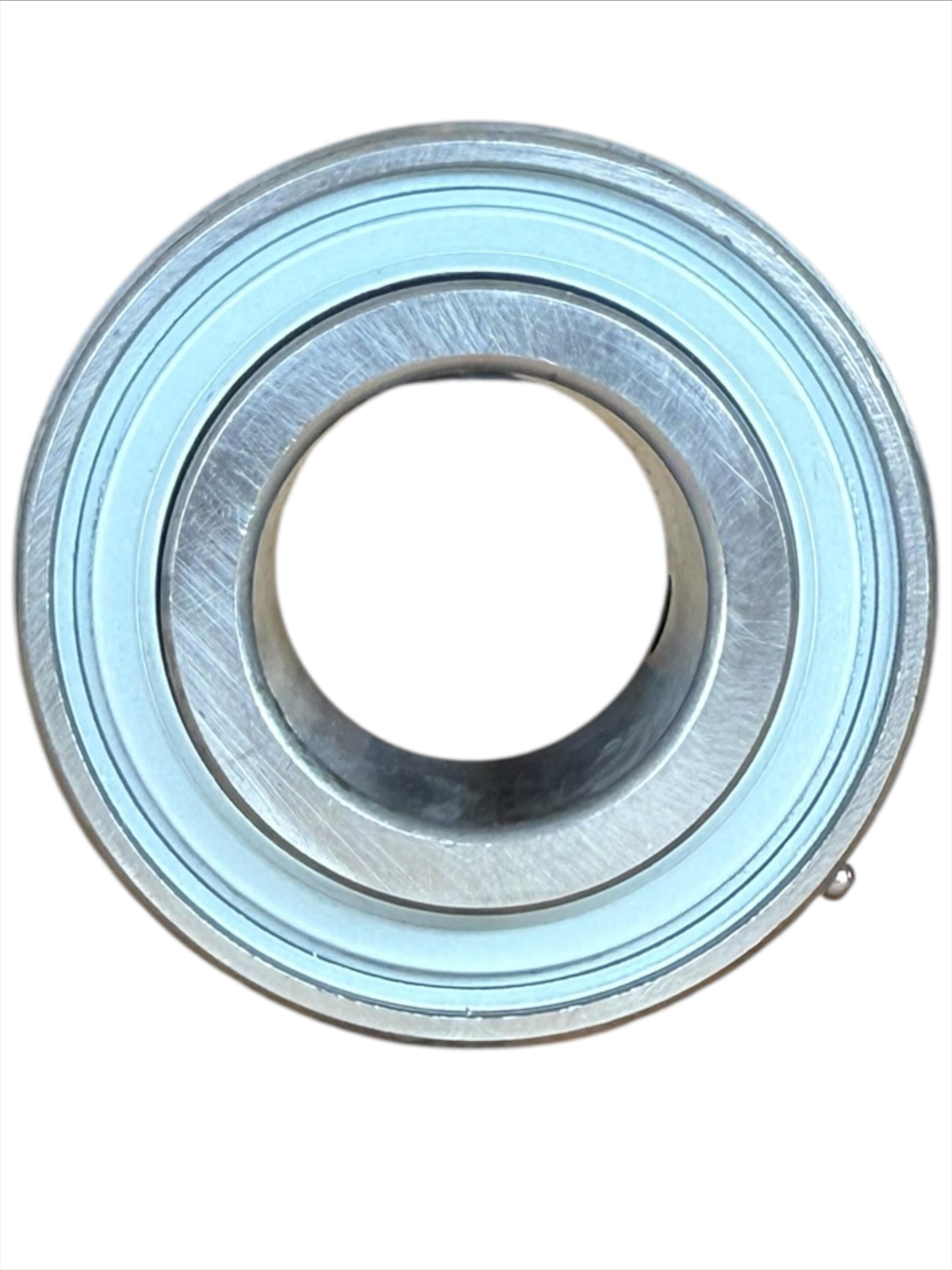

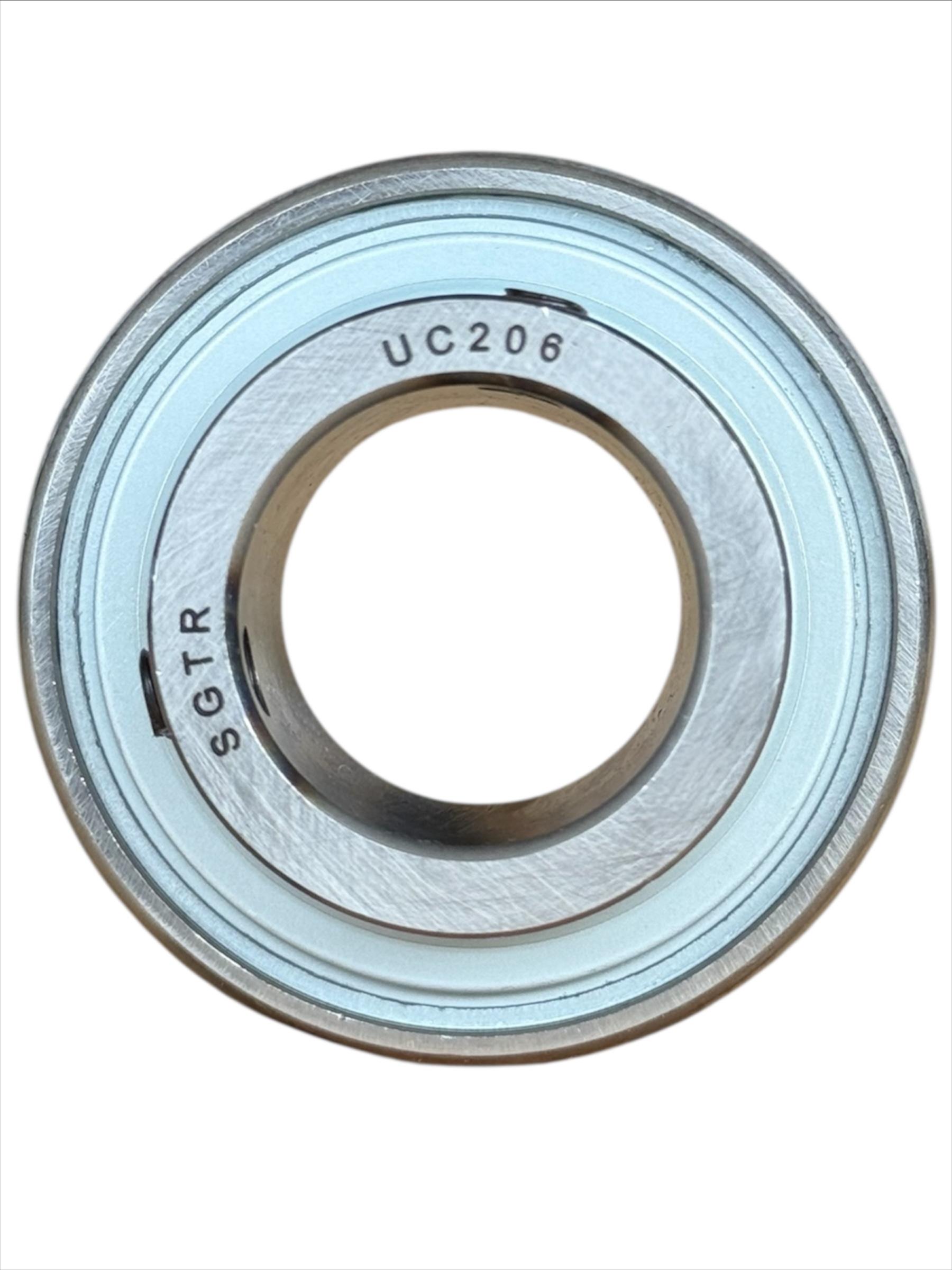

UC206-20 Insert Ball Bearing 1-1/4" inch Bore

The UC206-20 insert bearing ensures dependable performance with precision alignment. Made from AISI 52100 chrome steel, this bearing is built for durability, smooth operation, and long service life.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

• Model: UC206-20 with Extremely Protective Seal
• Bore Size/ Inner Diameter: 1-1/4"
• Outer Diameter: 62mm
• Width: 19mm
• Material: AISI 52100 Chrome Steel
• Lubrication: Chevron SRI-2 Grease
• Static Load: 2,570 lbf
• Dynamic Load: 4,377 lbf
• Speed Limit: 5,300 RPM

Interchange:

• AMI: UC206-20
• Browning: VS-220
• Dodge: INS-SC-104S
• Fafnir/Timken: GY1104KRRB
• Hub City: YW250 x 1-1/4
• IPTCI: UC206-20
• Link-Belt: UG220N
• NTN: UC206-104D1
• SKF: YAR205-104-2F
• Sealmaster: 2-1-1/4 Insert

Brand names are for reference only. SGTR Bearings is not affiliated with these manufacturers. Verify dimensions before interchange.
