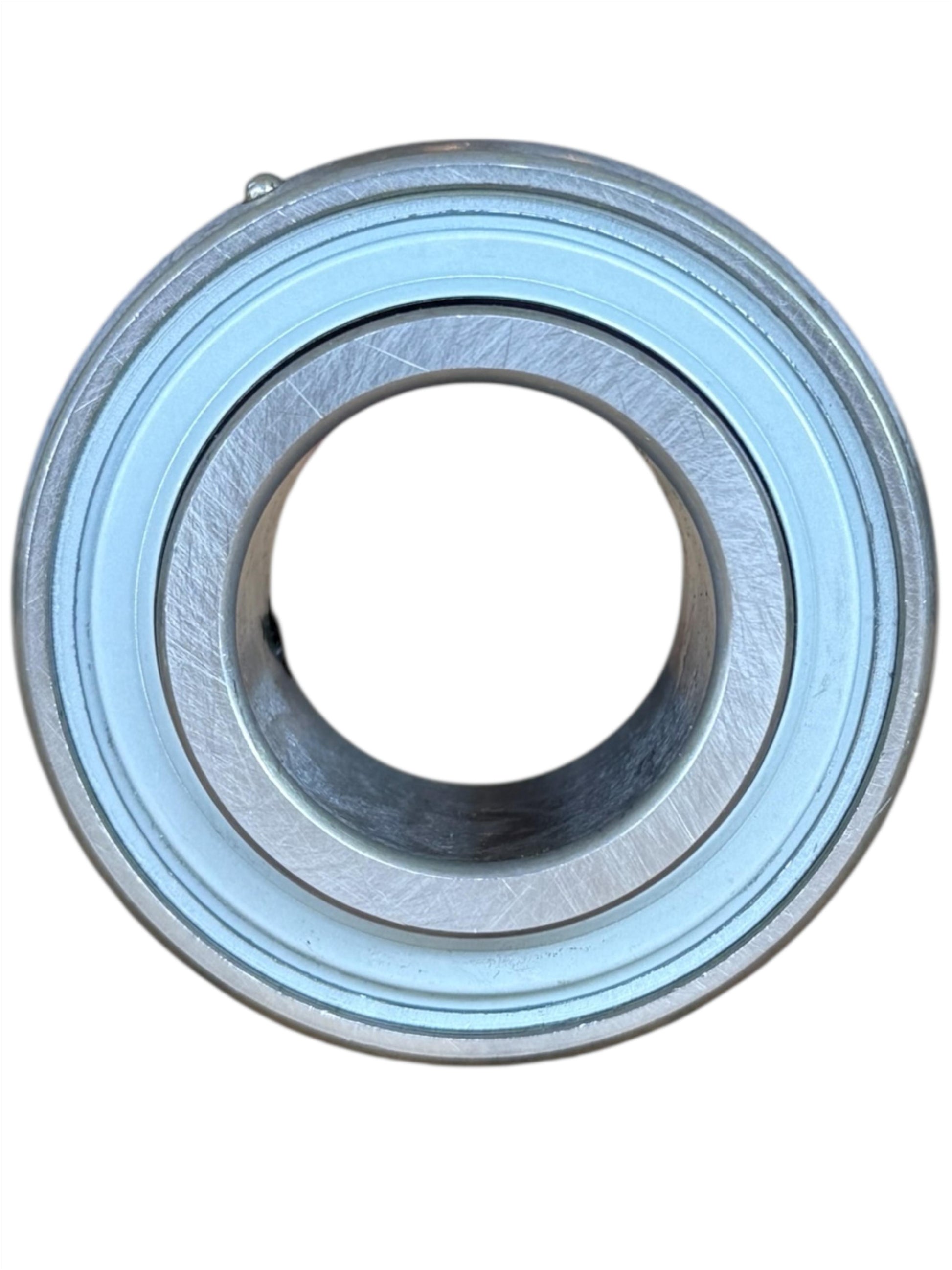

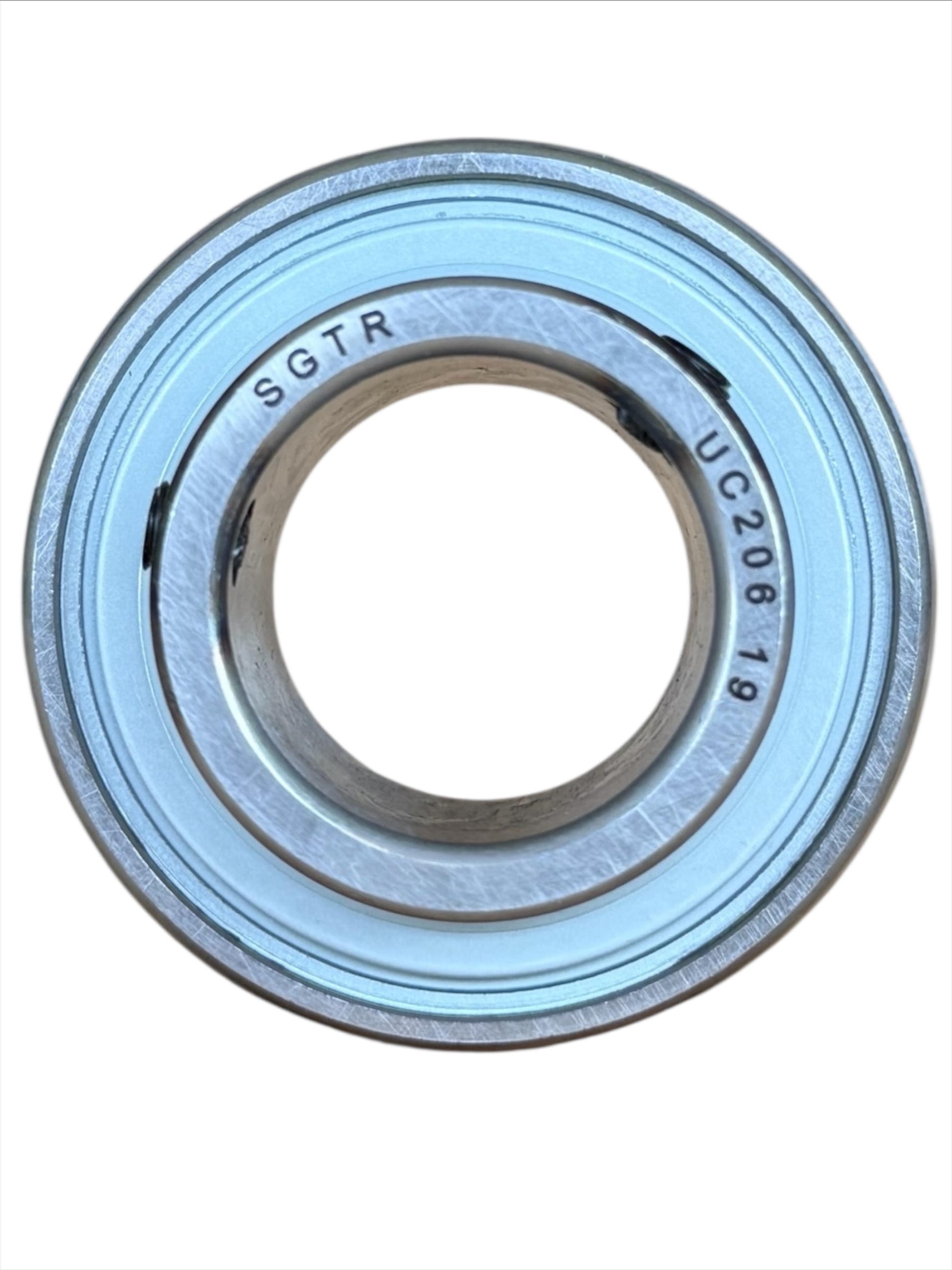

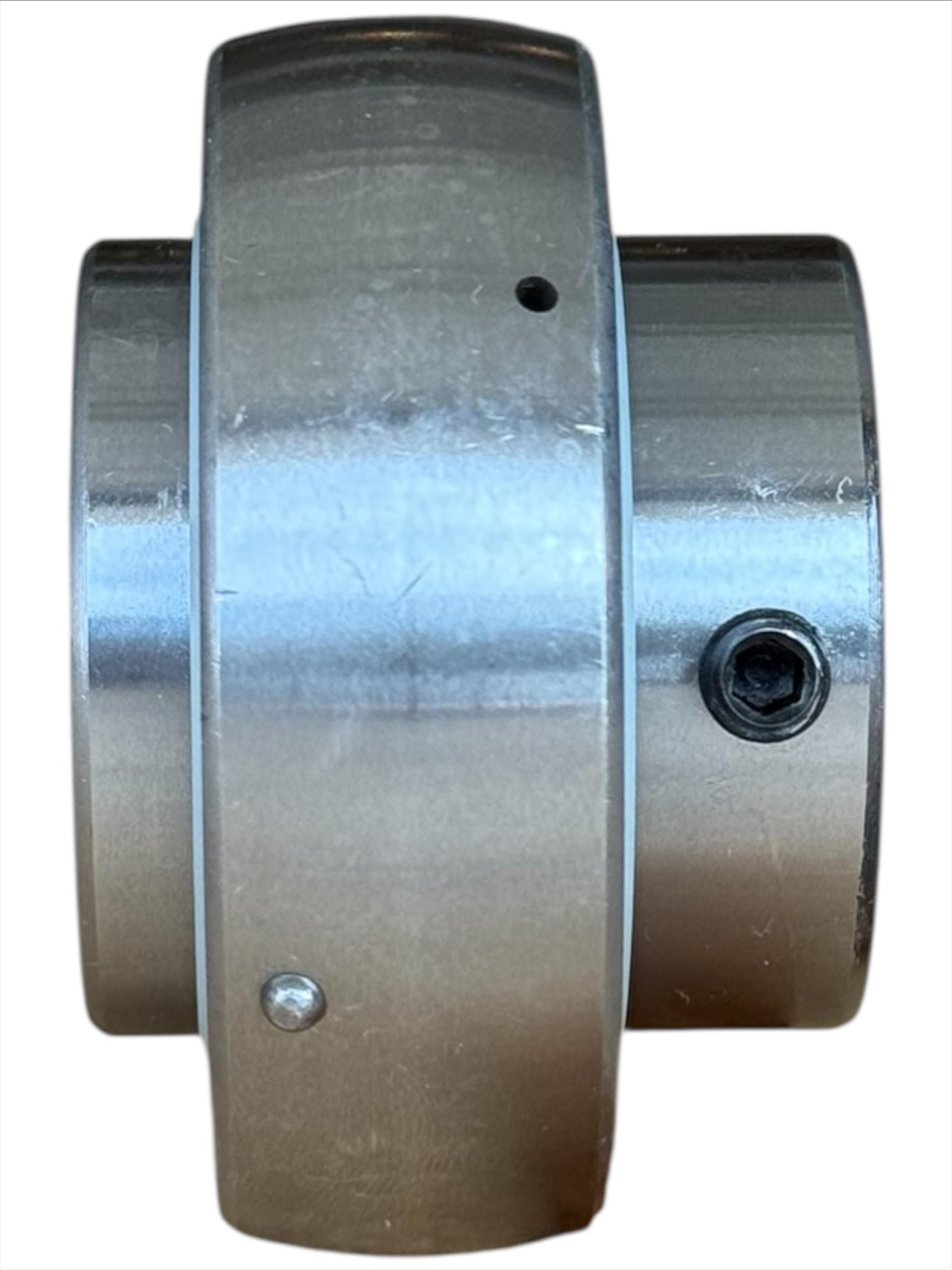

UC206-19 Insert Ball Bearing 1-3/16" inch Bore

The UC206-19 insert bearing ensures dependable performance with precision alignment. Made from AISI 52100 chrome steel, this bearing is built for durability, smooth operation, and long service life.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

• Model: UC206-19 with Extremely Protective Seal
• Bore Size/ Inner Diameter: 1-3/16"
• Outer Diameter: 62mm
• Width: 19mm
• Material: Chrome Steel SAE-52100
• Lubrication: Chevron SRI-2 Grease
• Static Load: 2,570 lbf
• Dynamic Load: 4,377 lbf
• Speed Limit: 5,300 RPM

Interchange:

• AMI: UC206-19
• Browning: VS-219
• Dodge: INS-SC-103
• Fafnir/Timken: GY1103KRRB
• Hub City: YW250-1-3/16
• IPTCI: UC206-19
• Link-Belt: UG219NL
• NTN: UC206-103D1
• SKF: YAR206-103
• Sealmaster: 2-1-3/16 Insert

Brand names are for reference only. SGTR Bearings is not affiliated with these manufacturers. Verify dimensions before interchange.
