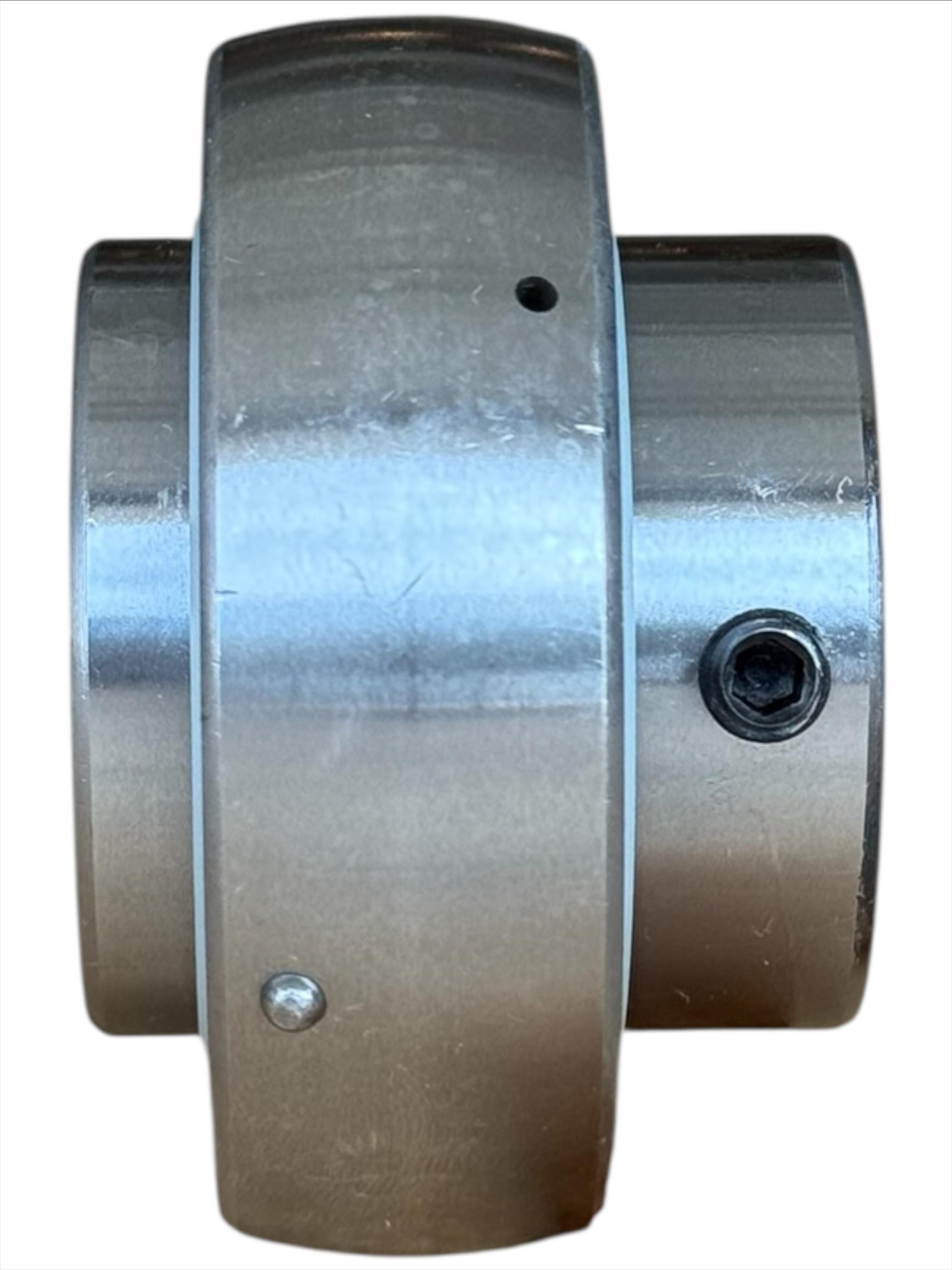

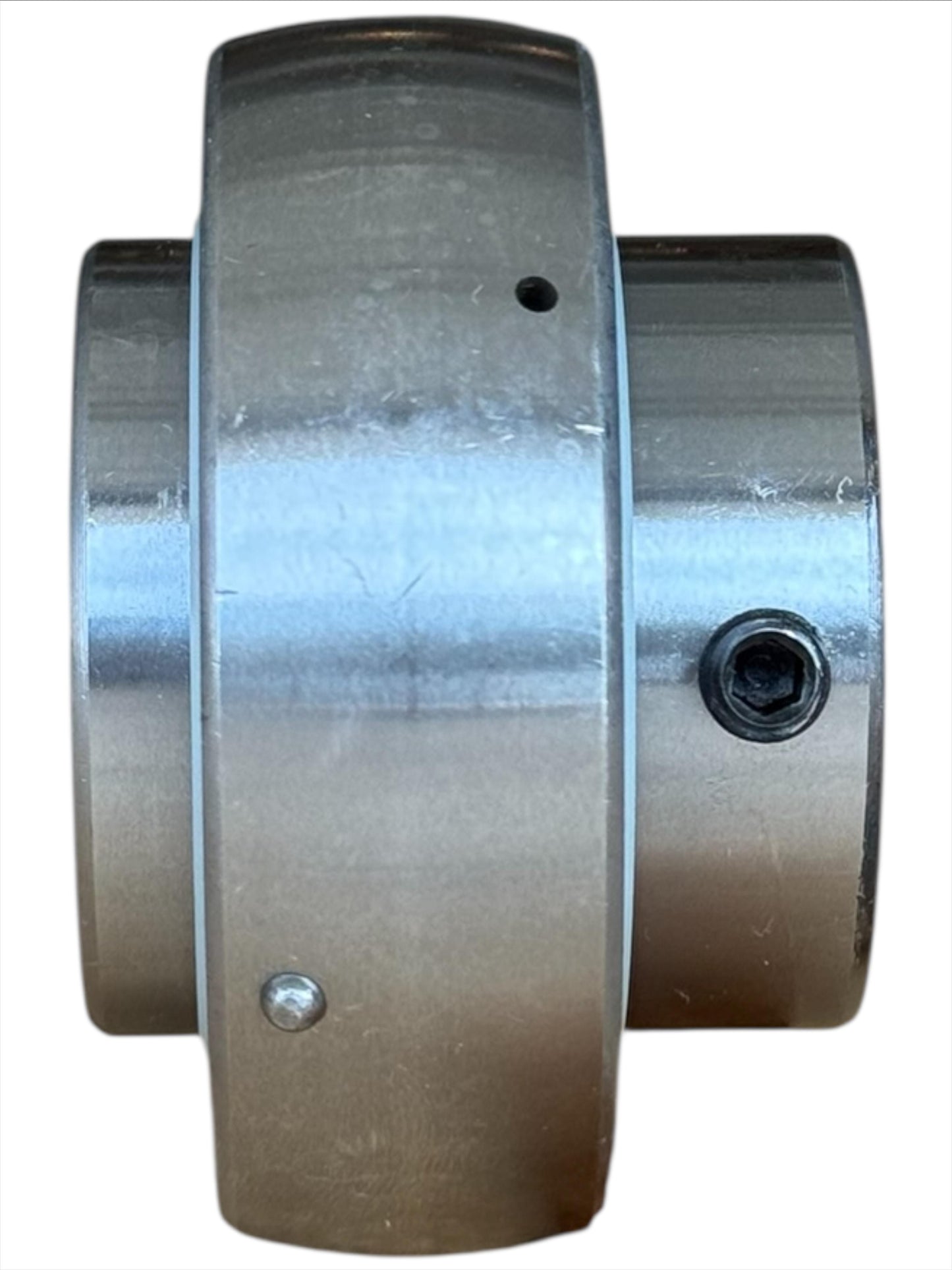

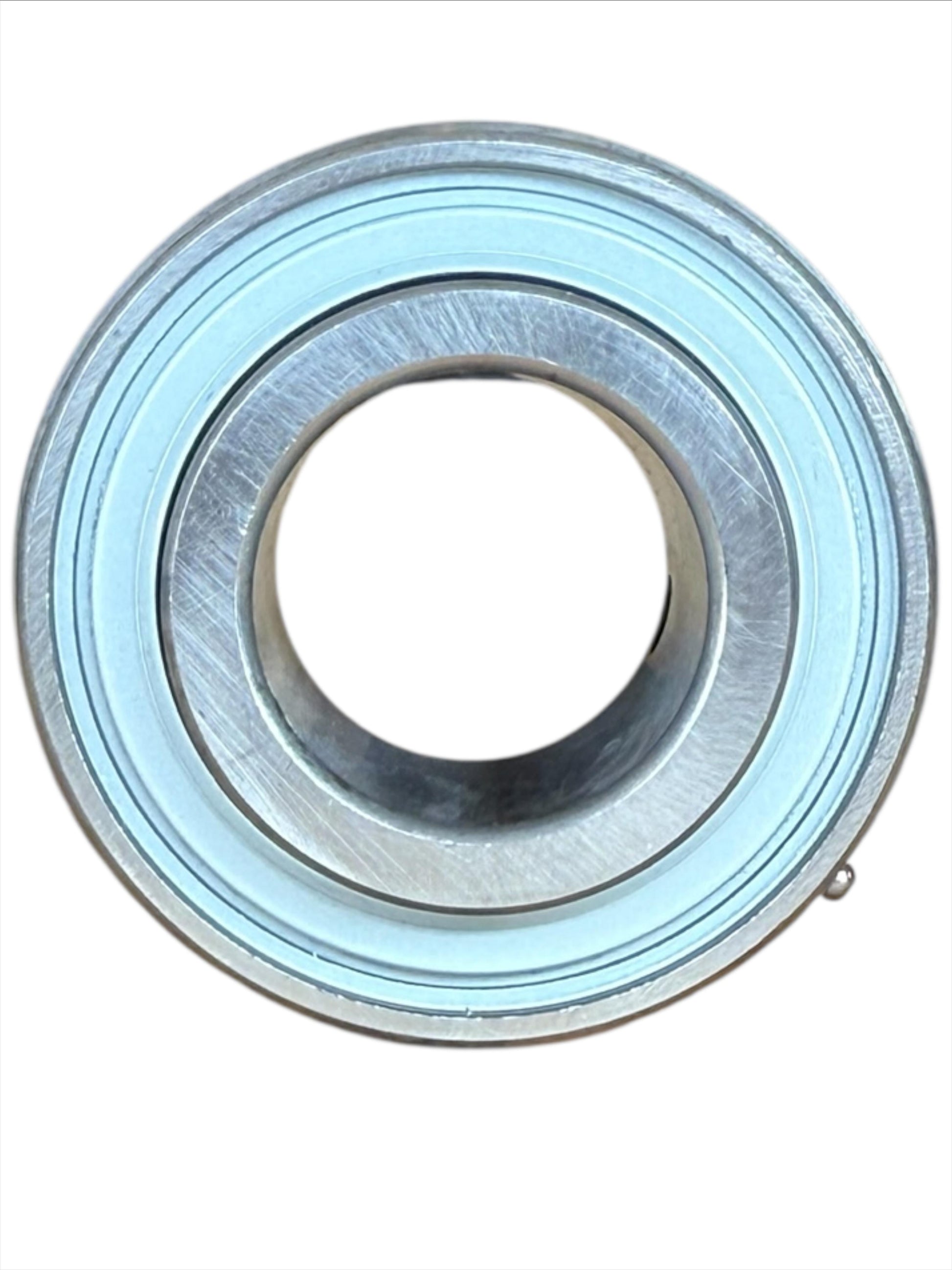

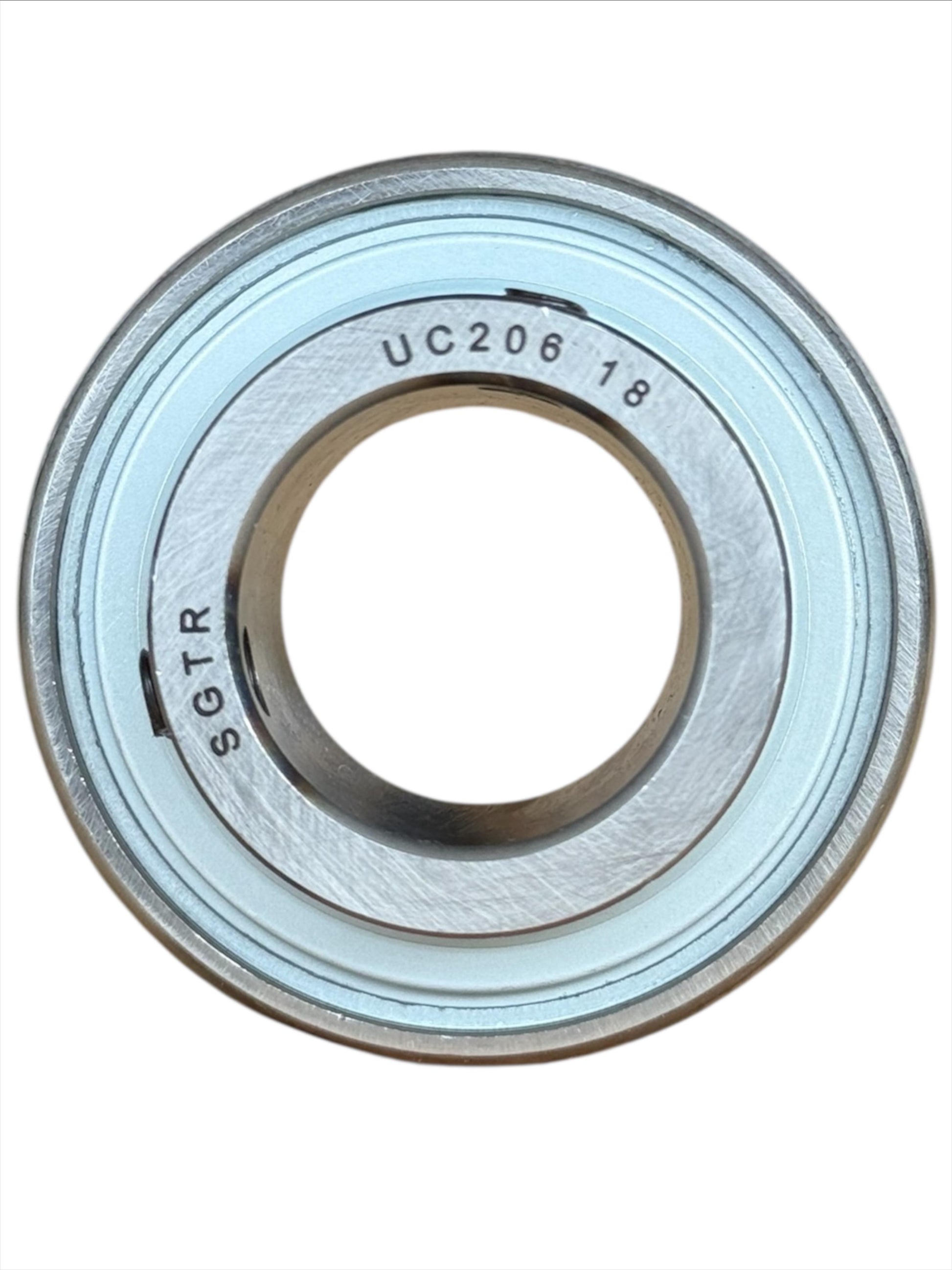

UC206-18 Insert Ball Bearing 1-1/8" inch Bore

The UC206-18 insert bearing ensures dependable performance with precision alignment. Made from AISI 52100 chrome steel, this bearing is built for durability, smooth operation, and long service life.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

• Model: UC206-18 with Extremely Protective Seal
• Bore Size/ Inner Diameter: 1-1/8"
• Outer Diameter: 62mm
• Width: 19mm
• Material: Chrome Steel SAE-52100
• Lubrication: Chevron SRI-2 Grease
• Static Load: 2,570 lbf
• Dynamic Load: 4,377 lbf
• Speed Limit: 5,300 RPM

Interchange:

• AMI: UC206-18
• Browning: VS-218
• Dodge: INS-SC-102
• Fafnir/Timken: GY1102KRRB
• Hub City: YW250-1-1/8
• IPTCI: UC206-18
• Link-Belt: UG218NL
• NTN: UC206-102D1
• SKF: YAR206-102
• Sealmaster: 2-1-1/8 Insert

Brand names are provided for reference only. SGTR Bearings is not affiliated with these brands. Always verify dimensions before interchange.
