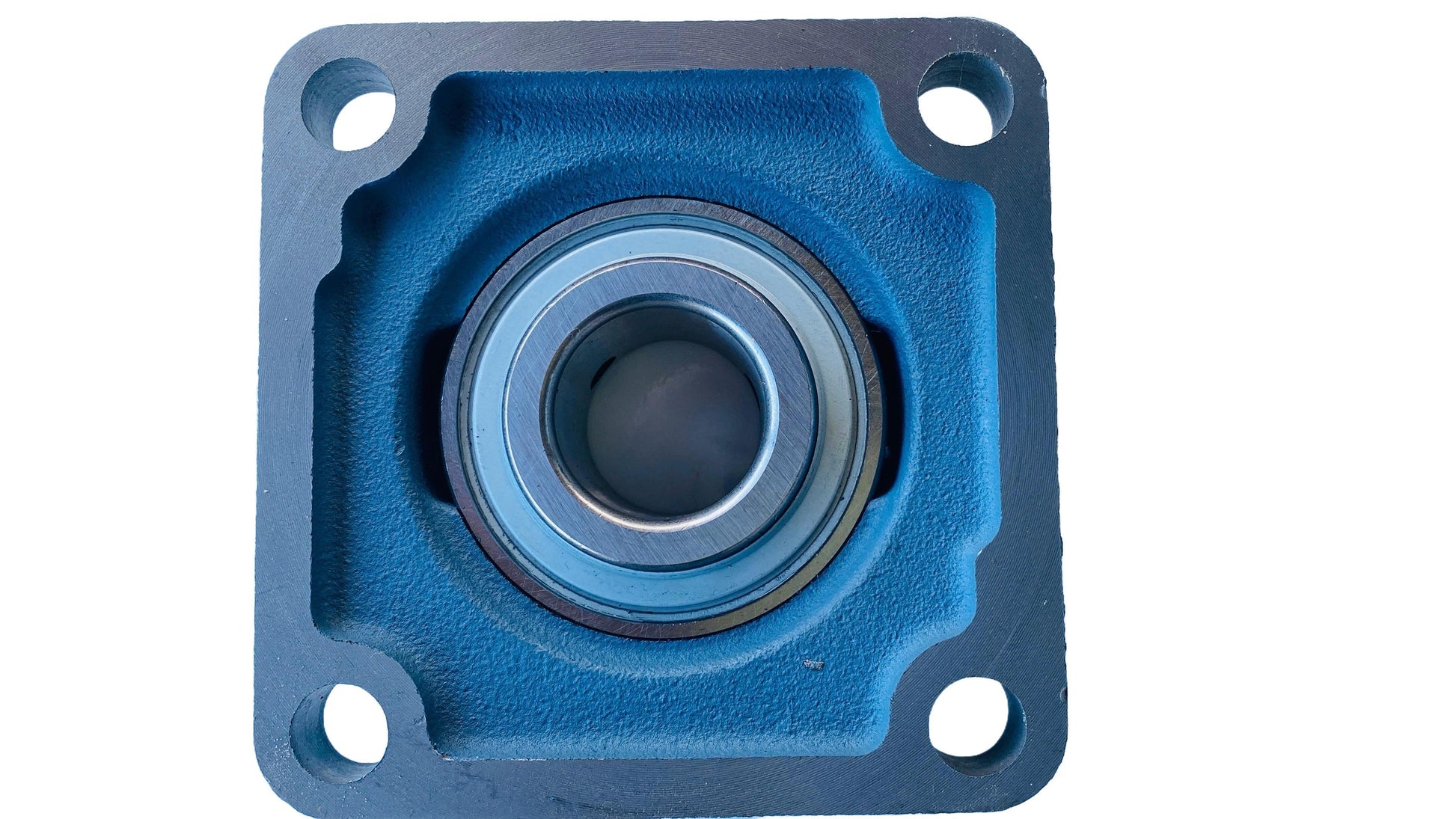

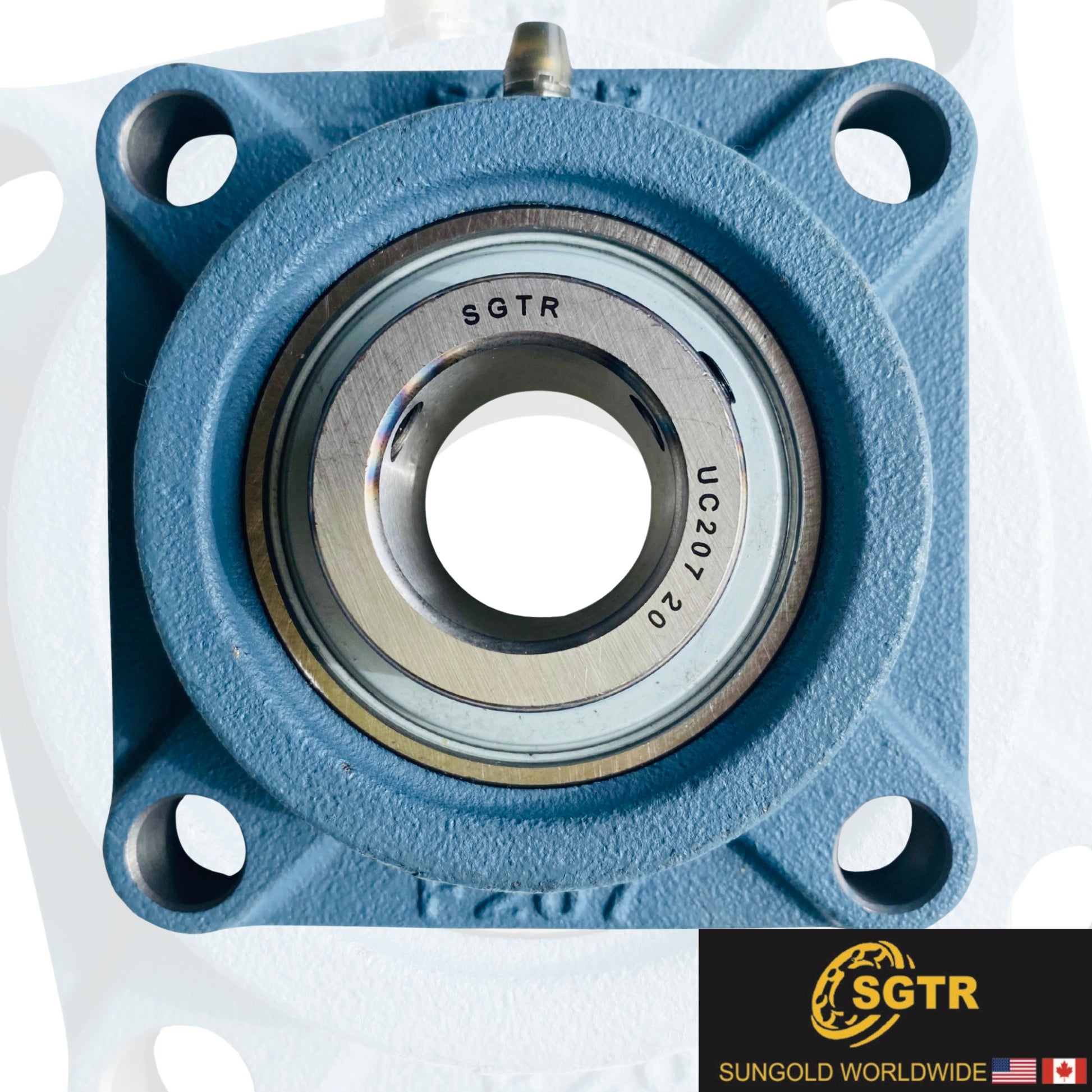

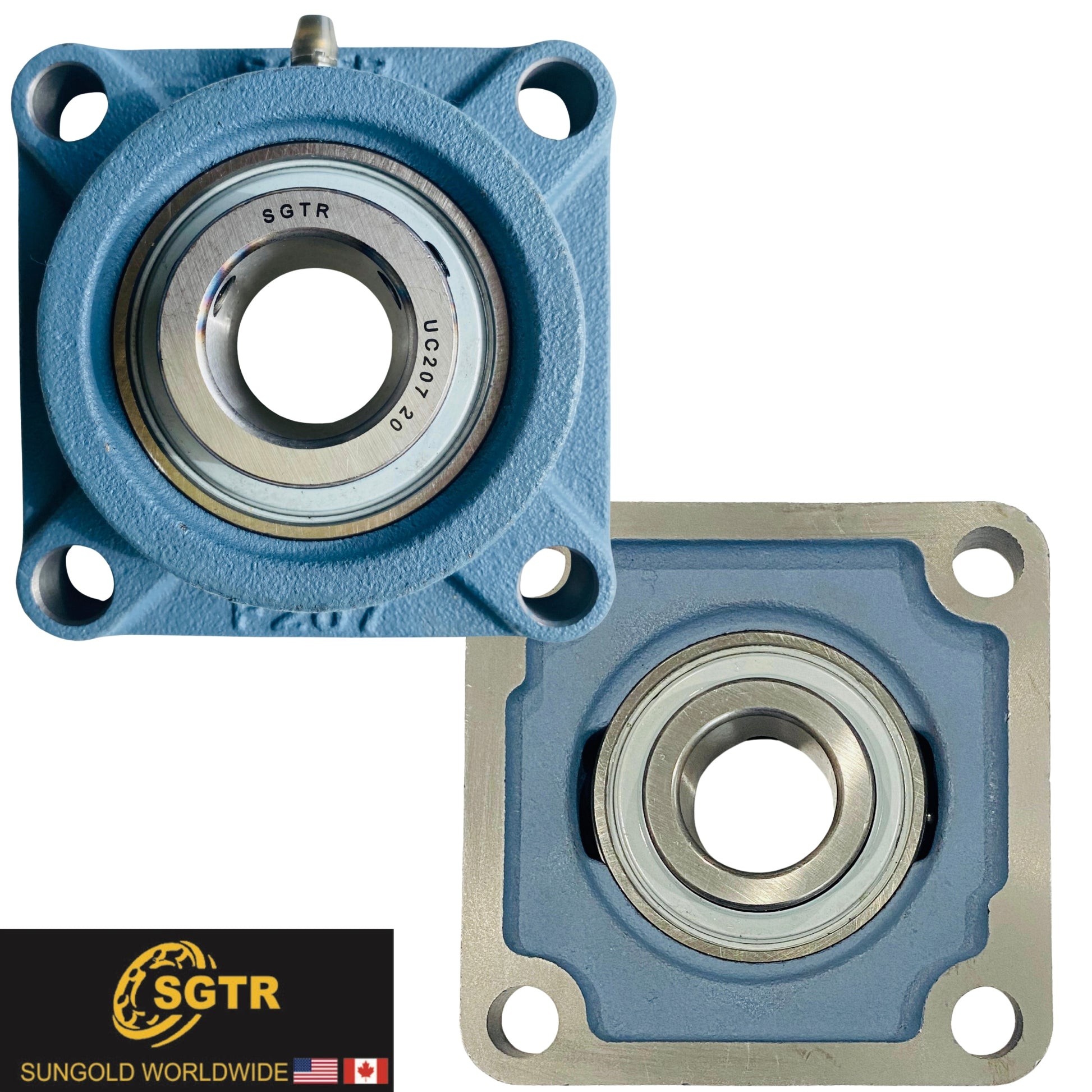

UCF207-20 4-Bolt Square Flange Bearing, 1-1/4" inch Bore

The UCF207-20 four-bolt flange bearing is built for durability and precise alignment in industrial equipment. With a 1-1/4 inch bore size, this mounted bearing unit is commonly used in conveyors, processing machinery, and heavy-duty applications.

- Premium-grade quality from a USA-based company
- Available at a fraction of leading global brand prices
- Fast USA shipping with bulk order discounts

Specifications:

• Model: UCF207-20 Four-Bolt Flange Bearing
• Bore Size/ Inner Diameter: 1-1/4" Inch
• Housing Material: HT200 Cast Iron
• Insert Bearing Material: AISI 52100 Chrome Steel
• Overall Length: 4-39/64"
• Bolt Hole to Bolt Hole: 3-5/8"
• Lubrication: Chevron SRI-2 Grease
• Static Load: 3,496 lbf
• Dynamic Load: 5,775 lbf
• Speed Limit: 4,500 RPM
• Weight: 3.3 lb

Interchange (for reference only)

Complete unit (UCF207-20) cross-references

• AMI: UCF207-20
• Browning: VF4S-220
• Dodge: F4B-SC-104
• Fafnir: RCJC-1-1/4 / YCJ-1-1/4
• Link-Belt: F3-U220N
• NSK: UCF207-20S
• NTN: UCF207-104T
• Peer: FHSFJ207-20G
• RHP: SF-1-1/4
• Sealmaster: SF-1-1/4
• SKF: FY-1-1/4-TM

Insert (UC207-20) cross-references

• AMI: UC207-20
• Browning: VS-220
• Dodge: INS-SC-104
• Fafnir: GY1104KRRB
• Hub City: YW250-1-1/4
• IPTCI: UC207-20
• Link-Belt: UG220NL
• NTN: UC207-104D1
• SKF: YAR207-104
• Sealmaster: 2-1-1/4 Insert

Explore More:

• Browse our UCF200 Series Bearings for additional sizes
• View all Flange Bearings for broader options
• Check our Bearing Housings for compatible units

Brand names are used for cross-reference purposes only. SGTR Bearings is not affiliated with the above brands. Always verify dimensions before interchange.
