When it comes to industrial machinery, conveyors, or heavy-duty equipment, choosing the right bearing can make all the difference in performance and longevity. Pillow block bearings (UCP series) are among the most widely used mounted bearings because they combine ease of installation, shaft support, and reliable performance. But with so many sizes and options available, how do you select the correct unit for your application?

At SGTR Bearing, a USA-based supplier, distributor, and manufacturer of premium-grade bearings, we specialize in helping customers choose the right fit. Here’s a step-by-step guide.

What is a Pillow Block Bearing (UCP Series)?

A pillow block bearing consists of two main parts:

  • Housing (cast iron or ductile iron): Provides structural support and mounting points.
  • Insert bearing (chrome steel, set screw or eccentric lock): Handles rotation and shaft loads.

The UCP series is a 2-bolt base design, commonly used across agriculture, conveyors, material handling, HVAC, and general industrial machinery.

🔍 Key Factors to Consider

1. Shaft Size / Inner Diameter (ID)

The most critical step is matching the bearing bore (ID) with your shaft size. For example:

  • UCP204-12 → 3/4” shaft
  • UCP205-16 → 1” shaft
  • UCP211-32 → 2” shaft

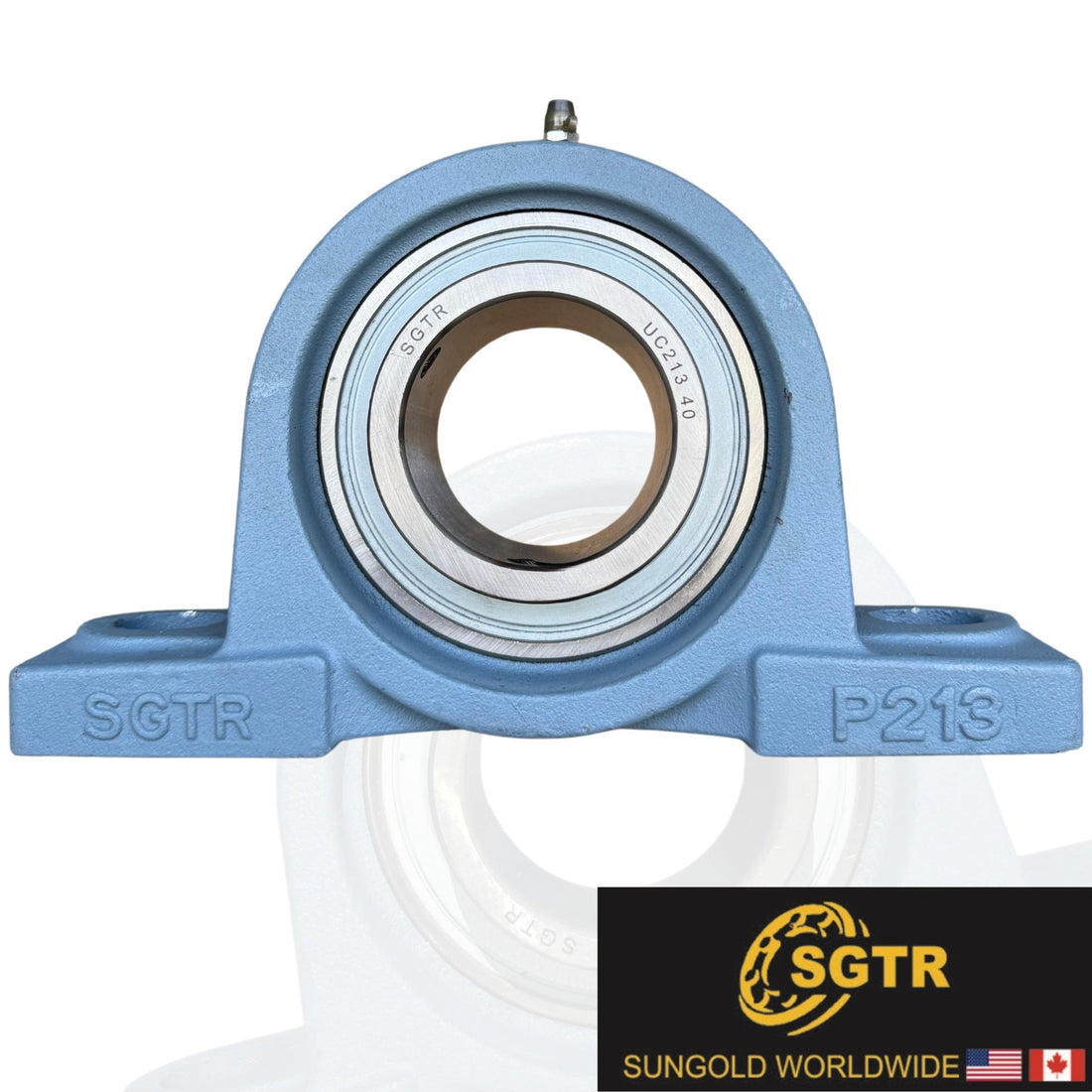

  • UCP213-40 → 2-1/2” shaft

At SGTR Bearing, every product page lists ID, overall height, base-to-center, and bolt spacing to ensure an accurate fit.

2. Load Capacity

Each bearing has static and dynamic load ratings.

  • Static load: Maximum weight a bearing can support at rest.
  • Dynamic load: Maximum weight a bearing can support under continuous operation.

For heavy-duty conveyors or crushers, choose a higher-rated unit like UCP213-40 (Dynamic Load: 12,859 lbf).

3. Operating Speed (RPM)

Check the maximum speed rating to ensure compatibility with your machine. Smaller bore bearings often support higher RPMs (up to 7,000+), while larger bores are optimized for torque and heavy loads.

4. Housing and Insert Material

  • Housing: HT200 Cast Iron (durable, shock-resistant).
  • Insert: AISI 52100 Chrome Steel (high wear resistance).
  • Lubrication: Chevron SRI-2 Grease pre-lubricated inserts for long life.

5. Interchangeability

Every UCP bearing cross-references with major brands (SKF, NTN, Dodge, Sealmaster, etc.). This ensures you can replace existing units without redesigning your machinery. For example:

  • UCP211-32 → SKF YAR211-200, NTN UCP211-200D1, Dodge INS-SC-2

📌 Common Applications of UCP Bearings

  • Agricultural equipment (tractors, tillers, grain conveyors)
  • Material handling and conveyor systems
  • Industrial fans and blowers
  • Packaging and food machinery
  • Mining and construction equipment

 How SGTR Bearing Helps You Choose the Right UCP Bearing

  When you shop with SGTR Bearing, you get:

  • Premium quality at a fraction of global brand prices
  • USA-based support with fast shipping across the U.S., Canada, and Mexico
  • Cross-reference charts to match OEM or competitor bearings
  • Bulk discounts for distributors and bulk repeat buyers

     Explore More

Final Thoughts

Selecting the right Pillow block bearing (UCP series) ensures proper shaft alignment, load handling, and long-term reliability for your equipment. At SGTR Bearing, we make it easy by providing detailed specs, interchange lists, and expert support — so you can order with confidence.

Need help choosing? Contact our team today — we’ll match you with the right UCP bearing for your exact application.
