Installing mounted bearings seems simple, but a single mistake can drastically reduce bearing life, cause premature failure, and even damage the equipment it supports. Whether you’re working with UCP pillow block bearings, UCF 4-bolt flange units, or UCFL 2-bolt flange bearings, following the correct installation process is critical.
In this guide, we break down the 5 most common bearing installation mistakes—and how to avoid them to ensure smooth, long-lasting performance.
1. Not Checking Shaft Diameter & Tolerances
One of the biggest mistakes is installing a bearing on a shaft that is worn, undersized, or not perfectly round. This causes:
- Poor locking on the shaft
- Misalignment
- Excessive vibration
- Premature wear
How to Avoid It:
Always measure the shaft with a caliper and ensure it matches the required size (e.g., 1" for UCP205-16, 1-1/4" for UCF207-20, etc.).
2. Incorrect Bearing Alignment
Misalignment is one of the fastest ways to destroy a bearing insert. If the housing is not aligned:
- Balls inside the insert wear unevenly
- The unit overheats
- The shaft may rub the housing
Solution:
Tighten bolts lightly first, align the shaft, then fully torque down the housing.
3. Over-tightening or Under-tightening Set Screws
Set screws are small but extremely important.
- Over-tightening damages the shaft
- Under-tightening causes the bearing to slip
Recommended fix:
Follow manufacturer torque charts—most 1" to 1-1/4" bearings need around 10–20 in-lb torque.
4. Using the Wrong Lubrication or Over-greasing
Too much grease increases pressure and blows the seal. Too little grease increases friction.
Best practice:
Use a premium NLGI#2 grease (like Chevron SRI-2, which all SGTR inserts come pre-lubricated with) and grease sparingly unless running under heavy load.
5. Installing Bearings Under Load
Never mount a bearing while the shaft is under tension or weight. This can crack the housing or deform the insert.
Fix:
Always support the shaft before installation.
Recommended Bearing Types Based on Application
- UCP Pillow Block Bearings: Best for standard shaft support & conveyor systems

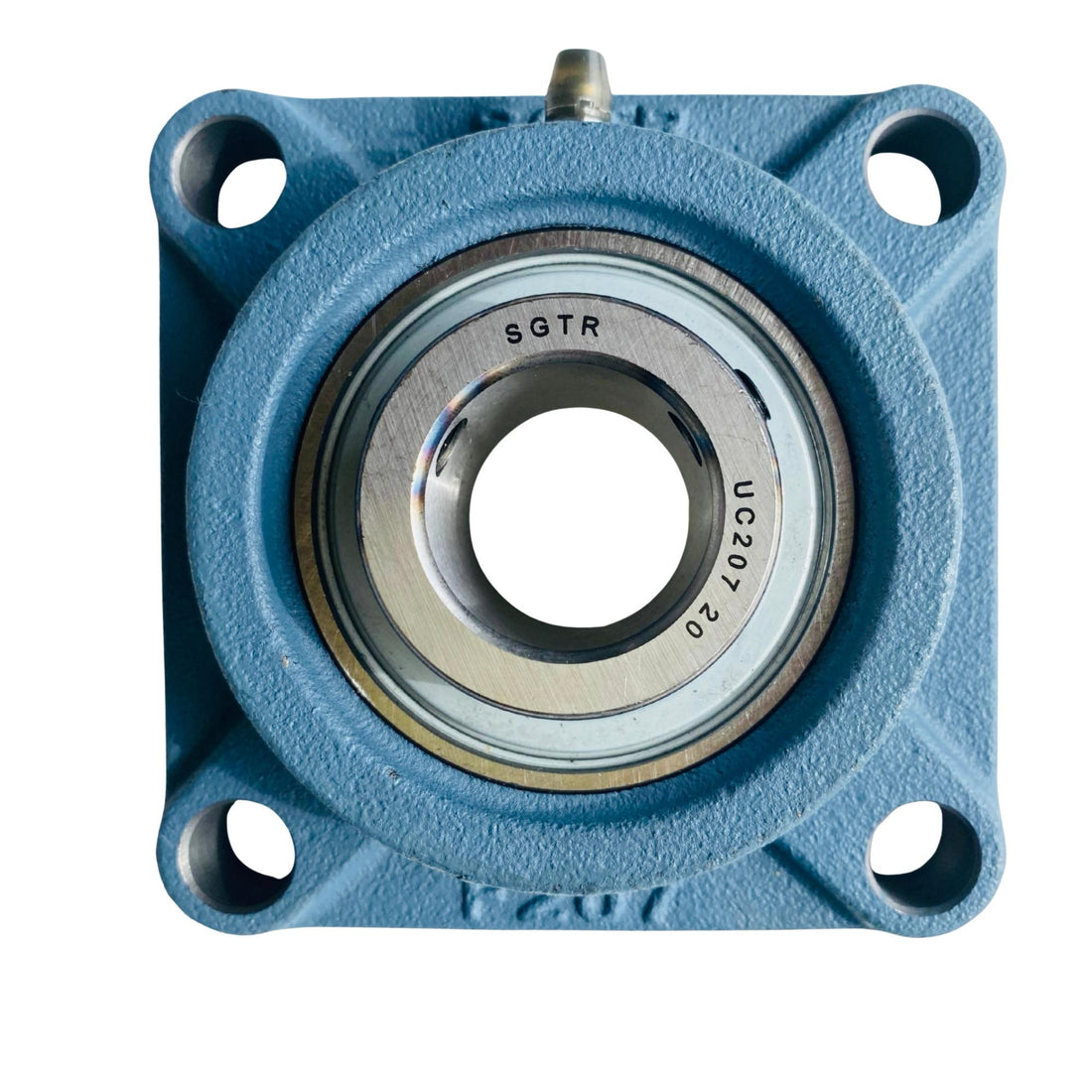

- UCF 4-Bolt Flange: Perfect when stability and rigidity are needed
- UCFL 2-Bolt Flange: Ideal for wall-mount or side-mount applications
- Insert Bearings (UC Series): For replacement inside existing housings
Shop SGTR Mounted Bearings
Improve equipment reliability with premium-grade housings and inserts:
Final Thoughts
Correct installation is just as important as choosing the right bearing. By avoiding these common mistakes, you improve equipment uptime, extend bearing life, and reduce maintenance costs. For premium-quality mounted bearings, SGTR Bearings delivers reliable performance at a fraction of major brand prices.
